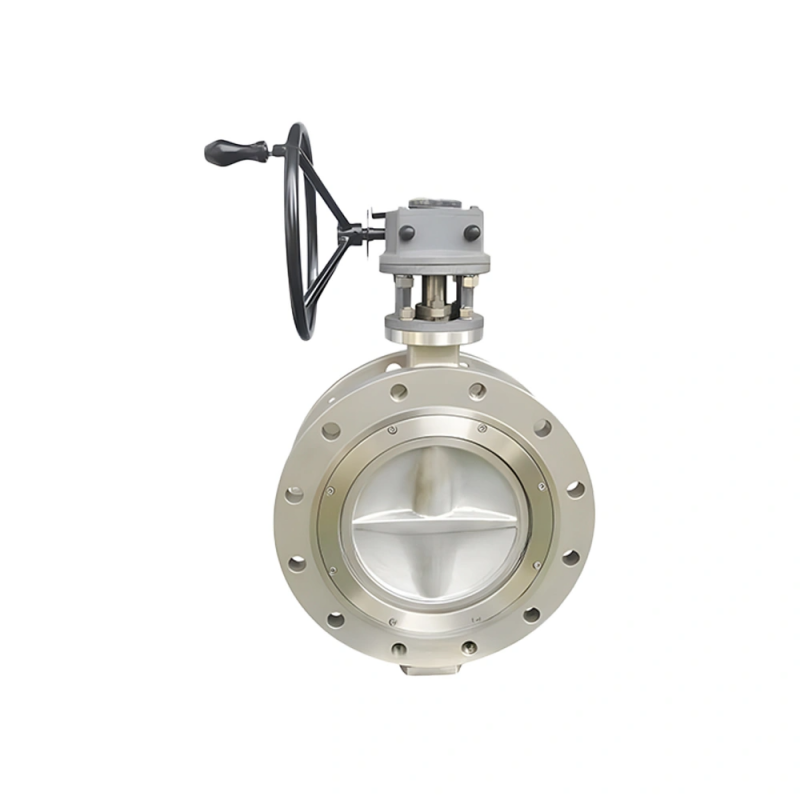

High Performance Butterfly Valves
  • High Performance Butterfly Valves
  • High Performance Butterfly Valves

High Performance Butterfly Valves

Product Attribute: Product Description:
Nominal Diameter: DN65~700mm, NPS 2-1/2”~28”
Nominal Pressure: CL150~300LB
Applicable Media: Gas, Water, and Oil, etc.
Applicable Temperature: -30℃~+150℃
Working Temperature: -20℃~80℃
Connection Type: Wafer Connection
Main Materials: 304, 316, Carbon Steelv
INFO@TYFLUIDGROUP.COM

Specification

Body Material WCB
Nominal Pressure PN16
Nominal Diameter DN500
End Connection RF
Operation type Worm gear
Test & Inspection API 598/ISO 5208
Design Standard API 609

Product Overview

  • Nominal Diameter: DN65~700mm, NPS 2-1/2”~28”
  • Nominal Pressure: CL150~300LB
  • Applicable Media: Gas, Water, and Oil, etc.
  • Applicable Temperature: -30℃~+150℃
  • Working Temperature: -20℃~80℃
  • Connection Type: Wafer Connection
  • Main Materials: 304, 316, Carbon Steel

Valve Details

  • High Performance Butterfly Valves

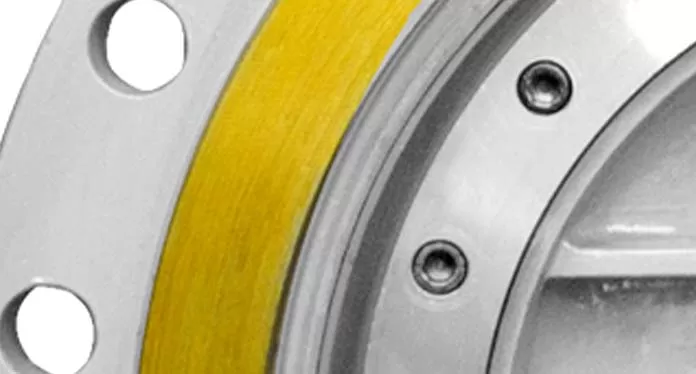

    RTJ Sealing Surface for Flange Connection

    TIANYU butterfly valve adopts the design of multi-layer disc sealing ring, sealing by the inside graphite, applied for low and middle pressure, asrecycle water, swage treatment, city building, etc.

  • High Performance Butterfly Valves

    Standard Bolts & Nuts

    TIANYU butterfly valve adopts the standard bolts and nuts. It could extend the valve longer sevice life
