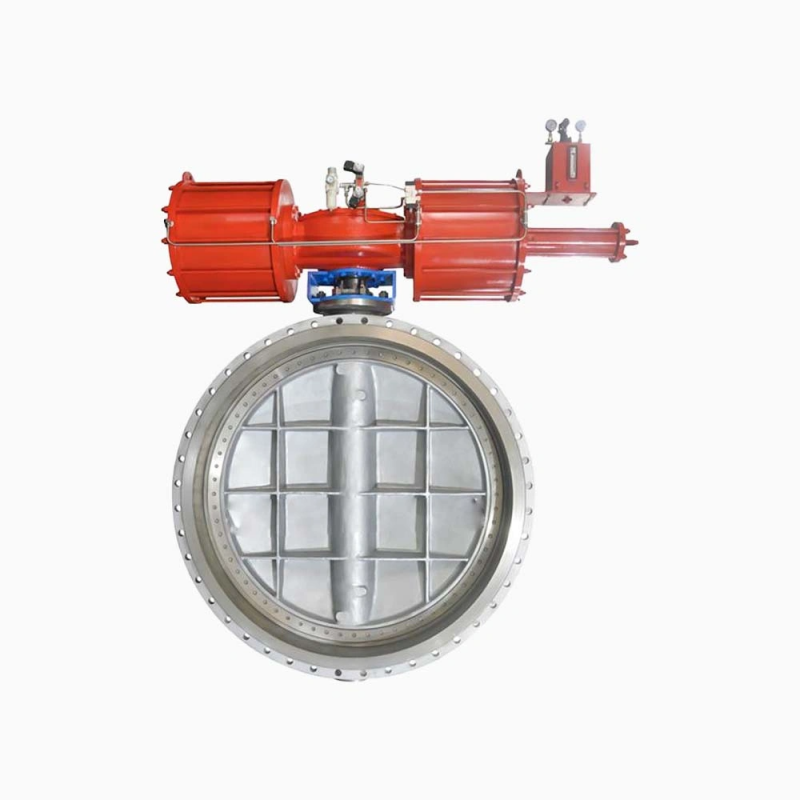

Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve
  • Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve
  • Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve
  • Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve
  • Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve

Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve

Product Attribute: Product Description:
Nominal Diameter: DN1800
Bore: Full Bore
Nominal Pressure: PN16
Material: CF8M
Operation: Pneumatic Actuator and Manual Hydraulic Operation
Design Standard: API609
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: ASME/ANSI B16.47
Top Flange: ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Valve Size DN50-1600, NPS 2-60
Pressure Rating N1-100, 150LB-600LB
Materials WCB, LCB, LC1, CF8, CF8M, CF3, CF3M, 4A, 5A, WC6, WC9, C95800
Design and Manufacturing Standards API 609, EN 593
Face to Face Standards API 609, EN 558, ISO 5752
Flange Size Standards ASME B 16.5, ASME B16.47, EN 1092-1, GOST 54432, JIS 2220
Stress Test Standards API 598, EN 12266-1
Fire Safety Test Standard API 607
Quality/Product Certifications ISO9001, ISO14001, ISO18001
Unorganized Emissions ISO 15848-1, API 622
National ACE NACE MR0175, NACE MR0103
Valve Operator Options hand wheel, worm wheel, electric actuator, pneumatic actuator, hydraulic actuator.
Shutdown Level API 598 (Zero leakage)
Aperture full aperture
Process Connection Types sandwich, flange, lug, welding

Valve Details

  • Cast Steel CF8M DN1800 PN16 RF Flange Triple Offset Metal-To-Metal Butterfly Valve

    Petrochemical industry

    sed for high-precision fluid control of various chemical media in oil refineries and chemical production, especially under high temperature and high-pressure conditions.
