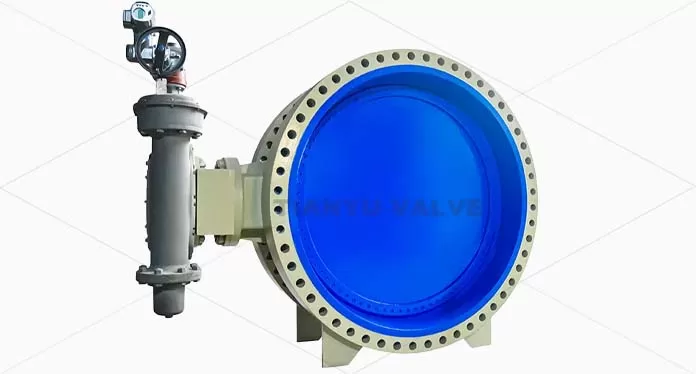

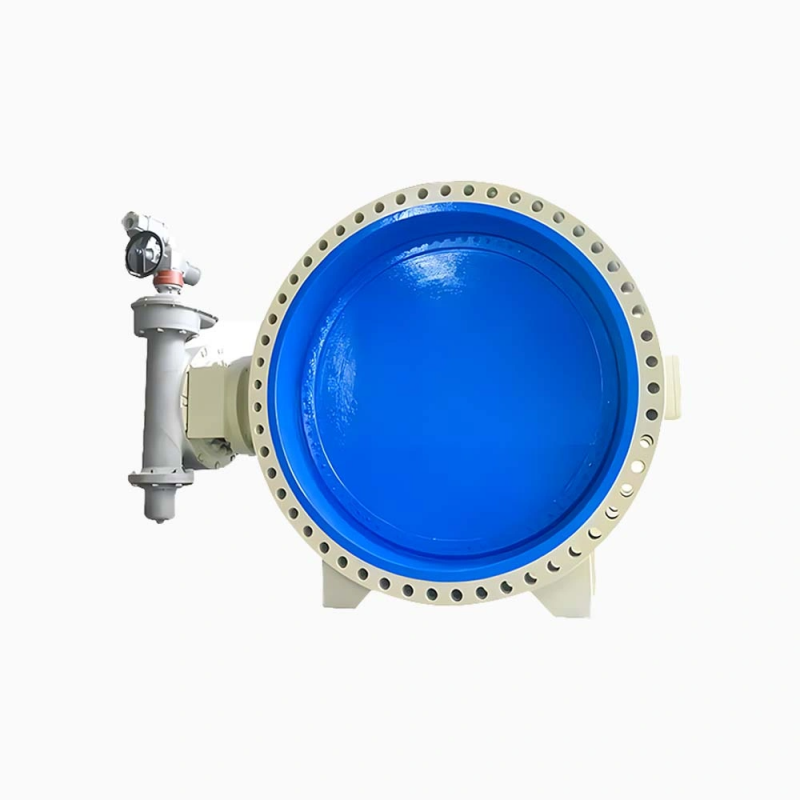

Triple Offset Butterfy Valves

Product Attribute: Product Description:
Size: DN2000 (80 inches)
Pressure Rating: Class 300
Operating Temperature: -29°C to +350°C
Connection Type: Flanged Connection
Valve Body Material: WCB+STL.21
Sealing Material: 316+Graphite
Operation Type: Electric
Design Standard: Compliant with API 609 or AMSE 16.34 International Standards
Testing and Inspection Standard: Compliant with API 598 Standard

INFO@TYFLUIDGROUP.COM

Product Overview

The triple-eccentric flanged butterfly valve stands out in the modern industrial fluid control field with its superior regulation performance and sealing reliability. It adopts advanced eccentric principles and sealing technology, effectively reducing friction between the valve disc and seat through three precisely designed eccentric structures, thus ensuring long-term durability and stability. This butterfly valve not only boasts excellent mechanical properties but also enjoys wide applicability, meeting the fluid control needs of various industries such as petroleum, chemicals, natural gas, power, metallurgy, heating, and water supply. It can handle media including but not limited to water, oil, steam, acidic or alkaline fluids.

Valve Details

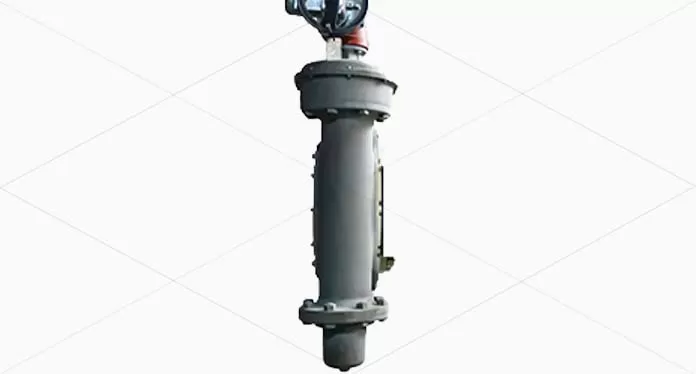

Yoke Design

TIANYU butterfly valve adopts the design of top flange yoke as standard ISO5211. It is more beautiful, and also convenient to assemble the actuator.

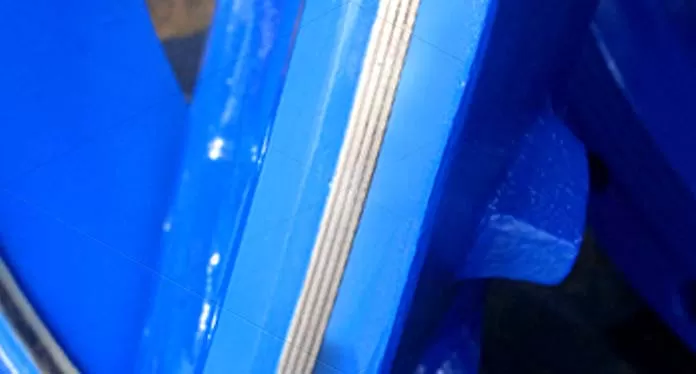

Multilayer-304+graphite Sandwich Design

TIANYU butterfly valve adopts the design of multi-layer disc sealing ring, sealing by the inside

graphite, applied for low and middle pressure, as recycle water, swagetreatment, city building, etc.

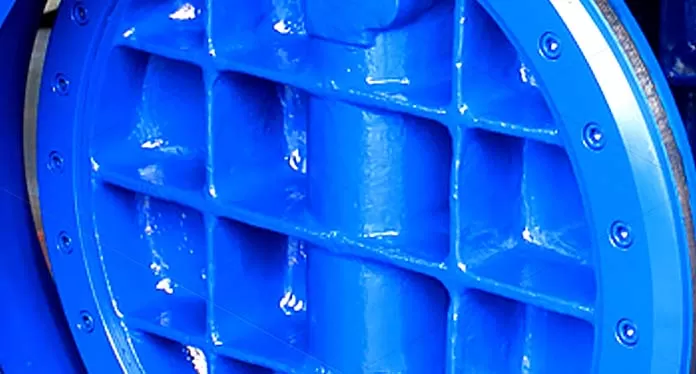

Turtle Back Disc Design

TIANYU butterfly valve adopts the design of turtle back disc, not only strengthening the disc to be more strong, but also making it looks very beautiful.
