Straight-Pattern Globe Valve
  • Straight-Pattern Globe Valve
  • Straight-Pattern Globe Valve
  • Straight-Pattern Globe Valve
  • Straight-Pattern Globe Valve

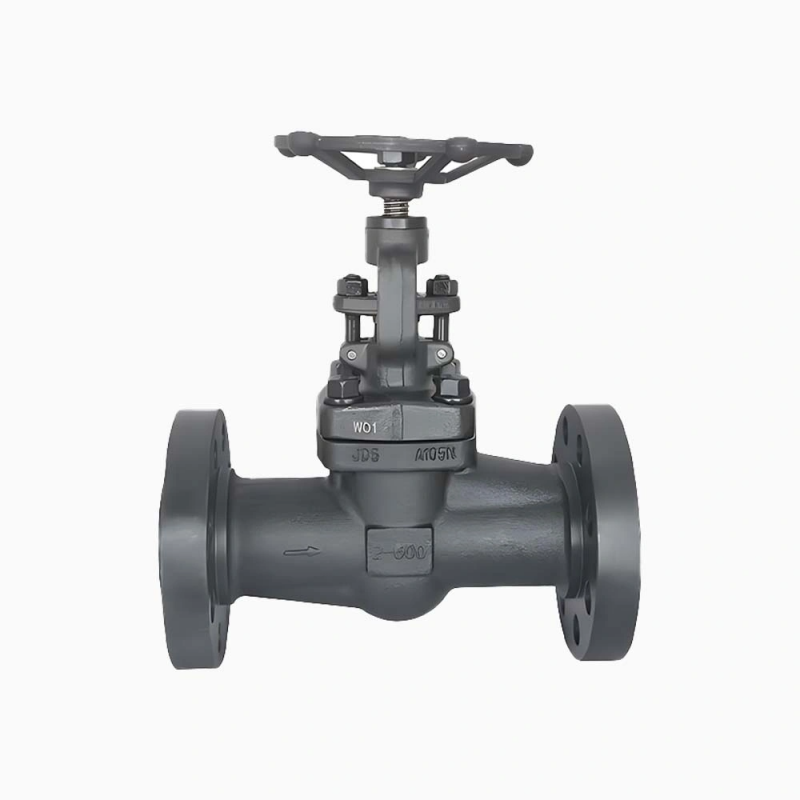

Straight-Pattern Globe Valve

Product Attribute: Product Description:
Nominal Diameter:2”
Bore: Full Bore
Nominal Pressure:600LB
Material: WCB
Operation: Handwheel
Design Standard: API602/API 623
Test/Inspection: API598

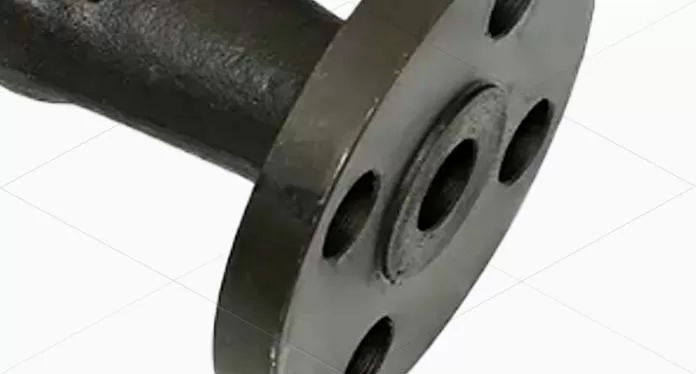

End Connection: RF Flange
Flange standard: ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211
PS: We can manufacture valves to customers’ requirements.
INFO@TYFLUIDGROUP.COM

Specification

Cast steel globe valve model: J41H J41Y Cast steel stop valve nominal
Cast steel stop valve nominal		 Cast steel stop valve operating pressure: 1.0MPA -1.6MPA
Cast steel stop valve connection
method: flange connection		 Cast steel stop valve form: manual Cast steel stop valve main function: acting as a switch
Cast steel stop valve uses medium:
water, oil, steam		 Cast steel stop valve material: WCB
standard carbon steel		 Cast steel stop valve main function: acting as a switch
Cast steel stop valve main function: acting as a switch

Product Overview

  • The product complies with the national standard GB12235, with reasonable structure, reliable sealing, excellent performance and beautiful appearance.
  • The sealing surfaces of the valve disc and valve seat are made of stellite cobalt-based hard alloy surfacing, which is wear-resistant.
  • The valve stem has been tempered and surface nitrided, and has good corrosion resistance and scratch resistance.
  • Various piping flange standards and flange sealing surface types can be adopted to meet various engineering needs and user requirements.
  • The valve body has a complete range of materials, and the packing and gaskets are reasonably selected according to actual working conditions or user requirements, and can be applied to various pressure, temperature and medium working conditions.
  • The inverted seal is made of threaded seal seat or body surfacing of austenitic stainless steel. The inverted seal is reliable. Packing replacement and maintenance can be performed without stopping the machine, which is convenient and quick without affecting the system operation.

Valve Details

  • Straight-Pattern Globe Valve

    FEP lining

    FEP material has extremely corrosion resistance and chemical stability;Applicable media:Any organic solvent or reagent, dilute or concentrated inorganic acid, alkali, ketone, aromatic hydrocarbon, chlorinated hydrocarbon,etc.

  • Straight-Pattern Globe Valve

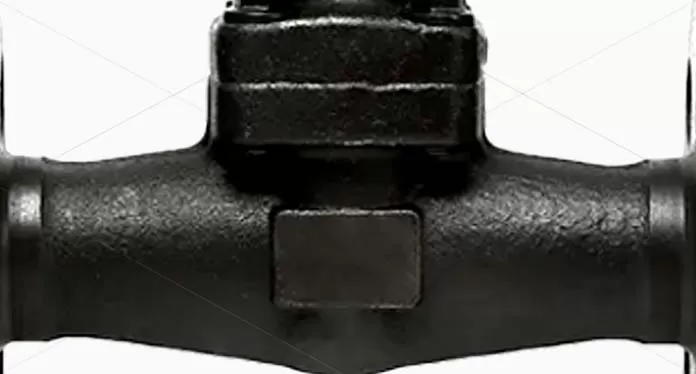

    Flow direction

    The globe valve only allows one-way flow of medium and has directionality during installation. The flow direction of medium shall be consistent with the arrow direction shown on the valve body.
