Specification

TIANYU 16” 600LB A105 Carbon Steel Top-entry Ball Valve with Ring Joint Face Flange

I. Product Overview

TIANYU 16” 600LB top-entry ball valve is a heavy-duty flow control solution engineered for large-diameter, high-pressure industrial pipelines. Crafted from A105 carbon steel with a ring joint face (RJF) flange connection, it combines robust structural integrity with maintenance efficiency—critical for sectors like oil & gas, refining, and power generation. Designed to operate at 600LB (10.0MPa) and -29℃~427℃, it complies with API 6D and ASME B16.34 standards, delivering tight shut-off for media such as crude oil, natural gas, high-pressure steam, and light chemicals. The top-entry design allows in-line maintenance, minimizing downtime in critical systems where valve removal is impractical.

II. Key Attribute Specifications

Category	Details
Size	16” (DN400), engineered for large-flow pipelines requiring high-capacity control (e.g., main transmission lines).
Pressure Rating	600LB (PN100, 10.0MPa), suitable for high-pressure systems like offshore manifolds and refinery process lines.
Body Material	A105 carbon steel (ASTM A105), forged for high strength (tensile strength 485–655MPa) and resistance to pressure fatigue.
Trim Components	– Ball: A105 with stellite hardfacing (Co-Cr alloy) for wear resistance. – Seat: Metal-to-metal (stellite-coated) or reinforced PTFE for high-temperature sealing. – Stem: A105 with nitride treatment for corrosion and galling resistance.
Connection	Ring joint face (RJF) flange (ASME B16.5), using octagonal/oval ring gaskets for metal-to-metal sealing under high pressure.
Actuation	Gear-operated handwheel (standard) or optional electric/pneumatic actuators (ISO 5211 mounting) for automated control.
Temperature Range	-29℃~427℃ (metal seats) or -29℃~200℃ (PTFE seats), adapting to high-temperature media like superheated steam.

Product Overview

III. Feature Description

Top-entry Design: The valve’s internals (ball, seat, stem) are accessible via a removable top bonnet, eliminating the need to disconnect flanges or remove the valve from the pipeline during maintenance. In offshore platforms or buried pipelines, this reduces shutdown time by 60% compared to side-entry valves, critical for minimizing production losses.
A105 Carbon Steel Performance: A105’s forged construction eliminates internal defects (porosity, cracks), ensuring structural integrity under 600LB pressure. Its high-temperature stability (up to 427℃) makes it suitable for steam lines and hydrocarbon service, outperforming cast steel in cyclic pressure environments.
Ring Joint Face Sealing: RJF flanges use metal ring gaskets (e.g., ASTM A182 F304) seated in precision-machined grooves. When bolted, the gasket deforms to create a metal-to-metal seal, withstanding 10.0MPa pressure and temperature fluctuations—ideal for high-pressure gas transmission where leakage risks are critical.
Metal-to-Metal Seats: Stellite-hardfaced ball and seat surfaces provide fire-safe sealing (per API 607) and resistance to abrasive media (e.g., gas with entrained sand). The interference fit between ball and seat ensures tight shut-off, even after thousands of cycles in refining or chemical processes.
Gear-Operated Handwheel: A worm gear reducer amplifies torque, allowing smooth operation of the large-diameter valve under full pressure. The handwheel features position indicators (open/close) for visual confirmation, enhancing safety in manual control scenarios.

IV. Manufacturing Processes

Forging & Heat Treatment: A105 carbon steel billets undergo hot forging (1100–1200℃) to form the valve body and bonnet, ensuring material density and grain alignment. Post-forging, components are normalized (870–920℃, air-cooled) to relieve internal stresses, preventing deformation under pressure.
Precision Machining: CNC turning and milling centers shape the body, flange faces, and internal flow paths to tight tolerances (±0.05mm). RJF flange grooves are machined to ASME B16.5 specs, ensuring compatibility with standard ring gaskets. The ball’s sealing surface is ground to Ra ≤0.8μm before stellite hardfacing (applied via plasma welding).
Assembly: Internals (ball, seat, stem) are installed through the top bonnet, with the stem guided by anti-blowout bearings. Metal seats are lapped to the ball for uniform contact, while packing (graphite-impregnated braid) is compressed around the stem to prevent leakage. The bonnet is bolted to the body with torque-controlled fasteners to ensure even loading.
Testing: Each valve undergoes rigorous validation:
- Hydrostatic Shell Test: 1.5×600LB (15.0MPa) for 30 minutes to verify body integrity.
- Gas Seat Test: 1.1×600LB (6.6MPa) with nitrogen, ensuring leakage ≤0.1×DN mm³/min (API 598 Class V).
- Fire Test: API 607 5th Edition compliance, verifying sealing after simulated fire exposure.

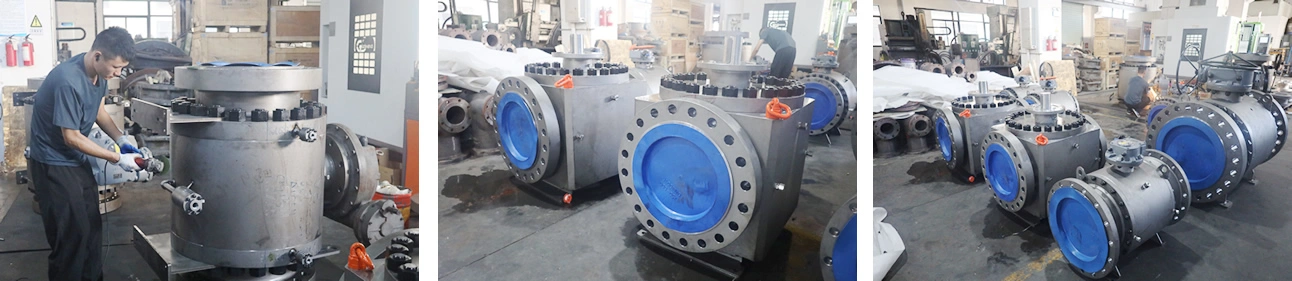

Valve Details

V. Product Advantages

Maintenance Efficiency: Top-entry design enables in-line repair of seats, ball, or stem, reducing downtime from days to hours in critical systems (e.g., refinery main lines). This lowers lifecycle costs by 40% compared to side-entry valves requiring pipeline shutdowns.
High-Pressure Reliability: A105 steel and RJF flanges ensure stable performance at 600LB, with metal-to-metal seats maintaining sealing integrity under pressure surges—vital for offshore oil pipelines where leaks risk environmental damage.
Fire Safety: Stellite hardfacing and graphite packing meet API 607 fire standards, preventing catastrophic media release during high-temperature events. This compliance is mandatory for oil & gas facilities under industry regulations.
Flow Efficiency: Full-port design (bore = 16”) minimizes pressure drop, reducing pump energy consumption in large-flow systems (e.g., water injection lines in oil fields) by up to 15%.
Cost-Effectiveness: A105 carbon steel offers lower material costs than alloy steel while meeting 600LB requirements for non-corrosive media, balancing performance and budget in industrial applications.

Application

VI. Product Applications

Oil & Gas Transmission: Controls flow in large-diameter main lines (crude oil, natural gas) and offshore manifolds. RJF flanges and metal seats withstand high pressure and seawater exposure, ensuring reliable operation in subsea or coastal facilities.
Refining & Petrochemicals: Manages high-temperature hydrocarbons in distillation columns and catalytic cracking units. Top-entry design simplifies maintenance in plants where valve removal would disrupt continuous processes.
Power Generation: Regulates high-pressure steam flow in boiler feedwater lines and turbine systems. A105 steel’s temperature resistance (up to 427℃) and tight sealing prevent energy loss in power plants.
Industrial Water Injection: Controls large-volume water flow in enhanced oil recovery (EOR) systems. Full-port design minimizes pressure drop, optimizing pump efficiency in water flooding operations.

TIANYU 16” 600LB top-entry ball valve: A105 steel, RJF flange, metal seats. Reliable for high-pressure oil, gas, steam. Easy in-line maintenance, fire-safe.

Customize with: 316 stainless steel trim for corrosion resistance, PTFE seats for chemical service, electric actuators with smart controls, or extended bonnets for cryogenic media. Tailored to your high-pressure system needs.
