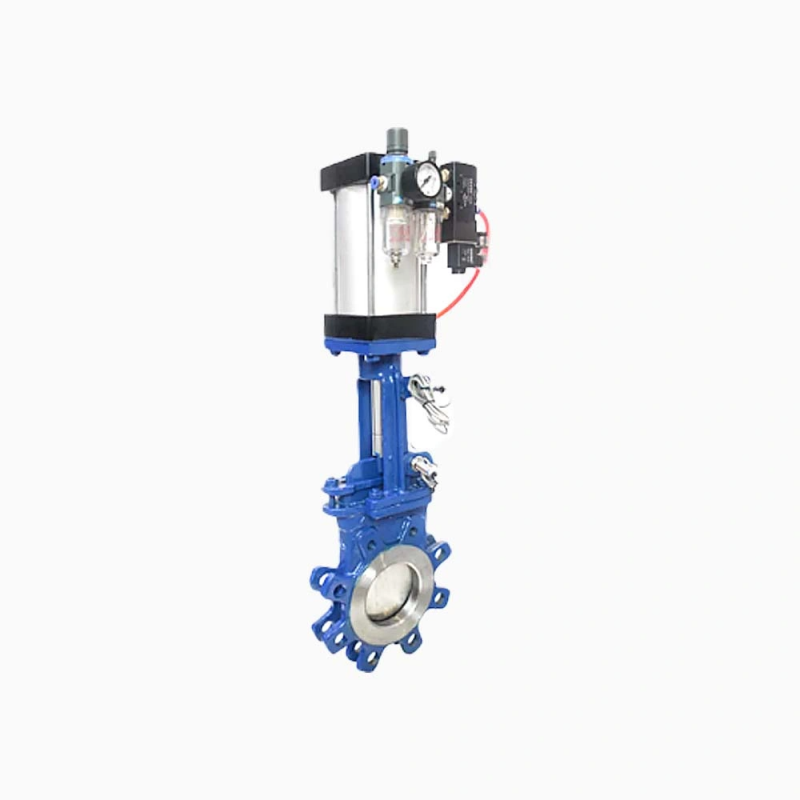

Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator
  • Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator
  • Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator
  • Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator
  • Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator

Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator

Product Attribute: Product Description:
Nominal Diameter: DN100
Bore: Full Bore
Nominal Pressure: PN16
Material: WCB
Operation: Pneumatic Actuator
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: LUG
Lug standard: EN1092-1,ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Size Range 2″-48″(50mm-1200mm)
Temperature Range ‘-29 to 180 degree
Pressure Ratings 2 – 24″ (50 – 600mm) 150psi
30 – 36″ (750 – 1200mm) 100psi
Disc Materials Stainless Steel,Hastelloy C, Monel,etc
Design Standard MSS SP-81，ASME B16.34
Testing Standard MSS SP-151
Face to Face MSS SP-81
Applications Power, Mining, Pulp & Paper, Cement, Carbon Black, Chemical,Wastewater
Body Materials Cast Iron, Ductile Iron, Carbon Steel,Stainless Steel,Nickel Aluminum Bronze,etc
Shutoff Rating Bidirectional or Unidirectional,Soft seated (zero Leak)metal seated(MSS SP-151)
Flange Drilling ASME B16.5、EN 1092、GOST 33259
Certifications CE、EAC、SIL3、ISO 19001
Operation Wench, Worm Gear, Electric, Pneumatic,etc

Valve Details

  • Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator

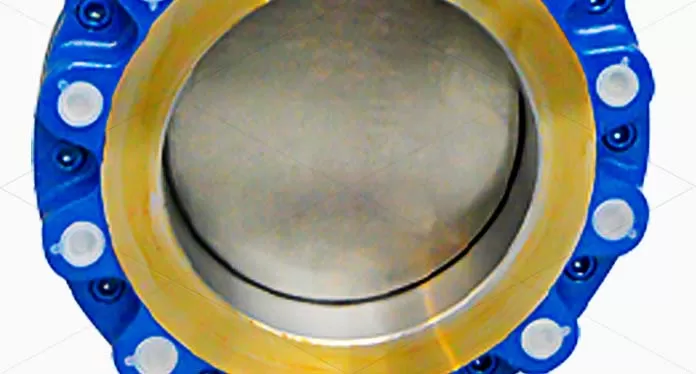

    High quality casting disc

    Accurate processing the disc to ensure excellent sealing.Many big size disc we also have them in stock to ensure short delivery time

  • Cast Steel WCB DN100 PN16 LUG END Knife Gate Valve With Pneumatic Actuator

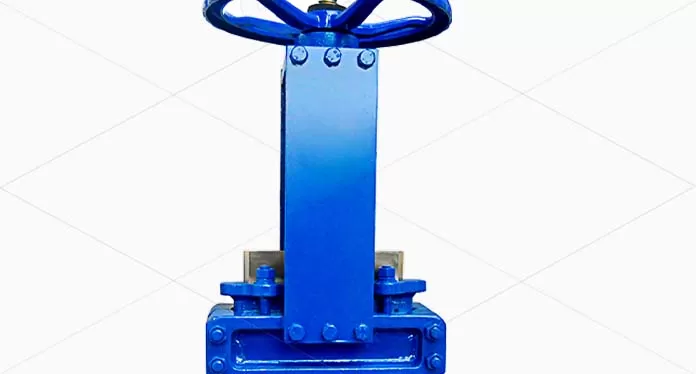

    Yoke

    New design beautiful yoke
