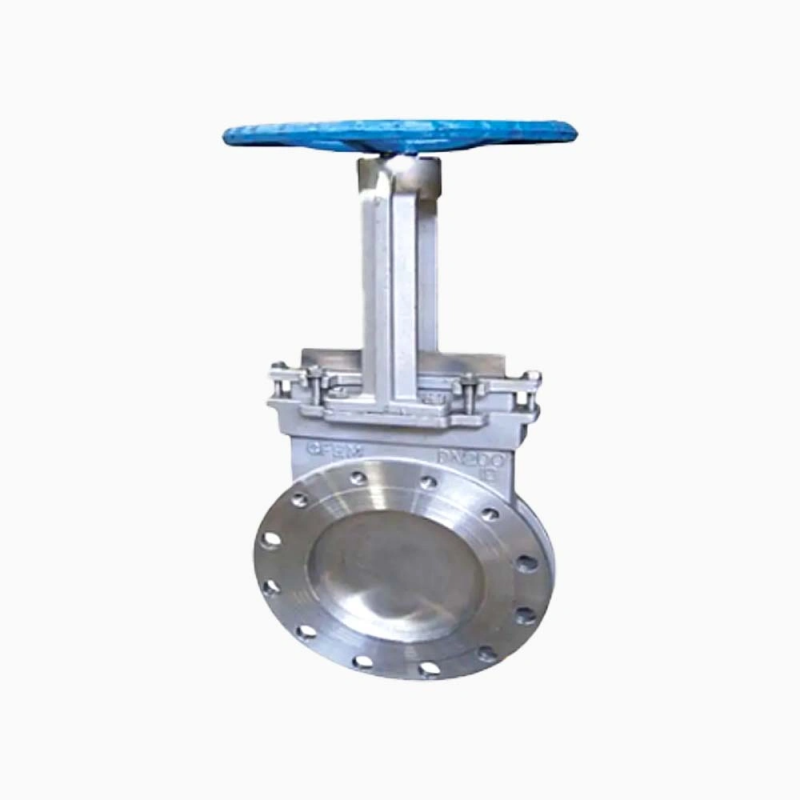

Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel
  • Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel
  • Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel
  • Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel
  • Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel

Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel

Product Attribute: Product Description:
Nominal Diameter: DN300
Bore: Full Bore
Nominal Pressure: PN16
Material: CF8
Operation: Handwheel
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: RF Flange
Flange standard: EN1092-1,ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Size Range 2″-48″(50mm-1200mm)
Temperature Range ‘-29 to 180 degree
Pressure Ratings 2 – 24″ (50 – 600mm) 150psi
30 – 36″ (750 – 1200mm) 100psi
Disc Materials Stainless Steel,Hastelloy C, Monel,etc
Design Standard MSS SP-81，ASME B16.34
Testing Standard MSS SP-151
Face to Face MSS SP-81
Applications Power, Mining, Pulp & Paper, Cement, Carbon Black, Chemical,Wastewater
Body Materials Cast Iron, Ductile Iron, Carbon Steel,Stainless Steel,Nickel Aluminum Bronze,etc
Shutoff Rating Bidirectional or Unidirectional,Soft seated (zero Leak)metal seated(MSS SP-151)
Flange Drilling ASME B16.5、EN 1092、GOST 33259
Certifications CE、EAC、SIL3、ISO 19001
Operation Wench, Worm Gear, Electric, Pneumatic,etc

Valve Details

  • Cast Steel CF8 DN300 PN16 RF Flange Knife Gate Valve With Handwheel

    Pressure Ratings

    2 – 24″ (50 – 600mm) 150psi
    30 – 36″ (750 – 1200mm) 100psi
