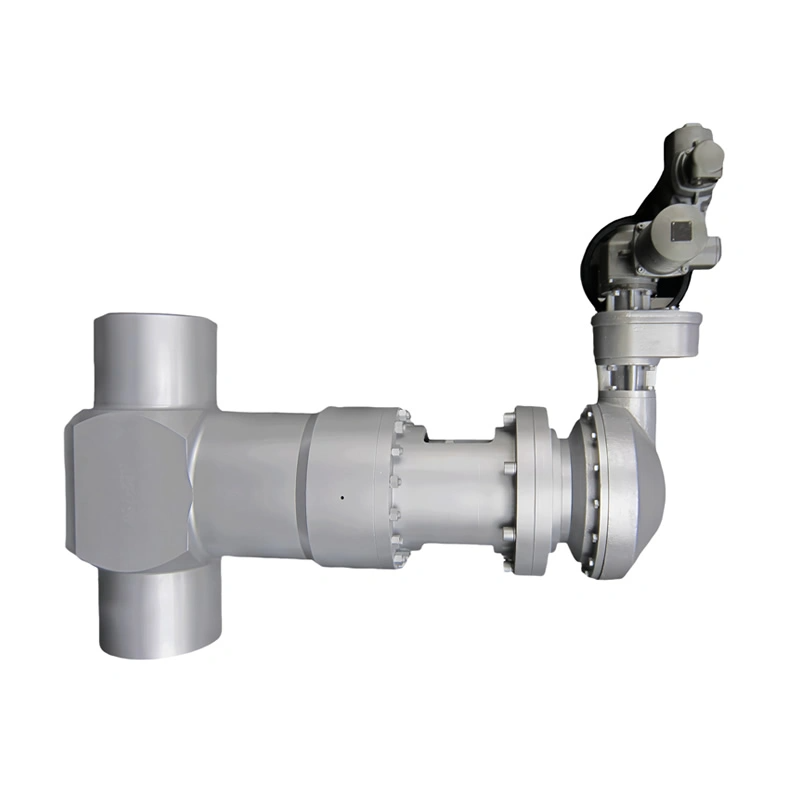

API 600 Pressure Seal Gate Valve for High-Power Applications (Class 600-2500, DN50-900)

III. Core Features: Self-Sealing Technology & Condition Adaptability

1. Advantages of Pressure Self-Sealing Structure
   The bonnet-body wedge-type sealing design increases sealing force with medium pressure, enhancing reliability at higher pressures. Compared to traditional flanges, this structure reduces bolt quantity by 80%, eliminating leakage risks from bolt fatigue or temperature differences—ideal for frequent start-stop or fluctuating pressure conditions. Test data shows ≤0.01% leakage rate under Class 2500, meeting bubble-tight standards (API 598).
2. Wide-Range Operational Adaptability

• Pressure Coverage: From Class 150 low-pressure pipes to Class 2500 ultra-high-pressure systems (e.g., power station main steam pipes, wellheads), compatible pressure classes via material/seal optimization;
• Temperature Adaptation: Low-temperature steel for LNG (-196℃), high-temperature alloy steel for supercritical boilers (540℃), extended stems prevent frosting in cryogenic scenarios;
• Medium Compatibility: Stellite-hardfaced seals enhance erosion resistance 3x, suitable for particle-laden steam, high-viscosity，and acidic media.

3. Multi-Mode Operation & Installation Flexibility
   Operation mechanisms support manual emergency use and automation integration: manual types feature handwheels (DN600 operation torque ≤300N・m); electric types offer explosion-proof actuators (Ex d IIB T4) with 4~20mA feedback for DCS systems. Connections comply with global standards, with flanges interchangeable across ANSI, JIS, DIN, and welded ends precision-machined per ANSI B16.25 for on-site efficiency.

IV. Manufacturing Processes: Precision Control from Material to Finished Product

1. Raw Material Selection & Pretreatment

• Castings use resin sand precision casting, stress-relieved by high-temperature annealing; critical areas (e.g., seat seals) undergo ultrasonic testing (UT) to ensure no shrinkage/slag inclusions;
• Forgings (A105, F91) employ electroslag remelting with forging ratio ≥5:1, fine-grained structure, 25% higher tensile strength than cast steel, verified by spectral analysis;
• Stainless steel (CF8M) undergoes solution treatment, passes intergranular corrosion testing (ASTM A262 E method) for seawater/hydrochloric acid environments.

2. Precision Machining & Surface Treatment

• Valve body sealing surfaces are 5-axis CNC ground to ≤0.01mm flatness and Ra≤0.8μm roughness for precise gate-seat fit;
• Sealing surfaces use automatic plasma Stellite surfacing (≥3mm thickness), quenched to ±2HRC hardness uniformity, checked for cracks via fluorescent penetrant testing (PT);
• Valve stems are high-precision ground to ≤0.05mm/m straightness, paired with graphite packing or bellows seals to reduce operation friction and extend seal life.

3. Full-Process Quality Control System

• Pressure Testing: Each valve undergoes 1.5x design pressure shell strength (30-min hold) and 1.1x pressure sealing (15-min hold) tests, with helium mass spectrometer leak detection for micro-leaks;
• Nondestructive Testing: 100% radiography (RT, Grade II) for welds, 100% magnetic particle (MT) for castings, 100% ultrasonic (UT) for forgings to ensure defect-free delivery;
• Life Verification: Sampling for 5,000 on-off cycles records ≤0.05mm seal wear and ≤10% torque change, with service life 20% longer than industry standards.
