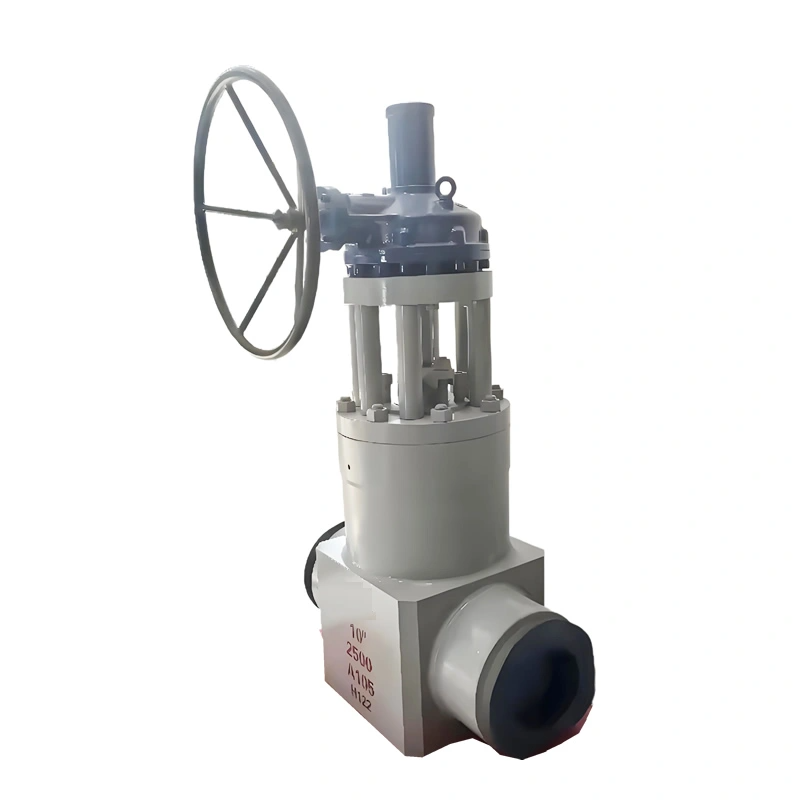

ANSI1500LBS Forged Steel Manual High-Pressure Self-Sealing Welded Gate Valve DN100 Umbrella Gear American Standard for Water

III. Core Features: Self-Sealing Technology & Forged Steel Advantages

1. Self-Sealing Structure Design
   The bonnet adopts a wedge-type self-sealing structure: higher medium pressure increases sealing specific pressure, completely eliminating leakage risks from traditional flange bolt loosening. Test data shows that under Class 1500 conditions, the self-sealing structure has a leakage rate 92% lower than flange seals, especially suitable for safety-critical scenarios like high-pressure steam pipelines and wellhead devices.
2. Forged Steel Material Advantages
   The valve body uses A105 forged carbon steel, formed by high-temperature forging at 1100℃, with a dense grain structure. Tensile strength is 30% higher than cast steel, and impact toughness increases by 40%. Ultrasonic testing (UT) shows internal defect rate ≤0.5%, suitable for particle-containing media or vibrating conditions.
3. Multi-Pressure Class Compatibility
   The same body structure is compatible with Class 600~2500 pressure classes. Upgrading pressure classes is achieved by replacing sealing surface materials and bolt specifications, reducing project spare parts types and procurement costs.
4. Bevel Gear Drive Optimization
   Uses 20CrMnTi carburized quenched gears with a 1:4 transmission ratio, reducing operating torque by 60% compared to ordinary manual valves. Enables single-person operation for DN600 valves and supports limit switch installation for remote status monitoring.

IV. Manufacturing Processes: Precision Control for Forged Steel

1. Forging & Heat Treatment Processes

• Billets are heated to 1200℃ and multi-directionally forged on a 1600-ton hydraulic press with a forging ratio ≥5:1, ensuring metal flow lines align with stress directions;
• Post-forging normalizing + tempering treatment (890℃ normalizing, 650℃ tempering) eliminates internal stress, with hardness controlled at HB170~200 for subsequent machining.

2. Precision Machining & Sealing Surface Treatment

• Five-axis machining centers machine valve body sealing surfaces with flatness error ≤0.01mm and surface roughness Ra≤0.8μm;
• Sealing surfaces use plasma surfacing of Stellite 6 alloy with a layer thickness ≥3mm. After grinding, a mirror finish is achieved, meeting bubble-tight sealing standards (API 598).

3. Full-Process Quality Control

• Pressure Testing: Each valve undergoes 1.5x design pressure shell strength testing (30-minute hold) and 1.1x pressure sealing testing (15-minute hold);
• Nondestructive Testing: 100% UT forging inspection, 100% RT radiography for welds (Grade II qualified), 100% MT magnetic particle inspection for sealing surfaces;
• Life Testing: Sampling for 5,000 on-off cycle tests to ensure no sealing performance degradation, suitable for frequent operation scenarios.
