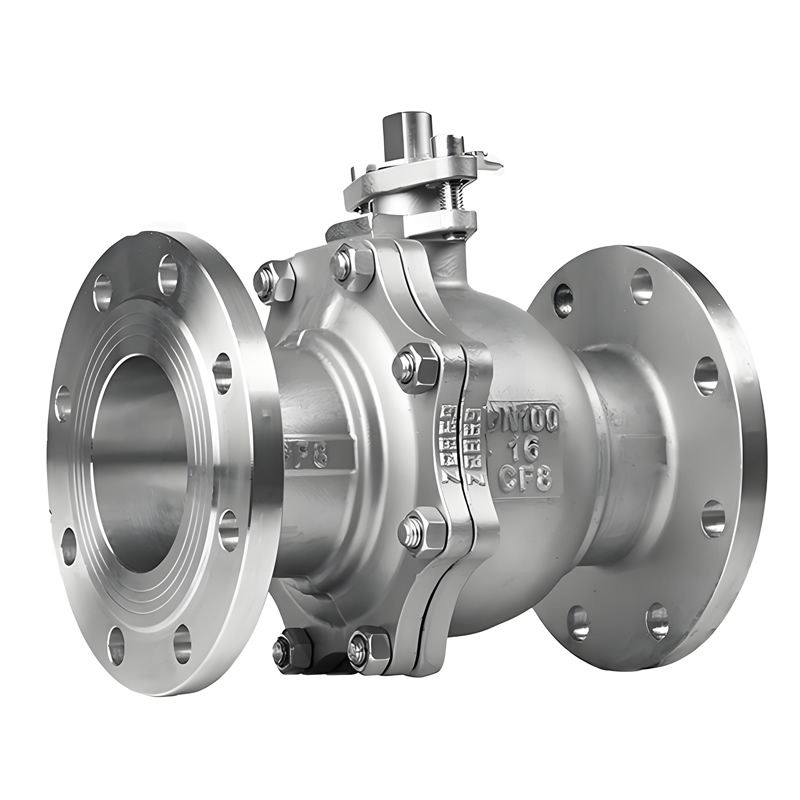

TIANYU 8-Inch Stainless Steel Manual Flanged Ball Valve for Industrial Water, Oil, and Gas Flow Control

I. Product Overview

TIANYU 8-inch stainless steel manual flanged ball valve is a robust industrial valve engineered for precise flow control in medium-to-large diameter pipelines. Constructed from premium stainless steel, this valve features a flanged connection and manual operation, ensuring reliable shutoff and flow regulation for media like water, oil, gas, and mild chemicals. Designed to meet industry standards, it balances durability, corrosion resistance, and ease of use—making it ideal for municipal water systems, petroleum facilities, chemical plants, and general industrial applications where consistent performance and low maintenance are paramount.

II. Key Attributes and Specification Parameters

Basic Attributes

Structure Design: Floating ball valve with a full-port design, where the ball’s bore matches the pipeline diameter to minimize pressure drop. The floating ball relies on line pressure to enhance sealing against PTFE or metal seats, ensuring tight shutoff.
Body Material: Stainless steel (304 or 316 grade), selected for exceptional corrosion resistance. 304 stainless steel offers reliable protection against water, steam, and mild chemicals, while 316 grade (with molybdenum) provides enhanced resistance to chlorides and harsh environments.
Sealing System: Soft seal (PTFE) or metal seal (Stellite) options. PTFE seals deliver bubble-tight shutoff (near-zero leakage) for clean media, while metal seals withstand high temperatures and abrasive particles.
Pressure Rating: PN10 to PN16 (1.0MPa to 1.6MPa), suitable for medium-pressure industrial systems.
Temperature Range: -20℃ to 150℃ with PTFE seals; extended to 200℃ with metal seals, accommodating both cold and moderately heated media.
Nominal Diameter: 8-inch (DN200), catering to large-diameter pipeline requirements for high-flow applications.
Connection Type: Flanged ends conforming to ASME B16.5 and GB/T 9113 standards, ensuring compatibility with global pipeline flanges. Flanges feature precision-drilled bolt holes for secure, leak-free installation.
Operation Mode: Manual operation via a handwheel or lever. The handwheel provides precise control over the ball’s 90° rotation, with a self-locking design to prevent unintended movement from pipeline vibrations.
Media Compatibility: Versatile for clean water, raw water, mineral oil, natural gas, LPG, and mild chemicals (pH 4–10), making it suitable for a wide range of industrial and municipal uses.
Design Standards: Complies with GB/T 12237 (flanged ball valves) and ASME B16.34, ensuring adherence to domestic and international quality and safety norms.

Product Overview

III. Product Features

TIANYU 8-inch stainless steel manual flanged ball valve stands out for its engineering and performance features:

Full-Port Flow Efficiency: The full-port design ensures the ball’s bore matches the pipeline diameter, minimizing pressure drop and maximizing flow capacity. This is critical for applications like water distribution or oil transfer, where efficient fluid movement reduces energy consumption.
Stainless Steel Durability: 304/316 stainless steel construction resists corrosion, pitting, and crevice corrosion—even in outdoor, coastal, or chemical environments. The material’s mechanical strength (tensile strength ≥515MPa) ensures longevity under pressure.
Reliable Sealing Performance: PTFE soft seals offer exceptional chemical resistance and low friction, achieving API 598 Class VI leakage rates (near-zero leakage) for liquid media. Metal seals provide a robust backup for high-temperature or abrasive conditions, ensuring long-term sealing integrity.
Flanged Connection Versatility: ASME B16.5 and GB/T 9113 flanged connections allow easy integration into existing pipelines, with uniform pressure distribution that reduces leakage risks compared to threaded valves.
Manual Operation Precision: The handwheel’s ergonomic design and gear ratio enable smooth, low-torque operation—even for large 8-inch valves. The self-locking mechanism keeps the valve in position without additional locking devices, enhancing safety.
Low Maintenance Design: The valve’s modular construction allows for easy disassembly and seal replacement without removing the entire valve from the pipeline. Stainless steel components require minimal upkeep, reducing lifecycle costs.

IV. Manufacturing Process

TIANYU adheres to strict manufacturing protocols to ensure the quality and performance of its 8-inch ball valves:

Material Selection and Testing: Stainless steel raw materials (304/316) undergo chemical composition analysis and mechanical testing (tensile strength, elongation) to verify compliance with ASTM A351 standards. Each batch is inspected for corrosion resistance via salt spray testing.
Precision Casting: Valve bodies and bonnets are produced via investment casting (lost wax process) to achieve a smooth surface finish (Ra ≤1.6μm) and dimensional accuracy. This process eliminates internal defects like porosity, critical for pressure-containing components.
CNC Machining: The ball is precision-ground to a mirror finish (Ra ≤0.8μm) to ensure proper seating against seals. Valve seats are machined to tight tolerances (±0.02mm) to match the ball’s contour, with PTFE seals bonded using high-temperature adhesive.
Assembly and Calibration: The floating ball is assembled with guided seats, ensuring vertical alignment. Handwheels or levers are attached with hardened gears for smooth operation, and torque is tested to ensure easy manual control.
Testing and Quality Control: Each valve undergoes:
- Shell test: 1.5×nominal pressure (hydrostatic) to verify the body’s structural integrity, with no visible leakage.
- Seat test: 1.1×nominal pressure using air or water, ensuring leakage rates meet API 598 Class VI standards.
- Operation test: 500 full open/close cycles to verify smooth operation and seal durability.

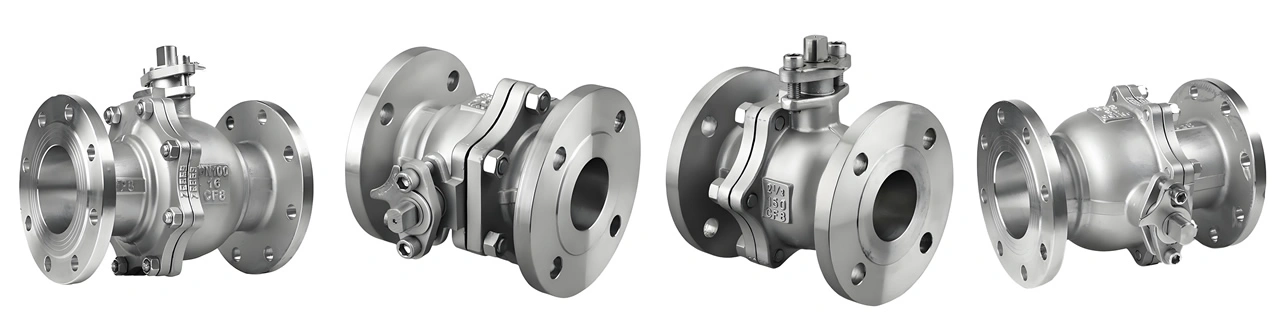

Valve Details

V. Product Advantages

TIANYU 8-inch stainless steel manual flanged ball valve offers significant benefits for industrial applications:

Extended Service Life: Stainless steel construction and robust seals resist corrosion and wear, extending service life to 10+ years in typical environments—reducing replacement costs and downtime.
Energy Efficiency: Full-port design minimizes pressure drop, lowering pumping energy consumption by up to 20% compared to reduced-port valves. This is especially valuable in large-scale water or oil distribution systems.
Operational Safety: The self-locking handwheel and bubble-tight seal prevent accidental leakage, enhancing safety in hazardous environments (e.g., gas pipelines, chemical plants).
Versatility Across Industries: Compatible with water, oil, gas, and mild chemicals, the valve eliminates the need for multiple valve types in mixed-process facilities.
Ease of Installation: Flanged connections align with global standards, simplifying retrofitting into existing pipelines without modifications. The 8-inch size is readily compatible with municipal and industrial large-diameter systems.
Cost-Effective Performance: Competitive pricing for stainless steel construction, combined with low maintenance requirements, results in a low total cost of ownership over the valve’s lifecycle.

Application

VI. Product Applications

TIANYU 8-inch stainless steel manual flanged ball valve is widely used in industries requiring reliable flow control for large-diameter pipelines:

Municipal Water and Wastewater: Installed in water supply mains, sewage treatment plants, and stormwater systems, where corrosion resistance and large flow capacity are essential.
Petroleum and Gas: Deployed in oil refineries, gas processing plants, and distribution networks, controlling the flow of crude oil, refined products, and natural gas in medium-pressure lines.
Chemical Processing: Suitable for pipelines handling mild acids, solvents, and process fluids, with 316 stainless steel options providing enhanced chemical resistance.
Food and Beverage: Used in sanitary applications (e.g., water treatment for food production, beverage transfer), where stainless steel meets hygiene requirements.
HVAC and Building Services: Controls water and steam flow in large-scale heating, cooling, and plumbing systems for commercial or industrial buildings, leveraging the valve’s efficient flow and reliable shutoff.

TIANYU 8-inch stainless steel manual flanged ball valve, with full-port design and flanged connections, ensures reliable flow control for water, oil, gas, and mild chemicals. Stainless steel offers corrosion resistance, PTFE/metal seals provide tight shutoff, and manual operation enables precise control. Ideal for municipal, petroleum, and chemical sectors. Customizable in materials (304/316), seals, and pressure ratings to meet specific application needs.
