6inch 600lb Double Ball A105n Trunnion Double Block and Bleed Ball Valve

Product Attribute: Connection Form:Flange
Driving Mode:Manual & Pneumatic & Electrica
Nominal Pressure:150lb-600lb
Channel:Straight Through Type
Structure:Fixed Ball Valve
Temperature:-196ºC~450ºC
Standard:API 6D, API 608, BS 5351/DIN3357/JIS B2071
Application:Water Industrial Usage
Working Pressure:150lb-2500lb
Seal:PTFE/Rptfe/Ppl

INFO@TYFLUIDGROUP.COM

Specification

TIANYU 6-inch 600LB Double Ball A105N Trunnion Double Block and Bleed Ball Valve

I. Product Overview

TIANYU 6-inch 600LB Double Ball A105N Trunnion Double Block and Bleed Ball Valve is a high-performance shut-off device for medium-to-high pressure pipelines. Made of A105N forged steel with trunnion support, it ensures bidirectional sealing and cavity pressure relief, widely used in pipeline isolation, online maintenance, and emergency shutdown in oil & gas, chemical, and power industries. Compliant with API 6D, API 608, and ASME B16.34, it supports manual/pneumatic/electric operation for reliable fluid control.

II. Core Features

(A) Structural Advantages

DDB Function: Dual seat sealing with bleed port for bidirectional block and safe pressure relief, meeting API 598 Class IV;
Trunnion Support: Reduces stem load by 30%, enhances sealing stability by 50% under high pressure;
Fire & Explosion Proof: API 607 certified, blowout-proof stem for hazardous areas (Class I, Div. 1).

(B) Material Compatibility

Component	Material	Key Advantage	Media Suitability
Body/Ball	A105N Forged Steel	Impact strength ≥485MPa, -29℃~450℃	Water, gas, oil, steam
Seat	PTFE+25% Carbon Fiber	Wear-resistant, 2x longer life	Particulate fluids, high viscosity
Stem	17-4PH SS	Tensile ≥1030MPa, corrosion-proof	Wet/H₂S environments
Seals	RPTFE/PPL	-196℃~260℃ resistance, ≤5% deformation	Acids, alkalis, food-grade media

(C) Operation & Maintenance

Multi-Drive Options: Manual gearbox (≤180N·m), optional pneumatic (≤1.5s response) or electric (IP68);
Quick-Clean Design: Bonnet bolt connection enables 20-min seal replacement, 40% lower maintenance cost.

Product Overview

III. Technical Specs & Manufacturing

(A) Key Parameters

Pressure: 600LB (PN100, 10MPa), 1.5x hydrostatic test (15MPa/30min);
Size: 6″ (DN150), full-bore with Cv=120, 15% lower pressure drop;
Temp Range: -196℃~450℃ (optional -50℃/550℃).

(B) Precision Manufacturing

Forging Process:
- 4000-ton forging (ratio ≥5:1), ASTM No.8 grain, UT-tested for ≥Φ1.2mm defects;
- Ball ground to ≤0.003mm roundness, ≤0.005mm fit with seat.
Surface Treatment:
- Electropolished interior (Ra≤0.8μm), passivated exterior (ASTM A967), optional zinc coating (85μm) for marine use;
- Stellite overlay on seats (HRC45), 3x erosion resistance.
Testing:
- Helium leak test (≤5×10⁻¹⁰Pa·m³/s), thermal cycle test (-46℃~200℃/50 cycles).

IV. Applications & Value

(A) Industrial Use Cases

Oil & Gas: Sulfur-resistant (NACE MR0175) for 1000ppm H₂S, 8-year life; pipeline pigging reduces downtime by 50%;
Chemical: Reactor isolation (≤2s shut-off), F316L for 540℃ steam with 90% less leakage;
Power: Seismic-proof for nuclear plants (IEEE 344), duplex 2205 for LNG (-162℃).

(B) Customer Benefits

Compliance: CE-PED, API 6D certified, meets OSHA standards;
Efficiency: Streamlined flow saves ~$12,000/year in pumping costs;
Customization: Non-standard flanges (DIN/GOST), extreme temps (-196℃~650℃), ATEX Ex d.

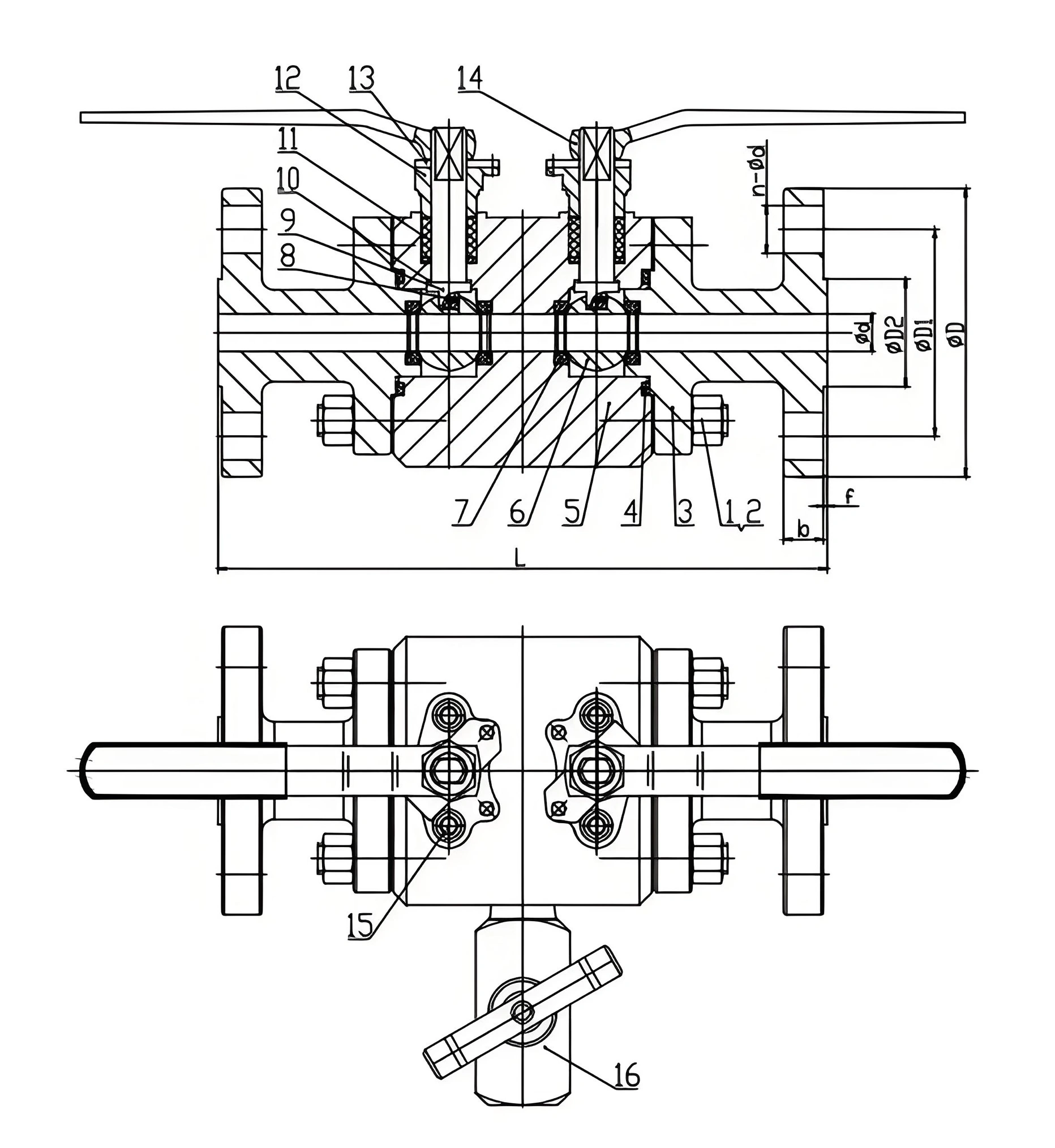

Valve Details

Application

Tips:
We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.
Any item meets your interest, anything confused you, pls keep me posted, let’s talk more.
