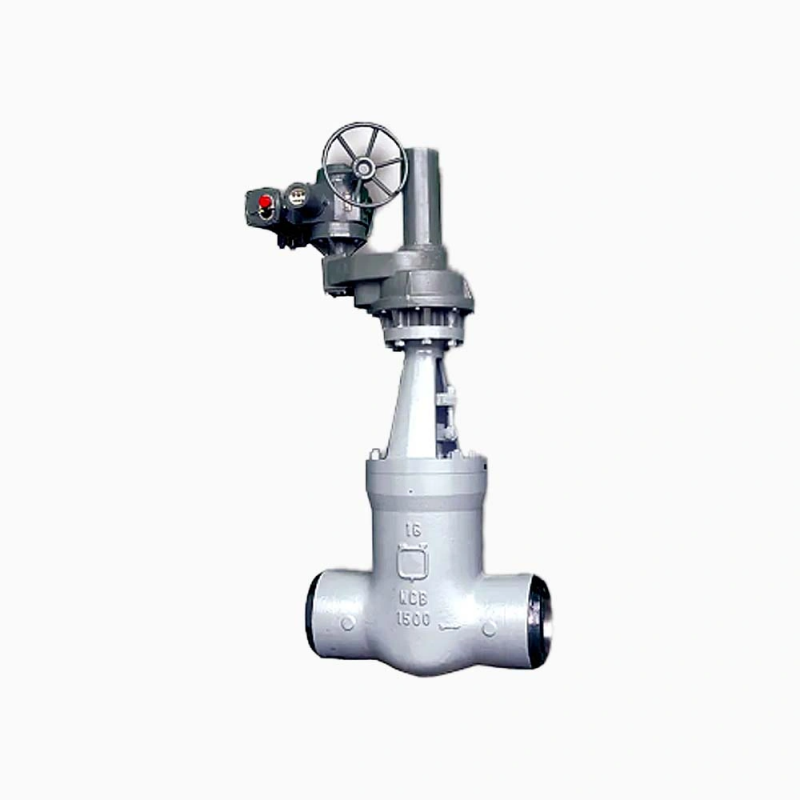

High Pressure Seal Bonnet Class 1500 WCB BW Steam Gear Gate Valve with Bypass
  • High Pressure Seal Bonnet Class 1500 WCB BW Steam Gear Gate Valve with Bypass
  • High Pressure Seal Bonnet Class 1500 WCB BW Steam Gear Gate Valve with Bypass
  • High Pressure Seal Bonnet Class 1500 WCB BW Steam Gear Gate Valve with Bypass

High Pressure Seal Bonnet Class 1500 WCB BW Steam Gear Gate Valve with Bypass

Product Attribute: Product Description:
Nominal Diameter:10”
Bore: Full Bore
Nominal Pressure:1500LB
Material: WCB
Operation: Gear Box
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: Butt Weld
Butt Weld standard: ASME B16.25
Top Flange: ISO5210 /ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Valve Size 2″~24″

Pressure Class

 1500LB~2500LB

Materials

 WCB, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A

Design and Manufacturing Standards

 API 600, API 6D

Face to Face Standards

 ASME B16.10

Flange Dimension Standards

 ASME B 16.5, ASME B16.47

Pressure Test Standards

 API 598, API 6D

Fire Safety Test Standards

 API607

Quality/Product Certifications

 ISO9001, ISO14001, ISO18001

Fugitive Emissions

 ISO 15848-1, API 622

NACE

 NACE MR 0175

Valve operator options

 Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.

Shutoff Class

 API 598 (Zero Leakage), API 6D

Bore

 FULL BORE

Valve Details

  • High Pressure Seal Bonnet Class 1500 WCB BW Steam Gear Gate Valve with Bypass

    Operated type

    Handwheel, Gear, Electric, Pneumatic, Bare shaft and etc.
