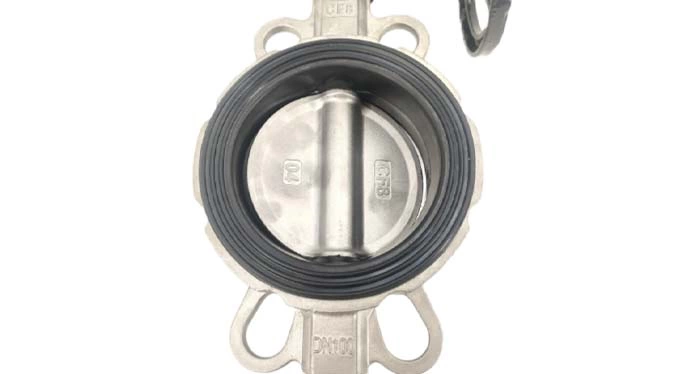

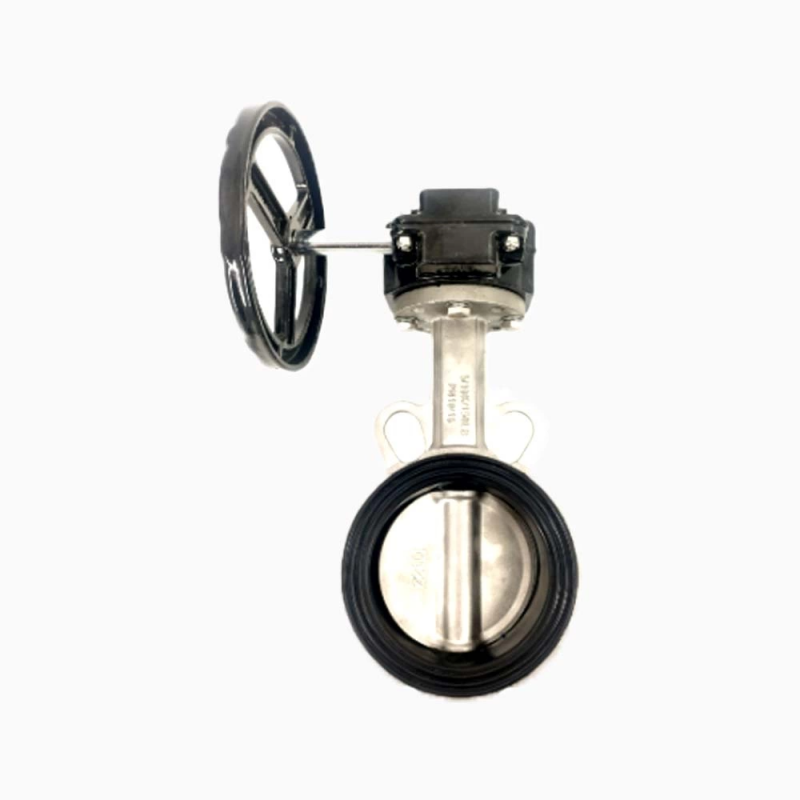

Centerline Wafer Butterfly Valve

Product Attribute: Product Description: Name: Centerline Wafer Butterfly Valve
Type: D37A1X-10/16
Size: DN50-DN1000
Design Standard: GB/T12238, API609, BS EN593
Pressure: PN10/16
Face to Face: GB/T12221, API609, BS5155, ISO5752
Medium: Water, Oil, Gas, etc.
Connection Standard: GB/T9113, ANSI B16.1, EN1092, ISO7005
Temperature: -25°C-120°C
Testing Standard: GB/T13927, API598, ISO5208

Leakage Class: The leakage class of the centerline wafer butterfly valve is typically zero leakage or a sealed leakage level, ensuring good sealing performance when the valve is closed.

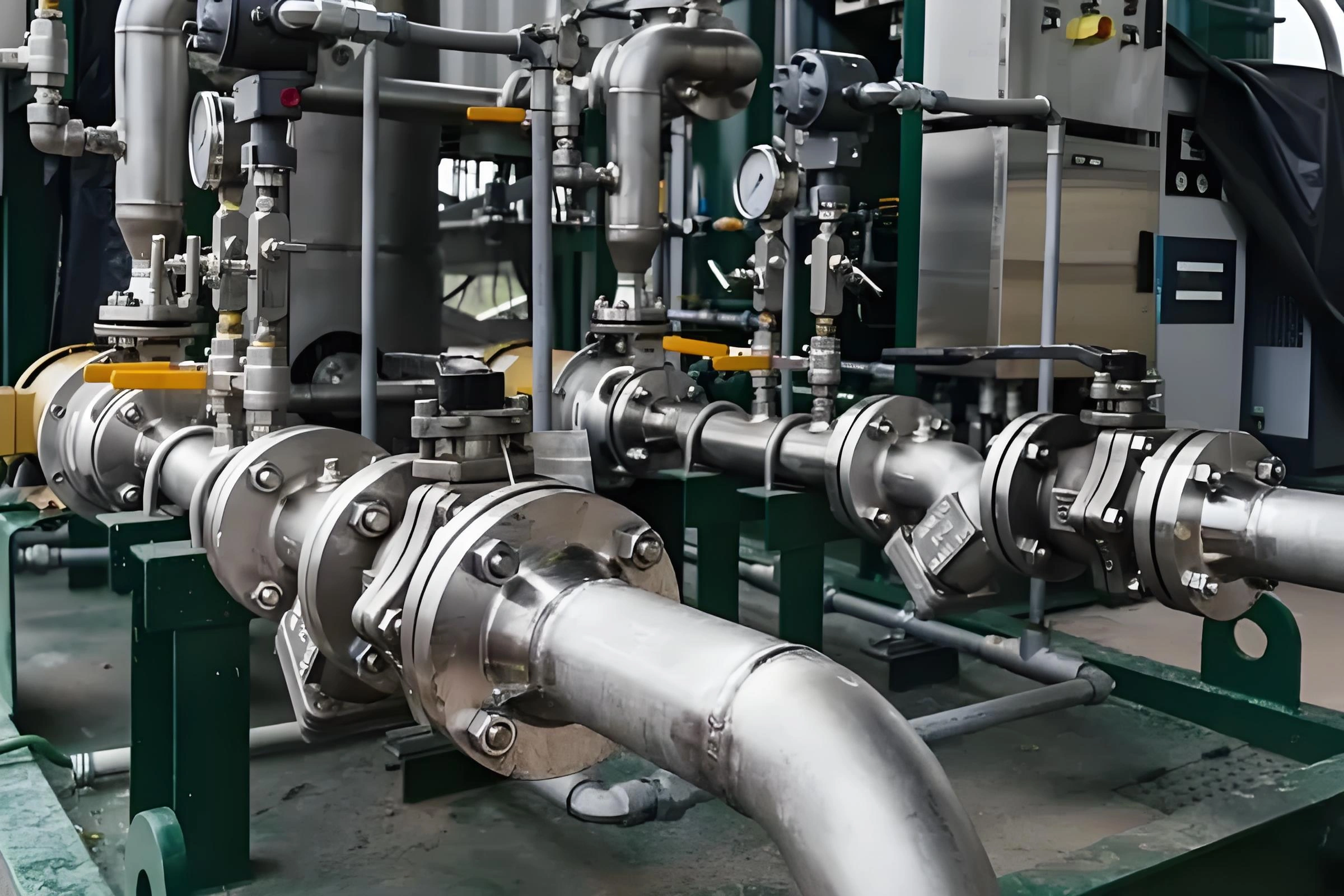

Application Fields:The centerline wafer butterfly valve is widely used in pipeline systems in industries such as water treatment, chemicals, petroleum, energy, and pharmaceuticals, for controlling the flow and pressure of media.

INFO@TYFLUIDGROUP.COM

Product Overview

Body Material: Common materials include cast iron, carbon steel, stainless steel, and others, chosen based on specific operating conditions and requirements.
Rated Pressure and Diameter: The rated pressure of the centerline wafer butterfly valve can range from tens to hundreds of megapascals, depending on the application, while the rated diameter typically spans from a few millimeters to several meters.
Seat Material: The valve seat of the centerline wafer butterfly valve is typically made of elastic materials such as EPDM (ethylene-propylene-diene monomer) or FPM (fluoropolymer) to ensure excellent sealing performance.
Actuation: The valve can be operated manually, electrically, pneumatically, or through other means, depending on the specific needs of the application.
Operating Temperature Range: The operating temperature range of the centerline wafer butterfly valve is generally between -40°C and +200°C, though this may vary depending on the choice of valve body and sealing materials.
Leakage Class: The leakage class of the centerline wafer butterfly valve is typically zero leakage or a sealed leakage level, ensuring good sealing performance when the valve is closed.
Application Fields:The centerline wafer butterfly valve is widely used in pipeline systems in industries such as water treatment, chemicals, petroleum, energy, and pharmaceuticals, for controlling the flow and pressure of media.

Valve Details

Application Fields

The centerline wafer butterfly valve is widely used in pipeline systems in industries such as water treatment, chemicals, petroleum, energy, and pharmaceuticals, for controlling the flow and pressure of media.
