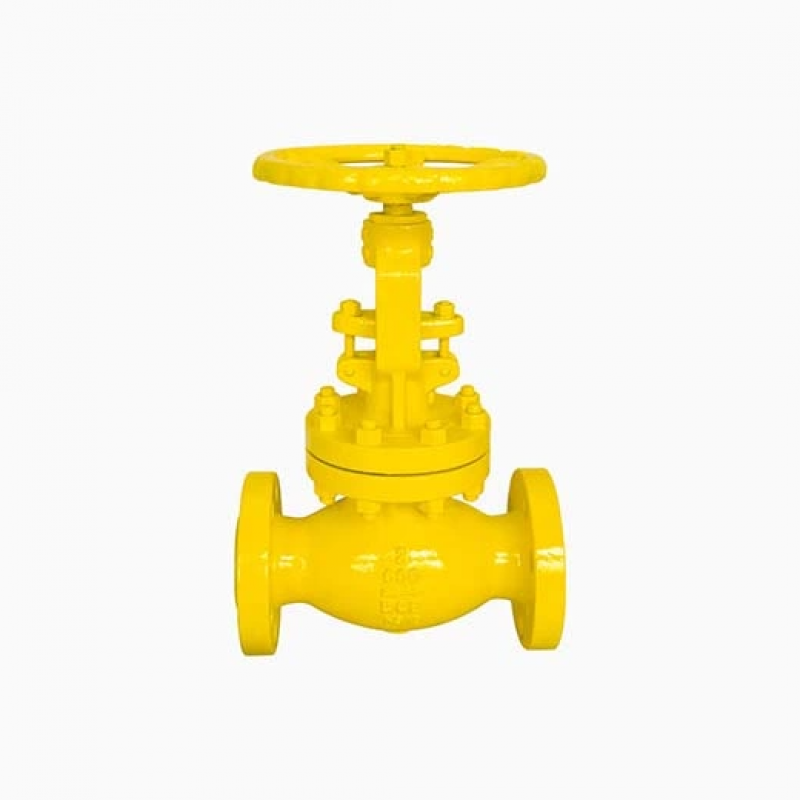

Cast Steel WCB 2” 600LB RF Flange Globe Valve
  • Cast Steel WCB 2” 600LB RF Flange Globe Valve
  • Cast Steel WCB 2” 600LB RF Flange Globe Valve
  • Cast Steel WCB 2” 600LB RF Flange Globe Valve
  • Cast Steel WCB 2” 600LB RF Flange Globe Valve

Cast Steel WCB 2” 600LB RF Flange Globe Valve

Product Attribute: Product Description:
Nominal Diameter:2”
Bore: Full Bore
Nominal Pressure:600LB
Material: WCB
Operation: Handwheel
Design Standard: API602/API 623
Test/Inspection: API598
End Connection: RF Flange
Flange standard: ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Cast steel globe valve model: J41H J41Y Cast steel stop valve nominal
Cast steel stop valve nominal		 Cast steel stop valve operating pressure: 1.0MPA -1.6MPA
Cast steel stop valve connection
method: flange connection		 Cast steel stop valve form: manual Cast steel stop valve main function: acting as a switch
Cast steel stop valve uses medium:
water, oil, steam		 Cast steel stop valve material: WCB
standard carbon steel		 Cast steel stop valve main function: acting as a switch
Cast steel stop valve main function: acting as a switch

Product Overview

The flange-connected stop valve is suitable for cutting off or connecting the medium on pipelines with nominal pressure PN1.6~16.0Mpa and working temperature -29~550℃ in petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions. Applicable media are: water, oil, steam, acidic media, etc. Operation modes include: manual, gear transmission, electric, pneumatic, etc.

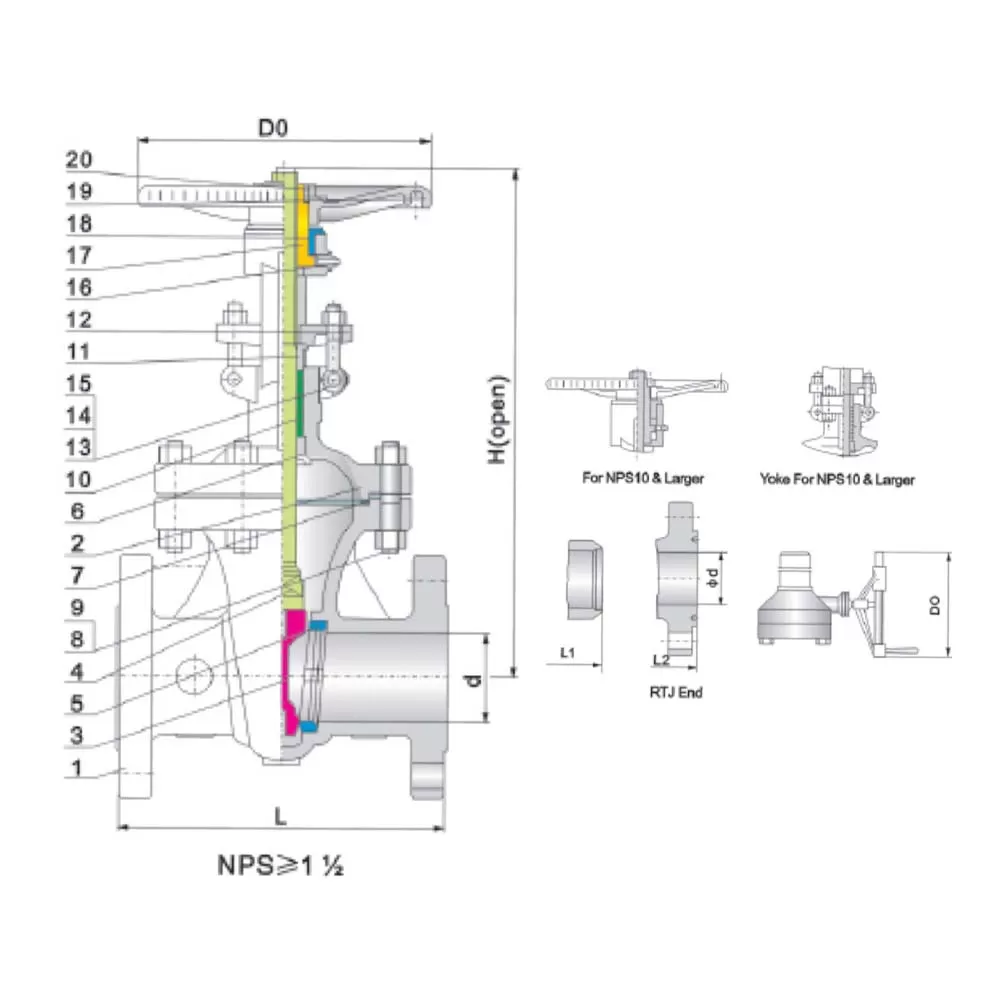

Valve Details
