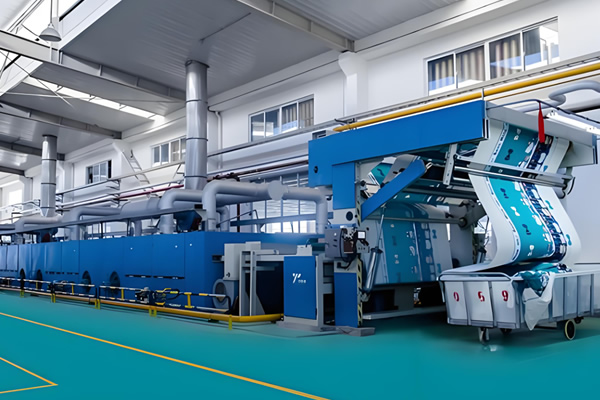

Wear-Resistant Valves for Papermaking & Textile Industry: Corrosion Resistance, Slurry Compatibility & Process Flow Optimization

I. Related Engineering Operating Conditions of Papermaking & Textile Industry

A. Abrasive Media Challenges

• Papermaking Pulp: Wood pulp (mechanical/chemical) contains cellulose fibers (1–5 mm) and fillers (clay, calcium carbonate) with Mohs hardness 3–5—unprotected valves experience wear rates of 0.1–0.3 mm/year in pulp lines; high-consistency pulp (30–40% solids) accelerates wear to 0.5 mm/year.
• Textile Slurries: Dye pastes (pigment particles 1–10 μm) and sizing agents (starch, PVA) cause abrasive wear on valve seats and trim—clogging risks in narrow flow channels (≤DN50).
• Wastewater Solids: Papermaking wastewater contains 5–15% suspended solids (fibers, fillers); textile wastewater has dye particles and lint—both cause erosion-corrosion on valve internals.

B. Corrosive Chemical Exposure

• Papermaking Chemicals: Bleaching agents (Cl₂, H₂O₂, NaOCl), cooking liquors (NaOH + Na₂S, pH 12–14), and acidic sizing agents (alum, pH 4–5)—carbon steel corrodes at 0.2 mm/year in cooking liquors; 316L stainless steel resists but requires PTFE seals for H₂O₂ compatibility.
• Textile Chemicals: Dyes (acidic/basic), auxiliaries (surfactants, chelating agents), and bleach (NaOCl, H₂O₂)—basic dyes (pH 9–11) degrade nitrile rubber seals; acidic dyes (pH 3–5) cause pitting in 304 stainless steel.
• Wastewater Corrosion: Papermaking wastewater has high COD (1,000–5,000 mg/L) and pH 6–9; textile wastewater may have residual bleach or heavy metals (Cu, Cr)—both induce microbiologically influenced corrosion (MIC) in uncoated valves.

C. Temperature & Pressure Variability

• Temperature Ranges: Papermaking drying sections (100–150°C), cooking processes (170–180°C); textile dyeing (80–130°C), steaming (120°C), and drying (100–120°C). Valves must withstand thermal cycling (25°C to 150°C) without seal brittleness.
• Pressure Ranges: Low pressure (0.2–0.6 MPa) for pulp/dye transfer; medium pressure (0.6–1.6 MPa) for papermaking headboxes and textile high-temperature dyeing; vacuum (0.05 MPa) for paper dewatering.

D. Operational & Environmental Demands

• High Humidity: Papermaking and textile mills have 70–95% humidity—valve actuators and packing require corrosion protection (IP67 rating) to prevent jamming.
• Frequent Actuation: Batch processes (dyeing, bleaching) require valves to cycle 10–20 times per hour—demanding robust trim and seals to endure 50,000+ cycles.
• Environmental Compliance: Wastewater discharge requires zero-leakage valves (ISO 5208 Class V) to meet EPA (US) and EU REACH standards; papermaking bleaching requires fugitive emission control (ISO 15848 Class BH) for Cl₂.

E. Standards Compliance

• Papermaking: ISO 6431 (slurry valves), ANSI B16.34 (pressure-temperature ratings), EPA Clean Water Act (wastewater).
• Textile: EN 14184 (dyeing equipment), ISO 9001 (quality), REACH (chemical safety).

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Papermaking:
  • Pulp Preparation (Cooking/Beating): Valves control cooking liquors and pulp flow—abrasion resistance, high-temperature tolerance (180°C), and corrosion resistance to alkalis.
  • Bleaching: Valves regulate bleach agents (Cl₂, H₂O₂)—chemical inertness, zero leakage (prevent gas escape), and easy cleaning.
  • Papermaking (Headbox/Wire Section): Valves control pulp flow to headboxes—precise flow regulation (±3% accuracy) and anti-clogging design.
  • Drying & Finishing: Valves handle steam and coating materials—high-temperature resistance (150°C) and wear resistance to coatings.
• Textile:
  • Spinning & Sizing: Valves control sizing agent (starch/PVA) flow—anti-clogging, low pressure drop, and compatibility with viscous media.
  • Dyeing & Printing: Valves regulate dyes, auxiliaries, and steam—corrosion resistance, precise dosing (±2% accuracy), and easy cleaning (prevent cross-dyeing).
  • Finishing (Washing/Bleaching): Valves handle wash water and bleach—corrosion resistance, high flow capacity, and zero leakage.
  • Wastewater Treatment: Valves control wastewater flow and chemical dosing—abrasion resistance to solids, corrosion resistance to residual chemicals.

B. Process-Material Matching

• Metallic Materials: Ductile iron (cost-effective for large diameters, rubber/epoxy coated), 316L stainless steel (corrosion resistance), carbon steel (non-corrosive utility service).
• Protective Liners: Natural rubber (abrasion resistance for pulp), polyurethane (wear resistance 3x rubber), PTFE (chemical inertness for bleach/dyes).
• Sealing Materials: EPDM (water/steam resistance, 120°C), FKM (chemical resistance, 200°C), PTFE (acid/bleach resistance, 260°C), FFKM (extreme chemical resistance).

C. Material-Engineering Scaling

• Large-Scale Papermills (500,000 Tons/Year): Large-diameter valves (DN300–DN1200) for pulp lines—rubber-lined ductile iron, designed for 10–15 year service life and high flow (10,000+ m³/h).
• Textile Dyeing Plants (10,000 Meters/Day): Medium-diameter valves (DN50–DN200) for dye lines—316L stainless steel with PTFE/FKM seals, precise dosing capability.
• Small-Scale Textile Mills (Craft Fabrics): Small-diameter valves (DN25–DN80) for batch dyeing—manual actuation, easy disassembly for cleaning, cost-effective 304L stainless steel.
• Papermaking Wastewater Plants: Large-diameter valves (DN400–DN1000) for solids-laden wastewater—epoxy-coated ductile iron, anti-clogging full-port design.

III. Common Valve Types in Papermaking & Textile Industry (with TIANYU Product Links)

A. Knife Gate Valves: Abrasive Slurry Control

• Body materials: Ductile iron (rubber/polyurethane lined), 316L stainless steel.
• Trim: Rubber-lined gate (abrasion resistance), stainless steel blade (sharpened for solids cutting).
• Design: Rising stem (easy cleaning), full-port flow (low pressure loss), bolted bonnet (dust/waterproof).
• Compliance: ISO 6431, ANSI B16.10—sizes DN50–DN1200, PN10–PN25.

B. Butterfly Valves: High-Flow Process Control

• Body materials: Ductile iron (epoxy coated), 316L stainless steel.
• Disc: Rubber-lined (EPDM/FKM) for tight sealing; stainless steel (316L) for abrasive media.
• Design: Double-eccentric (reduced friction, 100,000+ cycles), gear/pneumatic/electric actuation; wafer/lug type.
• Sizes: DN50–DN1200, PN10–PN25—flow rates up to 15,000 m³/h for DN1200.

C. Ball Valves: Precise Dosing & Shutoff

• Body materials: 316L stainless steel, ductile iron (PTFE lined).
• Trim: Full-port (low pressure loss) or reduced-port; PTFE/FFKM seats (chemical resistance).
• Design: Anti-static devices, blowout-proof stem; compatible with viscous media (sizing agents, dye pastes).

D. Diaphragm Valves: Corrosive Chemical Service

• Body materials: 316L stainless steel, ductile iron (PTFE lined).
• Diaphragm: EPDM (water/steam), FKM (chemicals), PTFE (bleach/acidic dyes); weir-type (tight sealing) or straight-through (anti-clogging).

E. Check Valves: Backflow Prevention

• Types: Swing (large flow, low pressure loss), dual-plate (fast closing ≤0.5 seconds, anti-water hammer).
• Materials: Ductile iron (epoxy coated), 316L stainless steel; EPDM/FKM seals.

IV. Specification Parameters of Papermaking & Textile Valves

A. Nominal Diameter (DN/NPS)

• Range: DN25–DN1200 (NPS 1”–48”):
  • DN25–DN100: Textile dyeing, chemical dosing, papermaking sizing.
  • DN125–DN500: Papermaking pulp transfer, textile washing lines.
  • DN600–DN1200: Papermaking headboxes, wastewater mains, large-scale textile utility lines.

B. Nominal Pressure (PN/Class)

• Range: PN10–PN40 (Class 150–300):
  • PN10–PN16 (Class 150): Standard processes (pulp transfer, dyeing, washing).
  • PN25–PN40 (Class 300): High-temperature processes (papermaking cooking, textile high-pressure dyeing).

C. Temperature Range

• Operating Temperature: 0°C–180°C:
  • 0°C–100°C: Standard processes (pulp transfer, dyeing, washing).
  • 100°C–180°C: High-temperature processes (papermaking cooking/drying, textile steaming).

D. Key Performance Metrics

• Abrasion Resistance: Rubber/polyurethane liners with wear life ≥5 years in medium-abrasion media.
• Sealing Grade: Class IV (utility lines), Class V (process lines—leakage ≤0.01% of rated flow).
• Chemical Resistance: No degradation after 1,000-hour immersion in process media (bleach, dyes, alkalis).
• Solid Handling Capacity: Ability to pass particles up to 5 mm (knife gate valves) or 2 mm (ball/butterfly valves).

E. Connection & Actuation

• Connections: Flanged (ANSI B16.5/EN 1092), wafer (butterfly valves), threaded (small sizes DN≤50).
• Actuation:
  • Manual: Handwheel/lever (low-frequency operation, DN≤200).
  • Pneumatic: 6–8 bar air, fail-safe (open/close) for automated lines (papermaking pulp transfer, textile dyeing).
  • Electric: 24V DC/380V AC, motorized with torque limiting (PLC integration for large-scale plants).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Media Properties: Solid content (select knife gate/butterfly valves for TSS >10%), chemical composition (316L/PTFE for corrosives), viscosity (full-port valves for ≥1,000 cSt).
2. Temperature/Pressure: High-temperature processes (150°C+) require FKM/FFKM seals; high-pressure dyeing (1.6 MPa) uses PN25 valves.
3. Flow Requirements: High flow (papermaking headboxes) needs butterfly/knife gate valves; precise dosing (textile dyeing) requires ball/diaphragm valves.
4. Cleaning Needs: Textile dyeing valves need easy disassembly (prevent cross-dyeing); papermaking pulp valves require anti-clogging design.
5. Environmental Compliance: Wastewater valves need Class V sealing (prevent leakage); bleaching valves require ISO 15848 Class BH (emissions).

B. Engineering Cases

Case 1: Large Papermill (Asia, 600,000 Tons/Year Printing Paper)

• Challenges: 30% solids wood pulp (abrasive), 80°C temperature, 0.6 MPa pressure, 10,000+ m³/h flow, frequent clogging with standard valves.
• Valve Selection: TIANYU rubber-lined knife gate valves (DN800, PN16), butterfly valves (DN1000, ductile iron epoxy coated), dual-plate check valves.
• Results: Wear rate reduced to 0.03 mm/year (vs. 0.5 mm/year for standard valves); clogging incidents dropped from 8/year to 0; maintenance costs cut by 70%; service life extended to 8 years.

Case 2: Textile Dyeing Plant (Europe, 15,000 Meters/Day Cotton Fabrics)

• Challenges: Acidic/basic dyes (pH 3–11), 100°C temperature, 1.0 MPa pressure, cross-dyeing risk, daily cleaning required.
• Valve Selection: TIANYU 316L ball valves (PTFE seats), diaphragm valves (FKM seals), pneumatic actuators with auto-flush.
• Results: No corrosion after 3 years; cross-dyeing eliminated (easy cleaning); dyeing accuracy ±1% (improved fabric color consistency); compliance with EU REACH standards.

Case 3: Papermaking Bleaching Line (North America, 400,000 Tons/Year Tissue Paper)

• Challenges: 10% H₂O₂ bleach (corrosive), 60°C temperature, 0.4 MPa pressure, fugitive emission control (ISO 15848 Class BH).
• Valve Selection: TIANYU 316L ball valves (FFKM seals), diaphragm valves (PTFE trim), sealed bonnet design.
• Results: Emission rate ≤5×10⁻⁵ mg/s (meets Class BH); no seal degradation; bleach consumption reduced by 5% (tight sealing); EPA compliance maintained.

Case 4: Textile Wastewater Treatment Plant (Asia, 5,000 m³/Day)

• Challenges: Dye-laden wastewater (10% solids, pH 8), 0.3 MPa pressure, abrasive wear, corrosion from residual dye.
• Valve Selection: TIANYU epoxy-coated ductile iron butterfly valves (316L trim), knife gate valves (rubber lined), swing check valves.
• Results: Wear rate ≤0.06 mm/year; no clogging; wastewater discharge meets EPA standards (TSS ≤30 mg/L); maintenance intervals extended to 12 months (vs. 3 months for standard valves).

VI. Manufacturing Processes of TIANYU Papermaking & Textile Valves

A. Raw Material Inspection

• Metallic Materials: Ductile iron (ASTM A536, tensile strength ≥414 MPa); 316L stainless steel (Cr 16–18%, Ni 10–14%, Mo 2–3%) tested for corrosion resistance (ASTM G48).
• Liners & Seals: Rubber/polyurethane liners tested for wear resistance (ASTM D4060—volume loss ≤0.5 cm³ after 10,000 cycles); EPDM/FKM/PTFE seals tested for chemical compatibility (1,000-hour immersion in bleach/dyes).
• Coatings: Epoxy coatings (250–300 μm thickness) tested for adhesion (≥5 MPa per ASTM D3359) and corrosion resistance (1,000-hour salt spray).

B. Precision Machining & Lining

• Body/Disc Machining: CNC lathes (tolerance ±0.05 mm) for ductile iron/stainless steel components; internal surfaces sandblasted (Sa 2.5 grade) to enhance liner bonding.
• Lining Application: Rubber/polyurethane liners applied via compression molding (thickness 6–12 mm, uniformity ±0.2 mm); vulcanized at 160°C for 4 hours (rubber) or 80°C for 2 hours (polyurethane) to achieve shear strength ≥7 MPa.
• Trim Fabrication: Knife gate blades heat-treated (HRC 50–55) for sharpness; ball/disc surfaces lapped to Ra ≤0.8 μm for tight sealing.
• Coating Process: Epoxy applied via electrostatic spray (uniform thickness ±10 μm); cured at 180°C for 30 minutes (chemical resistance verified via 1,000-hour immersion in 5% NaCl).

C. Assembly & Quality Testing

• Assembly: Conducted in dust-free workstations; stems lubricated with high-temperature, chemical-resistant grease; actuators integrated with IP67-rated enclosures (dust/waterproof).
• Pressure Testing: 100% hydrostatic testing (1.5x PN for 30 minutes, no leakage); pneumatic testing (0.6 MPa for 15 minutes, Class V sealing verification).
• Abrasion Testing: Sample valves undergo slurry loop testing (10,000 hours with 30% pulp slurry) to validate wear life.
• Chemical Compatibility Testing: Valves immersed in process media (H₂O₂, acidic dyes, cooking liquor) for 1,000 hours—no material degradation.

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, material, liner/seal type, serial number, and certification logos (ISO, ANSI). Serial numbers are traceable to test reports via TIANYU’s online portal.
• Packaging: Lined valves wrapped in waterproof film (prevent liner damage); large valves shipped in wooden crates with lifting lugs; small valves packed in cardboard boxes with foam protection.

VII. Advantages of TIANYU Papermaking & Textile Valves

A. Abrasion & Corrosion Resistance

• Wear-Resistant Liners: Rubber/polyurethane liners (3x longer life than standard valves) and Stellite-trimmed components—wear rate ≤0.05 mm/year in pulp/dye slurries.
• Corrosion Protection: 316L stainless steel, PTFE liners, and FKM/FFKM seals—resist bleach, dyes, and alkalis (corrosion rate ≤0.01 mm/year).
• Anti-Clogging Design: Full-port flow channels, sharp-edged knife gates, and smooth internal surfaces—prevent solids buildup and reduce cleaning time by 50%.

B. Performance & Compliance

• Low Pressure Drop: Butterfly/knife gate valves with streamlined design (ζ ≤0.2) reduce pump energy consumption by 10–15%.
• Tight Sealing: Class V leakage (≤0.01% of flow) for process lines; ISO 15848 Class BH for fugitive emissions—minimize material waste and environmental risk.
• Full Certifications: ISO 9001, ISO 6431, ANSI B16.34, EPA compliance—meets global papermaking/textile standards.

C. Durability & Maintenance

• Long Service Life: 8–15 year life (2x industry average)—papermaking pulp valves endure 50,000+ cycles without failure.
• Low Maintenance: Self-lubricating stems, corrosion-resistant materials, and easy-access packing glands—reduce maintenance costs by 60%.
• Reliable Actuation: Pneumatic/electric actuators with IP67 rating—suitable for high-humidity mill environments.

D. Service & Support

• Pre-Sales Engineering: 10 industry specialists (10+ years experience) provide process-specific valve selection, flow simulation, and energy savings calculations.
• Global Support: 24-hour technical support; on-site installation/commissioning (response time ≤72 hours); emergency replacement parts delivery (48-hour turnaround).
• Warranty: 3-year standard warranty (industry average 1–2 years); 5-year warranty for lined/stainless steel valves—covers material defects, wear, and sealing failure.

VIII. Future Applications of Papermaking & Textile Valves

A. Smart Valves for Automated Mills

• IoT Integration: Valves equipped with sensors (wear, pressure, flow) to monitor performance in real time—data transmitted to cloud platforms for remote monitoring.
• Predictive Maintenance: AI algorithms analyze sensor data to predict liner wear and seal degradation 3–6 months in advance—reducing unplanned downtime by 40%.
• Automated Control: Electric actuators with PLC/DCS integration for fully automated pulp/dye transfer—ideal for smart mills.

B. Sustainable & Eco-Friendly Valves

• Low-Energy Designs: Optimized flow channels and low-friction seals reduce energy consumption by 15–20%—aligning with mill carbon reduction targets.
• Recyclable Materials: Valves constructed with 70% recyclable steel and biodegradable lubricants—reducing environmental impact.
• Chemical-Free Cleaning: Self-cleaning valve designs (ultrasonic/air purge) to reduce water and chemical use in textile dyeing.

C. High-Performance Valves for Advanced Processes

• High-Consistency Pulp: Valves for 40–50% solids pulp (next-gen papermaking)—reinforced liners and high-torque actuators.
• Technical Textiles: Valves for high-temperature (150°C) dyeing of aramid/carbon fibers—Inconel trim and FFKM seals.
• Digital Printing: Precision dosing valves (±0.5% accuracy) for textile digital printing—compatible with UV-curable dyes.
