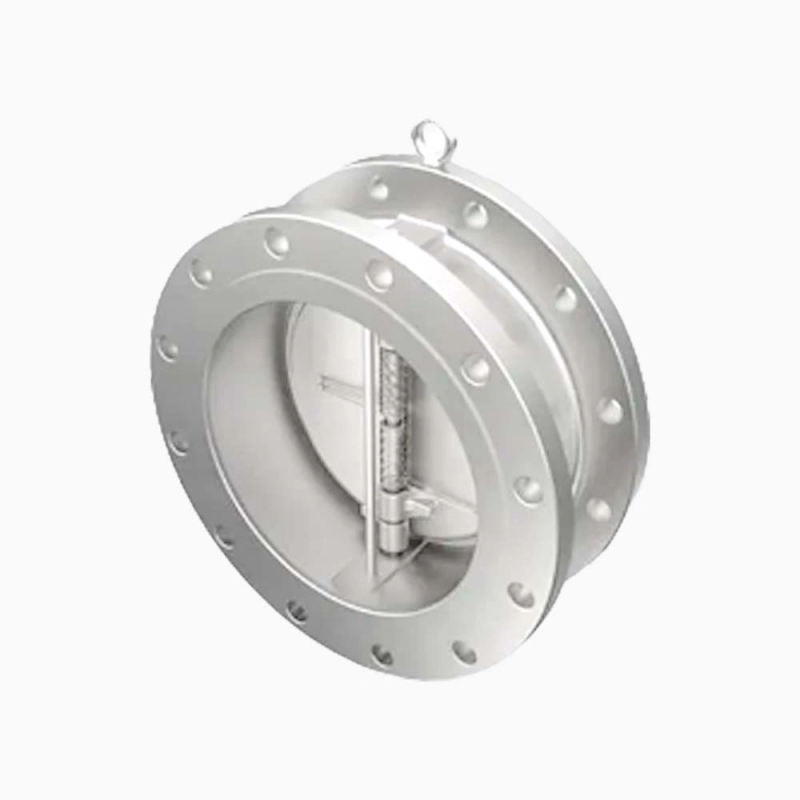

WCB Class 150 Flanged End Check Valve, DN100, API Standard
  • WCB Class 150 Flanged End Check Valve, DN100, API Standard
  • WCB Class 150 Flanged End Check Valve, DN100, API Standard
  • WCB Class 150 Flanged End Check Valve, DN100, API Standard
  • WCB Class 150 Flanged End Check Valve, DN100, API Standard
  • WCB Class 150 Flanged End Check Valve, DN100, API Standard

WCB Class 150 Flanged End Check Valve, DN100, API Standard

Product Attribute: Product Description:
Nominal Diameter: 10 inches (DN 250)
Pore size: full pore size
Rated pressure: 150 LB
Material: WCB
Operation: N/A
Design criteria: API594 / API602 / API6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: ASME /
ANSI B16.5 complete
INFO@TYFLUIDGROUP.COM

Specification

Valve material carbon steel, stainless steel, alloy steel, etc
Valve size 2 “~48” (DN 50~DN 1200)
Pressure range Class150~2500 (PN 16 to PN 420)
Applicable temperature -29°C~ + 560°C
Link mode pair of clip type, flange type, lug type
Design criteria API 594, ASME B16.34, API 6D
Test criteria API 598, EN12266-1, and ISO 5208
Face to face criteria API 594, API 6D, E N 558-1

Product Overview

The double plate check valve has a two spring loaded plate design to open to release medium and bounce back to prevent external leakage. This effective check valve can be installed from any location, providing a tight seal and guaranteed no pressure loss.
Two valve plates are fixed to the valve body along a pivot axis, and two springs are installed on the butterfly plate above the sealing surface
Under the push of the medium flow pressure, the spring is pressed, forcing the butterfly plate to open. When the medium is reversed, the spring forces the valve to close
Such valves can be assembled in horizontal and vertical lines. The sealing surface of the disc and seat is made of alloy steel or hard alloy. With high temperature resistance, corrosion resistance, wear resistance, long service life characteristics.
The valve adopts the overall structure, simple and compact, small impact force when closing, small water hammer pressure, high reliability.
The valve body adopts no stop ring and no dew point structure, and the shell sealing performance is more reliable.

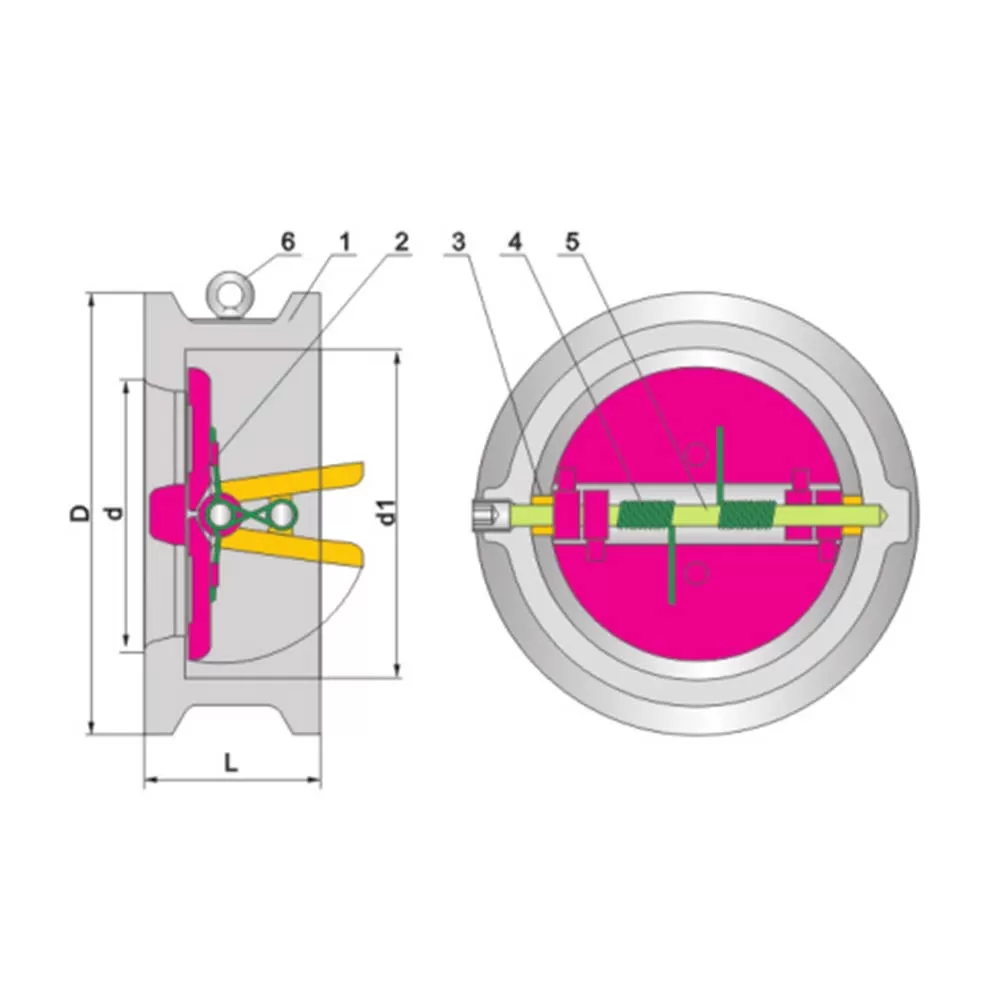

Valve Details
