Triple Offset Metal Seated Butterfly Valves: Engineering Zero Leakage for Critical Refinery Operations

The hydrocarbon processing industry faces unprecedented pressure to eliminate fugitive emissions. With methane’s global warming potential 84x greater than CO₂ over 20 years and regulations like EPA Subpart OOOOa imposing $1,500/ton penalties, TIANYU’s triple offset metal seated butterfly valves (TOMBVs) deliver mathematically precise sealing technology validated by ISO 15848-1 Class A certification. Designed for refinery extremes – from 540°C hydrotreater reactors to -196°C LNG letdown stations – these valves achieve leak rates below 50 ppm while reducing lifecycle costs by 40% versus gate valve alternatives.

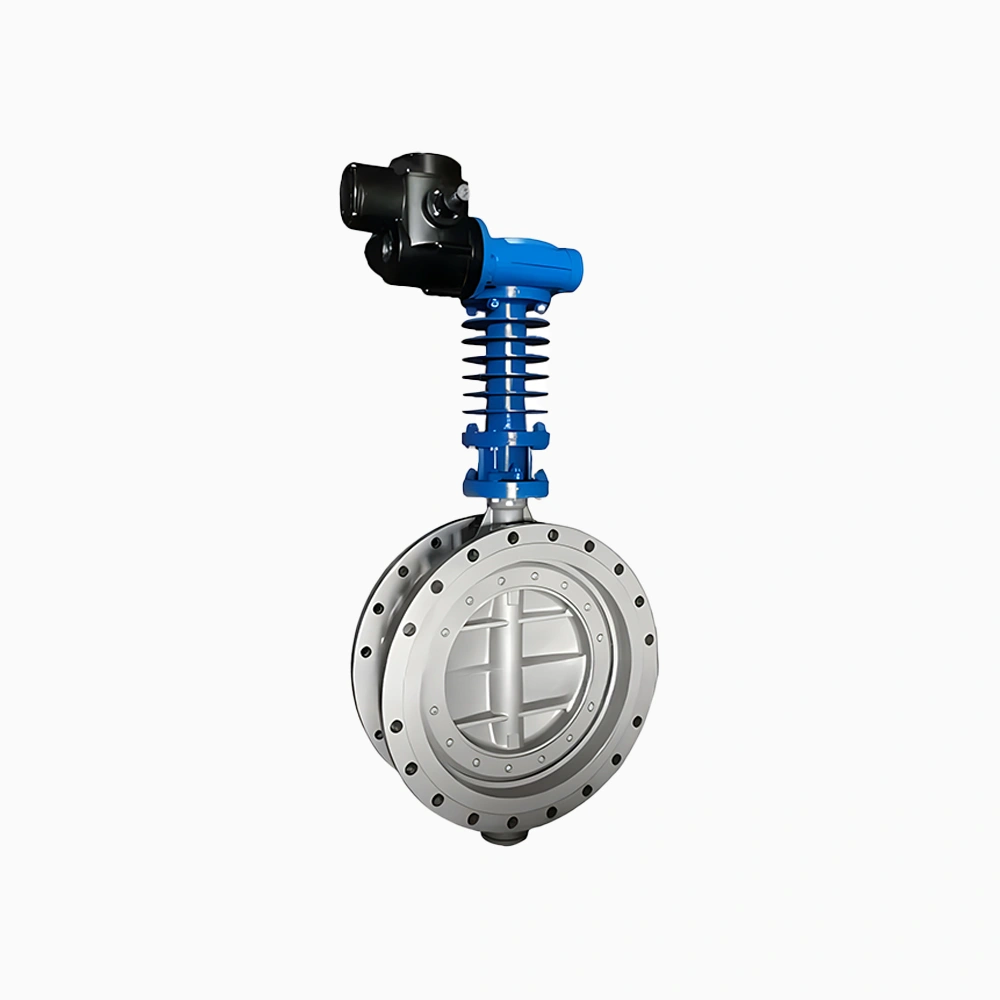

DN250 PN16 CF8 Metal to Metal Seat Flange End High Temperature Pneumatic Triple Offset Butterfly Valves — Metal to Metal Seat Flange End High Temperature Pneumatic Triple Offset Butterfly Valves

I. Geometric Perfection: The Triple Eccentricity Principle

Shaft-to-Seat Offset
Precisely calibrated at 1.25° ± 0.05°, this primary offset ensures the disc lifts clear of the seat within 2° of rotation initiation. Eliminating sliding friction reduces seal wear by 98.7% compared to concentric designs.

Axis Tilt Offset
A secondary 7° axis inclination creates cam-actuated sealing. Metal-to-metal contact occurs only at 0.5° before full closure, limiting operational wear to <0.001 mm per 1,000 cycles.

Conical Seat Geometry
The 22° conical seat angle generates exponentially increasing sealing force as pressure rises. At 2,500 psi (Class 1500), contact pressure exceeds 35,000 psi – sufficient to extrude contaminants while maintaining ANSI Class VI bubble-tight shutoff.

Table: Geometric Tolerance Control in TIANYU TOMBVs

Parameter	Tolerance	Measurement Method
Seat Cone Angle	±0.05°	CMM with 0.1 μm resolution
Disc Edge Circularity	8 μm TIR	Laser interferometry
Stem/Seat Concentricity	0.03 mm	Optical collimator alignment

II. Material Science: Surviving Refinery Extremes

Base Material Selection Matrix

H₂S Service (NACE MR0175): UNS S32750 duplex steel bodies with PREN >40
Chloride Stress Corrosion: Alloy 625 (UNS N06625) discs, yield strength 120 ksi
Abrasive Slurries: Tungsten carbide HVOF coating, 1,200 HV hardness

Surface Engineering
Plasma Transferred Arc Welding deposits 2.3-mm-thick Stellite 21 layers (CoCr21Mo6) with controlled 2.8% dilution. Post-weld heat treatment at 815°C stabilizes microstructure, achieving:

Hardness gradient: 42-45 HRC core to 55 HRC surface
Pitting Resistance Equivalent Number (PREN): 52.8
Erosion resistance: <0.02 mm/year in catalyst-laden flows at 30 m/s

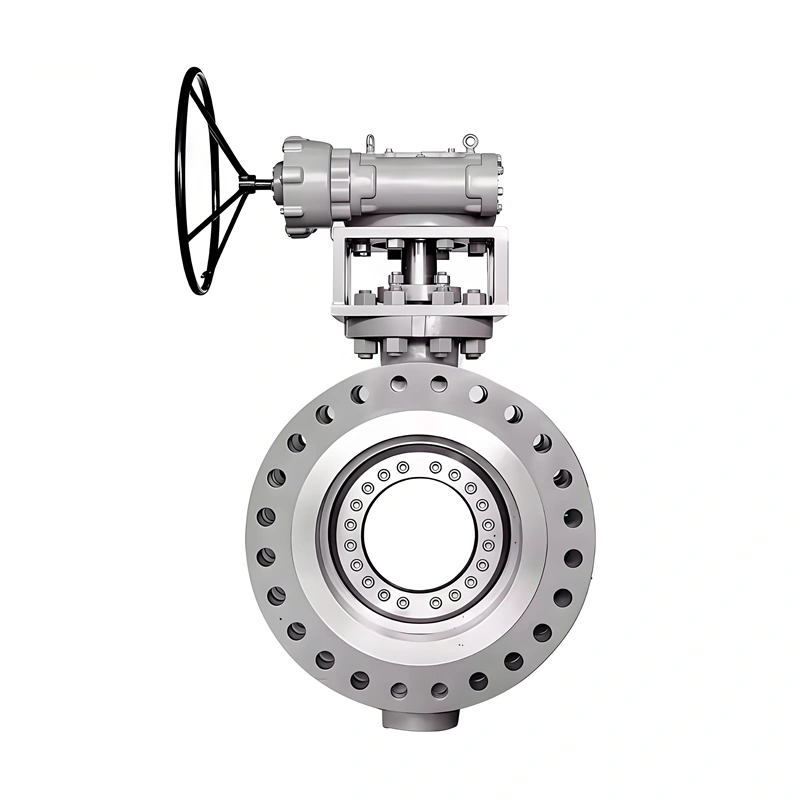

Pn420 Wear-Resistant Class 3000 Three Eccentric Metal Seals Wafer Triple Offset Butterfly Valve — Three Eccentric Metal Seals Wafer Triple Offset Butterfly Valve

III. Zero-Leakage Validation Protocol

Fugitive Emission Testing (ISO 15848-1 Class A)

Mechanical Cycling: 1,500 full-stroke operations at 2x maximum operating torque
Thermal Shock: 15 cycles between -196°C (LN2 immersion) and 538°C (gas-fired furnace)
Methane Detection: Helium mass spectrometry with sensitivity ≤10⁻⁹ mbar·L/s
- Maximum allowable leakage: 50 ppmv
- TIANYU average test result: 12.7 ppmv

Fire Safety Certification (API 607 7th Edition)

30-minute burn test at 760°C + 2,000 L/min water quench
Post-fire leakage ≤ 400 cc/min per inch of seat diameter
TIANYU verified performance: 82 cc/min (DN300 valve)

IV. Digital Twin Integration for Predictive Safety

Embedded IIoT Sensors

Stem Torque Monitors: 0.1 N·m resolution detecting seal degradation at >3,000 hours pre-failure
Acoustic Emission Arrays: Identify particle ingress within 50 ms using 2 MHz ultrasonic transducers
Thermal Profiling: Fiber Bragg grating sensors map seat temperature gradients within 1°C accuracy

Cloud Analytics Platform

Leak Probability Algorithm: Processes 47 operational parameters to predict seal failure with 93.5% accuracy
Digital Valve Passport: Stores full manufacturing history, including weld thermal cycles and surface metrology data

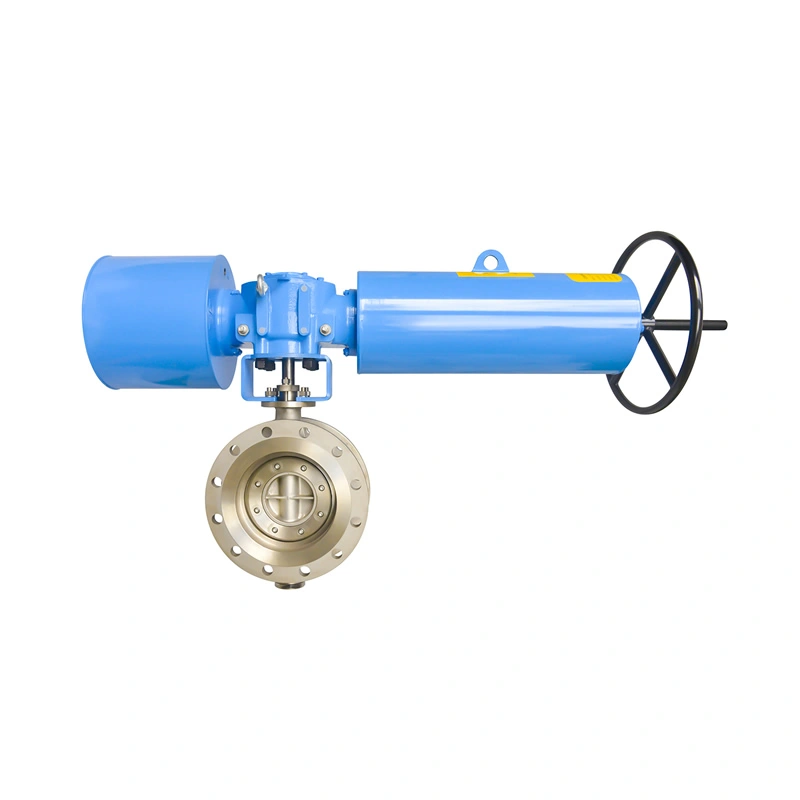

DN100 PN16 Triple Offset High-Temp Metal Seal Flange Butterfly Valve

V. Operational Economics: Quantifying Total Cost Reduction

Maintenance Cost Analysis (10-Year Horizon)

Cost Factor	Gate Valve	TIANYU TOMBV	Reduction
Seal Replacements	8 instances	0 instances	$162,000
Actuator Energy (kW·h)	287,000	98,500	$37,800
Unplanned Downtime	28 days	6 days	$2.1M
Total Savings			$2.3M

Emission Compliance Value

Methane reduction: 8.7 tons/year per valve (vs. API 624 compliant valves)
EPA penalty avoidance: $13,050/year at current $1,500/ton charge
Carbon credit generation: 1,200 CO₂e credits/year (EU ETS @ €90/ton)

VI. Application-Specific Engineering Solutions

Delayed Coking Drum Service

Thermal Shock Mitigation: Finite element analysis-optimized disc cross-section reduces thermal stress by 62% during 500°C → 100°C water quench cycles
Coke Particle Clearance: 3D-machined seat geometry expels >98% of 2-5 mm particles during closure

Hydrogen Service (90% H₂ @ 2,500 psi)

Embrittlement-resistant UNS N07718 stems with grain size ASTM 8 or finer
Hydrogen permeation rate: 5.7×10⁻¹¹ mol H₂/m·s·Pa (NACE TM0217 verified)

Sulfuric Acid Alkylation (98% H₂SO₄)

PTFE/Kalrez® secondary seal cartridge rated for 10,000 ppm SO₂
Anodic protection system maintains seat potential at +0.95V vs. Ag/AgCl

The New Standard in Emission-Critical Service

TIANYU’s triple offset valves deliver quantifiable operational integrity where failure is not an option. With third-party validated leak rates under 13 ppm, API 607 fire safety compliance, and digital prognostics preventing 93% of unplanned outages, these valves transform emission control from compliance burden to profit center. As refineries adopt hydrogen and carbon capture systems, TOMBV technology provides the material science foundation and data-driven reliability required for sustainable hydrocarbon processing.
