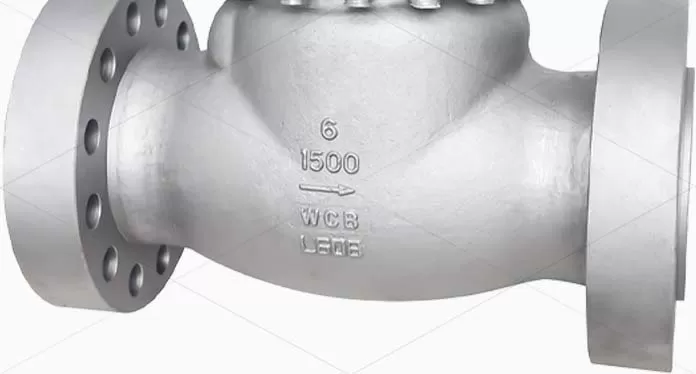

Swing Check Valves
  • Swing Check Valves
  • Swing Check Valves
  • Swing Check Valves
  • Swing Check Valves

Swing Check Valves

Product Attribute: Product Description:

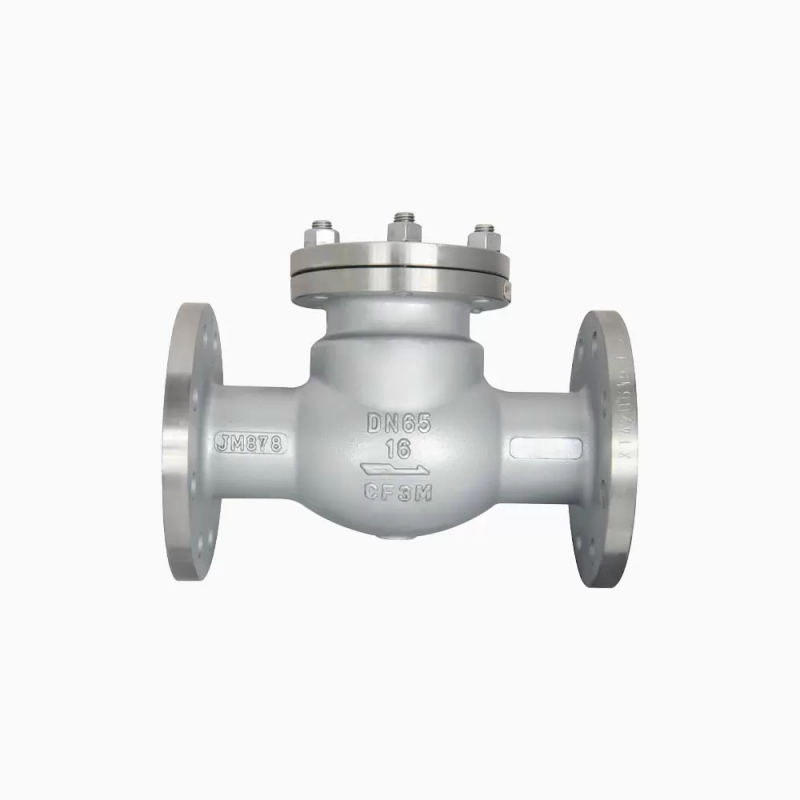

Nominal Diameter: DN65
Pore size: full pore size
Rated pressure: PN16
Material: CF3M
Operation: N/A
Design criteria: API594 / API602 / API6D
Test/Inspection: API598
End Connection: RF FLANGE
Overall flange standard: EN 1092-1, ASME / ANSI B 16.5
Complete flange: none
PS: We can manufacture the valves according to the customer’s requirements.
INFO@TYFLUIDGROUP.COM

Specification

Valve Size 1 / 2 “~48” (DN15~DN1200)
Rated pressure Class 150~Class 2500 (PN 16 to PN 420)
Applicable temperature -29°C~ + 400°C
Valve material carbon steel, stainless steel, alloy steel, etc
Connection mode: flange connection, thread connection and
welding connection, etc.
Flange standards ANSI / ASME B 16.5 and DIN standards, etc.
Design criteria API 6D, API 594, ASME B16.34, and API 602

Valve Details

  • Swing Check Valves

    Valve Size

    1 / 2 “~48” (DN15~DN1200)

  • Swing Check Valves

    Valve material

    carbon steel, stainless steel, alloy steel, etc
    Connection mode: flange connection, thread connection and
    welding connection, etc.
