Sanitary Valves for Food and Beverage Industry: FDA/3A Compliance, Hygienic Design & CIP/SIP Compatibility

Valves in this sector are not just flow control components—they are critical to maintaining hygiene, preventing cross-contamination, and aligning with global standards (FDA, 3A, EHEDG, ISO). This article explores tailored solutions for food and beverage applications, covering industry-specific operating conditions, application-process-material-engineering alignment, core valve types, technical specifications, data-driven selection criteria, real-world cases, TIANYU’s precision manufacturing, product advantages, and future innovations.

I. Related Engineering Operating Conditions of Food and Beverage Industry

A. Hygiene and Contamination Risks

• No Dead Zones: Valves must have smooth, crevice-free surfaces to prevent bacterial growth (e.g., Salmonella, Listeria) that thrives in uncleanable gaps. Even 0.1 mm crevices can harbor 10⁴ bacteria per cm² after 24 hours.
• Cross-Contamination Prevention: Processing lines switch between products (e.g., milk to juice) or allergens (nuts, gluten)—valves must be fully drainable and cleanable to eliminate residue (≤1 mg/m² of product contact surface).
• Sterility Requirements: High-risk products (dairy, ready-to-eat meals, infant formula) demand sterile valves (SIP-compatible) to achieve a 6-log reduction in bacteria.

B. Cleaning Process Compatibility (CIP/SIP)

• CIP (Clean-in-Place): Automated cleaning with caustic (2–5% NaOH, 60–80°C) or acidic (1–2% HNO₃, 50–70°C) solutions—valves must resist chemical attack (EPDM seals swell ≤5% after 1,000-hour immersion).
• SIP (Sterilize-in-Place): Steam sterilization (121°C, 0.1 MPa for 30 minutes)—valves must withstand thermal cycling (25°C to 121°C) without seal degradation.
• Cleaning Frequency: High-volume lines (dairy, soda) require CIP 2–4x daily; specialty products (craft beer, gourmet sauces) 1x daily—valves must endure 1,000+ CIP/SIP cycles annually.

C. Medium and Temperature Variability

• Media Diversity: Water (pH 6–8), dairy (pH 6.5–6.7, fat content 1–4%), fruit juice (pH 2–4, acidic), syrup (viscosity 1,000–5,000 cSt), alcohol (10–95% ethanol), and carbonated beverages (CO₂ pressure 0.3–0.6 MPa).
• Temperature Ranges: Cold storage (-10°C to 0°C for frozen fruit), ambient processing (15–30°C for mixing), pasteurization (65–72°C), UHT sterilization (135°C), and hot filling (85–95°C for juice).
• Viscosity Challenges: High-viscosity media (honey, chocolate) require full-port valves to minimize pressure loss and residue buildup.

D. Regulatory and Compliance Requirements

• Global Standards: FDA 21 CFR Part 177 (food-contact materials), 3A Sanitary Standards (dairy), EHEDG (European hygiene), ISO 14159 (hygienic equipment), and NSF/ANSI 169 (food-processing equipment).
• Material Compliance: Product-contact surfaces must be non-toxic, non-absorbent, and resistant to leaching (heavy metals ≤0.01 mg/L per FDA limits).
• Traceability: Valves must be marked with material grades, batch numbers, and compliance logos—traceable to raw material certificates (MTCs).

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Raw Material Handling: Valves control water intake, fruit/vegetable washing, and ingredient dosing—require easy cleaning and resistance to particulate matter (e.g., fruit pulp).
• Mixing and Blending: Valves regulate ingredient flow (sugar, flavorings, emulsifiers)—precise flow control (±2% accuracy) and full drainability to prevent residue.
• Heat Treatment (Pasteurization/UHT): Valves handle heated products and steam—high-temperature resistance (up to 135°C) and SIP compatibility.
• Fermentation (Beer/Wine): Valves control yeast addition, CO₂ release, and transfer—oxygen-tight sealing (to prevent oxidation) and sanitary design (no bacterial growth).

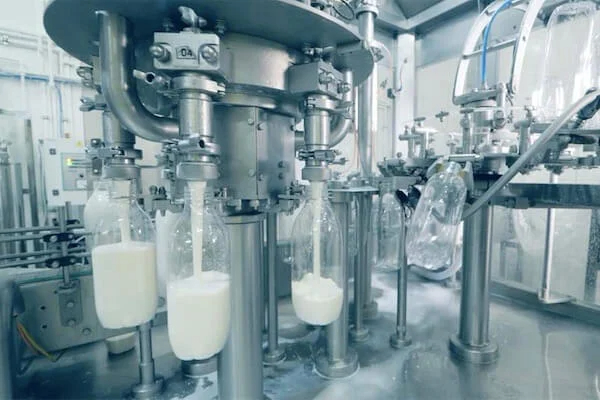

• Filling and Packaging: Valves regulate product flow to bottles/cans—fast actuation, drip-free sealing, and compatibility with aseptic packaging.
• CIP/SIP Systems: Valves direct cleaning fluids through lines—chemical resistance, full-port flow, and automated actuation for unattended cleaning.

B. Process-Material Matching

• Metallic Materials: 316L stainless steel (primary choice—corrosion-resistant, non-toxic, FDA-compliant); 304 stainless steel (low-hygiene utility lines, e.g., water).
• Sealing Materials: EPDM (general use, FDA-compliant, -40°C to 120°C), FKM (acidic media, 20°C to 150°C), PTFE (chemical inertness, -200°C to 260°C, ideal for CIP/SIP).
• Surface Finishing: Electropolished (Ra ≤0.4 μm) for high hygiene (dairy, infant formula); mechanical polishing (Ra ≤0.8 μm) for standard applications (juice, soda).

C. Material-Engineering Scaling

• Large-Scale Production (100,000+ Units/Day): High-cycle valves (10–20 actuations/hour) with automated CIP/SIP compatibility—316L electropolished bodies, EPDM/FKM seals, and fast-acting pneumatic actuators.
• Specialty Products (Craft Beer, Gourmet Food): Small-batch valves (DN15–DN50) with manual or semi-automated actuation—easy disassembly for deep cleaning, 3A-compliant.
• Aseptic Processing (Pharmaceutical-Grade Food): Sterile valves with metal bellows seals (zero leakage), SIP compatibility (121°C for 60 minutes), and EHEDG Type EL certification.
• Frozen Food Processing: Valves rated for -10°C to 0°C—low-temperature EPDM seals (no brittleness) and drainable design to prevent ice buildup.

III. Common Valve Types in Food and Beverage Industry (with TIANYU Product Links)

A. Sanitary Ball Valves: Hygienic On-Off & Throttling

• Body materials: 316L stainless steel (electropolished Ra ≤0.4 μm).
• Trim: 316L ball (electropolished), PTFE-lined seats (FDA-compliant); full-port for high viscosity media.
• Design: No dead zones, fully drainable (15° incline), tri-clamp or weld-on sanitary connections; compatible with CIP/SIP.
• Compliance: 3A, EHEDG, FDA 21 CFR Part 177—sizes DN15–DN200, PN10–PN25.

B. Sanitary Butterfly Valves: Large-Flow Hygienic Control

• Body materials: 316L stainless steel (polished Ra ≤0.8 μm).
• Disc: 316L stainless steel (electropolished), EPDM/FKM seals (FDA-compliant); double-eccentric design (reduced friction).
• Design: Wafer or lug type, tri-clamp connections; fully drainable, no dead zones; compatible with automated CIP.
• Sizes: DN50–DN200, PN10–PN16—flow rates up to 5,000 m³/h for DN200.

C. Sanitary Diaphragm Valves: Aseptic Isolation

• Body materials: 316L stainless steel (electropolished Ra ≤0.4 μm).
• Diaphragm: EPDM/PTFE (FDA-compliant); weir-type design (tight sealing) or straight-through (high flow).
• Design: No stem contact with product, fully drainable, easy diaphragm replacement; EHEDG Type EL certified for aseptic service.

D. Sanitary Check Valves: Backflow Prevention

• Types: Swing (low pressure drop, large lines) or lift (tight sealing, small lines).
• Materials: 316L stainless steel body/seal, EPDM/FKM seals (FDA-compliant).
• Design: Fully drainable, no dead zones; spring-loaded for reliable closure in vertical/horizontal lines.

E. CIP/SIP Valves: Cleaning System Control

• Body materials: 316L stainless steel (polished Ra ≤0.8 μm).
• Seals: FKM/PTFE (chemical resistance); 3-way or 4-way design to switch between product and cleaning flow.
• Actuation: Pneumatic (automated CIP cycles) with position feedback (4–20 mA) for integration with PLC systems.

IV. Specification Parameters of Food and Beverage Valves

A. Nominal Diameter (DN/NPS)

• Range: DN15–DN200 (NPS ½”–8”):
  • DN15–DN50: Ingredient dosing, small-batch mixing, craft beer lines.
  • DN65–DN100: Medium-scale production (juice, soda), CIP/SIP lines.
  • DN125–DN200: Large-scale processing (dairy UHT, bottled water filling).

B. Nominal Pressure (PN/Class)

• Range: PN10–PN25 (Class 150–300):
  • PN10–PN16 (Class 150): Standard processing (mixing, filling, CIP).
  • PN25 (Class 300): High-pressure applications (carbonated beverages, CO₂ blanketing).

C. Temperature Range

• Operating Temperature: -10°C to 150°C:
  • -10°C to 0°C: Frozen food processing (low-temperature EPDM seals).
  • 15°C to 85°C: Ambient/medium-temperature processing (juice, beer, syrup).
  • 85°C to 150°C: Pasteurization/UHT sterilization (FKM/PTFE seals, SIP-compatible).

D. Key Performance Metrics

• Hygiene Rating: Surface roughness Ra ≤0.4 μm (high hygiene) or Ra ≤0.8 μm (standard); EHEDG/3A certification.
• Sealing Grade: Class VI (bubble-tight) to prevent product leakage and contamination.
• CIP/SIP Compatibility: Withstands 1,000+ cycles of 80°C caustic/acidic cleaning and 121°C steam sterilization.
• Drainability: Fully drainable (≤15° incline) to eliminate product residue (≤1 mg/m²).

E. Connection & Actuation

• Connections: Sanitary tri-clamp (most common, easy disassembly for cleaning), weld-on (permanent lines), threaded (small utility lines).
• Actuation:
  • Manual: Handwheel/lever (low-frequency operation, small batches).
  • Pneumatic: 6–8 bar air, fast actuation (≤3 seconds), ideal for automated lines and CIP/SIP.
  • Electric: 24V DC/380V AC, precise control (dosing applications), integrated with PLC/DCS.

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Hygiene Compliance: 3A/EHEDG certification for high-risk products (dairy, infant formula); FDA compliance for all food-contact surfaces.
2. Cleaning Compatibility: CIP/SIP resistance (chemical and thermal stability of seals/materials).
3. Media Properties: Viscosity (full-port valves for ≥1,000 cSt), acidity (FKM/PTFE seals for pH <4), alcohol content (PTFE for ≥70% ethanol).
4. Temperature/Pressure: UHT processing (135°C, PN16) requires high-temperature seals; carbonated beverages (0.6 MPa) need PN25 valves.
5. Operational Cycles: High-volume lines (10,000+ actuations/year) require durable seals (EPDM/FKM) and corrosion-resistant 316L.

B. Engineering Cases

Case 1: Large-Scale Dairy UHT Plant (Europe, 500,000 L/Day)

• Challenges: 135°C UHT sterilization, frequent SIP (4x daily), milk fat buildup risk, 3A/EHEDG compliance, 20 actuations/hour.
• Valve Selection: TIANYU sanitary ball valves (316L electropolished, PTFE seats), diaphragm valves (EHEDG Type EL), pneumatic CIP valves.
• Results: No bacterial contamination (6-log reduction in E. coli); CIP time reduced by 30% (from 60 to 42 minutes); seal life extended to 18 months (vs. 6 months for standard valves); 3A/FDA compliance maintained.

Case 2: Craft Beer Brewery (North America, 10,000 L/Batch)

• Challenges: Fermentation (15°C), CO₂ blanketing (0.3 MPa), oxygen-tight sealing (prevent oxidation), manual cleaning (1x daily), EHEDG compliance.
• Valve Selection: TIANYU sanitary ball valves (316L, EPDM seals), swing check valves, tri-clamp connections.
• Results: Beer oxidation reduced by 90% (dissolved oxygen ≤0.1 mg/L); easy disassembly for deep cleaning; no residue buildup; batch consistency improved (IBU variation ±1%).

Case 3: Fruit Juice Hot Filling Plant (Asia, 300,000 Bottles/Day)

• Challenges: 85°C hot filling, acidic juice (pH 2.5), CIP with 2% HNO₃ (70°C), high flow rates (3,000 m³/h), NSF/ANSI 169 compliance.
• Valve Selection: TIANYU sanitary butterfly valves (316L, FKM seals), CIP 3-way valves, lift check valves.
• Results: No acid corrosion (316L/FKM resistance verified); pressure drop ≤0.02 MPa (maximizes filling speed); CIP residue ≤0.5 mg/m²; juice shelf life extended by 15 days (no spoilage).

Case 4: Infant Formula Plant (South America, Aseptic Processing)

• Challenges: Sterile processing, 121°C SIP (60 minutes), zero product contact with non-sterile surfaces, EHEDG Type EL certification.
• Valve Selection: TIANYU sanitary diaphragm valves (metal bellows seals), sterile ball valves (316L electropolished), SIL 2 rated pneumatic actuators.
• Results: Aseptic integrity maintained (no microbial growth); SIP validation passed (FDA audit); product recall rate 0% over 3 years.

VI. Manufacturing Processes of TIANYU Food & Beverage Valves

A. Raw Material Inspection

• 316L Stainless Steel: Sourced from certified mills (Outokumpu, Aperam) with MTCs verifying chemical composition (Cr 16–18%, Ni 10–14%, Mo 2–3%) and compliance with FDA 21 CFR Part 177.
• Seals: EPDM/FKM/PTFE tested for FDA compliance (no toxic leachables) and CIP/SIP resistance (1,000-hour immersion in 5% NaOH/2% HNO₃).
• Welding Materials: ER316L filler wire (food-grade, no heavy metals) tested for corrosion resistance (ASTM G48).

B. Precision Machining & Hygienic Finishing

• Body/Disc Machining: 5-axis CNC machining (tolerance ±0.02 mm) to ensure smooth surfaces (no crevices); internal channels designed for full drainability (15° incline).
• Electropolishing: 316L components treated with electrolytic polishing (Ra ≤0.4 μm) to remove micro-crevices—verified via profilometer testing.
• Welding: TIG welding with argon purge (no oxidation); welds ground and polished to match base material (Ra ≤0.8 μm) to eliminate dead zones.
• Seal Installation: FDA-compliant seals fitted with interference fit (0.05–0.1 mm) to ensure tight sealing; no adhesives (risk of leaching).

C. Assembly & Hygiene Testing

• Cleanroom Assembly: Conducted in Class 10,000 cleanrooms (no dust/contamination); tools sanitized before use; no oil/grease (only food-grade lubricants).
• Pressure Testing: 100% hydrostatic testing (1.5x PN for 30 minutes, no leakage); pneumatic testing (0.6 MPa for 15 minutes, Class VI sealing verification).
• Hygiene Validation: EHEDG cleaning tests (CIP simulation with food-grade dye) to verify no residue retention; SIP testing (121°C steam for 60 minutes) to confirm sterility.
• Material Compliance Testing: Leachate testing (FDA 21 CFR Part 177) to ensure no toxic substances migrate to food (heavy metals ≤0.01 mg/L).

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, material, 3A/EHEDG/FDA logos, serial number, and manufacturing date. Serial numbers link to MTCs/test reports via TIANYU’s portal.
• Packaging: Sealed in sterile, food-grade plastic bags; wrapped in moisture-proof film; shipped in cardboard boxes (no wood/metal contamination risks).

VII. Advantages of TIANYU Food & Beverage Valves

A. Hygienic Design & Compliance

• No Dead Zones: Electropolished surfaces (Ra ≤0.4 μm) and full drainability eliminate bacterial growth—EHEDG/3A/FDA certified.
• CIP/SIP Compatibility: Withstands 1,000+ cleaning cycles (caustic/acidic/steam) without seal degradation or material damage.
• Product Purity: 316L stainless steel and FDA-compliant seals ensure no leaching (heavy metals ≤0.01 mg/L)—safe for infant formula, dairy, and organic products.

B. Durability & Performance

• Long Service Life: Seal life 18–24 months (2x industry average) in high-volume lines; 316L corrosion resistance (no rust in acidic media).
• Low Maintenance: Easy disassembly (tri-clamp connections) for deep cleaning; no specialized tools required—maintenance time reduced by 40%.
• Flow Efficiency: Full-port design (ball/butterfly valves) minimizes pressure loss (ζ ≤0.2) and residue buildup—ideal for high-viscosity media.

C. Operational Flexibility

• Wide Compatibility: Suitable for water, dairy, juice, beer, syrup, and alcohol—adapts to diverse food and beverage processes.
• Actuation Options: Manual/pneumatic/electric actuators to match production scale (small craft to large industrial).
• Connection Versatility: Tri-clamp/weld-on/threaded connections for seamless integration with existing lines.

D. Service & Support

• Pre-Sales Engineering: 12 food industry specialists (10+ years experience) provide hygiene compliance consulting, material selection, and CIP/SIP integration advice.
• Global Support: 24-hour technical support; on-site installation/commissioning (response time ≤72 hours); spare seals delivered in 48 hours.
• Warranty: 2-year standard warranty (industry average 1 year); 3-year warranty for aseptic valves—covers material defects, seal failure, and hygiene non-compliance.

VIII. Future Applications of Food & Beverage Valves

A. Smart Sanitary Valves

• IoT Integration: Valves with sensors (temperature, pressure, cleaning status) to monitor hygiene and performance—data transmitted to cloud platforms for remote monitoring.
• Predictive Maintenance: AI algorithms analyze sensor data to predict seal wear and cleaning needs—reducing unplanned downtime by 30%.
• Automated CIP/SIP: Valves integrated with PLC/DCS systems to trigger cleaning cycles based on production runtime—eliminating human error.

B. Sustainable & Eco-Friendly Valves

• Recyclable Materials: 316L stainless steel valves with 90% recyclable content—reducing carbon footprint by 15%.
• Low-Energy Actuation: Pneumatic actuators with energy recovery (50% air consumption reduction) for green production facilities.
• Long-Life Seals: Bio-based EPDM seals (renewable materials) with 2x longer life—reducing waste.

C. Aseptic & Specialty Valves

• Biodegradable Food Processing: Valves for plant-based meat, algae-based products—hygienic design to handle high-protein, high-moisture media.
• Microbial Control: Valves with integrated UV sterilization (during CIP) to achieve 7-log bacterial reduction—ideal for probiotic foods.
• Flexible Production: Modular valves (quick-change seals/trim) to switch between products (e.g., dairy to vegan milk) in 30 minutes—reducing downtime.
