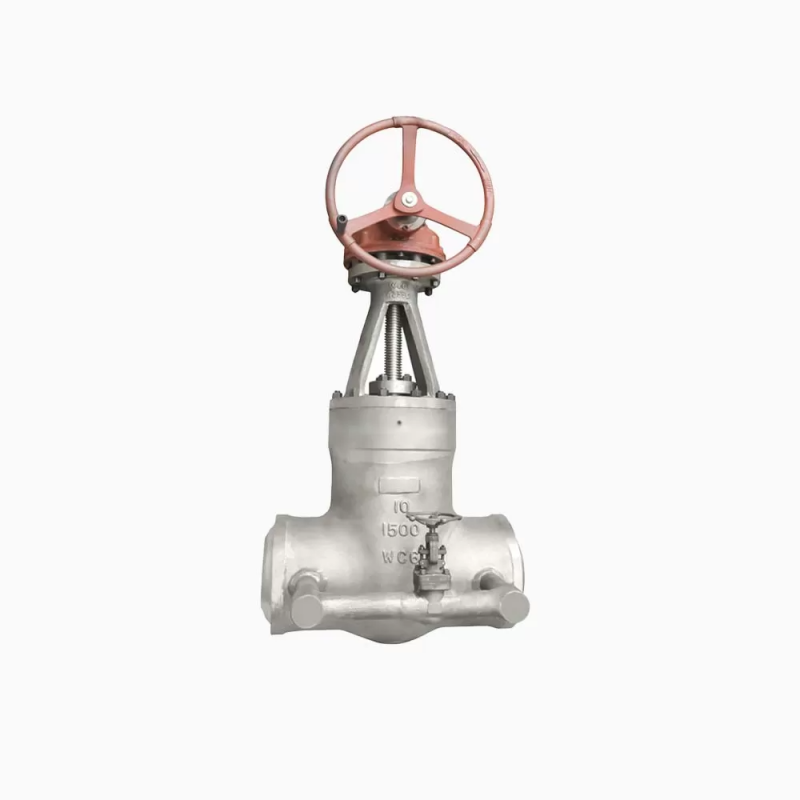

Pressure Seal Gate Valve

Product Attribute: Product Description:
Nominal Diameter:10”
Bore: Full Bore
Nominal Pressure:1500LB
Material: WCB
Operation: Gear Box
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: Butt Weld
Butt Weld standard: ASME B16.25
Top Flange: ISO5210 /ISO5211
PS: We can manufacture valves to customers’ requirements.

INFO@TYFLUIDGROUP.COM

Specification

Valve Size	2″~24″
Pressure Class	1500LB~2500LB
Materials	WCB, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A
Design and Manufacturing Standards	API 600, API 6D
Face to Face Standards	ASME B16.10
Flange Dimension Standards	ASME B 16.5, ASME B16.47
Pressure Test Standards	API 598, API 6D
Fire Safety Test Standards	API607
Quality/Product Certifications	ISO9001, ISO14001, ISO18001
Fugitive Emissions	ISO 15848-1, API 622
NACE	NACE MR 0175
Valve operator options	Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
Shutoff Class	API 598 (Zero Leakage), API 6D
Bore	FULL BORE

Valve Details

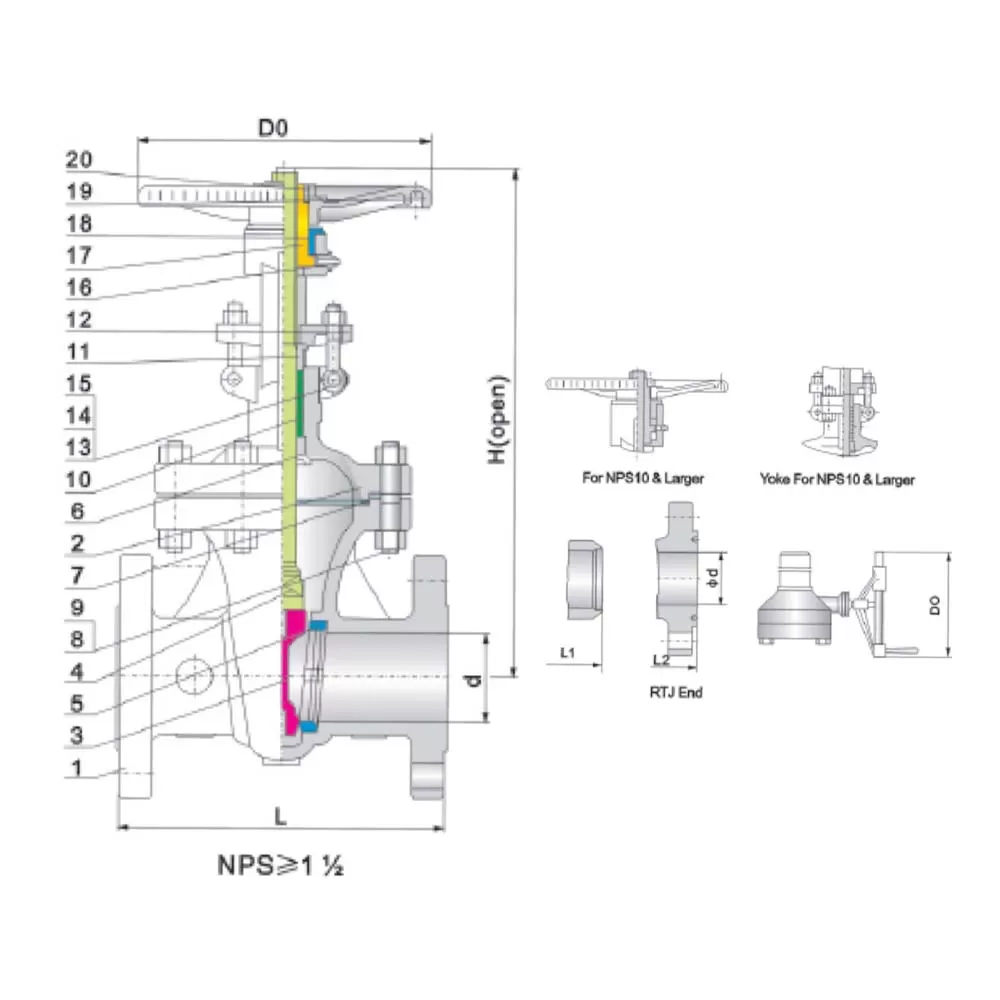

Descriptions of Pressure Seal Gate Valves
- A range of compact pressure seal gate valves designed according to ASME B16.34.
- All range is offered in four standard cast materials: WCB (generally used on feed water lines), WC6 and WC9 (both used on steam lines), C12A (proposed for high temp. applications).
- End to end dimensions as per ASME B16.10 short pattern.
- Available in wedge gate and parallel slide configurations.
- Seats are welded in.
- Position indicator is offered as standard.
- Stellite® gr. 6 overlay on seat and wedge or disc; Stellite® gr. 21 overlay on backseat.
- Pressure seal gasket has trapezoidal shape for a low load on bolting, and is supplied in graphite with integral stainless steel anti-extrusion protection.
- Standard ISO top mounting for easy assembly of any type of actuator or bevel gear.
- Available options: wedge vent hole or overpressure pipe, by-pass, limit switch in open or closed position.
- Valves are offered as standard with manual operators (Hand wheel or bevel gear depending on size). Actuated options such as electric, pneumatic or hydraulic are available.
Application of Cast Steel Butt Weld Pressure Seal Gate Valve

1. High-Pressure Fluid Control: This type of valve is typically designed for high-pressure environments where reliable fluid control is necessary. Its butt-welded design makes it suitable for both high-pressure and high-temperature conditions.

2. Bypass Design: The valve is equipped with a bypass design, adding flexibility when fluid needs to bypass the main valve. The bypass function allows users to maintain fluid flow during maintenance, inspections, or troubleshooting.

3. Chemical Industry: In the chemical industry, reliable fluid control is essential to ensure the proper functioning of systems. The use of this valve in chemical processes can encompass the control of chemicals, solvents, and other fluids.

4. Power Industry: High-pressure pressure-sealed gate valves are commonly employed in water circulation systems within power plants to control fluid flow. The bypass feature is crucial for routine maintenance and system debugging.

5. Oil and Gas Industry: Due to its adaptability to high-pressure conditions, this valve may be utilized in fluid control for the extraction, transportation, and processing of oil and natural gas.

6. Industrial Manufacturing: In certain manufacturing environments dealing with high-pressure fluids, such as metal processing or heavy industries, this valve may be employed for fluid control.
