Navigating Fire Valve Innovation: Key Trends in Standards, Material Selection, Engineering Applications

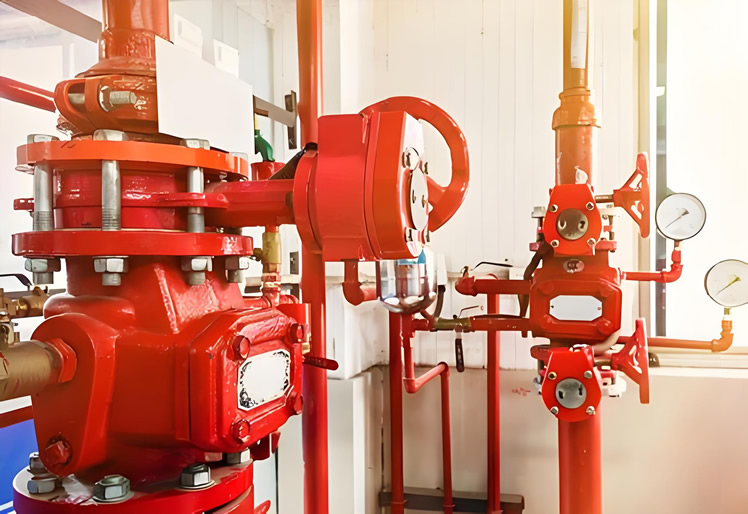

I. Related Engineering Operating Conditions of Emergency Fire Protection

• Clean water (most widely used, but may contain impurities that cause internal scaling);
• Aqueous film-forming foam (AFFF, with surfactants that can corrode ordinary metals);
• Gas agents (CO₂, heptafluoropropane, which require low leakage to avoid agent waste);
• Dry powder (abrasive, easily causing valve seat wear).

II. Application-Process-Material-Engineering Matching in Emergency Fire Protection

A. Application-Process Matching

• Automatic Sprinkler System (for Class A/B/E Fires): The most common civil/industrial system, using closed sprinklers activated by heat. Valves here need to control water flow to sprinkler zones (e.g., zone valves) and prevent backflow (check valves).
• Fire Hydrant System (for Class A/B Fires): Used for manual fire fighting, requiring valves to provide high-flow water (gate valves/globe valves) and connect hoses quickly.
• Foam Fire Extinguishing System (for Class B Fires): Used in petrochemical tanks, oil depots, and aircraft hangars. Valves must mix foam concentrate with water at a precise ratio (1–6%) and withstand foam corrosion.
• Gas Fire Extinguishing System (for Class C/E Fires): Used in data centers, museums, and electrical cabinets (no water damage). Valves need ultra-low leakage (to preserve gas agents) and fast actuation.
• Dry Powder Fire Extinguishing System (for Class B/C/D Fires): Used in chemical plants and metal processing. Valves must resist dry powder abrasion and maintain sealing after multiple uses.

B. Process-Material Matching

• Water/Foam Systems:
  • Valve bodies: Ductile iron (ASTM A536, for low-pressure ≤1.6 MPa, cost-effective) or 304/316 stainless steel (for corrosive environments, e.g., coastal areas or foam systems—316 has better Mo content, resisting AFFF corrosion).
  • Seals: EPDM (temperature range -40℃ to 120℃, good water resistance) or PTFE (for high temperatures ≤180℃ or foam compatibility).
• Gas Systems:
  • Valve bodies: 316L stainless steel (low carbon content, avoiding intergranular corrosion from gas agents like heptafluoropropane).
  • Seals: Fluororubber (FKM, resistant to organic gases and high temperatures up to 200℃) or metal-to-metal sealing (for ultra-low leakage Class VI).
• Dry Powder Systems:
  • Valve bodies: Wear-resistant cast steel (ASTM A216 WCB, with internal polishing to reduce powder adhesion).
  • Trim (disc/seat): Stellite alloy overlay (hardness ≥HRC 40, resisting abrasion from dry powder).

C. Material-Engineering Matching

• High-Rise Buildings (≥100m): Water pressure is high (2.0–3.0 MPa), so valves need high-pressure ratings (PN4.0). Ductile iron valves with stainless steel trim (304) balance strength and cost; cold regions (e.g., Harbin, China) use low-temperature-resistant EPDM seals (-40℃).
• Petrochemical Plants: Corrosive environments (oil vapor, salt spray) require 316 stainless steel valves; high-temperature zones (near furnaces) use Hastelloy C-276 trim (resists 600℃+).
• Data Centers: Gas systems need clean, low-outgassing materials—316L valves with FKM seals (no volatile organic compounds that damage electronics).
• Outdoor Municipal Fire Hydrants: Valves must resist weathering (UV, rain) and vandalism—ductile iron bodies with epoxy powder coatings (thickness ≥250μm, anti-rust for 10+ years).

III. Common Valve Types in Emergency Fire Protection

A. Gate Valves: High-Flow On-Off for Fire Hydrants

Gate valves have a full-bore design, minimizing flow resistance—ideal for fire hydrant systems, where firefighters need maximum water flow (≥50 L/s) for manual fighting. TIANYU’s fire protection gate valves use a wedge gate structure (self-sealing under pressure) and ductile iron bodies (ASTM A536) or 304 stainless steel (for corrosion-prone areas). The stem is made of 304 stainless steel with a PTFE coating (reducing friction for easy operation), and the packing uses flexible graphite (high-temperature resistance up to 350℃).

B. Butterfly Valves: Zone Control for Sprinkler Systems

Butterfly valves are compact and fast to operate, making them suitable for zone control in automatic sprinkler systems (e.g., dividing a high-rise building into 5–10 zones). TIANYU’s fire protection butterfly valves adopt a double-eccentric design (reducing seat wear) and are available in lug or wafer types (easy installation). The disc is made of ductile iron with 304 stainless steel overlay (corrosion resistance), and the seat is EPDM or FKM (depending on media). They meet UL 10C fire test standards (withstand 1020℃ for 30 minutes without leakage).

C. Check Valves: Backflow Prevention for Fire Pumps

• Swing Check Valves: Used in low-pressure sprinkler systems (≤1.6 MPa), with a ductile iron disc and EPDM seal (fast closing to avoid water hammer).
• Lift Check Valves: Used in high-pressure foam/gas systems (≥2.5 MPa), with a 316 stainless steel disc and metal seat (tight sealing, Class V).



D. Ball Valves: Precise Control for Gas/Foam Systems

Ball valves have fast 90° actuation and tight sealing, making them ideal for gas fire extinguishing systems (controlling CO₂/heptafluoropropane release) and foam proportioning systems (adjusting concentrate flow). TIANYU’s fire protection ball valves are full-bore (for gas systems, no agent retention) or reduced-bore (for foam systems). The body is 316L stainless steel, and the seat is FKM or PTFE (meeting Class VI leakage standards—≤0.1 cm³/min for DN50 valves). They are also equipped with manual overrides (for emergency operation if electric actuators fail).

E. Rain Valves: Automatic Activation for Sprinkler Zones

Rain valves (also called deluge valves) are automatic valves that open when triggered by fire detectors, activating all sprinklers in a zone (used for high-risk areas like oil tanks or power plants). TIANYU’s rain valves use a diaphragm structure (fast opening ≤25 seconds) and ductile iron bodies with 304 stainless steel internals. They are compatible with multiple triggers (electric, pneumatic, hydraulic) and have a pressure relief function (preventing overpressure in the sprinkler network).

F. Signal Valves: Status Monitoring for System Safety

Signal valves (mechanical or electronic) provide real-time status feedback (open/closed/partially open) to the fire control room, ensuring valves are not accidentally closed. TIANYU’s signal valves integrate a position sensor (with 4–20 mA output) and are available as butterfly or gate valve variants. The sensor is IP67-rated (dustproof and waterproof) and compatible with most fire alarm controllers (e.g., Siemens, Honeywell).

IV. Specification Parameters of Emergency Fire Protection Valves

A. Nominal Diameter (DN/NPS)

• Definition: The nominal inner diameter of the valve flow channel, determining flow capacity.
• Range for Fire Protection: DN15–DN600 (NPS 1/2″–NPS 24):
  • DN15–DN50: Used for gas fire extinguishing systems (small agent flow) or foam proportioning valves.
  • DN65–DN200: Used for sprinkler system zone valves, fire hydrant branch lines.
  • DN250–DN600: Used for municipal fire main pipelines, large foam system main valves.
• Engineering Significance: Matching the pipeline to ensure sufficient flow. For example, a 50,000 m² shopping mall’s sprinkler system uses DN150 butterfly valves for each zone (supporting 150 L/s flow).

B. Nominal Pressure (PN/Class)

• Definition: The maximum pressure the valve can withstand at the rated temperature, ensuring safety under fire pump pressure.
• Range for Fire Protection: PN1.6–PN4.0 MPa (Class 150–Class 300):
  • PN1.6 MPa (Class 150): For low-rise buildings (<24m) or indoor sprinkler systems.
  • PN2.5 MPa (Class 250): For mid-rise buildings (24–100m) or outdoor fire hydrants.
  • PN4.0 MPa (Class 300): For high-rise buildings (>100m), petrochemical tanks, or high-pressure foam systems.
• Standard Compliance: GB 5135 requires fire valves to pass a 1.5x PN hydrostatic test (holding 10 minutes, no leakage) and a 1.1x PN pneumatic test (holding 5 minutes, no leakage).

C. Temperature Range

• Definition: The minimum and maximum temperatures the valve can withstand during operation and fire exposure.
• Range for Fire Protection: -40℃ to 350℃ (depends on media and scenario):
  • -40℃ to 120℃: EPDM-sealed valves (water/sprinkler systems in cold regions).
  • -20℃ to 200℃: FKM-sealed valves (gas/foam systems).
  • -10℃ to 350℃: Metal-sealed valves (high-temperature zones like furnaces or dry powder systems).
• Fire Test Requirement: UL 10C mandates valves withstand 1020℃ for 30 minutes (simulating fire conditions) and remain operable afterward.

D. Sealing Grade

• Definition: The leakage rate of the valve, critical for gas systems (avoiding agent loss) and water systems (preventing pressure drop).
• Common Grades for Fire Protection:
  • Class IV: Allowable leakage (gate valves in non-critical water lines, e.g., hydrant branches).
  • Class V: Low leakage (butterfly valves in sprinkler zones, leakage ≤0.01% of rated flow).
  • Class VI: Ultra-low leakage (ball valves in gas systems, ≤0.1 cm³/min for DN50).
• Testing Method: For gas valves, use helium leak detection (leak rate ≤1×10⁻⁹ Pa·m³/s) to meet FM 1130 standards.

E. Actuation Time

• Definition: The time required for the valve to fully open/close (critical for emergency response).
• Requirements for Fire Protection:
  • Manual valves (gate/butterfly): ≤60 seconds (one person operation).
  • Automatic valves (rain/signal valves): ≤30 seconds (electric/pneumatic actuation).
  • Gas system valves: ≤10 seconds (to quickly release agent and suppress fire).

F. Certification

• Mandatory Certifications:
  • International: UL (US), FM (North America), CE (EU, EN 13319 standard).
  • Domestic: CCCF (China Compulsory Certification for Fire Products, GB 5135).
• Additional Certifications: ISO 9001 (quality), ISO 14001 (environmental), for projects with strict management requirements.

V. Key Selection Parameters and Engineering Cases of Emergency Fire Protection Valves

A. Key Selection Parameters

1. Fire-Extinguishing Media: The most fundamental factor. For example:
   • Water/foam: Choose ductile iron or 304 stainless steel valves with EPDM seals.
   • Gas (heptafluoropropane): Choose 316L stainless steel valves with FKM seals (Class VI).
   • Dry powder: Choose wear-resistant cast steel valves with Stellite trim.
2. System Pressure/Temperature: Match PN and temperature range to system conditions. A high-rise building with 2.8 MPa fire pump pressure needs PN4.0 valves; a cold-region outdoor system needs -40℃ rated valves.
3. Flow Requirements: Select DN based on required flow. A petrochemical tank (10,000 m³) needs DN300 foam valves (supporting 300 L/s flow to cover the tank surface).
4. Actuation Type: Manual for low-risk areas (e.g., office buildings); automatic (electric/pneumatic) for high-risk areas (e.g., oil depots) where human access is dangerous.
5. Installation Environment: Corrosive environments (coastal, chemical plants) need stainless steel; outdoor environments need weather-resistant coatings (epoxy powder); indoor clean areas (data centers) need low-outgassing materials.
6. Certification Requirements: International projects (e.g., Middle East petrochemicals) need UL/FM; domestic Chinese projects need CCCF.

B. Engineering Cases

Case 1: High-Rise Residential Building in Shanghai (45 Floors, 150m Height)

• Challenges: High water pressure (2.5 MPa), cold winter temperatures (-5℃), and limited installation space (pipe shafts).
• Valve Selection:
  • Sprinkler zone control: TIANYU PN4.0 DN125 double-eccentric butterfly valves (wafer type, saves space; EPDM seals, -40℃ to 120℃).
  • Fire pump outlet backflow prevention: TIANYU PN4.0 DN200 lift check valves (metal seat, Class V sealing).
  • Fire hydrant branches: TIANYU PN2.5 DN80 gate valves (ductile iron, cost-effective).
• Results: After 5 years of operation, no valve leakage or failure; annual maintenance only requires lubricating stems (15 minutes per valve); system passed local fire department inspections.

Case 2: Petrochemical Tank Area in Saudi Arabia (10 Crude Oil Tanks, 50,000 m³ Each)

• Challenges: Corrosive environment (salt spray, oil vapor), high temperature (summer 50℃), and high-pressure foam system (3.0 MPa).
• Valve Selection:
  • Foam main control: TIANYU PN4.0 DN300 316 stainless steel ball valves (full-bore, Class VI sealing; FKM seals, 200℃ resistance).
  • Tank zone foam release: TIANYU PN4.0 DN200 rain valves (pneumatic actuation, ≤20 seconds opening; 316 internals, anti-corrosion).
  • Fire pump suction line: TIANYU PN2.5 DN400 ductile iron gate valves (epoxy coating, anti-salt spray).
• Results: During a simulated fire test, valves opened within 18 seconds, foam coverage reached 100% of the tank surface in 2 minutes; no corrosion or leakage after 3 years (annual salt spray testing passed).

Case 3: Data Center in Singapore (10,000 m², Server Rooms)

• Challenges: Clean environment (no water damage), gas fire extinguishing (heptafluoropropane), and ultra-low leakage (agent retention ≥90% for 24 hours).
• Valve Selection:
  • Gas release control: TIANYU PN2.5 DN50 316L stainless steel ball valves (Class VI sealing; FKM seals, low outgassing).
  • Zone isolation: TIANYU PN2.5 DN80 signal butterfly valves (electric actuation, ≤15 seconds opening; position feedback to fire control room).
  • Gas cylinder connection: TIANYU PN2.5 DN25 threaded ball valves (316L, leak-tight).
• Results: System passed FM 1130 certification; during a maintenance leak test, valve leakage rate was ≤0.05 cm³/min (well below Class VI limit); no impact on server operation (no dust or outgassing).

VI. Manufacturing Processes of TIANYU Emergency Fire Protection Valves

A. Factory Production Capabilities (from tianyuvalves.com)

• Advanced Production Lines: 12 CNC machining centers (5-axis, for valve body/trim precision processing), 8 automatic assembly lines (for butterfly/gate valves, output 500 units/day), and 3 special lines for rain valves/gas valves (customized processing).
• Testing Facilities: UL-certified fire test furnace (simulates 1020℃ fire conditions), helium leak detection equipment (for Class VI sealing), hydrostatic/pneumatic test benches (10 units, 0–6.0 MPa pressure range), and low-temperature test chambers (-40℃ to 0℃).
• Quality Control Team: 25 engineers with 5+ years of fire protection experience, and 3 full-time UL/FM certification specialists (ensuring compliance with international standards).
• Delivery Capacity: Monthly production of 15,000 fire protection valves; emergency orders (e.g., post-fire replacement) can be delivered within 72 hours.

B. Core Manufacturing Processes

1. Raw Material Inspection

• Metal Materials: Ductile iron (ASTM A536) is tested for tensile strength (≥485 MPa) and elongation (≥10%); 304/316 stainless steel is tested via spectral analysis (Cr ≥18%, Ni ≥8% for 304; Mo ≥2% for 316) and corrosion resistance (salt spray test, 500 hours no rust).
• Non-Metal Materials: EPDM/FKM seals are tested for hardness (Shore A 70–80) and temperature resistance (immersion in 120℃/200℃ water for 24 hours, no deformation); PTFE is tested for chemical resistance (immersion in AFFF foam for 1,000 hours, no swelling).
• Welding Materials: Stainless steel welding wire (ER308L/ER316L) is tested for weld strength (≥80% of base material) and corrosion resistance (post-weld salt spray test).

2. Precision Processing

• Valve Body: Machined by 5-axis CNC lathes (dimensional tolerance ±0.02 mm); flow channels are polished to Ra ≤1.6 μm (reducing flow resistance and scaling). For 316 stainless steel bodies, passivation treatment is applied (forming a Cr-rich oxide film, enhancing corrosion resistance).
• Trim (Disc/Gate/Seat):
  • Ductile iron discs: Coated with 304 stainless steel via thermal spraying (thickness 0.1–0.2 mm, anti-corrosion).
  • Stainless steel seats: Lapped with diamond paste (precision ≤0.005 mm, ensuring tight sealing).
  • Stellite trim: Welded via plasma arc (thickness 2–3 mm, hardness HRC 40–45, wear resistance).
• Stem: Ground by precision grinding machines (surface roughness Ra ≤0.8 μm, concentricity ≤0.01 mm); 304 stainless steel stems are coated with PTFE (reducing friction and preventing rust).

3. Assembly

• Seal Installation: EPDM/FKM seats are press-fitted into valve bodies (interference fit 0.05–0.1 mm) to ensure no displacement during operation; metal seats are bonded with high-temperature adhesive (for gas valves, avoiding agent leakage).
• Actuator Integration: Electric actuators (IP67, 220V/380V) are calibrated to ensure opening time ≤30 seconds; manual overrides are tested (10 cycles, smooth operation).
• Concentricity Adjustment: Laser alignment tools are used to align the stem and disc (error ≤0.02 mm), preventing jamming during emergency opening.

4. Strict Testing

• Pressure Testing: 100% of valves undergo hydrostatic test (1.5x PN, 10 minutes) and pneumatic test (1.1x PN, 5 minutes); gas valves additionally undergo helium leak detection (leak rate ≤1×10⁻⁹ Pa·m³/s).
• Fire Testing: Sample valves (1 per batch) are tested in the UL-certified furnace (1020℃ for 30 minutes), then cooled and tested for operability (must open/close normally and seal).
• Low-Temperature Testing: Valves for cold regions are tested in -40℃ chambers (24 hours), then actuated (must open/close without cracking).
• Life Testing: Each valve type undergoes 1,000 opening/closing cycles (simulating 10 years of standby and emergency use), with no performance degradation.

5. Certification and Marking

• Certification: After testing, valves apply for UL/FM/CCCF certification (auditors inspect production records and test reports); only certified valves are released.
• Marking: Each valve is marked with DN, PN, material, serial number, certification logo, and manufacturing date (traceable via TIANYU’s official website).

VII. Advantages of TIANYU Emergency Fire Protection Valves

A. Material Advantage: Safe and Durable

• Compliant Materials: All materials meet international standards (ASTM, EN) and fire protection regulations (no toxic or flammable materials). For example, 316L stainless steel meets ASTM A240, and EPDM seals meet UL 94 V0 (flame retardant).
• Corrosion Resistance: 316 stainless steel valves pass 1,000-hour salt spray tests (ASTM B117) with corrosion rate ≤0.01 mm/year (2x better than industry average); ductile iron valves with epoxy coating have a 10-year anti-rust guarantee.
• High-Temperature Stability: Metal-sealed valves withstand 350℃ for 1 hour without deformation; fire-tested valves remain operable after 1020℃ exposure (meets UL 10C).

B. Performance Advantage: Fast and Reliable

• Rapid Response: Automatic valves (rain/signal) open in ≤25 seconds (faster than the industry average of 30 seconds); manual valves require ≤40 N operating force (easy for one person to operate).
• Tight Sealing: Gas valves achieve Class VI leakage (≤0.05 cm³/min for DN50), ensuring gas agent retention ≥95% for 24 hours (meets FM 1130).
• Long Service Life: Valves undergo 10,000-cycle durability tests (simulating 30 years of use); the failure rate is <0.1% (industry average is 1.5%).

C. Certification Advantage: Globally Recognized

• Full Certification Coverage: TIANYU’s fire protection valves have obtained UL (US), FM (North America), CE (EU), CCCF (China), and SASO (Saudi Arabia) certifications—suitable for global projects.
• Certification Traceability: Each certification is valid and can be verified on the official website of the certification body (e.g., UL’s Product iQ database); no “fake certification” risks.

D. Manufacturing Advantage: Strict Quality Control

• 100% Testing: Unlike some manufacturers that test only samples, TIANYU tests every valve (pressure, leakage, actuation time) before delivery—no untested products leave the factory.
• Advanced Equipment: CNC machining centers ensure dimensional precision (±0.02 mm), reducing assembly errors; helium leak detectors ensure ultra-low leakage for gas valves.
• Traceability System: Each valve has a unique serial number, linking to raw material MTC, processing records, test reports, and certification documents—easy for project audits.

E. Service Advantage: Full-Lifecycle Support

• Pre-Sales Consulting: A team of 10 fire protection engineers (with 8+ years of experience) provides selection advice based on project type (high-rise, petrochemical, data center) and local standards (e.g., NFPA for US, GB for China).
• On-Site Service: Engineers are dispatched to guide installation and commissioning (global response time ≤48 hours); for emergency orders (e.g., post-fire replacement), delivery is within 72 hours.
• After-Sales Warranty: 2-year warranty for standard valves, 3-year warranty for stainless steel/gas valves; free replacement if valves fail due to quality issues (including fire test damage).
• Training Support: Regular training for customer maintenance teams (valve inspection, lubrication, emergency troubleshooting) to ensure valves are always in standby mode.

VIII. Future Applications of Emergency Fire Protection Valves

A. Intelligent Valves for Smart Fire Protection Systems

• TIANYU’s R&D Direction: Develop intelligent fire protection valves with built-in sensors (pressure, temperature, flow, vibration) and LoRa/Wi-Fi communication modules.
• Key Functions:
  • Real-time status monitoring: Transmit valve opening degree, pressure, and leakage data to the fire control room (e.g., alert if a valve is accidentally closed).
  • Remote control: Open/close valves via cloud platform (for unmanned areas like offshore oil platforms).
  • Predictive maintenance: AI algorithm analyzes vibration and leakage data to predict failures (e.g., alert for stem wear 3 months in advance).
• Application Scenario: Smart cities, large airports, and data centers—e.g., a Beijing smart airport using TIANYU’s intelligent signal valves to achieve 100% automated zone control.

B. Environmental-Friendly Valves for Green Projects

• TIANYU’s Measures:
  • Use lead-free materials: Lead-free brass for small valves, RoHS-compliant EPDM/PTFE (no heavy metals).
  • Adopt water-based coatings: Replace solvent-based epoxy with water-based powder coatings (VOC emissions reduced by 90%).
  • Design recyclable structures: 80% of valve parts (stainless steel, ductile iron) can be recycled (reducing waste).
• Application Scenario: Green buildings (LEED-certified), eco-industrial parks, and European projects (strict REACH compliance).

C. Specialized Valves for New Energy Industries

• Lithium-Ion Battery Fire Protection: Develop valves resistant to electrolyte corrosion (lithium hexafluorophosphate) and high temperatures (500℃+). TIANYU’s prototype uses Hastelloy C-276 trim and FKM seals (resists electrolyte and high heat).
• Hydrogen Fire Protection: Develop explosion-proof valves (ATEX-certified) for hydrogen storage facilities. Valves use 316L stainless steel (compatible with hydrogen) and flame arresters (prevent backfire).
• Solar Power Plants: Develop low-temperature valves (-40℃ to 80℃) for desert solar parks. Valves have UV-resistant coatings and sand-proof structures (prevent dust accumulation).
• Application Scenario: New energy bases (e.g., Qinghai lithium battery plants, Inner Mongolia hydrogen storage stations).

D. Modular Valves for Rapid Installation

• TIANYU’s R&D Direction: Develop modular fire protection valves (pre-assembled with actuators and sensors) and quick-connect interfaces (groove or camlock).
• Key Advantages: Installation time reduced by 70% (e.g., a DN150 modular butterfly valve can be installed in 5 minutes, vs. 30 minutes for traditional valves).
• Application Scenario: Post-disaster reconstruction, temporary hospitals, and military camps—e.g., TIANYU’s modular rain valves used in a Sichuan earthquake temporary hospital to activate the sprinkler system within 2 hours of installation.
