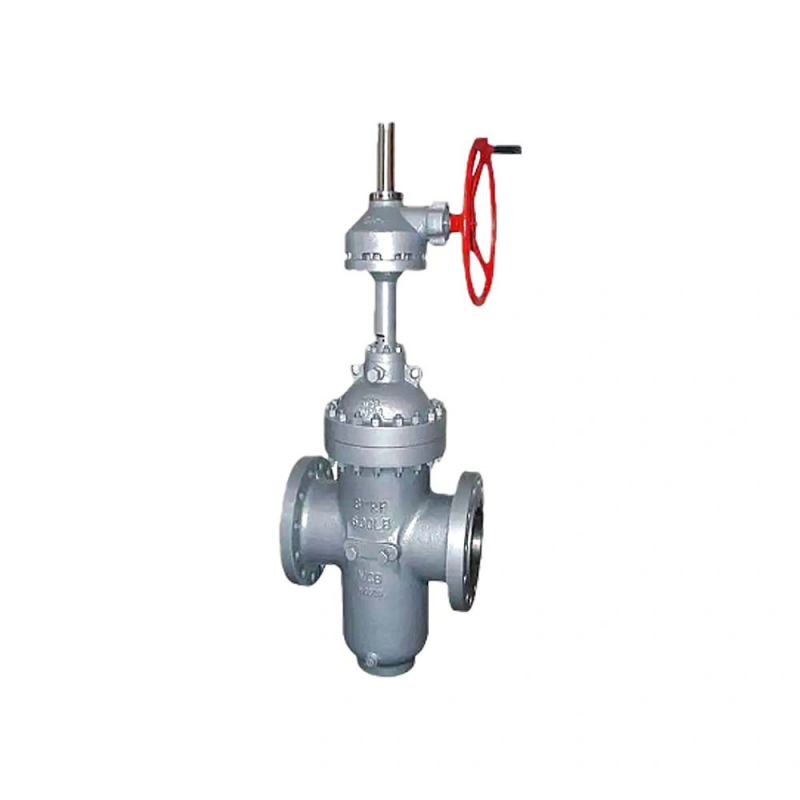

Manual plate gate valve with diversion hole valve worm wheel cast steel oilfield parallel gate valve
  • Manual plate gate valve with diversion hole valve worm wheel cast steel oilfield parallel gate valve
  • Manual plate gate valve with diversion hole valve worm wheel cast steel oilfield parallel gate valve
  • Manual plate gate valve with diversion hole valve worm wheel cast steel oilfield parallel gate valve

Manual plate gate valve with diversion hole valve worm wheel cast steel oilfield parallel gate valve

Product Attribute: Product Description:
Nominal Diameter:16”
Bore: Full Bore
Nominal Pressure:600LB
Material: WCB
Operation: Electric Actuator
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: RTJ Flange
Flange standard: EN1092-1,ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Size Range 2″-60″(50mm-1500mm)
Temperature Range -60 to 500 degree
Pressure Ratings Class 150 to Class 2500,PN 2.5 to PN420,10K-20K
Design Standard ASME B16.34、ASME B16.34、API 600、BS1414、EN1984
Testing Standard API 598、EN12266-1、ISO 5208
Face to Face ASME B16.10、EN558-1
Body Materials Carbon Steel, Stainless Steel, Nickel Aluminum Bronze, alloy steel, etc
Shutoff Rating Zero Leakage
Flange Drilling ASME B16.5、EN 1092-1、GOST 33259、ASME B16.47
Certifications CE、EAC、SIL3、API 6FA、ISO 19001
Valve operator options Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.

Valve Details
