High-Reliability Industrial Valves for Chemical Industry: Compliance with Global Standards, Corrosion Resistance & Optimized Performance for Harsh Processes

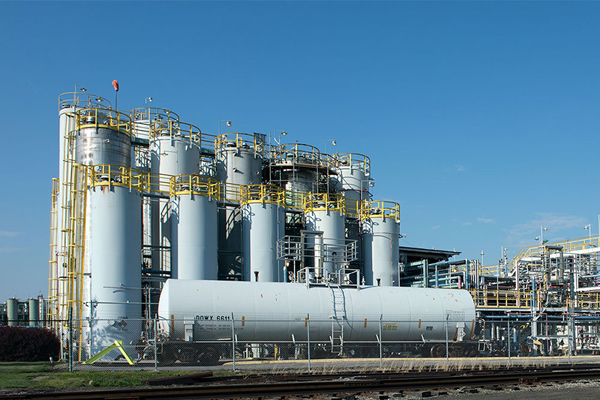

I. Related Engineering Operating Conditions of Chemical Industry

A. Corrosive Media Challenges

• Strong acids (98% sulfuric acid, 37% hydrochloric acid) cause pitting and uniform corrosion—316L stainless steel corrodes at 0.02 mm/year in 10% H₂SO₄, while Hastelloy C-276 reduces this to 0.001 mm/year.
• Strong bases (50% sodium hydroxide) induce alkaline stress cracking in copper alloys and embrittlement in low-grade stainless steels.
• Sour media (H₂S + CO₂) trigger sulfide stress cracking (SSC) in carbon steel—NACE MR0175 compliance is mandatory for such service.
• Organic solvents (acetone, methanol) swell non-metallic seals (nitrile rubber by 20–30%) and dissolve unqualified polymers.

B. Extreme Temperature & Pressure Ranges

• Temperature: Spans -196°C (cryogenic liquid nitrogen storage) to 800°C (high-temperature cracking). Valves must resist thermal shock (e.g., 25°C to 500°C startup spikes) and maintain sealing across wide swings.
• Pressure: Ranges from vacuum (0.01 MPa for distillation) to 100 MPa (hydrocracking). High-pressure valves face body deformation risks, while vacuum valves must prevent air ingress.

C. Safety & Regulatory Constraints

D. Operational Demands

• Frequent actuation (10–20 cycles/hour for batch processes) requires wear-resistant trim to endure 100,000+ cycles.
• Slurries (10–50% solid content) cause abrasion—sand particles wear Stellite overlays at 0.1 mm/year without proper design.

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Reaction Processes: Valves control reactant flow (±2% accuracy) for reactors (200°C, 20 MPa), needing high-temperature/pressure resistance and catalyst particle compatibility.
• Separation Processes: Distillation/extraction valves minimize pressure loss (ζ ≤0.3) to preserve energy efficiency and prevent vapor loss.
• Dosing/Blending: Precision dosing (±1% accuracy) for acids/bases in pharmaceutical API production demands corrosion resistance and easy cleaning.
• Storage/Transfer: Tank/pipeline valves prioritize long-term reliability (8,000+ hours/year) and fire safety (API 607) for media like methanol or crude oil.

B. Process-Material Matching

C. Material-Engineering Scaling

• Large Petrochemical Plants: Prioritize 15–20-year service life—super duplex/Hastelloy valves reduce downtime costs.
• Pharma Facilities: 316L electropolished valves (Ra ≤0.4 μm) prevent cross-contamination in batch production.
• Offshore Platforms: Duplex stainless steel valves pass 1,000-hour salt spray testing (ASTM B117) for saltwater resistance.

III. Common Valve Types in Chemical Industry (with TIANYU Product Links)

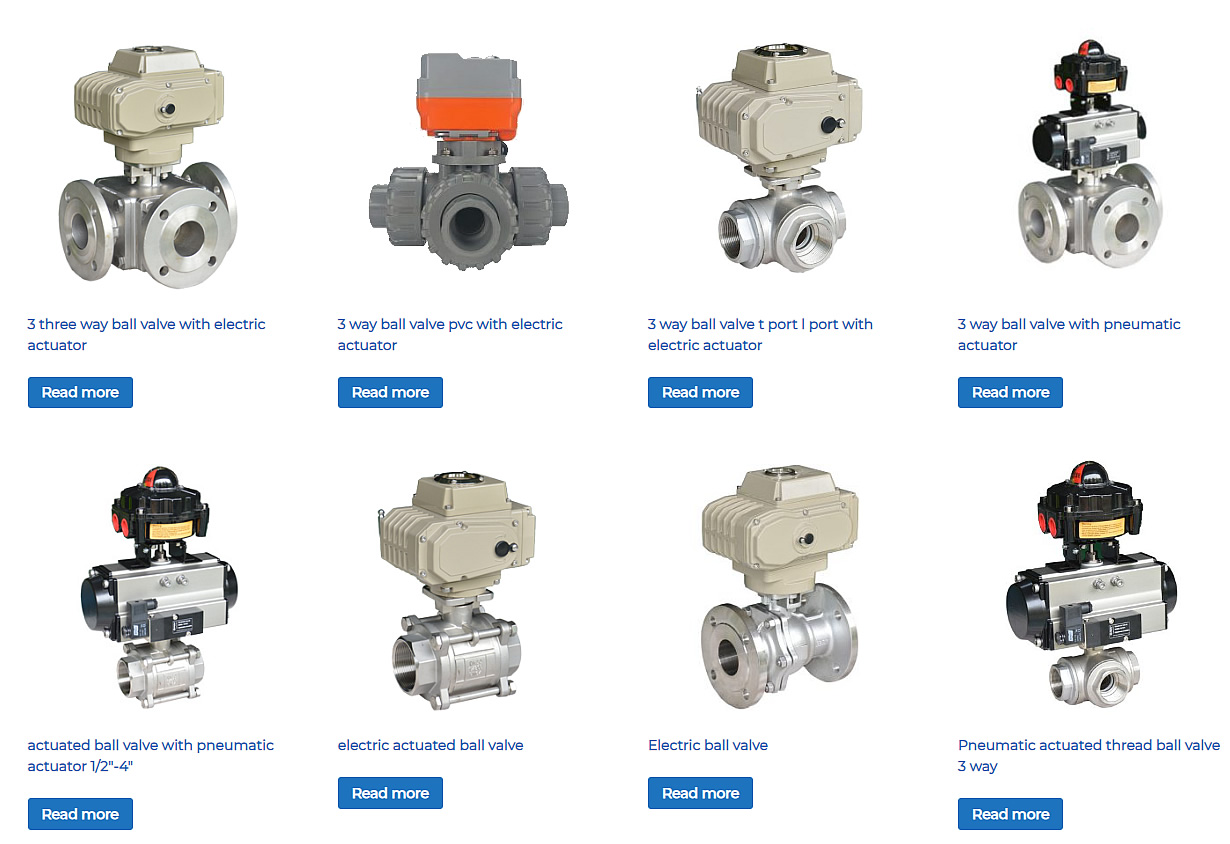

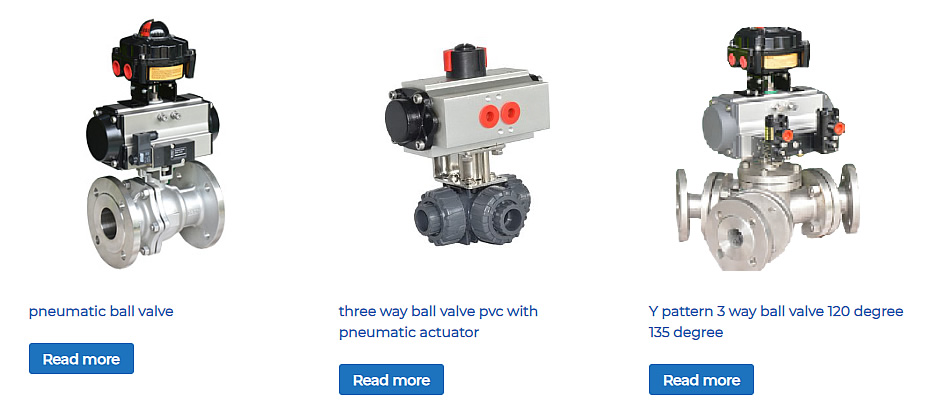

A. Ball Valves: Fast On-Off & Throttling

• Body materials: 316L, duplex/Hastelloy C-276, PTFE-lined carbon steel.
• Trim: Stellite overlay (wear resistance) or PTFE-lined (chemical inertness).
• Designs: Full-port (low pressure loss) or trunnion-mounted (high pressure ≥PN25).

B. Globe Valves: Precision Flow Regulation

• 316L/duplex/Hastelloy bodies, Stellite-trimmed plugs/seats.
• Streamlined flow channels (ζ ≤0.3) to minimize pressure loss.
• API 602 (small sizes) and API 600 (large sizes) compliance.

C. Gate Valves: Full-Bore Isolation

• Wedge or parallel double-gate designs for low/high pressure.
• 316L/duplex/carbon steel bodies, graphite packing for zero external leakage.
• API 600 compliance for fire safety and reliability.

D. Butterfly Valves: Large-Flow Cost-Effectiveness

• Ductile iron with PTFE/EPDM lining or 316L bodies.
• Double/triple-eccentric designs (zero leakage, API 607 fire-safe).
• Sizes DN50–DN2000 (flow rates up to 10,000 m³/h for DN2000).

E. Check Valves: Backflow Prevention

• Swing (large flow, low pressure loss), lift (high-pressure vacuum), and dual-plate (fast closing ≤0.5 seconds) designs.
• 316L/duplex/Hastelloy materials, PTFE/graphite seals.

F. Diaphragm Valves: Hygienic Corrosion Resistance

• 316L/PTFE-lined bodies, FDA-compliant PTFE/EPDM diaphragms.
• Weir-type (tight sealing) or straight-through (slurry service).

IV. Specification Parameters of Chemical Industry Valves

A. Nominal Diameter (DN/NPS)

• Range: DN10–DN2000 (NPS ½”–80”):
  • DN10–DN50: Dosing/instrument lines; DN65–DN300: Process pipelines; DN350–DN2000: Main intake/discharge lines.

B. Nominal Pressure (PN/Class)

• Range: PN1.0–PN100 (Class 150–6000):
  • PN1.0–PN4.0: Low-pressure processes; PN6.3–PN25.0: Medium-pressure; PN40.0–PN100.0: High-pressure hydrocracking/gasification.

C. Temperature Range

• -196°C (cryogenic) to 800°C (ultra-high temperature):
  • Cryogenic: 316L/Inconel with PTFE seals; High-temperature: Inconel/Hastelloy with graphite seals.

D. Sealing Grade

• Class IV (utility lines), Class V (process lines), Class VI (toxic/flammable media—helium leak rate ≤1×10⁻⁹ Pa·m³/s).

E. Connection & Actuation

• Connections: Flanged (ASME B16.5), threaded (NPT/BSPT), welded (socket/butt weld), sanitary (tri-clamp).
• Actuation: Manual (handwheel/gear), pneumatic (6–8 bar, ≤5s response), electric (24V/380V, PLC/DCS integration), hydraulic (high-torque large valves).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Media Compatibility: Corrosivity, toxicity, viscosity, solid content dictate material/seal choice.
2. Operating Conditions: Pressure/temperature define PN/rating and valve design (e.g., trunnion vs. floating ball).
3. Flow Requirements: Precision (±1–2% for dosing) or high flow (low pressure loss for pipelines).
4. Safety/Regulatory: Class VI sealing, API 607/6FA, NACE MR0175, FDA/3A.
5. Maintenance Access: Remote/offshore valves need 10+ year service life and low maintenance.

B. Engineering Cases

Case 1: Petrochemical Hydrocracking Plant (Middle East, 1.2M Tons/Year)

• Challenges: 450°C, 25 MPa, 3% H₂S, 15 cycles/hour, API 6FA compliance.
• Selection: TIANYU trunnion ball valves (duplex body, Inconel trim), globe valves (Hastelloy C-276), gate valves (duplex, API 600).
• Results: 0.3% failure rate (industry avg 2.5%), 40% maintenance cost reduction, 30-minute fire test pass.

Case 2: Pharma API Plant (North America, FDA-Certified)

• Challenges: FDA compliance, solvent compatibility (acetone/methanol), precise dosing (0.1–5 L/h).
• Selection: TIANYU diaphragm valves (316L electropolished, PTFE diaphragms), sanitary ball valves (tri-clamp, 3A certified).
• Results: No cross-contamination, 30% faster cleaning, 8-year valve service life (double industry avg).

Case 3: Offshore Gas Treatment Platform (North Sea)

• Challenges: Salt spray corrosion, -15°C winter temps, 15 MPa pressure, limited maintenance.
• Selection: TIANYU super duplex ball valves (S32750), dual-plate check valves (duplex), butterfly valves (EPDM seals).
• Results: 5-year corrosion-free service, 2-year maintenance intervals (vs. 6 months for carbon steel), DNV/ABS compliance.

VI. Manufacturing Processes of TIANYU Chemical Valves

A. Raw Material Inspection

• Metallics (316L, duplex, Hastelloy): Spectral analysis, mechanical testing (tensile/impact), MTC traceability.
• Non-metallics (PTFE/FKM): Chemical compatibility (1,000-hour immersion), FDA compliance testing.

B. Precision Machining

• Bodies/bonnets: 5-axis CNC (±0.02 mm tolerance), passivation/electropolishing (Ra ≤0.4 μm for sanitary).
• Trim: Ball/plug lapped to ±0.01 mm spherical tolerance, Stellite overlay (2–3 mm, HRC 40–45).
• PTFE lining: Rotational molding (2–3 mm thickness, ±0.1 mm uniformity), shear strength ≥5 MPa.

C. Heat Treatment

• Stainless/duplex: Solution annealing (1,050–1,100°C) for corrosion resistance.
• Hastelloy/Inconel: Annealing (1,150–1,200°C) to eliminate corrosive precipitates.

D. Assembly & Testing

• Assembly: Cleanroom (Class 10,000 for sanitary), laser-aligned stems (≤0.02 mm error), pre-compressed packing.
• Testing: 100% hydrostatic (1.5x PN, 30 mins) and pneumatic (1.1x PN, 15 mins) tests; Class VI helium leak detection; 1,000–10,000 cycle actuation tests.
• Specialized Testing: API 607/6FA fire testing, 1,000-hour salt spray (ASTM B117), low-temperature (-40°C) testing.

VII. Advantages of TIANYU Chemical Industry Valves

A. Material & Corrosion Resistance

• Top-tier material sourcing (Outokumpu, Haynes) and custom options (Hastelloy, duplex) for extreme media—corrosion rates ≤0.001 mm/year.
• FDA-compliant 316L and PTFE for pharma/food-grade processes.

B. Design & Performance

• Fire-safe (API 607/6FA) and zero-leakage (Class VI) designs for hazardous media.
• Wear-resistant Stellite trim and streamlined flow channels (energy savings 5–10%).

C. Compliance & Quality

• Full certifications: API 6D/600/607/6FA, ISO 13709, NACE MR0175, FDA 21 CFR Part 177, 3A.
• 10,000-cycle durability testing (15-year service life), <0.5% failure rate.

D. Service & Support

• Pre-sales engineering (process-specific selection), 24-hour global support, 72-hour emergency parts delivery.
• 2-year standard warranty, 3-year warranty for Hastelloy/sanitary valves.

VIII. Future Applications of Chemical Industry Valves

A. Intelligent Valves for Smart Plants

• IoT-integrated sensors (pressure/temp/flow/vibration), remote monitoring, and AI predictive maintenance—reducing downtime by 30%.

B. Eco-Friendly Valves

• Low-energy designs (ζ ≤0.2), recyclable materials, and fugitive emission-free sealing (ISO 15848 Class AH) to meet sustainability targets.

C. Extreme Condition Valves

• Ultra-high temp (800–1,000°C) ceramic-lined valves and ultra-high pressure (100–200 MPa) trunnion valves for hydrogen/carbon capture.

D. Modular Valves

• Quick-connect modular designs and integrated manifolds for flexible batch production—reducing changeover time by 40%.
