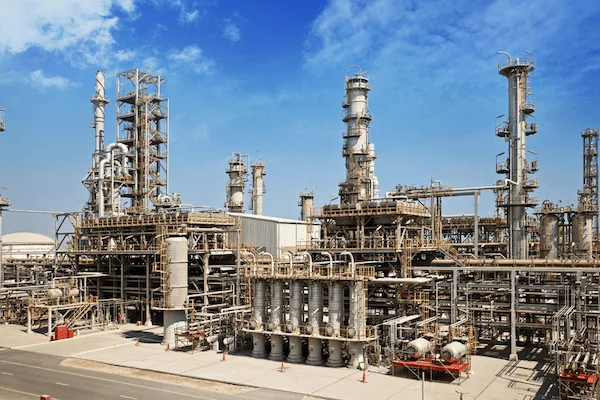

High-Performance Valves for Refining & Petrochemical: High-Temp/Corrosion Resistance, API Compliance & Reliable Process Control

Valves serve as critical components in distillation, cracking, hydrogenation, and polymer production—demanding uncompromising reliability, compliance with global standards (API, ISO, ASME), and tailored performance. This article explores industry-specific valve solutions, covering harsh operating conditions, application-process-material-engineering alignment, core valve types, specifications, selection criteria, real-world cases, TIANYU’s manufacturing expertise, product advantages, and future innovations.

I. Related Engineering Operating Conditions of Refining & Petrochemical Industry

A. Extreme Temperature & Pressure Ranges

• Temperature: Spans -20°C (feedstock storage) to 800°C (catalytic cracking reactors); hydrocracking units operate at 350–450°C, while ethylene crackers reach 750–800°C. Valves must resist thermal shock (e.g., 25°C to 500°C during startup) and maintain sealing across 500°C+ swings.
• Pressure: Ranges from vacuum (0.01 MPa for distillation columns) to 42 MPa (high-pressure hydrotreating); pressure spikes (1.5x nominal) during pump startups or process upsets risk valve body deformation.

B. Corrosive & Abrasive Media Challenges

• Sour Service: Crude oil and natural gas contain H₂S (50–5,000 ppm) and CO₂ (1–10%), causing sulfide stress cracking (SSC) in carbon steel—NACE MR0175 compliance is mandatory to prevent catastrophic failure.
• Chemical Corrosion: Process streams include organic acids (formic, acetic), caustic solutions (NaOH), and halides—316L stainless steel corrodes at 0.02 mm/year in 10% acetic acid, while Hastelloy C-276 reduces this to 0.001 mm/year.
• Abrasion: Catalyst particles (10–100 μm, Mohs hardness 6–7) in cracking units wear valve seats at 0.1–0.3 mm/year—unprotected valves fail in 2–3 years.

C. Media Diversity & Phase Changes

• Multi-Phase Flow: Valves handle liquid, gas, and two-phase (liquid-vapor) streams—e.g., distillation overheads (vapor + liquid droplets) cause cavitation and erosion in poorly designed valves.
• Viscous Media: Heavy crude oil (viscosity 1,000–10,000 cSt at 25°C) and polymer melts (viscosity 5,000–50,000 cSt) require full-port valves to minimize pressure loss.

D. Safety & Regulatory Constraints

• Leakage Limits: ISO 15848 Class BH (fugitive emissions) requires ≤1×10⁻⁴ mg/s for hydrocarbons—preventing explosive risks and greenhouse gas emissions.
• Fire Safety: API 607/6FA certification (1020°C for 30 minutes) to maintain integrity during fires—critical for hydrocarbon service.
• Standards Compliance: API 6D (pipeline valves), API 600 (gate valves), API 602 (small valves), ASME B16.34 (pressure-temperature ratings), and NACE MR0175 (sour service).

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Crude Distillation (Atmospheric/Vacuum): Valves control feed flow, overhead vapor, and bottom residues—require high-temperature resistance (350–400°C), low pressure loss, and corrosion resistance to crude’s sulfur compounds.
• Catalytic Cracking (FCC/HCC): Valves handle catalyst-laden streams (700–800°C, 0.3–0.5 MPa)—need abrasion resistance, quick actuation, and fire safety.
• Hydrotreating/Hydrocracking: High-pressure (15–42 MPa), high-temperature (300–450°C) sour service—valves must be NACE MR0175 compliant, with zero leakage to prevent H₂S release.
• Ethylene Cracking: Ultra-high temperature (750–800°C) and rapid thermal cycling—valves require Inconel or Hastelloy components to resist oxidation.
• Polymer Production: Valves control monomer flow and polymer melts—need sanitary design (no dead zones) and high-temperature resistance (200–300°C).

B. Process-Material Matching

• Metallic Materials: A105N carbon steel (low-temperature, non-corrosive), F316L stainless steel (general corrosion), duplex/super duplex (sour service, high strength), Inconel/Hastelloy (high-temperature, extreme corrosion).
• Sealing Materials: FKM (high temperature, 200°C), PTFE (chemical inertness, -200°C to 260°C), graphite (fire-safe, 600°C), metal bellows (zero leakage for toxic media).

C. Material-Engineering Scaling

• Large Refineries (10M+ Tons/Year): High-flow valves (DN300–DN600) for main process lines—prioritize 15–20 year service life and low maintenance (duplex/Hastelloy materials).
• Petrochemical Plants (Polymer Production): Small-bore valves (DN15–DN100) for monomer dosing—require precision control (±2% accuracy) and sanitary design.
• Offshore Refineries: Corrosion-resistant valves (super duplex, 1,000-hour salt spray resistance) to withstand saltwater and humid environments.

III. Common Valve Types in Refining & Petrochemical Industry (with TIANYU Product Links)

A. Ball Valves: Fast On-Off & Throttling

• Body materials: A105N, F316L, duplex S31803, Hastelloy C-276.
• Trim: Stellite 6 overlay (HRC 40–45, abrasion resistance) or Inconel (high temperature).
• Design: Floating (PN≤25) or trunnion-mounted (PN≥40); full-port (low pressure loss) or V-port (throttling control); API 607/6FA fire-safe.

B. Gate Valves: Full-Bore Isolation

• Body materials: A105N, F316L, duplex S31803.
• Trim: Wedge gate (self-sealing) or parallel gate (low pressure); Stellite-lined seats for wear resistance.
• Compliance: API 600, ASME B16.34—sizes DN50–DN600, PN16–PN420.

C. Globe Valves: Precision Flow Regulation

• Body materials: A105N, F316L, Inconel 625.
• Trim: Stellite overlay (wear resistance) or ceramic (abrasive service); single-seat (tight sealing) or double-seat (balanced pressure).
• Design: Angle pattern (reduces cavitation) and streamlined flow channels (low pressure loss).

D. Butterfly Valves: Large-Flow Cost-Effectiveness

• Body materials: Ductile iron (epoxy coated), F316L.
• Disc: Double-eccentric (reduced friction) or triple-eccentric (zero leakage, API 607 fire-safe); Stellite overlay for abrasion.
• Sizes: DN50–DN2000, PN16–PN40—flow rates up to 15,000 m³/h for DN2000.

E. Check Valves: Backflow Prevention

• Types: Swing (large flow), lift (high pressure), dual-plate (fast closing ≤0.5 seconds, anti-water hammer).
• Materials: F316L, duplex S31803, Inconel; metal-to-metal or PTFE seals.

F. Control Valves: Process Regulation

• Body materials: F316L, duplex, Hastelloy.
• Trim: V-port ball or cage-guided; Stellite or ceramic for wear resistance.
• Actuation: Pneumatic (4–20 mA positioner) or electric—SIL 3 rated for safety-critical service.

IV. Specification Parameters of Refining & Petrochemical Valves

A. Nominal Diameter (DN/NPS)

• Range: DN15–DN600 (NPS ½”–24”):
  • DN15–DN100: Dosing lines, instrument lines, catalyst injection.
  • DN125–DN300: Process pipelines, distillation columns, reactor feeds.
  • DN350–DN600: Crude oil intake, product export mains.

B. Nominal Pressure (PN/Class)

• Range: PN16–PN420 (Class 150–Class 2500):
  • PN16–PN63 (Class 150–400): Low-pressure distillation, utility services.
  • PN100–PN250 (Class 600–1500): Hydrotreating, medium-pressure cracking.
  • PN320–PN420 (Class 2500): High-pressure hydrocracking, hydrogenation.

C. Temperature Range

• Operating Temperature: -20°C to 800°C:
  • -20°C to 300°C: Carbon steel/F316L valves (crude storage, product transport).
  • 300°C to 500°C: Duplex/Inconel valves (hydrotreating, FCC units).
  • 500°C to 800°C: Hastelloy/Inconel valves (ethylene cracking, high-temperature reforming).

D. Key Performance Metrics

• Sealing Grade: Class VI (internal, bubble-tight) for toxic/hazardous media; ISO 15848 Class BH (external, ≤1×10⁻⁴ mg/s).
• Cycle Life: 100,000+ actuations (automated valves) or 50,000+ (manual valves).
• Corrosion Resistance: NACE MR0175 compliant (sour service); corrosion rate ≤0.01 mm/year in crude oil.

E. Connection & Actuation

• Connections: Flanged (ASME B16.5), welded (socket/butt weld for high pressure), threaded (NPT for small sizes).
• Actuation:
  • Manual: Handwheel/gear operator (low-frequency operation, DN≤200).
  • Pneumatic: 6–8 bar air, fail-safe (open/close) with positioner (4–20 mA).
  • Electric: 24V DC/380V AC, motorized with torque limiting (PLC/DCS integration).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Media Compatibility: Sour service (NACE MR0175), corrosive chemicals (Hastelloy/PTFE), abrasive catalyst (Stellite/ceramic trim).
2. Temperature/Pressure: Match PN/temperature rating to process (e.g., 40 MPa hydrocracking uses PN420 trunnion ball valves).
3. Flow Requirements: Precision control (globe/control valves) or high flow (gate/butterfly valves); cavitation resistance for two-phase flow.
4. Safety Compliance: API 607/6FA (fire safety), SIL 3 (ESD valves), ISO 15848 (emissions).
5. Maintenance Access: Remote/offshore valves need 10+ year service life and low maintenance (self-lubricating stems).

B. Engineering Cases

Case 1: Large Refinery FCC Unit (Asia, 12M Tons/Year)

• Challenges: 700°C catalyst-laden gas, 0.4 MPa pressure, abrasive wear, API 6FA fire safety, 10,000+ annual cycles.
• Valve Selection: TIANYU trunnion ball valves (duplex S31803 body, Stellite 6 trim), triple-eccentric butterfly valves (F316L), dual-plate check valves.
• Results: Wear rate ≤0.05 mm/year (vs. 0.3 mm/year for standard valves); 0 failures after 4 years; API 6FA fire test passed; maintenance costs cut by 60%.

Case 2: Hydrocracking Plant (Europe, 8M Tons/Year)

• Challenges: 40 MPa pressure, 400°C, 5,000 ppm H₂S (sour service), zero leakage, NACE MR0175 compliance.
• Valve Selection: TIANYU super duplex ball valves (S32750), API 600 gate valves (Inconel trim), SIL 3 rated ESD valves.
• Results: Corrosion rate ≤0.003 mm/year; no SSC incidents; ISO 15848 Class BH emissions; 3-year service life without maintenance.

Case 3: Ethylene Cracker (North America, 1.5M Tons/Year Ethylene)

• Challenges: 750°C process gas, rapid thermal cycling (25°C to 750°C), oxidation resistance, low pressure drop.
• Valve Selection: TIANYU Inconel 625 ball valves, globe valves (Stellite 21 trim), vacuum-jacketed isolation valves.
• Results: No oxidation or deformation after 2 years; pressure drop ≤0.03 MPa (meets process requirements); compliance with ASME B31.3; downtime reduced by 80%.

VI. Manufacturing Processes of TIANYU Refining & Petrochemical Valves

A. Raw Material Inspection

• Metals: A105N (tensile strength ≥485 MPa), F316L (Cr 18–20%, Ni 8–12%), duplex/super duplex (S31803/S32750, spectral analysis verified), Inconel 625 (Ni 58%, Cr 22%)—all with MTC traceability.
• Trim/Seals: Stellite 6 (plasma welding, 2–3 mm thickness, HRC 40–45); FKM/PTFE seals (chemical compatibility tested via 1,000-hour immersion in crude oil).
• Welding Materials: ER316L (stainless steel), ERNiCrMo-4 (Hastelloy) – welds tested for SSC (NACE TM0177) and impact strength (≥50 J at -20°C).

B. Precision Machining & Heat Treatment

• Body/Trim: 5-axis CNC machining (tolerance ±0.02 mm); internal surfaces polished to Ra ≤1.6 μm (reduces erosion).
• Heat Treatment:
  • Carbon steel: Normalizing (850–900°C) to improve strength.
  • Duplex: Solution annealing (1,050–1,100°C) to achieve 50:50 austenite-ferrite ratio.
  • Inconel: Annealing (1,150–1,200°C) to resist high-temperature oxidation.
• Welding: TIG welding with purge gas (argon) to prevent oxidation; welds inspected via UT (ultrasonic) and RT (radiographic) per ASME BPVC Section IX.

C. Assembly & Testing

• Assembly: Cleanroom assembly (Class 10,000) for high-purity service; stems lubricated with high-temperature grease (-20°C to 300°C); packing installed with pre-compression (graphite for fire safety).
• Testing:
  • Pressure: Hydrostatic (1.5x PN for 30 minutes) and pneumatic (1.1x PN for 15 minutes, no leakage).
  • Fire Safety: API 607/6FA testing (1020°C for 30 minutes, post-fire leakage ≤0.1 cm³/min).
  • Corrosion: NACE TM0177 (sour service, 720 hours no SSC); salt spray (1,000 hours for offshore valves).
  • Cycle: 10,000 actuation cycles (automated valves) to verify durability.

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, material, API/NACE logos, serial number (traceable to MTC/test reports via TIANYU’s portal).
• Packaging: High-temperature valves wrapped in heat-resistant film; large valves shipped in wooden crates with shock-absorbing foam; sour service valves labeled with NACE MR0175 compliance.

VII. Advantages of TIANYU Refining & Petrochemical Valves

A. High-Temp/High-Pressure Performance

• Material Toughness: Inconel/Hastelloy components maintain strength at 800°C; duplex/super duplex valves withstand 42 MPa pressure—no deformation or leakage.
• Thermal Stability: Heat-treated components resist thermal shock (25°C to 500°C) and fatigue—10,000+ thermal cycles with no cracking.
• Abrasion Resistance: Stellite/ceramic trim reduces wear rate to ≤0.05 mm/year—3x longer life than standard valves.

B. Corrosion Resistance & Compliance

• Sour Service Expertise: NACE MR0175 compliant valves (duplex/super duplex) resist SSC in H₂S environments—corrosion rate ≤0.003 mm/year.
• Chemical Inertness: Hastelloy/PTFE components handle acids, caustics, and hydrocarbons—no degradation after 5 years of service.
• Full Certifications: API 6D/600/602/607/6FA, ISO 13709, ASME B16.34, NACE MR0175—meets global refining/petrochemical standards.

C. Reliability & Safety

• Zero Leakage: Class VI internal sealing and ISO 15848 Class BH external sealing—prevents hydrocarbon release and environmental contamination.
• Fire Safety: API 607/6FA certified valves maintain integrity during fires—critical for safety-critical service.
• Low Failure Rate: <0.3% annual failure rate (industry average 2–3%)—minimizes unplanned downtime.

D. Service & Support

• Pre-Sales Engineering: 15 petrochemical specialists (10+ years experience) provide process-specific valve selection, including flow simulation and cavitation analysis.
• Global Support: 24-hour technical support, on-site installation/commissioning (response time ≤72 hours), and emergency replacement parts (48-hour turnaround).
• Warranty: 3-year standard warranty (industry average 1–2 years); 5-year warranty for duplex/Hastelloy valves—covers material defects, corrosion, and sealing failure.

VIII. Future Applications of Refining & Petrochemical Valves

A. Smart Valves for Automated Plants

• IoT Integration: Valves equipped with sensors (temperature, pressure, vibration, wear) to monitor performance in real time—data transmitted to cloud platforms for remote control.
• Predictive Maintenance: AI algorithms analyze sensor data to predict trim wear and seal degradation 3–6 months in advance—reducing downtime by 40%.
• Automated ESD: SIL 4 rated emergency shutoff valves with <1-second response time—integrated with plant safety systems (PSS) for rapid accident mitigation.

B. Low-Carbon & Energy-Efficient Valves

• Energy-Saving Designs: Optimized flow channels (ζ ≤0.2) reduce pump/compressor energy consumption by 10–15%—aligning with refineries’ carbon reduction targets.
• Hydrogen Service Valves: Valves rated for high-pressure hydrogen (70 MPa) with zero leakage (≤1×10⁻¹⁰ Pa·m³/s)—critical for blue hydrogen production.
• Recyclable Materials: Valves made from 60% recycled steel and biodegradable lubricants—reducing carbon footprint by 12%.

C. Extreme Condition Valves

• Ultra-High Temperature: Ceramic-lined valves (alumina ceramic, 1,000°C rated) for next-generation ethylene crackers.
• Deep Hydrotreating: Valves rated to 50 MPa pressure for deep hydrocracking (maximizing fuel yield from heavy crude).
