High-Performance Valves for Oil & Gas Industry: API Compliance, Corrosion Resistance & Reliable Service in Extreme Downhole/Upstream Conditions

I. Related Engineering Operating Conditions of Oil & Gas Industry

A. Extreme Pressure & Temperature Ranges

• Upstream (Downhole/Wellhead): High-pressure/high-temperature (HPHT) wells operate at 69–105 MPa and 175–260°C; ultra-HPHT wells reach 138 MPa and 315°C—valves must resist creep deformation and metal fatigue.
• Midstream (Pipelines/LNG): Long-distance pipelines (natural gas) run at 4–10 MPa and -50°C (arctic) to 60°C (desert); LNG transport/storage operates at -162°C and 0.2–0.8 MPa.
• Downstream (Refining): Hydrocracking units run at 15–25 MPa and 350–450°C; catalytic cracking reaches 650°C—valves must withstand thermal shock (25°C to 500°C during startup).

B. Corrosive Sour Media Challenges

• Sour Service (H₂S/CO₂): Crude oil and natural gas often contain H₂S (sour gas) and CO₂, causing sulfide stress cracking (SSC) in carbon steel (failure in weeks without NACE MR0175 compliance) and pitting corrosion (0.1 mm/year in unalloyed steel).
• Brine Corrosion: Downhole brines (salinity 20–30%) and produced water (pH 4–6) induce chloride stress corrosion cracking (CSCC) in stainless steel—duplex steel reduces corrosion rate to 0.001 mm/year.
• Chemical Inhibitors: Production chemicals (corrosion inhibitors, scale removers) can degrade non-metallic seals (nitrile rubber swells by 30% in amine-based inhibitors).

C. Environmental & Operational Demands

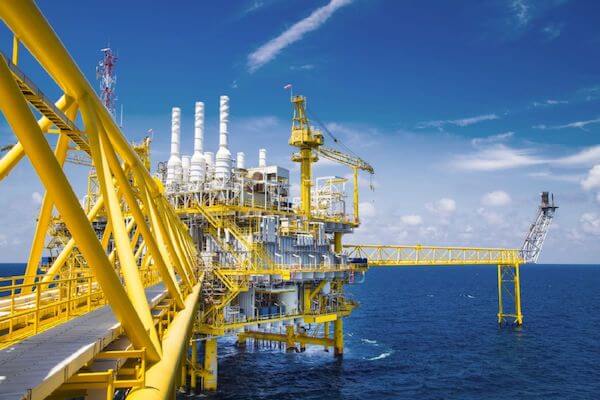

• Harsh Environments: Offshore platforms face salt spray (1,000-hour salt spray test required), humidity (95%), and wave-induced vibration (10–100 Hz); arctic operations require low-temperature flexibility (-50°C).
• Frequent Actuation: Wellhead valves cycle 5–10 times per day; pipeline ESD valves need <1-second shutoff to prevent spills.
• Erosion & Abrasion: Sand particles (10–100 μm) in produced fluids wear valve seats at 0.05–0.1 mm/year—unprotected valves fail in 2–3 years.

D. Safety & Regulatory Constraints

• Leakage Standards: ISO 15848 Class BH (fugitive emissions ≤1×10⁻⁴ mg/s for methane) to prevent explosions and greenhouse gas emissions (methane’s 84x CO₂’s warming potential over 20 years).
• Fire Safety: API 607/6FA certification (1020°C for 30 minutes) to maintain integrity during fires—mandatory for wellheads and pipelines.
• Standards Compliance: API 6D (pipeline valves), API 6A (wellhead valves), NACE MR0175 (sour service), ASME B16.34 (pressure-temperature ratings), and ISO 13709 (valve design).

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Upstream (Drilling/Production):
  • Wellhead/Christmas Tree: Valves control well flow, kill fluid injection, and pressure relief—HPHT resistance (105 MPa, 260°C), NACE MR0175 compliance, and API 6A certification.
  • Downhole: Valves (safety valves, choke valves) endure extreme pressure/temperature and sand abrasion—tungsten carbide trim and corrosion-resistant alloys.
  • Produced Water Treatment: Valves handle brines and chemicals—duplex stainless steel and PTFE seals to resist corrosion.
• Midstream (Transport/Storage):
  • Pipeline Transport: Valves isolate sections, control flow, and prevent backflow—low pressure drop, API 6D compliance, and arctic-grade materials (-50°C).
  • LNG Liquefaction/Regasification: Valves handle cryogenic LNG (-162°C) and natural gas—316L stainless steel, 9% nickel steel, and low-temperature seals.
• Downstream (Refining/Petrochemicals):
  • Hydrocracking/Hydrotreating: Valves handle high-pressure hydrogen and sour media—super duplex steel, Inconel trim, and API 6FA fire safety.
  • Catalytic Cracking: Valves handle catalyst-laden streams (650°C)—Inconel/Hastelloy bodies and Stellite trim for abrasion resistance.

B. Process-Material Matching

• Metallic Materials: Super duplex S32750 (HPHT/sour service), Inconel 625 (high temp/corrosion), 9% nickel steel (LNG), A105N carbon steel (low-pressure non-corrosive), Hastelloy C-276 (extreme sour service).
• Sealing Materials: FKM (high temp, 200°C), PTFE (cryogenic/LNG, -200°C), graphite (fire-safe, 600°C), metal bellows (zero leakage for toxic media).
• Coatings: Fusion-bonded epoxy (FBE) for pipeline valves (1,000-hour salt spray resistance); zinc-nickel plating for offshore valves (corrosion protection).

C. Material-Engineering Scaling

• Upstream HPHT Wells: Compact, high-pressure valves (PN100–PN140) with super duplex bodies—designed for 20-year service life in 105 MPa conditions.
• Midstream Arctic Pipelines: Large-diameter valves (DN300–DN1200) with low-temperature carbon steel (A333 Gr. 6) and FKM seals (-50°C rated)—resist freeze-thaw cycles.
• Offshore Platforms: Corrosion-resistant valves (super duplex, 1,000-hour salt spray resistance) with waterproof actuators (IP68 rated)—suitable for saltwater immersion.
• Downstream Refining: High-temperature valves (Inconel/Hastelloy) for 650°C catalytic cracking—creep-resistant trim (Stellite) to prevent deformation.

III. Common Valve Types in Oil & Gas Industry (with TIANYU Product Links)

A. Ball Valves: Fast On-Off & Throttling

• Body materials: Super duplex S32750, Inconel 625, 9% nickel steel, A105N.
• Trim: Floating (PN≤25) or trunnion-mounted (PN≥40); Stellite/Inconel trim for wear/corrosion; full-port (low pressure loss) or V-port (throttling).
• Design: API 6D/6A compliant; anti-static devices; fire-safe (API 607/6FA); NACE MR0175 certified for sour service.

B. Gate Valves: Full-Bore Isolation

• Body materials: A105N, super duplex S31803/S32750, Inconel 625.
• Trim: Wedge gate (self-sealing) or parallel gate (low pressure); Stellite-lined seats for abrasion resistance.
• Compliance: API 6D/6A, ASME B16.34—sizes DN50–DN1200, PN10–PN140.

C. Globe Valves: Precision Flow Regulation

• Body materials: A105N, super duplex, Inconel 625.
• Trim: Single-seat (tight sealing) or double-seat (balanced pressure); Stellite/Inconel trim for high temp/wear.
• Design: Angle pattern (reduces cavitation) and streamlined flow channels (low pressure drop); API 600 compliant.

D. Check Valves: Backflow Prevention

• Types: Swing (large flow, pipelines), lift (high pressure, wellheads), dual-plate (fast closing ≤0.5 seconds, ESD service).
• Materials: A105N, super duplex, 316L; metal-to-metal or PTFE seals.

E. API 6A Wellhead Valves: Downhole/Wellhead Service

• Body materials: Super duplex S32750, Inconel 625; rated for 105 MPa/260°C (HPHT).
• Trim: Tungsten carbide (sand abrasion) or Stellite; metal-to-metal sealing (API 6FA fire-safe).
• Design: Choke valves (flow control), safety valves (overpressure protection), and master valves (well isolation).

F. Emergency Shutoff (ESD) Valves: Safety-Critical Isolation

• Body materials: Super duplex, A105N, 9% nickel steel.
• Actuation: Hydraulic/pneumatic with fail-safe close (spring-return); SIL 3 rated (IEC 61508).
• Compliance: API 6D/6FA, NACE MR0175—sizes DN50–DN600, PN10–PN100.

IV. Specification Parameters of Oil & Gas Valves

A. Nominal Diameter (DN/NPS)

• Range: DN25–DN1200 (NPS 1”–48”):
  • DN25–DN100: Wellhead valves, choke valves, small-bore pipelines.
  • DN125–DN300: Production manifolds, offshore platform lines.
  • DN350–DN1200: Long-distance pipelines, LNG terminals.

B. Nominal Pressure (PN/Class)

• Range: PN10–PN140 (Class 150–Class 2500):
  • PN10–PN40 (Class 150–300): Midstream pipelines, low-pressure production.
  • PN63–PN100 (Class 400–600): HPHT wellheads, hydrocracking units.
  • PN120–PN140 (Class 900–2500): Ultra-HPHT wells, offshore subsea valves.

C. Temperature Range

• Operating Temperature: -50°C to 650°C:
  • -50°C to 0°C: Arctic pipelines (A333 Gr. 6, FKM seals).
  • 0°C to 300°C: Standard production/pipelines (A105N, super duplex).
  • 300°C to 650°C: Refining/cracking units (Inconel, Hastelloy).

D. Key Performance Metrics

• Sealing Grade: ISO 15848 Class BH (fugitive emissions); Class VI (internal, bubble-tight) for sour media.
• Corrosion Resistance: NACE MR0175 compliant (sour service); 1,000-hour salt spray resistance (offshore).
• Cycle Life: 10,000+ actuations (automated valves); 5,000+ cycles (wellhead valves).
• Fire Safety: API 607/6FA (1020°C for 30 minutes, post-fire leakage ≤0.1 cm³/min).

E. Connection & Actuation

• Connections: Flanged (ASME B16.5), welded (socket/butt weld for high pressure), threaded (NPT for small sizes), subsea connectors (offshore).
• Actuation:
  • Manual: Handwheel/gear operator (low-frequency, DN≤200).
  • Pneumatic: 6–8 bar air, fail-safe close (ESD service).
  • Hydraulic: High-torque (large valves DN≥300, offshore).
  • Electric: 24V DC/380V AC, motorized with torque limiting (PLC/DCS integration).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Media Compatibility: Sour service (NACE MR0175), H₂S/CO₂ content, sand/abrasives (tungsten carbide trim), cryogenic LNG (9% nickel steel).
2. Pressure/Temperature: HPHT wells (PN100+, 260°C) require super duplex/Inconel; arctic pipelines (-50°C) need low-temperature carbon steel.
3. Flow Requirements: Precision throttling (globe/choke valves) or high flow (gate/ball valves); cavitation resistance for two-phase flow.
4. Safety Compliance: API 607/6FA (fire safety), SIL 3 (ESD valves), ISO 15848 (emissions).
5. Environmental Conditions: Offshore (salt spray, IP68 actuators), arctic (low-temperature seals), subsea (pressure-rated to 3,000 m).

B. Engineering Cases

Case 1: Offshore HPHT Wellhead (Middle East, 105 MPa, 260°C)

• Challenges: Sour gas (15% H₂S, 10% CO₂), sand abrasion, salt spray corrosion, API 6A/6FA compliance, 5 cycles/day.
• Valve Selection: TIANYU API 6A trunnion ball valves (super duplex S32750), choke valves (tungsten carbide trim), SIL 3 ESD valves.
• Results: Corrosion rate ≤0.001 mm/year; no SSC incidents (NACE MR0175 compliant); API 6FA fire test passed; 3-year service without maintenance; sand wear reduced by 80%.

Case 2: Arctic Natural Gas Pipeline (North America, DN800, -45°C)

• Challenges: Low temperature (-45°C), 8 MPa pressure, 1,000 km pipeline, remote location, API 6D compliance.
• Valve Selection: TIANYU gate valves (A333 Gr. 6 low-temperature carbon steel), ball valves (316L trim), dual-plate check valves.
• Results: No freezing failures (low-temperature seals); pressure drop ≤0.03 MPa; maintenance intervals extended to 2 years (vs. 6 months for standard valves); compliance with ISO 15848 Class BH.

Case 3: LNG Regasification Terminal (Europe, -162°C, 0.8 MPa)

• Challenges: Cryogenic LNG, thermal cycling (25°C to -162°C), zero leakage, API 6D compliance.
• Valve Selection: TIANYU 9% nickel steel ball valves, check valves (316L trim, PTFE seals), pneumatic ESD valves.
• Results: Leakage rate ≤5×10⁻⁶ mg/s (meets ISO 15848 Class BH); thermal cycling (10,000+ cycles) without seal degradation; regasification efficiency improved by 2%; API 6FA fire test passed.

Case 4: Downstream Hydrocracking Plant (Asia, 20 MPa, 400°C)

• Challenges: High-pressure hydrogen, 5% H₂S, 400°C temperature, creep resistance, API 600 compliance.
• Valve Selection: TIANYU Inconel 625 globe valves, gate valves (super duplex trim), graphite-packed seals.
• Results: Creep deformation ≤0.1 mm after 2 years; no corrosion (NACE MR0175 compliant); downtime reduced by 60% vs. previous carbon steel valves.

VI. Manufacturing Processes of TIANYU Oil & Gas Valves

A. Raw Material Inspection

• Metals: Super duplex S32750 (spectral analysis: Cr 24–26%, Ni 6–8%, Mo 3–4%), Inconel 625 (Ni 58%, Cr 22%), 9% nickel steel (Ni 8.5–9.5%)—all with MTC traceability.
• Trim/Seals: Tungsten carbide (hardness HRC 90), Stellite 6 (plasma welding, 2–3 mm), PTFE/FKM seals (chemical compatibility tested via 1,000-hour immersion in sour media).
• Welding Materials: ERNiCrMo-4 (Inconel filler wire) tested for SSC (NACE TM0177) and creep resistance (10,000 hours at 600°C).

B. Precision Machining & Heat Treatment

• Body/Trim: 5-axis CNC machining (tolerance ±0.02 mm); internal surfaces polished to Ra ≤1.6 μm (reduces erosion).
• Heat Treatment:
  • Super duplex: Solution annealing (1,050–1,100°C) to 50:50 austenite-ferrite ratio.
  • Inconel: Annealing (1,150–1,200°C) to eliminate corrosive precipitates.
  • Low-temperature carbon steel: Normalizing (850–900°C) to improve toughness at -50°C.
• Welding: TIG welding with argon purge (no oxidation); welds inspected via UT (ultrasonic) and RT (radiographic) per ASME BPVC Section IX.

C. Assembly & Testing

• Assembly: Cleanroom assembly for sour service valves; stems lubricated with high-temperature, corrosion-resistant grease; actuators calibrated for ESD (≤1-second shutoff).
• Testing:
  • Pressure: Hydrostatic (1.5x PN for 30 minutes) and pneumatic (1.1x PN for 15 minutes, Class VI sealing).
  • Fire Safety: API 607/6FA testing (1020°C for 30 minutes, post-fire leakage verification).
  • Corrosion: NACE TM0177 (720 hours SSC testing) for sour service valves; salt spray (1,000 hours ASTM B117) for offshore valves.
  • Cycle: 10,000 actuation cycles (automated valves) to verify durability.

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, material, API/NACE logos, serial number, and manufacturing date. Serial numbers link to MTCs/test reports via TIANYU’s portal.
• Packaging: High-pressure valves wrapped in heat-resistant film; large pipeline valves shipped in wooden crates with lifting lugs; offshore valves coated with anti-rust oil and sealed in waterproof containers.

VII. Advantages of TIANYU Oil & Gas Valves

A. Corrosion & Abrasion Resistance

• Sour Service Expertise: NACE MR0175 compliant valves (super duplex/Inconel) resist SSC in 20% H₂S—corrosion rate ≤0.001 mm/year.
• Abrasion-Resistant Trim: Tungsten carbide/Stellite trim reduces sand wear by 80%—service life 3x longer than standard valves.
• Offshore Corrosion Protection: 1,000-hour salt spray resistance (ASTM B117) and IP68 actuators—no rust in saltwater environments.

B. High-Pressure/High-Temperature Performance

• HPHT Capability: Valves rated to 138 MPa/315°C (ultra-HPHT) with super duplex/Inconel bodies—no creep deformation or leakage.
• Thermal Stability: Heat-treated components resist thermal shock (25°C to 500°C) and fatigue—10,000+ thermal cycles without cracking.
• Cryogenic Service: 9% nickel steel and PTFE seals for LNG (-162°C)—no brittleness or seal failure.

C. Safety & Compliance

• Zero Leakage: ISO 15848 Class BH (fugitive emissions) and Class VI (internal sealing)—prevents hydrocarbon release and environmental contamination.
• Fire Safety: API 607/6FA certified valves maintain integrity during fires—critical for wellheads and pipelines.
• Full Certifications: API 6D/6A/600/607/6FA, NACE MR0175, ISO 13709, ASME B16.34—meets global oil and gas standards.

D. Service & Support

• Pre-Sales Engineering: 18 oil and gas specialists (10+ years experience) provide HPHT simulation, material selection, and regulatory compliance consulting.
• Global Support: 24-hour technical support; on-site installation/commissioning (response time ≤72 hours); emergency parts delivery (48-hour turnaround for critical components).
• Warranty: 3-year standard warranty; 5-year warranty for super duplex/Inconel valves—covers material defects, corrosion, and sealing failure.

VIII. Future Applications of Oil & Gas Valves

A. Smart Valves for Intelligent Oilfields

• IoT Integration: Valves with sensors (pressure, temperature, vibration, wear) connected to cloud platforms—real-time monitoring of downhole/pipeline performance.
• Predictive Maintenance: AI algorithms analyze data to predict trim wear and corrosion—reducing unplanned downtime by 40%.
• Automated ESD: SIL 4 rated valves with 5G connectivity for remote shutdown—ideal for offshore/subsea operations.

B. Deepwater & Arctic Valves

• Subsea Valves: Rated to 3,000 m water depth (PN400) with titanium bodies (lightweight) and hydraulic actuators (pressure-compensated).
• Arctic-Grade Valves: -60°C rated materials (A333 Gr. 8) and self-heating seals—resist permafrost conditions.

C. Energy Transition Valves

• Hydrogen Transport: Valves for high-pressure hydrogen (70 MPa) with zero leakage (≤1×10⁻¹⁰ Pa·m³/s) and nickel-based trim (hydrogen embrittlement resistance).
• Carbon Capture (CCS): Valves for supercritical CO₂ (15 MPa, 50°C) with corrosion-resistant materials (Hastelloy C-276)—compatible with CO₂ pipelines.
