High-Demand Industrial Valves for Seawater Desalination Projects: Compliance with Industry Standards, Operating Conditions, Process-Material-Engineering Matching, Common Types, Specification Parameters, Selection Keys, Manufacturing Processes, TIANYU Product Advantages and Future Applications
I. Operating Conditions of Seawater Desalination Engineering
Seawater desalination systems put tough demands on industrial valves—after all, the environment these valves work in is far from gentle. First off, seawater’s high corrosiveness (around 3.5% salt, mostly chloride ions) is a big headache. Those chloride ions easily eat away at valve materials, causing pitting, crevice corrosion, and even stress cracking, especially when temperatures rise. Then there’s the constant back-and-forth of pressure and temperature: Reverse Osmosis (RO) systems run at 5.5–8.0 MPa, while Multi-Effect Distillation (MED) and Multi-Stage Flash (MSF) setups swing between 60℃ and 120℃. These thermal cycles really test how well a valve seals and holds its structure together.
On top of that, seawater isn’t clean—it has suspended solids, microorganisms, and scaling stuff that can wear down valve seats, clog parts, or break the seal. And most desalination plants need to run 8,000+ hours a year, so valves can’t afford to fail often. That’s why they have to meet strict standards: things like API 6D for pipeline valves, ISO 13709 for oil and gas pipeline valves, and ASTM material specs—all to make sure they stand up to corrosion, pressure, heat, and wear.
II. Process-Material-Engineering Matching in Seawater Desalination
Seawater desalination mostly uses three main processes: RO, MED, and MSF. Each one needs valves that fit its unique needs, and those valves have to match the plant’s engineering setup too—otherwise, efficiency drops fast.
A. Process-Material Matching
- RO Process: This is the most common low-energy method, but it needs valves that handle high pressure (5.5–8.0 MPa) and fight off chloride corrosion. Super Duplex Stainless Steel (SDSS, like S32750 or S32760) is the go-to for valve bodies and internal parts. It has 24–26% chromium, 3–4% molybdenum, and 0.2–0.3% nitrogen—way more corrosion-resistant than 316L (2–3 times better). For low-pressure parts, like seawater intake or fresh water output, PTFE-lined carbon steel valves work well. PTFE has a super low friction coefficient (≤0.04) and doesn’t react with seawater, so it keeps the carbon steel safe.
- MED & MSF Processes: These are high-temperature setups (60–120℃), so valves need to handle both corrosion and thermal fatigue. Hastelloy C-276 (a nickel-chromium-molybdenum alloy) is perfect for the hottest parts—it stays stable up to 400℃ and doesn’t get stressed by chloride ions. For medium-temperature sections, Duplex Stainless Steel (DSS, like S31803) balances cost and performance. It’s twice as strong as 316L, so it works well for pressure vessels and pipeline valves.
B. Material-Engineering Matching
- Big coastal plants (daily output over 100,000 m³) need to run 20–30 years, so SDSS or Hastelloy valves make sense—they cut down on maintenance over time.
- Small island systems (under 10,000 m³/day) have limited space and maintenance help, so lightweight, easy-to-fix valves (like PTFE-lined butterfly valves) are better.
- Cold coastal areas, like Northern Europe, need valves that don’t crack in the cold. SDSS valves here go through -40℃ impact tests to make sure they hold up when temperatures drop.
III. Common Valve Types in Seawater Desalination
Every part of a desalination system—intake, pretreatment, desalination, product water, brine discharge—needs a specific type of valve. Below are the ones you’ll see most often, with links to TIANYU’s offerings on tyfluidgroup for easy reference.

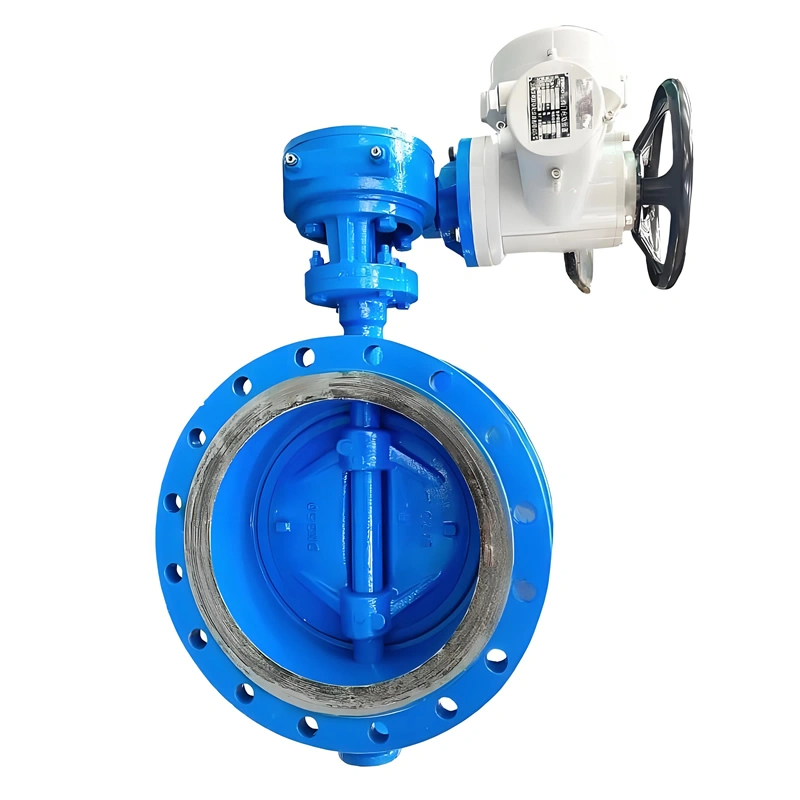

A. Butterfly Valves: For Large-Flow Regulation and On-Off Control
Butterfly valves are simple, small, and move a lot of flow—great for intake, pretreatment (like coagulation or sedimentation), and brine discharge (where flow is high but pressure is low to medium). TIANYU’s butterfly valves use a double or triple eccentric design—this cuts down friction between the disc and seat, so they last longer. Seats are EPDM or PTFE (both corrosion-resistant), and discs are made of SDSS or DSS.
B. Ball Valves: For High-Pressure Quick On-Off and Throttling
Ball valves twist 90° to open/close—fast, and they seal really well. They’re ideal for RO’s high-pressure parts, like the high-pressure pump outlet or membrane module inlets/outlets, and for chemical dosing (adding antiscalants or disinfectants). TIANYU makes full-bore and reduced-bore versions: full-bore keeps flow smooth (no pressure loss in RO’s high-pressure lines), while reduced-bore saves money for big diameters. The core and seat are SDSS or Hastelloy, and sealing is either metal-to-metal (for high temps) or PTFE (for low temps)—they meet API 6D Class VI, which means almost zero leakage.

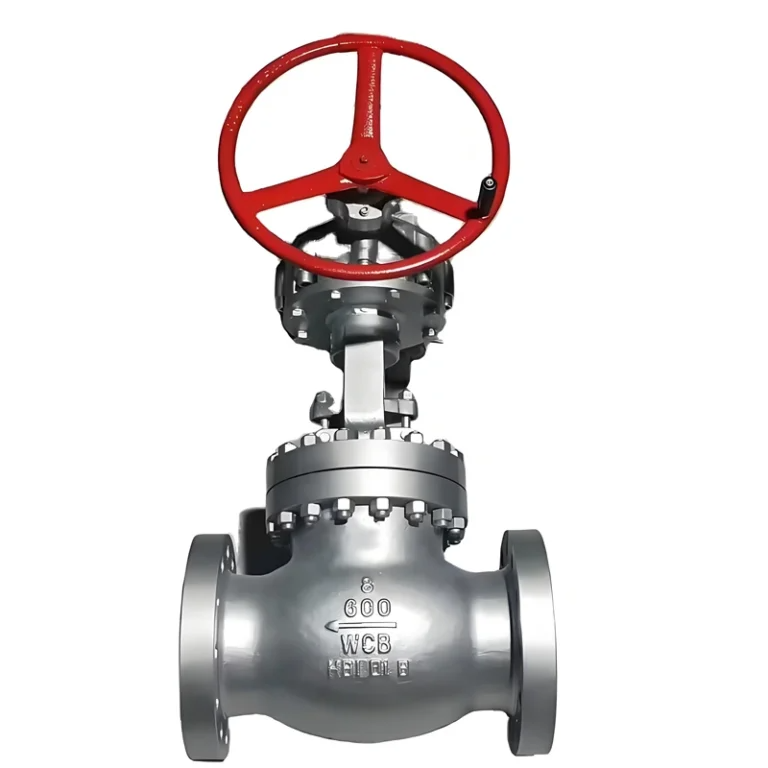

C. Globe Valves: For Precise Flow and Pressure Regulation
Globe valves use a plug that moves up and down to adjust flow—super precise. That’s crucial for parts that need steady flow, like MED/MSF heat exchanger inlets/outlets (to keep temperatures stable) or RO product water lines (to control output pressure). TIANYU’s globe valves come in single-seat or double-seat designs: single-seat seals tight (good for low-flow precision), double-seat balances pressure (easier to operate in high-pressure systems). The internal parts (plug and seat) are SDSS with Stellite alloy welded on—Stellite makes them more wear-resistant. The flow channel is streamlined too, so pressure loss is low.
D. Check Valves: For Preventing Medium Backflow
Check valves stop water from flowing backward—critical for protecting RO membranes, high-pressure pumps, and heat exchangers. In RO systems, you’ll find them at the high-pressure pump outlet (to keep seawater from flowing back and breaking the pump). In MED/MSF, they’re in steam lines (so cold seawater doesn’t get into hot sections). TIANYU has two types: swing check valves (move lots of flow with low pressure drop) and lift check valves (seal tight for high pressure). The clack (the part that stops backflow) is SDSS, and the seat uses PTFE or metal—reliable even in super salty water.

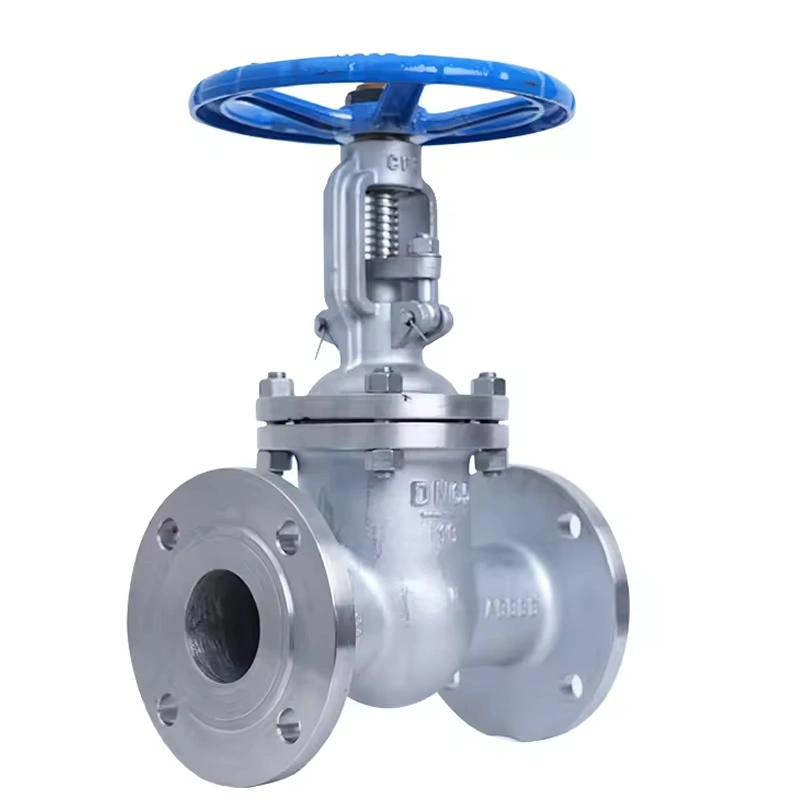

E. Gate Valves: For Full-Bore On-Off Control
Gate valves have a full-open channel—no flow restriction—so they’re used for main lines: seawater intake mains, brine discharge mains, and product water tank inlets/outlets. You don’t use them for regulation, though—partial opening causes cavitation and wears the seat. TIANYU’s gate valves are either parallel double-gate or wedge-gate: parallel ones are for low pressure (easy to maintain), wedge ones for high pressure (seal better). The gate and seat are SDSS, and the stem uses flexible graphite packing—stops seawater from leaking out and keeps the stem from corroding.
IV. Specification Parameters of Seawater Desalination Valves
A valve’s specs decide if it’ll work in a desalination system. Below are the key ones, all aligned with international standards like API, ISO, and ASTM.
A. Nominal Diameter (DN/Size)
This is the nominal inner diameter of the valve’s flow channel—basically, how much flow it can handle. It’s written as DN (metric) or NPS (imperial, like 1/2″ or 2″).
Range-wise, you’ll see DN15 to DN2000 (NPS 1/2″ to 80″):
- DN15–50: For small lines, like chemical dosing, instruments, or tiny RO systems.
- DN65–300: For RO membrane connections or MED/MSF branch lines.
- DN350–2000: For main lines—intake, brine discharge, or product water distribution.
It matters because you need to match the valve to the pipeline size. For example, a 50,000 m³/day RO plant needs DN1200 gate valves for its intake line to handle 2,000 m³/h flow without losing pressure.
B. Nominal Pressure (PN/Class)
This is the maximum pressure the valve can take at a specific temperature—written as PN (MPa) or Class (psi).
Ranges here are PN1.0 to PN42.0 MPa (Class 150 to 2500):
- PN1.0–2.5 (Class 150): For low-pressure parts, like intake, pretreatment, or product water.
- PN4.0–16.0 (Class 300–900): For medium-temperature MED/MSF sections.
- PN25.0–42.0 (Class 1500–2500): For RO’s high-pressure lines. You need a safety margin—usually 1.5–2 times the operating pressure.
API 6D sets the rules here: valves have to pass a hydrostatic test (1.5 times rated pressure) and a pneumatic test (1.1 times rated pressure) with no leaks.
C. Temperature Range
This is the min and max temperature the valve can handle nonstop—depends on the material.
Most valves for desalination work from -20℃ to 450℃:
- PTFE-lined valves: -20℃ to 180℃ (good for RO or chemical dosing).
- DSS/SDSS valves: -40℃ to 300℃ (for medium-temperature MED/MSF).
- Hastelloy valves: -20℃ to 450℃ (for high-temperature MSF or special chemical treatment).
You can’t skip this—if the valve can’t handle the temp, it’ll break down. For example, an MSF system running at 120℃ needs valves rated for at least 150℃ to avoid thermal fatigue.
D. Sealing Grade
This is how much fluid leaks through the valve under rated pressure and temp—standards like API 6D and ISO 5208 define it.
Common grades for desalination:
- Class IV: Small leaks are okay (used for gate valves in non-critical parts, like brine discharge).
- Class V: Very little leakage (good for globe valves in regulation lines).
- Class VI: Almost no leakage (must-have for RO’s high-pressure ball or check valves—you don’t want contamination or equipment damage).
Testing for Class VI uses nitrogen (0.6–1.0 MPa) for 5 minutes—no visible bubbles, or less than 0.1 cm³/min leakage for small valves.
E. Connection Type
This is how the valve attaches to the pipeline—it affects how easy it is to install and how well it seals.
Common types for desalination:
- Flanged (ANSI B16.5 or DIN EN 1092): Easy to install and fix, good for DN50+ or PN4.0+ valves (like RO high-pressure pump outlet ball valves).
- Welded (socket weld or butt weld): Seals super tight, used for high-temp/high-pressure lines (like MSF steam lines—Hastelloy globe valves here are usually welded).
- Threaded (NPT or BSPT): For small valves (DN15–40), like chemical dosing lines.
- Wafer (ISO 7005): Compact, used for butterfly valves in low-pressure, big-diameter lines (like intake)—saves space.
V. Key Selection Parameters and Engineering Cases
Picking the wrong valve can shut down a plant or make it inefficient. Below are the main things to consider, plus real-world examples of how it works.
A. Key Selection Parameters
- Medium Characteristics: What’s in the fluid? Salinity (3.5% seawater, up to 7% concentrated brine), pH (7.5–8.5 for natural seawater, 2–3 for acid cleaning), and impurities (solids, microbes) all matter. For example, concentrated brine needs SDSS or Hastelloy; acid lines need PTFE-lined valves.
- Operating Parameters: Pressure, temp, and flow tell you the valve’s PN, temp rating, and diameter. If an RO system runs at 7.0 MPa, you need a valve rated for at least PN10.0. If MED runs at 90℃, the valve needs a 120℃ rating.
- Operation Requirements: How often do you open/close it? How precise does the flow control need to be? For RO membrane flushing (10–20 times a day), ball valves are best—fast and durable. For MED heat exchanger temp control (±1℃ precision), globe valves work better.
- Environmental Conditions: Where’s the plant? Coastal areas with high humidity need valves with anti-corrosion coatings (like epoxy on carbon steel). Cold areas need SDSS valves that pass -40℃ impact tests.
- Standard Compliance: The valve has to meet the project’s standards—API 6D, ISO 13709, ASME B16.34. For international projects (like Middle East desalination), you’ll need CE, ABS, or SASO certifications too.
B. Engineering Cases
Case 1: Large MSF Plant in Saudi Arabia (200,000 m³/day)
- Challenges: It runs at 110℃, handles 7% brine, and needs to operate 8,500 hours a year—tough conditions.
- Valve Choices:
-
- Steam lines (110℃, PN10.0): TIANYU Hastelloy C-276 globe valves (rated to 400℃, resists salty steam).
-
- Brine discharge (80℃, PN4.0, DN1600): TIANYU SDSS wedge gate valves (full-bore, Class VI sealing—no leaks).
-
- High-pressure pump outlet (PN16.0): TIANYU SDSS check valves (stops backflow, metal-to-metal seal).
- Results: After 3 years, only 0.5% of valves failed—maintenance costs dropped 30% compared to 316L valves, and the plant stayed 92% efficient.
Case 2: Island RO System in Indonesia (5,000 m³/day)
- Challenges: Small space, hard to get maintenance teams, and 90% humidity year-round.
- Valve Choices:
-
- Seawater intake (PN2.5, DN300): TIANYU triple-eccentric PTFE-lined butterfly valves (light, easy to fix).
-
- Membrane inlet (PN8.0, DN50): TIANYU SDSS full-bore ball valves (fast to open/close, Class VI seal).
-
- Chemical dosing (acid, DN25): TIANYU PTFE-lined threaded ball valves (corrosion-resistant, small size).
- Results: Installing the valves took half the usual time (thanks to wafer-style butterflies). Maintenance only needs to happen every 2 years (instead of 1 year for old valves), and the system handles island conditions well.
Case 3: RO Plant in Norway (50,000 m³/day)
- Challenges: Winters hit -15℃, seawater has 50 mg/L suspended solids, and EU rules ban heavy metal leaks.
- Valve Choices:
-
- Intake line (-15℃, PN2.5, DN1200): TIANYU low-temperature SDSS butterfly valves (passed -40℃ impact tests, EPDM seat resists cold).
-
- Pretreatment sedimentation tank outlet (PN1.6, DN800): TIANYU PTFE-lined butterfly valves (no solids buildup, easy to clean).
-
- Product water line (PN1.0): TIANYU lead-free stainless steel ball valves (meets RoHS standards).
- Results: No valves cracked in winter, less than 1% clogging from solids, and the water meets EU drinking standards.

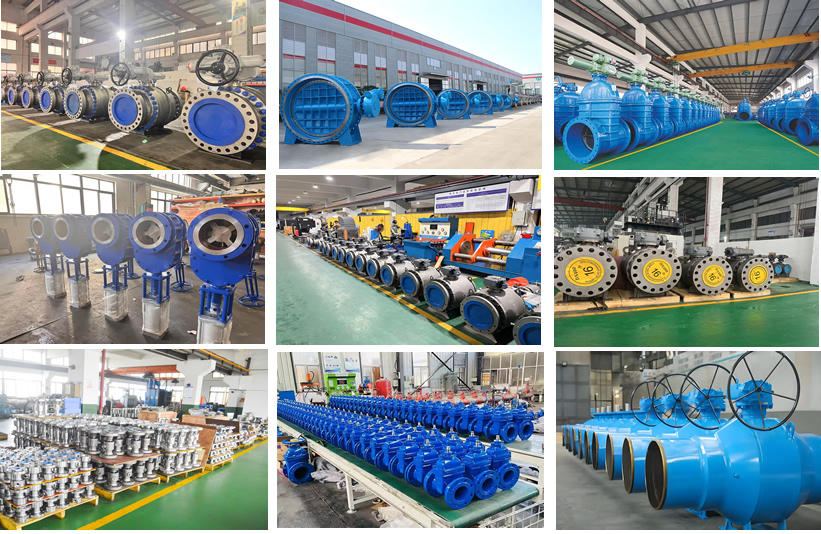

VI. Manufacturing Processes of TIANYU Seawater Desalination Valves
TIANYU builds its valves to handle desalination’s harsh conditions—following ISO 9001 and API 6D every step of the way. From raw materials to final testing, nothing gets skipped.
A. Raw Material Inspection: Start with Quality
Materials make or break a valve. TIANYU checks everything:
- Metal Materials (SDSS, Hastelloy, DSS): They use spectral analysis to check chemical composition (make sure SDSS has 24–26% Cr, 3–4% Mo) and mechanical tests (SDSS needs yield strength ≥450 MPa). Every batch has a mill test certificate (MTC) per ASTM—A815 for SDSS, B575 for Hastelloy.
- Non-Metal Materials (PTFE, EPDM): They soak PTFE/EPDM in 3.5% NaCl solution for 1,000 hours—no swelling or cracking. PTFE also gets tested at 200℃ for 24 hours—no deformation.
- Welding Materials (Stellite, Wire): Welds need to be strong (≥90% of the base material’s strength) and corrosion-resistant (soaked in seawater for 500 hours—no rust).
B. Precision Processing: Get the Details Right
Even small mistakes here ruin performance. TIANYU uses CNC machines for accuracy:
- Valve Body/Bonnet: 5-axis CNC lathes machine them to ±0.02 mm tolerance. Flow channels are polished to Ra≤1.6 μm—less flow resistance, less scaling.
- Trim (Disc, Plug, Seat): SDSS/Hastelloy parts are milled with CNC machines (IT5 precision for sealing surfaces). Stellite alloy is welded onto sealing surfaces (2–3 mm thick, HRC≥35) for wear resistance.
- Stem: Ground with precision machines (Ra≤0.8 μm surface, ≤0.01 mm concentricity)—stops packing leaks.
C. Heat Treatment: Boost Material Performance
Heat treatment makes metals stronger and more corrosion-resistant:
- SDSS/DSS: Heated to 1,050–1,100℃ (held 1–2 hours), then water-quenched. This makes a 50:50 austenite-ferrite structure—less intergranular corrosion, more toughness.
- Hastelloy: Annealed at 1,150–1,200℃ (held 1 hour), then cooled fast. This gets rid of carbides that cause corrosion.
- Carbon Steel (PTFE-lined): Normalized at 850–900℃—evens out the material, reduces stress, and stops deformation when lining with PTFE.
D. Assembly: Build for Reliability
TIANYU uses modular assembly and checks every step:
- Sealing: PTFE seats are pressed into bodies with 0.05–0.1 mm interference fit (tight bond). Metal seats are lapped with discs/plugs (0.5 μm lapping paste) to hit Class VI seal.
- Stem Packing: 3–5 layers of PTFE-coated flexible graphite (each pre-compressed)—stops seawater leaks and external corrosion.
- Concentricity: Laser alignment tools make sure the stem and disc/plug line up (≤0.02 mm error)—no jamming when operating.
E. Testing: Prove It Works
Every valve gets 100% testing before shipping:
- Hydrostatic Test: Shell test (1.5x PN, 10 minutes, no leaks); seat test (1.1x PN, 5 minutes, no leaks).
- Pneumatic Test: Class VI seals get 0.6 MPa nitrogen—bubble test, no visible bubbles.
- Non-Destructive Testing (NDT): Welds get ultrasonic (UT) and radiographic (RT) tests (no internal cracks). Bodies get magnetic particle (MT) tests (no surface defects).
- Performance Test: Torque tests (DN300 butterfly valve ≤200 N·m) and 1,000 opening/closing cycles—no performance drop.
VII. Advantages of TIANYU Seawater Desalination Valves
TIANYU’s valves stand out because they solve the big problems desalination plants face: corrosion, reliability, and maintenance costs. Here’s what makes them different.
A. Material Advantage: Quality You Can Trace
TIANYU sources materials from top global suppliers (Outokumpu for SDSS, Haynes for Hastelloy) and tracks everything:
- Traceability: Every valve has a unique serial number. You can look up its material MTC, processing records, and test reports on TIANYU’s website—no guesswork.
- Custom Materials: For tough conditions (like 450℃ MSF lines), they make valves with Inconel 625.
- Corrosion Testing: All metals go through 1,000-hour ASTM B117 salt spray tests and 500-hour seawater soaks. Corrosion rate is ≤0.01 mm/year—way better than the industry average (0.05 mm/year).
B. Design Advantage: Built for Desalination
TIANYU doesn’t just copy designs—they tailor them to desalination needs:
- Anti-Scaling: Flow channels have no dead zones (less scaling) and are polished to Ra≤0.8 μm (no sediment stuck).
- Anti-Cavitation: Globe valves use multi-stage throttling—splits pressure drop into small steps, so no cavitation (a big issue in RO high-pressure lines).
- Easy Maintenance: Butterfly valves have split seats (replace without taking the valve off the line). Ball valves have top-entry designs (check/ fix internals from the top—saves time).
C. Performance Advantage: Reliable for Years
These valves are built to last:
- Long Service Life: SDSS valves work ≥10 years in 3.5% seawater; Hastelloy ≥15 years—twice as long as 316L.
- Low Failure Rate: Accelerated tests (simulating 10 years of use) show <1% failure rate—industry average is 5%.
- Energy Saving: Full-bore ball/gate valves have a flow resistance coefficient (ζ) of ≤0.1 (industry average 0.3). For big plants, this cuts pump energy use by 5–8% a year.
D. Certification Advantage: Meets Global Rules
TIANYU’s valves have all the certifications plants need:
- Industry Standards: API 6D, ISO 13709, ASME B16.34, ISO 5208 Class VI.
- Quality Certifications: ISO 9001 (quality), ISO 14001 (environmental), ISO 45001 (occupational health).
- Regional Certifications: CE (EU), ABS (maritime), SASO (Saudi Arabia), TISI (Thailand)—easy to use in global projects.
E. Service Advantage: Support Every Step
TIANYU doesn’t stop at selling valves—they help you use them:
- Pre-Sales Consulting: Teams with 10+ years of desalination experience help you pick the right valve (based on process, pressure, temp).
- On-Site Service: Engineers fly out to help install, commission, or fix valves—global response in ≤48 hours.
- Warranty: 2-year warranty for standard valves, 3-year for Hastelloy/SDSS—free replacement if there’s a quality issue.
- Training: They train your maintenance team (how to take valves apart, inspect, fix problems) so you can keep things running.
VIII. Future Applications of Seawater Desalination Valves
As the world runs short of fresh water, desalination is getting bigger, more efficient, smarter, and greener. That means valves need to evolve too—and TIANYU is already working on what’s next.
A. Intelligent Valves for Smart Plants
Smart desalination plants use IoT, big data, and AI—they need valves that can talk to the system:
- TIANYU’s R&D: They’re making valves with built-in sensors (pressure, temp, flow, vibration) and smart positioners (like Fisher DVC6200).
- What They Do: Real-time status checks (how open the valve is, if it’s leaking, temp), remote control via cloud, and AI predictive maintenance (analyzes vibration to spot failures before they happen—fewer shutdowns).
- Where They’ll Be Used: Big plants (over 300,000 m³/day) that need centralized control. For example, a smart RO plant in Saudi Arabia could use TIANYU’s intelligent ball valves to run 95% automatically.
B. Energy-Saving Valves for Low-Carbon Desalination
Everyone’s cutting carbon, so desalination needs to use less energy. Valves can help here:
- TIANYU’s R&D:
-
- Low-flow-resistance valves: Streamlined gate valve discs (ζ≤0.05) cut pump energy use by 10%.
-
- Energy-recovery valves: A built-in turbine recovers energy from concentrated brine (RO systems waste 30–40% of energy here). TIANYU’s prototype gets back 25% of that energy—cuts system energy use by 15%.
- Where They’ll Be Used: Low-energy RO plants and solar-powered systems (like African solar RO plants).
C. Valves for Extreme Conditions
Desalination is moving to harder places—deep sea, super salty water, high temps. Valves need to keep up:
- Deep-Sea Desalination: Offshore floating plants (100–500 m deep) need high-pressure valves (PN63.0+) that resist fatigue. TIANYU is making SDSS valves with PN63.0 rating and 10,000-cycle fatigue life.
- High-Salinity ZLD: Zero-liquid-discharge systems make brine up to 15% salinity. TIANYU is testing nickel-titanium alloy valves—corrosion rate ≤0.005 mm/year in 15% NaCl.
- High-Temp MSF: Advanced MSF runs at 150℃. TIANYU is developing Hastelloy X valves (rated to 600℃) for these systems.
D. Eco-Friendly Valves for Sustainability
Rules like RoHS and REACH are getting stricter—valves need to be green:
- TIANYU’s Steps:
-
- Lead-free materials: Lead-free brass for small valves, RoHS-compliant PTFE.
-
- Water-based coatings: Replace solvent-based ones—cuts VOC emissions by 80%.
-
- Recyclable design: 70% of parts can be recycled—less waste.
- Where They’ll Be Used: Eco-sensitive areas (like coastal nature reserves) and EU plants with strict environmental rules.
Valves are the backbone of seawater desalination—if they fail, the whole plant struggles. This article covers everything you need to know: the tough conditions valves face, how to match them to processes and materials, the most common types , key specs, how to pick the right one, how TIANYU builds them, their advantages, and what’s next.
TIANYU’s valves are made to handle desalination’s harshness—quality materials, smart design, and strict testing. And when you need something tailored? They’ll make high-pressure SDSS ball valves for RO (Class VI seal), Hastelloy globe valves for MSF (high-temp), or special-material valves for extreme conditions. These custom valves fit your plant’s exact needs—boost efficiency and cut costs over time.
