Heavy-Duty Industrial Valves for Mining Industry: Abrasion Resistance, High-Pressure Performance & Compliance with Mining Process Standards

The mining industry—encompassing coal, metal ores (iron, copper, gold), and mineral processing—relies on robust industrial valves to handle some of the harshest service conditions on Earth. Mining processes involve transporting abrasive slurries (20–60% solid content), corrosive acidic mine water, high-pressure pump systems, and operating in extreme environments (dust, humidity, temperature swings). Valves serve as critical components in ore processing, slurry transfer, water management, and tailings disposal—where failure can lead to costly downtime (up to $150,000 per hour), equipment damage, or environmental non-compliance.

This article explores tailored valve solutions for mining applications, covering industry-specific operating conditions, application-process-material-engineering alignment, core valve types, technical specifications, data-driven selection criteria, real-world engineering cases, TIANYU’s precision manufacturing capabilities, product advantages, and future innovations—all compliant with global mining and valve standards (ISO, API, ANSI, ASME).

Heavy-Duty Industrial Valves for Mining Industry: Abrasion Resistance, High-Pressure Performance & Compliance with Mining Process Standards

I. Related Engineering Operating Conditions of Mining Industry

Mining operations impose unique and brutal demands on valves, driven by abrasive media, corrosive environments, dynamic pressure cycles, and harsh ambient conditions.

A. Abrasive Slurry Challenge

The primary threat to mining valves is abrasive wear from slurries—mixtures of water and solid particles (ore, sand, gravel) with hardness up to Mohs 7–8 (equivalent to quartz). Key impacts:

Wear Rates: Unprotected steel valves experience wear rates of 0.5–1.0 mm/year in medium-abrasion slurries; high-abrasion tailings (50% solid content) can destroy standard valves in 6–12 months.
Clogging Risk: Solid particles (1–50 mm) can jam valve seats, stems, and flow channels—disrupting process flow and requiring manual clearing.
Erosion-Corrosion: Combined abrasive and corrosive action accelerates material degradation—e.g., acidic slurry (pH 2–4) increases wear rates by 30–50% vs. neutral media.

B. Corrosive Media Exposure

Mining processes generate corrosive substances that attack valve materials:

Acidic Mine Drainage (AMD): Formed by sulfide ore oxidation (pH 1–4), containing sulfuric acid and heavy metals (iron, copper)—causes pitting and uniform corrosion in carbon steel.
Flotation Reagents: Chemicals (xanthates, fatty acids) used in ore separation can degrade non-metallic seals (nitrile rubber swells by 25–30%) and attack unalloyed metals.
Saltwater: Coastal or offshore mining uses seawater for processing—35,000 ppm chloride induces pitting in 304 stainless steel (corrosion rate 0.05 mm/year).

C. Extreme Pressure & Temperature Ranges

Pressure: Mining pumps operate at 1.0–10.0 MPa to transport slurries over long distances (up to 10 km) or uphill (mine shafts). High-pressure slurry lines face pressure spikes (1.5x nominal pressure) during pump startups.
Temperature: Ambient temperatures range from -30°C (arctic mines) to 50°C (desert operations). Process temperatures are typically 15–60°C, but drying/calcination processes can reach 200–300°C.

D. Harsh Ambient & Operational Conditions

Dust & Humidity: Underground mines have 80–95% humidity and high dust levels (coal dust, ore particles) that infiltrate valve actuators and packing—causing jamming and corrosion.
Frequent Actuation: Batch processing (crushing, flotation) requires valves to cycle 5–15 times per hour—demanding robust trim and seals to endure 50,000+ cycles.
Environmental Compliance: Tailings disposal and water discharge require zero-leakage valves (ISO 5208 Class V) to prevent soil/water contamination—non-compliance leads to fines up to $1M.

E. Compliance with Mining Standards

Valves must meet industry-specific standards:

ISO 13709/API 6D (pipeline valves), ASME B16.34 (pressure-temperature ratings).
Mining-specific: ISO 6431 (slurry valves), ANSI B16.10 (face-to-face dimensions).
Environmental: EPA (US), EU Mine Waste Directive (tailings management).

II. Application-Process-Material-Engineering Matching in Mining Industry

Mining processes are segmented into core operations, each with distinct media and performance requirements—demanding precise alignment of valve design, material, and engineering scale.

A. Application-Process Alignment

Ore Extraction & Crushing: Valves control water spray (dust suppression) and feed flow to crushers—require abrasion resistance and quick on-off operation.
Grinding & Classification: Slurry transfer (ore + water) from ball mills to hydrocyclones—valves need low pressure loss, anti-clogging design, and extreme abrasion resistance.
Flotation & Separation: Control of flotation reagents (acids, collectors) and slurry flow—require corrosion resistance and precise flow regulation (±3% accuracy).
Thickening & Filtration: Valves manage underflow slurries (high solid content) and filtrate water—need 耐磨 liners and tight sealing to prevent leakage.
Tailings Disposal: Transport of waste slurries to tailings dams—valves require large diameters, high-pressure ratings, and ultra-wear resistance (service life ≥3 years).
Water Management: Freshwater intake, mine dewatering, and wastewater treatment—valves need corrosion resistance and backflow prevention.

B. Process-Material Matching

Process Type	Typical Media	Valve Body Material	Trim/Seal Material	Wear Rate (mm/year)
Slurry Transfer (Tailings)	50% solid ore slurry (pH 6–8)	Abrasion-resistant steel + rubber lining	Rubber-lined trim, EPDM seals	≤0.05
Acidic Mine Drainage	AMD (pH 2–4, H₂SO₄ + Fe³⁺)	Duplex stainless steel (S31803)	Hastelloy trim, FKM seals	≤0.02
Flotation Reagents	Xanthates + acidic slurry (pH 3–5)	316L stainless steel	PTFE-lined trim, FKM seals	≤0.01
Water Management	Freshwater/seawater (pH 6–8)	Ductile iron + epoxy coating	EPDM seals	≤0.005

Metallic Materials: Abrasion-resistant steel (AR400/AR500), duplex/super duplex stainless steel (corrosion + abrasion), carbon steel (non-corrosive utility service).
Protective Liners: Natural rubber (abrasion resistance), polyurethane (wear resistance 3x rubber), PTFE (corrosion + abrasion for acidic slurries).
Non-Metallic Seals: EPDM (abrasion + water resistance), FKM (corrosion + high temperature), polyurethane (wear-resistant for slurry service).

C. Material-Engineering Scaling

Large Open-Pit Mines: High-volume slurry transfer (10,000+ m³/h) requires large-diameter valves (DN300–DN2000) with rubber/polyurethane liners—prioritize 3–5 year service life to minimize downtime.
Underground Mines: Space-constrained areas need compact valves (DN50–DN200) with corrosion resistance (humidity + AMD) and dust-proof actuators.
Coastal Mines: Seawater processing uses duplex stainless steel valves (S31803) to resist saltwater corrosion—pass 1,000-hour salt spray testing (ASTM B117).
Arctic Mines: Low-temperature service (-30°C) requires rubber liners with low-temperature flexibility (EPDM operating down to -40°C) and frost-proof designs.

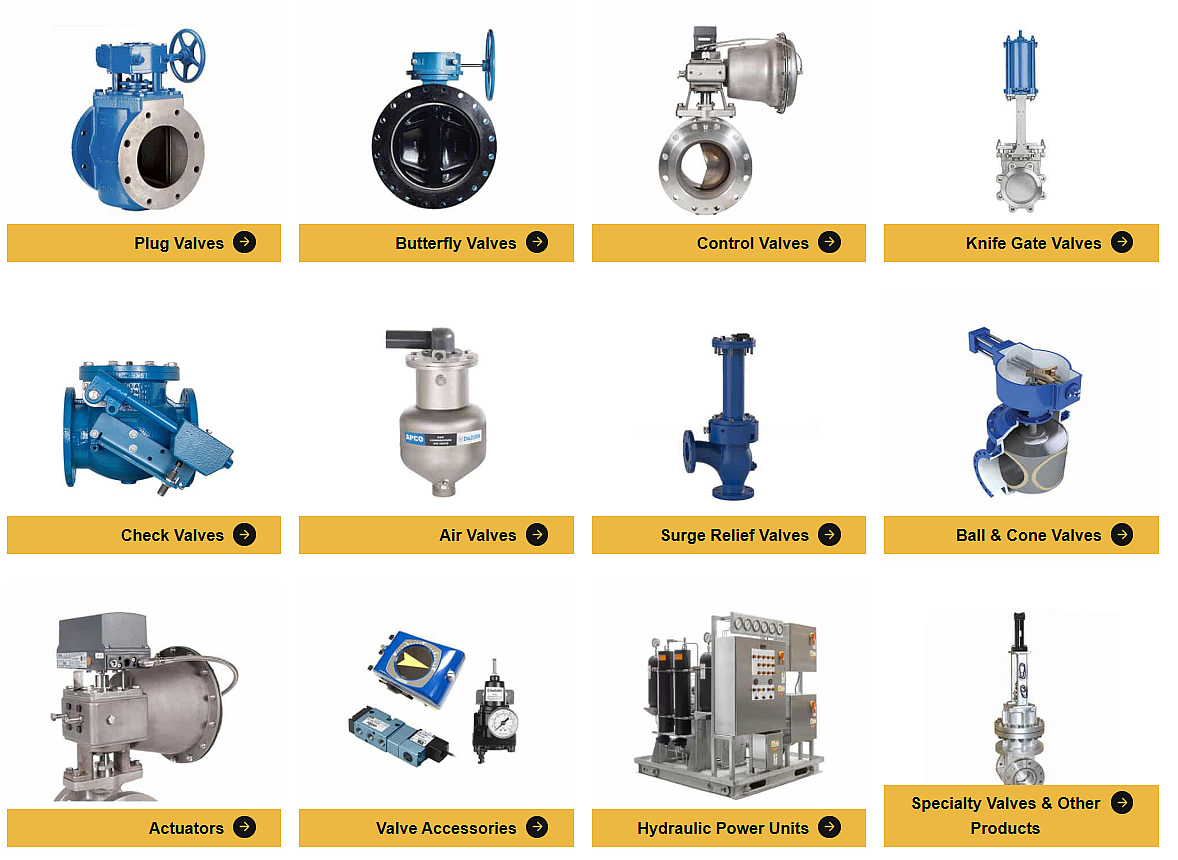

III. Common Valve Types in Mining Industry (with TIANYU Product Links)

Mining valves are engineered for abrasion resistance, anti-clogging, and durability—below are the most widely used types, tailored to mining processes.

A. Knife Gate Valves: Slurry & Bulk Material Control

Ideal for high-solid slurries (tailings, thickener underflow) and bulk materials—feature a sharp-edged gate to cut through solids and prevent clogging. TIANYU’s mining knife gate valves:

Body materials: Abrasion-resistant steel (AR400), ductile iron with rubber/polyurethane lining.
Trim: Rubber-lined gate (abrasion resistance), stainless steel stem with corrosion protection.
Design: Rising stem (easy cleaning), full-port flow (low pressure loss), and bolted bonnet (dust-proof).
Compliance: ISO 6431, ANSI B16.10—sizes DN50–DN2000, PN1.0–PN4.0.

TIANYU Mining Knife Gate Valves: https://www.tianyuvalves.com/mining-knife-gate-valves

B. Ball Valves: Abrasion-Resistant On-Off & Throttling

Used for medium-abrasion slurries, reagent dosing, and water management—offer fast 90° actuation and tight sealing. TIANYU’s mining ball valves:

Body materials: Duplex stainless steel (S31803), carbon steel with polyurethane lining.
Trim: Stellite overlay (wear resistance, HRC 40–45) or rubber-lined ball (slurry service).
Design: Full-port (anti-clogging), trunnion-mounted (high pressure ≥PN2.5), and blowout-proof stem.
Sealing: Metal-to-metal (API 607 fire-safe) or rubber seats (Class V leakage).

TIANYU Mining Ball Valves: https://www.tianyuvalves.com/mining-ball-valves

C. Butterfly Valves: Large-Flow Slurry & Water Control

Compact and cost-effective for large-diameter applications (cooling water, low-abrasion slurries)—feature a robust disc to handle moderate solids. TIANYU’s mining butterfly valves:

Body materials: Ductile iron with epoxy coating, 316L stainless steel.
Disc: Rubber-lined (abrasion resistance) or stainless steel with Stellite overlay.
Design: Double-eccentric (reduced friction), gear operator (for large sizes DN≥300), and dust-proof packing.
Sizes: DN50–DN2000, PN1.0–PN2.5—flow rates up to 15,000 m³/h for DN2000.

TIANYU Mining Butterfly Valves: https://www.tianyuvalves.com/mining-butterfly-valves

D. Check Valves: Backflow Prevention for Pumps & Slurry Lines

Protect mining pumps, pipelines, and equipment from reverse flow—critical for slurry transfer and dewatering. TIANYU’s mining check valves:

Types: Swing (large flow, low pressure loss), dual-plate (fast closing ≤0.5 seconds, anti-water hammer), and rubber-lined (slurry service).
Materials: Ductile iron with rubber lining, duplex stainless steel.
Design: Heavy-duty disc (resist slurry impact), corrosion-resistant spring, and easy-clean internals.

TIANYU Mining Check Valves: https://www.tianyuvalves.com/mining-check-valves

E. Diaphragm Valves: Corrosive & Slurry Service

Isolate media from valve internals—ideal for acidic mine water, flotation reagents, and fine-slurry service. TIANYU’s mining diaphragm valves:

Body materials: 316L stainless steel, ductile iron with PTFE lining.
Diaphragm: Natural rubber (abrasion), PTFE (corrosion), or polyurethane (wear + chemical resistance).
Design: Weir-type (tight sealing) or straight-through (anti-clogging for fine slurries).

TIANYU Mining Diaphragm Valves: https://www.tianyuvalves.com/mining-diaphragm-valves

IV. Specification Parameters of Mining Industry Valves

A. Nominal Diameter (DN/NPS)

Range: DN50–DN2000 (NPS 2”–80”):
- DN50–DN200: Reagent dosing, dewatering lines, underground mine circuits.
- DN250–DN800: Ore processing, flotation, and thickener underflow.
- DN900–DN2000: Tailings disposal mains, large-scale water management.

B. Nominal Pressure (PN/Class)

Range: PN1.0–PN10.0 (Class 150–Class 600):
- PN1.0–PN2.5 (Class 150–300): Low-pressure water management, flotation circuits.
- PN4.0–PN6.3 (Class 400–450): Medium-pressure slurry transfer, dewatering pumps.
- PN8.0–PN10.0 (Class 600): High-pressure mine shafts, long-distance slurry lines.

C. Temperature Range

Operating Temperature: -30°C to 200°C:
- -30°C to 80°C: Rubber-lined valves (EPDM/polyurethane) for standard mining processes.
- 80°C to 200°C: Metal-lined valves (Stellite) for drying/calcination circuits.

D. Key Performance Metrics

Abrasion Resistance: Rubber/polyurethane liners with wear life ≥3 years in medium-abrasion slurries.
Sealing Grade: Class IV (utility lines), Class V (slurry/tailings lines—leakage ≤0.01% of rated flow).
Solid Handling Capacity: Ability to pass particles up to 50 mm (knife gate valves) or 20 mm (ball/butterfly valves).

E. Connection & Actuation

Connections: Flanged (ANSI B16.5/ISO 5752), wafer (butterfly valves), threaded (small sizes DN≤50).
Actuation:
- Manual: Handwheel or gear operator (low-frequency operation, DN≤200).
- Pneumatic: Compressed air (6–8 bar) with dust-proof actuators (frequent operation, remote locations).
- Electric: Motorized (24V DC/380V AC) with torque limiting (automated processes, PLC integration).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

Slurry Properties: Solid content (20–60%), particle size (1–50 mm), and hardness (Mohs 5–8) dictate liner material (rubber for soft particles, polyurethane for hard ores).
Corrosivity: pH (1–14) and chemical composition (AMD, reagents) determine body material (duplex for acid, carbon steel for neutral media).
Pressure/Temperature: Operating pressure/temperature define PN/rating—high-pressure slurry lines (8 MPa) require trunnion ball valves or knife gate valves with reinforced bodies.
Flow Requirements: Large flow (10,000 m³/h) needs full-port valves (knife gate/butterfly); precise dosing (5–50 L/h) requires diaphragm/ball valves with V-port trim.
Environmental Conditions: Underground mines need dust-proof actuators; arctic mines require low-temperature rubber liners (-40°C rated).
Maintenance Access: Remote tailings dams need valves with 3+ year service life and minimal maintenance (self-lubricating stems, wear-resistant liners).

B. Engineering Cases

Case 1: Iron Ore Open-Pit Mine (Brazil, Annual Output 30 Million Tons)

Challenges: Slurry transfer (40% solid iron ore, Mohs 7), 6 MPa pressure, 10 km pipeline, outdoor temperature 25–45°C, frequent clogging with standard valves.
Valve Selection: TIANYU knife gate valves (DN600, PN6.3, rubber-lined body/trim), trunnion ball valves (DN400, duplex stainless steel), dual-plate check valves (DN600, rubber-lined).
Results: Valve wear rate reduced to 0.03 mm/year (vs. 0.8 mm/year for standard valves); clogging incidents dropped from 12/year to 0; maintenance costs cut by 65%; service life extended to 4 years.

Case 2: Underground Coal Mine (Australia, Dewatering & Dust Suppression)

Challenges: Acidic mine water (pH 3, 10% solids), 3 MPa pressure, 90% humidity, dust contamination, space constraints.
Valve Selection: TIANYU diaphragm valves (DN80, 316L body, PTFE lining), compact butterfly valves (DN100, ductile iron with epoxy coating), swing check valves (DN150, duplex stainless steel).
Results: No corrosion after 3 years; dust-proof actuators prevented jamming; maintenance intervals extended from 3 months to 18 months; compliance with Australian EPA standards.

Case 3: Gold Mine Tailings Disposal (Canada, Arctic Region)

Challenges: Tailings slurry (50% solid, pH 7), -30°C winter temperatures, 4 MPa pressure, 5 km pipeline to frozen tailings pond.
Valve Selection: TIANYU knife gate valves (DN800, PN4.0, low-temperature polyurethane lining), ball valves (DN500, super duplex steel), electric actuators with heater kits.
Results: No freezing failures (valve heaters maintained -10°C internal temperature); wear life of 3.5 years; compliance with Canadian Mine Waste Directive; downtime reduced by 80% vs. previous valves.

VI. Manufacturing Processes of TIANYU Mining Valves

TIANYU’s 40,000 m² manufacturing facility (Zhejiang, China) is specialized for heavy-duty mining valves, equipped with 20 CNC machining centers, 12 wear-resistant lining stations, and 15 precision test benches. The process adheres to ISO 9001/API Q1 standards, with 45 engineers specializing in mining valve design and quality control.

A. Raw Material Inspection

Metallic Materials: Abrasion-resistant steel (AR400/AR500) tested for hardness (HRC 40–45); duplex/super duplex stainless steel (S31803/S32750) verified via spectral analysis (Cr 22–25%, Ni 4–7%, Mo 3–4%) and corrosion testing (ASTM G31 for acidic media).
Liners & Seals: Rubber/polyurethane liners tested for wear resistance (ASTM D4060—volume loss ≤0.5 cm³ after 10,000 cycles); EPDM/FKM seals tested for low-temperature flexibility (-40°C for 24 hours, no cracking) and chemical compatibility (1,000-hour immersion in AMD).
Welding Materials: ER410NiMo (duplex filler wire) tested for weld strength (≥80% of base material) and corrosion resistance (post-weld salt spray test).

B. Precision Machining & Lining

Valve Body: 5-axis CNC machining (dimensional tolerance ±0.02 mm) to ensure liner adhesion; internal surfaces sandblasted (Sa 2.5 grade) to enhance liner bonding.
Lining Application: Rubber/polyurethane liners applied via compression molding (thickness 6–12 mm, uniformity ±0.2 mm); vulcanized at 160°C for 4 hours (rubber) or 80°C for 2 hours (polyurethane) to achieve shear strength ≥7 MPa.
Trim Components: Knife gate blades heat-treated (HRC 50–55) for sharpness and wear resistance; ball valves with Stellite overlay (plasma welding, 2–3 mm thickness) and lapped to Ra ≤0.8 μm.
Stem Machining: Precision ground (Ra ≤0.4 μm, concentricity ≤0.01 mm) with corrosion-resistant coating (zinc-nickel plating) for underground service.

C. Assembly & Quality Testing

Assembly: Conducted in dust-free workstations; stems lubricated with high-temperature, dust-resistant grease; actuators integrated with dust-proof enclosures (IP67 rating) for mining environments.
Pressure Testing: 100% hydrostatic testing (1.5x PN for 30 minutes, no leakage) and pneumatic testing (1.1x PN for 15 minutes, Class V sealing verification).
Abrasion Testing: Sample valves undergo slurry loop testing (10,000 hours with 40% solid ore slurry) to validate wear life.
Specialized Testing: Low-temperature testing (-40°C for arctic valves), salt spray testing (1,000 hours for coastal mines), and flow characteristic testing (ISO 60534) to verify pressure loss.

D. Marking & Packaging

Marking: Each valve marked with DN, PN, material, liner type, serial number, and certification logos (ISO, API, ANSI). Serial numbers are traceable via TIANYU’s online portal (links to MTC, test reports).
Packaging: Heavy-duty wooden crates with shock-absorbing foam; rubber-lined valves wrapped in waterproof film; arctic valves include heater kits and anti-freeze packaging.

VII. Advantages of TIANYU Mining Industry Valves

A. Abrasion & Corrosion Resistance

Wear-Resistant Liners: Rubber/polyurethane liners (wear life 3–5 years) and Stellite-trimmed components—3x more durable than standard industrial valves.
Corrosion Protection: Duplex/super duplex steel bodies and PTFE liners for acidic media—corrosion rate ≤0.02 mm/year in AMD.
Anti-Clogging Design: Full-port flow channels, sharp-edged knife gates, and smooth internal surfaces (Ra ≤1.6 μm) to prevent solid particle buildup.

B. Robust Design & Performance

Heavy-Duty Construction: Reinforced bodies (wall thickness 10–30 mm) to withstand pressure spikes (1.5x PN) and slurry impact.
Dust & Water Resistance: IP67-rated actuators and bolted bonnets to prevent dust/humidity ingress—ideal for underground and outdoor mining.
Long Service Life: 50,000+ actuation cycles (equivalent to 3–5 years of mining service) and <0.5% annual failure rate (industry average 3–5%).

C. Compliance & Quality

Full Certifications: ISO 9001, API 6D, ANSI B16.34, ISO 6431 (slurry valves), and environmental certifications (EPA, EU Mine Waste Directive).
Strict Quality Control: 100% testing (pressure, wear, corrosion) and batch sampling (1 sample per 50 units for slurry loop testing).

D. Service & Support

Pre-Sales Engineering: Team of 12 mining specialists (10+ years of experience) provides process-specific valve selection, including slurry flow simulation and wear life prediction.
Global Support: 24-hour technical support, on-site installation/commissioning (response time ≤72 hours), and emergency replacement parts delivery (48-hour turnaround for critical components).
Warranty: 2-year standard warranty, 3-year warranty for rubber-lined/duplex valves—covers material defects, wear (beyond industry standards), and sealing failure.

VIII. Future Applications of Mining Industry Valves

The mining industry is evolving toward automation, sustainability, and deeper/more extreme mining—driving innovation in valve technology. TIANYU is leading developments in three key areas:

A. Intelligent Valves for Automated Mining

IoT Integration: Valves equipped with sensors (pressure, temperature, vibration, wear) to monitor performance in real time—data transmitted to cloud platforms for remote monitoring.
Predictive Maintenance: AI algorithms analyze sensor data to predict liner wear and seal degradation 3–6 months in advance—reducing unplanned downtime by 40%.
Automated Actuation: Electric actuators with PLC/DCS integration for fully automated slurry transfer and tailings disposal—ideal for unmanned mines.

B. Sustainable & Eco-Friendly Valves

Low-Energy Designs: Optimized flow channels (ζ ≤0.2) to reduce pump energy consumption by 10–15%—aligning with mining companies’ carbon reduction targets.
Recyclable Materials: Valves constructed with 60% recyclable steel and biodegradable lubricants—reducing environmental impact during disposal.
Zero-Leakage Sealing: Enhanced Class V+ sealing (leakage ≤0.001% of rated flow) to prevent tailings/water contamination—meeting strict global environmental standards.

C. Extreme Environment Valves

Deep Underground Mining: Compact, high-pressure valves (PN10.0) with explosion-proof actuators (ATEX-certified) for mines 2,000+ meters deep.
Arctic/Antarctic Mines: Valves with integrated heater kits and low-temperature liners (-50°C rated) to withstand permafrost conditions.
High-Abrasion Tailings: Ceramic-lined valves (alumina ceramic, Mohs 9) for ultra-abrasive slurries—wear life extended to 5–7 years.

TIANYU’s heavy-duty mining valves deliver unmatched abrasion resistance, corrosion protection, and durability—tailored to the harsh conditions of ore processing, slurry transfer, and tailings disposal. Compliant with ISO/API/ANSI standards, these valves feature rubber/polyurethane liners, duplex/super duplex steel bodies, and dust-proof actuators—ensuring 3–5 year service life and <0.5% annual failure rate. Backed by precision manufacturing and global support, they minimize downtime and environmental risk for mining operations worldwide.

For customization, TIANYU offers tailored solutions: material options (abrasion-resistant steel, duplex, ceramic liners) for specific slurry properties; design tweaks (anti-clogging ports, low-temperature modifications) for unique processes; actuation integration (pneumatic/electric/explosion-proof) for automation needs; and certification alignment (ATEX, EPA) for regional compliance. These custom valves align with sustainable, automated mining trends—cutting maintenance costs by 60% and downtime by 80% for even the most demanding applications.

TIANYU’s custom mining valves excel in tailored abrasion/corrosion resistance (rubber/ceramic liners, duplex steel) and extreme environment adaptability (-50°C to 200°C). Compliant with ISO/API/EPA standards, they offer 3–5 year service life and <0.5% failure rates. Backed by 24/7 global support and 3-year warranties, these valves reduce maintenance costs by 60% and downtime by 80%, aligning with automated, sustainable mining trends—perfect for open-pit, underground, and arctic mine applications.
