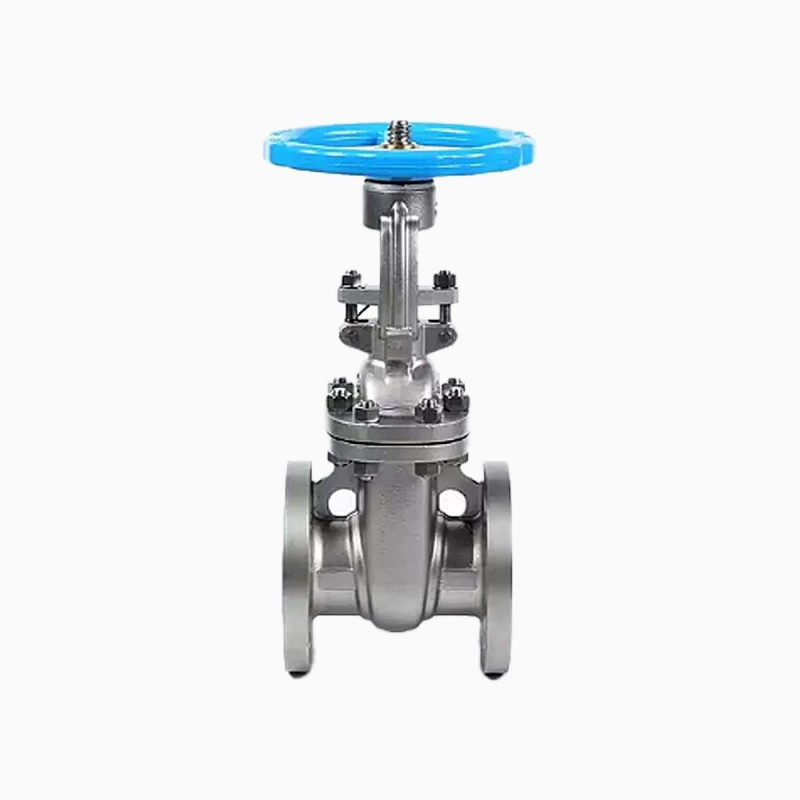

Forged Steel F316 2” 150LB RF FLANGE Gate Valve
  • Forged Steel F316 2” 150LB RF FLANGE Gate Valve
  • Forged Steel F316 2” 150LB RF FLANGE Gate Valve
  • Forged Steel F316 2” 150LB RF FLANGE Gate Valve
  • Forged Steel F316 2” 150LB RF FLANGE Gate Valve

Forged Steel F316 2” 150LB RF FLANGE Gate Valve

Product Attribute: Product Description:
Nominal Diameter:2”
Bore: Full Bore
Nominal Pressure:150LB
Material: F316
Operation: N/A
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: ASME/ANSI B16.5
Top Flange: N/A
INFO@TYFLUIDGROUP.COM

Specification

Valve Size 1/4 “–2”, DN10–DN50
Pressure Class 150LB–2500LB, PN16–PN420
Materials Carbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22
Design and Manufacturing Standards API602, ASME 16.34, BS 5352, BS 6364
Face to Face Standards API 602
Flange Dimension Standards SW Socket welding ends according to ASME B16.11,
BW butt end by ASME B16.25,
NPT threaded connectors according to ASME B1.20.1
Pressure Test Standards API 598
Fire Safety Test Standards –
Quality/Product Certifications ISO9001, ISO14001, ISO18001
Fugitive Emissions ISO 15848-1, API 622
Valve Operator Options Hand wheel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator
Shutoff Class API 598 (Zero Leakage), API 6D
Bore Full Bore, Reduced Bore
Process Connection Types SW, NPT, BW, RF, RTJ

Product Overview

Designed for use in high-temperature steam and water, this multipurpose gate valve can be used in a wide variety of general-purpose applications including vents, drains and isolation of compressors, condensers, heaters, pumps, water lines, heat exchangers, bypass lines, flash tanks, control valves, etc.
