Forged Steel Check Valve
  • Forged Steel Check Valve
  • Forged Steel Check Valve
  • Forged Steel Check Valve
  • Forged Steel Check Valve

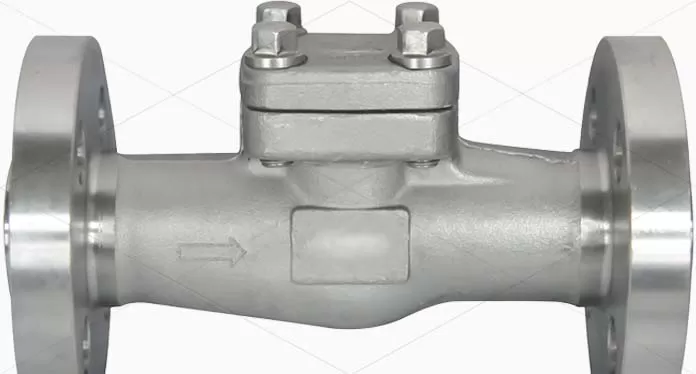

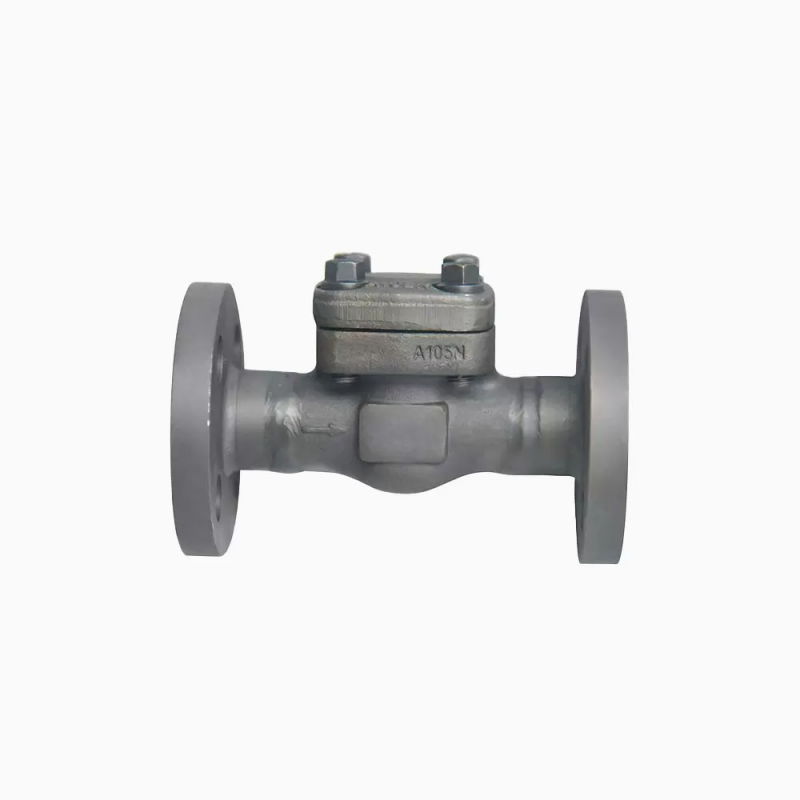

Forged Steel Check Valve

Product Attribute: Product Description:
Nominal Diameter: 1”
Pore size: full pore size
Rated pressure: 600 LB
Material: F316
Operation: N/A
Design criteria: API594 / API602 / API6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange Standard: ASME / ANSI B 16.5
PS: We can manufacture the valves according to the customer’s requirements.
INFO@TYFLUIDGROUP.COM

Specification

Valve Size 1 / 2 “~2” (DN15 to DN50)
Rated pressure the rated pressure of the forged steel check
valve is determined according to the specific application
Common rated pressure range Class150~2500 (PN 16 to PN
420)
Applicable temperature -29°C~ + 560°C
Valve material forging A105, F11, F22, F304, F316, etc
Connection mode flange connection, thread connection and
welding connection, etc
Flanged standards ANSI / ASME B 16.5 and DIN, standard, etc
Design criteria API 6D, API 594, ASME B16.34, and API 602

Valve Details

  • Forged Steel Check Valve

    Applicable standards

    Steel Check valves, API 6D/BS1868

    Steel gate valves, ISO 14313

    Steel valves, ASME B16.34

    Face to face, ASME B16.10

    End flanges, ASME B16.5

    Butt welding ends, ASME B16.25

    Inspection and test, API 598

  • Forged Steel Check Valve

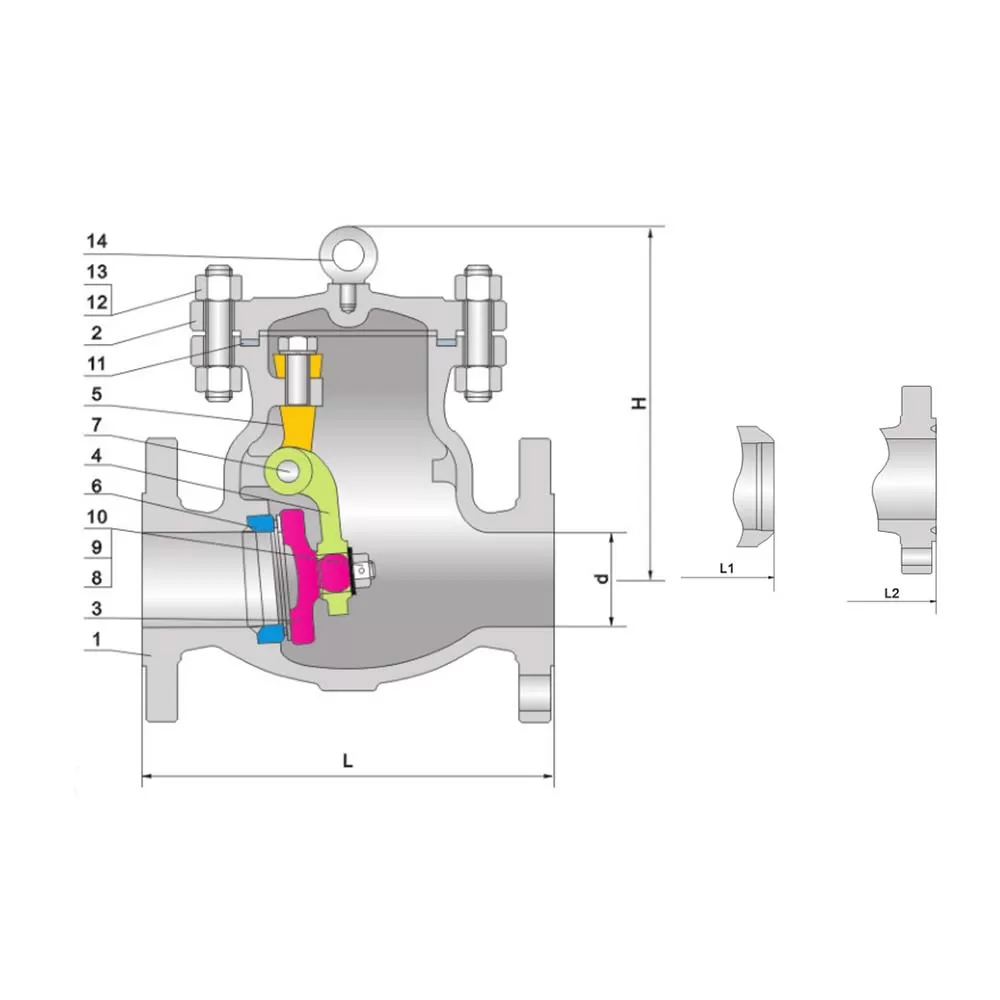

    Design Features

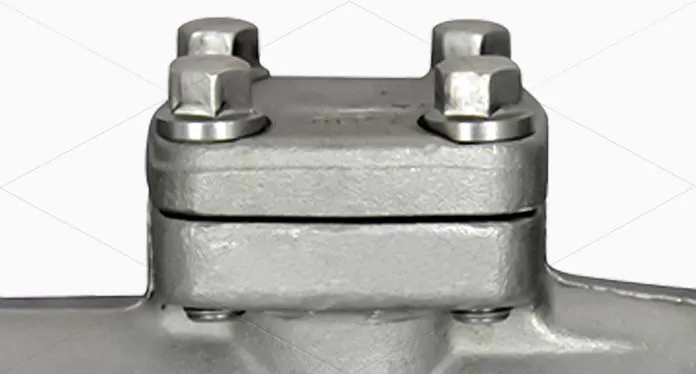

    BB, Bolted bonnet cap

    Swing type,Anti-rotation disc

    Renewable seat rings

    Non-penetrate disc shaft

    Horizontal or vertical service

    Flanged or Butt welding ends
