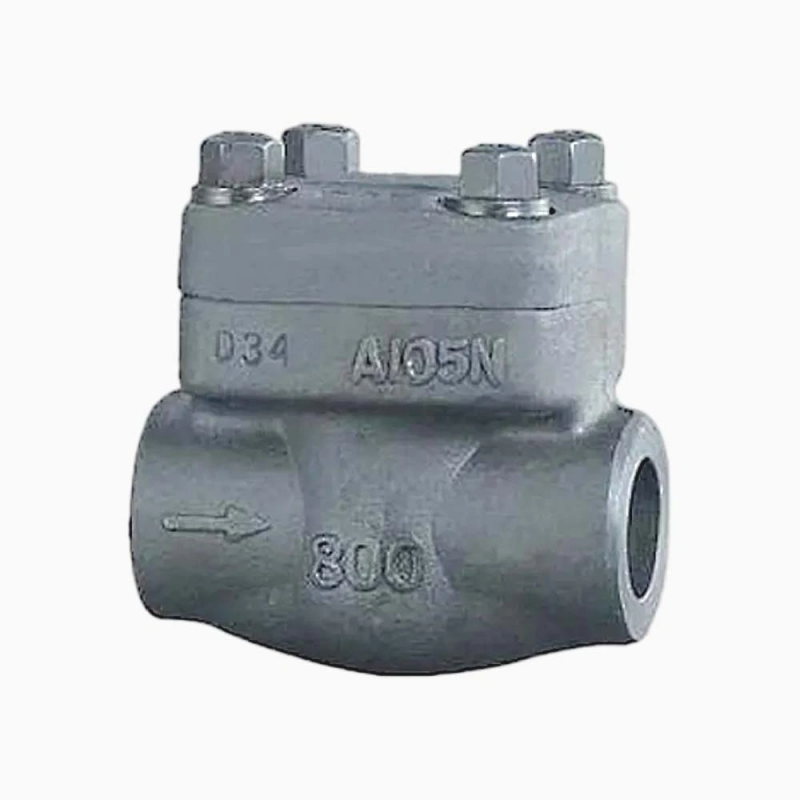

Forged Steel A105N 1” 800LB Butt Weld Check Valve
  • Forged Steel A105N 1” 800LB Butt Weld Check Valve
  • Forged Steel A105N 1” 800LB Butt Weld Check Valve
  • Forged Steel A105N 1” 800LB Butt Weld Check Valve
  • Forged Steel A105N 1” 800LB Butt Weld Check Valve

Forged Steel A105N 1” 800LB Butt Weld Check Valve

Product Attribute: Product Description:
Nominal Diameter: 1”
Pore size: full pore size
Rated pressure: 800 LB
Material: A105N
Operation: N/A
Design criteria: API594 / API602 / API6D
Test/Inspection: API598
End connection and butt welding
Standard for butt welding: ASME B16.25
INFO@TYFLUIDGROUP.COM

Specification

Valve Size 1 / 2 “~2” (DN15 to DN50)
Rated pressure the rated pressure of the forged steel check
valve is determined according to the specific application
Common rated pressure range Class150~2500 (PN 16 to PN
420)
Applicable temperature -29°C~ + 560°C
Valve material forging A105, F11, F22, F304, F316, etc
Connection mode flange connection, thread connection and
welding connection, etc
Flanged standards ANSI / ASME B 16.5 and DIN, standard, etc
Design criteria API 6D, API 594, ASME B16.34, and API 602

Valve Details
