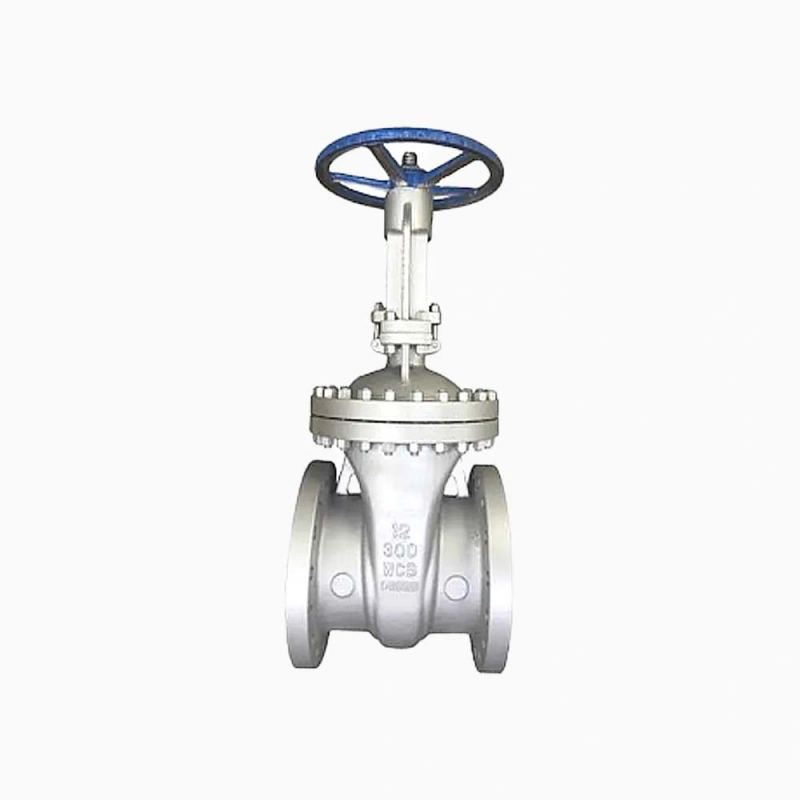

Flexible Wedge Stainless Steel ANSI Standard 150psi Gate Valve
  • Flexible Wedge Stainless Steel ANSI Standard 150psi Gate Valve
  • Flexible Wedge Stainless Steel ANSI Standard 150psi Gate Valve
  • Flexible Wedge Stainless Steel ANSI Standard 150psi Gate Valve
  • Flexible Wedge Stainless Steel ANSI Standard 150psi Gate Valve

Flexible Wedge Stainless Steel ANSI Standard 150psi Gate Valve

Product Attribute: Product Description:
Nominal Diameter: DN150
Bore: Full Bore
Nominal Pressure: PN10
Material: WCB
Operation: Handwheel
Design Standard: API600/API602/API6D
Test/Inspection: API598
End Connection: RF Flange
Flange standard: EN1092-1,ASME/ANSI B16.5
Top Flange: ISO5210 /ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Size Range 1“–10”
Body Materials Carbon Steel, Stainless Steel, Nickel Aluminum Bronze, alloy steel, etc
Temperature Range -196 to 800 degree
Stem Material Stainless Steel
Pressure Ratings Class 150 to Class 2500, PN 2.5 to PN420,10K-20K
Seat Materials Trim Material is Metal to Metal acc to API 600
Shutoff Rating Zero Leakage
Disc Materials Carbon Steel, Stainless Steel, Nickel Aluminum Bronze, alloy steel, etc
Body Style Double Flanged, Butt Weld,
Design Standard ASME B16.34, API 600,BS1414,EN1984
Flange Drilling ASME B16.5, EN 1092-1,GOST 33259,ASME B16.47
Testing Standard API 598,EN12266-1,ISO 5208
Certifications CE,EAC,SIL3,API 6FA,ISO 19001,API 600
Face to Face ASME B16.10,EN558-1
Fugitive Emissions ISO 158484-1
Operation Wench, Gear, Electric, Pneumatic, etc

Valve Details
