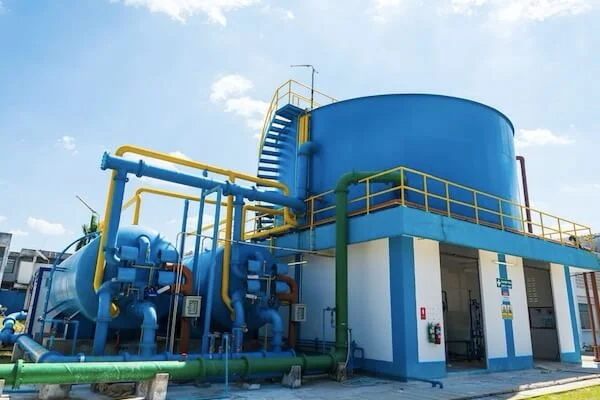

Durable Industrial Valves for Water and Sewage Processing: Corrosion Resistance, Compliance with Environmental Standards & Efficient Flow Control

I. Related Engineering Operating Conditions of Water and Sewage Processing

A. Media Complexity

• Raw Water: Contains suspended solids (0.1–10 mg/L), algae, and minerals (calcium, magnesium) that cause scaling—unprotected valves experience 0.1 mm/year buildup in hard water areas.
• Wastewater: Includes organic matter (BOD 100–500 mg/L), fats/oils (10–50 mg/L), and solids (TSS 50–200 mg/L) that clog narrow flow channels; industrial wastewater may have heavy metals (lead, chromium) or solvents.
• Sewage Sludge: High-viscosity (100–1,000 cP) mixture with 2–8% solids—abrasive to valve seats and prone to sticking during low-flow periods.
• Chemically Treated Water: Chlorinated (0.5–2 mg/L Cl₂) or ozonated water for disinfection—chlorine accelerates corrosion in carbon steel (0.2 mm/year vs. 0.05 mm/year in untreated water).

B. Corrosive and Biological Factors

• Corrosion Risks: Sewage contains hydrogen sulfide (H₂S, 1–10 ppm), which forms sulfuric acid (pH 2–4) via bacterial action—corroding unprotected metal valves.
• Biofouling: Bacteria and fungi colonize valve internals, forming biofilms (0.5–2 mm thick) that restrict flow and increase pressure drop by 10–30%.
• Chemical Exposure: Treatment chemicals (alum, ferric chloride, lime) cause localized corrosion—alum (pH 4–5) increases corrosion rates in copper alloys by 40%.

C. Pressure and Flow Variability

• Pressure Ranges: Low-pressure (0.2–0.6 MPa) for distribution networks; medium-pressure (0.6–1.6 MPa) for pump stations and industrial water lines.
• Flow Rates: Municipal plants handle 10,000–1,000,000 m³/day—valves must accommodate peak flows (2–3x average) during storms or morning usage.
• Hydraulic Transients: Pump startups/shutdowns create water hammer (pressure spikes 1.5x nominal), risking valve damage without surge protection.

D. Regulatory and Safety Requirements

• Drinking Water: Compliance with WHO guidelines (≤0.01 mg/L lead) and AWWA C500 (valves for potable water); materials must be NSF/ANSI 61 certified (no leachable contaminants).
• Wastewater: Meet EPA Clean Water Act (effluent limits: TSS ≤30 mg/L) and EN 12255 (sewage system components).
• Leakage Standards: ISO 5208 Class IV (distribution) to Class V (treatment) to prevent water loss (municipal systems lose 20–30% via leaks).

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Raw Water Intake: Valves control river/lake water intake, requiring debris resistance (to prevent clogging by leaves, fish) and corrosion resistance (to saltwater in coastal plants).
• Treatment Stages:
  • Coagulation/Flocculation: Valves dose chemicals (alum, polymers) with ±5% accuracy to form flocs.
  • Sedimentation/Clarification: Valves regulate overflow and sludge discharge—low pressure drop to avoid disrupting sediment layers.
  • Filtration (Sand/Activated Carbon): Valves backwash filters (high flow, short duration) and isolate filter beds during maintenance.
  • Disinfection: Valves control chlorine/ozone injection—material compatibility to resist oxidizing agents.
• Wastewater Treatment:
  • Primary Treatment: Valves handle raw sewage (high solids) with anti-clogging designs.
  • Secondary Treatment (Aeration Tanks): Valves control airflow and return activated sludge—resistant to biofouling.
  • Tertiary Treatment (Membrane Filtration): Valves isolate membrane modules—sanitary design to prevent bacterial growth.
• Sludge Processing: Valves handle thickened sludge (2–8% solids) and dewatered cake (20–30% solids)—abrasion resistance and easy cleaning.

B. Process-Material Matching

• Metallic Materials: Ductile iron (cost-effective for large diameters), 316L stainless steel (corrosion resistance), cast iron (rubber-lined for abrasion).
• Non-Metallic Materials: EPDM (drinking water, NSF 61), nitrile (oil resistance in industrial sewage), PTFE (chemical dosing), polyurethane (sludge abrasion).
• Coatings: Epoxy (ductile iron, 250–300 μm thickness) for corrosion resistance; fusion-bonded epoxy (FBE) for buried valves (resists soil chemicals).

C. Material-Engineering Scaling

• Municipal Water Plants (100,000+ residents): Large-diameter valves (DN300–DN2000) for main lines—prioritize 20-year service life and low maintenance (epoxy-coated ductile iron).
• Industrial Wastewater: Valves resistant to process-specific chemicals (e.g., 316L for heavy metals, PTFE-lined for acids)—small to medium sizes (DN50–DN300).
• Small Communities: Cost-effective solutions (ductile iron butterfly valves) with 10–15 year life—easy manual operation for low staffing.
• Marine/Coastal Plants: Saltwater-resistant materials (duplex stainless steel, FBE coatings)—pass 1,000-hour salt spray testing (ASTM B117).

III. Common Valve Types in Water and Sewage Processing (with TIANYU Product Links)

A. Butterfly Valves: High-Flow Control

• Body materials: Ductile iron (epoxy coated), 316L stainless steel.
• Disc: Rubber-lined (EPDM/Nitrile) for tight sealing; stainless steel (304/316) for abrasive service.
• Design: Double-eccentric (reduced friction, 100,000+ cycles), gear or lever operator (manual), pneumatic/electric actuation (automated plants).
• Sizes: DN50–DN2000, PN10–PN25—flow rates up to 15,000 m³/h for DN2000.

B. Gate Valves: Full-Bore Isolation

• Body materials: Ductile iron (epoxy coated), cast iron (rubber lined for sewage).
• Gate: Wedge (self-sealing) or parallel (low pressure); rubber-seated (Class V sealing) or metal-seated (high temperature).
• Design: Rising stem (visual position indication), non-rising stem (buried lines); compliant with AWWA C500.

C. Ball Valves: Precise Dosing & Shutoff

• Body materials: 316L stainless steel (chemical service), ductile iron (water lines).
• Trim: Full-port (low pressure loss) or reduced-port; PTFE seats (NSF 61 for drinking water).
• Applications: Chlorine injection, polymer dosing, filter backwash valves.

D. Check Valves: Backflow Prevention

• Types: Swing (low pressure loss, large lines), lift (high pressure), dual-plate (fast closing to prevent water hammer).
• Materials: Ductile iron (epoxy coated), 316L stainless steel; EPDM/Nitrile seals.
• Applications: Pump discharge, between treatment stages, stormwater systems.

E. Diaphragm Valves: Sludge & Chemical Service

• Body materials: Ductile iron (rubber lined), 316L stainless steel.
• Diaphragm: EPDM (drinking water), nitrile (oil-laden sewage), PTFE (chemicals).
• Design: Weir-type (tight sealing) or straight-through (sludge, low pressure drop).

IV. Specification Parameters of Water and Sewage Valves

A. Nominal Diameter (DN/NPS)

• Range: DN50–DN2000 (NPS 2”–80”):
  • DN50–DN200: Chemical dosing, filter backwash, industrial wastewater lines.
  • DN250–DN800: Municipal water distribution, primary wastewater lines.
  • DN900–DN2000: Raw water intake, main sewage trunk lines, stormwater systems.

B. Nominal Pressure (PN/Class)

• Range: PN10–PN40 (Class 150–300):
  • PN10–PN16 (Class 150): Low-pressure distribution, gravity-fed sewage.
  • PN25–PN40 (Class 300): Pump stations, high-pressure water mains, industrial lines.

C. Temperature Range

• Operating Temperature: 0°C–60°C (standard); 60°C–90°C (heated industrial wastewater):
  • EPDM seals: 0°C–80°C (potable water compliant).
  • Viton seals: 0°C–120°C (industrial/heated service).

D. Key Performance Metrics

• Sealing Grade: Class IV (distribution lines, leakage ≤0.1% of flow); Class V (treatment stages, ≤0.01% of flow).
• Cycle Life: 100,000+ actuations for automated valves (butterfly/ball); 50,000+ for manual valves (gate).
• Corrosion Resistance: Epoxy coatings (salt spray test: 1,000 hours no rust); 316L (corrosion rate ≤0.01 mm/year in chlorinated water).

E. Connection & Actuation

• Connections: Flanged (AWWA C207, EN 1092), wafer (butterfly valves), mechanical joint (buried gate valves).
• Actuation:
  • Manual: Handwheel/lever (low-frequency operation, DN≤300).
  • Pneumatic: 6–8 bar air, fail-safe (open/close) for automated plants.
  • Electric: 24V DC/380V AC, with SCADA integration (remote monitoring/control).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Media Composition: Solids content (select full-port, anti-clogging designs for TSS >50 mg/L), pH (316L for pH <6 or >9), and chemicals (PTFE for chlorine/ozone).
2. Flow Requirements: High flow (butterfly/gate valves with low pressure drop); precise dosing (ball/diaphragm valves with ±5% accuracy).
3. Pressure/Flow Variability: Water hammer risk (select dual-plate check valves); peak flows (oversize by 10–20% to avoid cavitation).
4. Environmental Compliance: NSF/ANSI 61 (drinking water); corrosion resistance (H₂S in sewage requires epoxy coatings or 316L).
5. Maintenance Access: Buried valves need long service life (20+ years); submerged valves require corrosion-resistant materials (FBE coatings).

B. Engineering Cases

Case 1: Municipal Water Treatment Plant (North America, 500,000 Residents)

• Challenges: Chlorinated water (1.5 mg/L Cl₂), DN1200 main lines, 0.8 MPa pressure, 20-year service life requirement, NSF 61 compliance.
• Valve Selection: TIANYU epoxy-coated ductile iron butterfly valves (DN1200, PN16, EPDM seals), 316L ball valves (chemical dosing), swing check valves (pump discharge).
• Results: 0.005 mm/year corrosion rate; 150,000+ cycles without leakage; NSF 61 certification maintained; 30% lower pressure drop vs. previous gate valves.

Case 2: Industrial Wastewater Plant (Europe, Food Processing)

• Challenges: Oil-laden wastewater (20 mg/L fats), pH 5–9, 1.2 MPa pressure, biofouling risk, daily backwash cycles.
• Valve Selection: TIANYU rubber-lined butterfly valves (nitrile seals), 316L ball valves (caustic dosing), dual-plate check valves (anti-water hammer).
• Results: No clogging after 3 years; biofilm buildup reduced by 70% (smooth internal surfaces); maintenance intervals extended to 18 months; compliance with EU Urban Wastewater Directive.

Case 3: Sludge Treatment Facility (Asia, Municipal Sewage)

• Challenges: 6% solids sludge, 0.6 MPa pressure, abrasion, sticky media, frequent cleaning required.
• Valve Selection: TIANYU polyurethane-lined diaphragm valves, knife gate valves (rubber-lined), pneumatic actuators with auto-flush.
• Results: Wear rate ≤0.02 mm/year; no sticking incidents; cleaning time reduced by 50%; service life extended to 10 years (vs. 5 years for standard valves).

VI. Manufacturing Processes of TIANYU Water & Sewage Valves

A. Raw Material Inspection

• Metals: Ductile iron (ASTM A536, tensile strength ≥414 MPa); 316L stainless steel (Cr 16–18%, Ni 10–14%, Mo 2–3%) tested for corrosion resistance (ASTM G48).
• Seals/Coatings: EPDM (NSF 61 certified, 0% leachable heavy metals); epoxy coatings (250 μm thickness, adhesion ≥5 MPa per ASTM D3359).
• Lining Materials: Rubber (Shore A hardness 60–70); polyurethane (abrasion resistance 3x rubber per ASTM D4060).

B. Precision Machining & Coating

• Body/Disc Machining: CNC lathes (tolerance ±0.05 mm) for ductile iron/stainless steel components; internal surfaces polished to Ra ≤3.2 μm (reduces biofouling).
• Coating Application: Epoxy applied via electrostatic spray (uniform thickness ±10 μm); cured at 180°C for 30 minutes (chemical resistance verified via 1,000-hour immersion in 5% NaCl).
• Lining Process: Rubber/polyurethane lined via compression molding (bond strength ≥7 MPa); edges sealed to prevent media intrusion.
• Trim Fabrication: 316L stems ground to Ra ≤0.8 μm; ball/disc surfaces lapped for tight sealing (Class V verification).

C. Assembly & Testing

• Assembly: Cleanroom assembly for potable water valves (no oil/grease contamination); stems lubricated with NSF 61-approved grease.
• Pressure Testing: 100% hydrostatic testing (1.5x PN for 30 minutes, no leakage); pneumatic testing (0.6 MPa for 15 minutes, bubble-tight for Class V).
• Performance Testing: Cycle testing (10,000 cycles for automated valves); flow characteristic testing (ISO 60534) to verify pressure drop.
• Specialized Testing: NSF 61 leachate testing (drinking water valves); H₂S corrosion testing (sewage valves, 500 hours no degradation).

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, material, NSF/ANSI 61 logo (where applicable), and serial number (traceable to test reports via TIANYU’s portal).
• Packaging: Epoxy-coated valves wrapped in plastic film (prevent scratch); large valves shipped in wooden crates with lifting lugs; potable water valves sealed in clean bags.

VII. Advantages of TIANYU Water & Sewage Valves

A. Corrosion & Wear Resistance

• Protective Coatings: Epoxy/FBE coatings (1,000-hour salt spray resistance) and 316L stainless steel—corrosion rate ≤0.01 mm/year in chlorinated water.
• Abrasion-Resistant Liners: Rubber/polyurethane liners for sludge service—3x longer life than standard valves (8–12 years vs. 3–5 years).
• Biofouling Resistance: Smooth internal surfaces (Ra ≤3.2 μm) and NSF 61-approved materials—reduce biofilm buildup by 70%.

B. Performance & Compliance

• Low Pressure Drop: Butterfly valves with streamlined design (ζ ≤0.2) reduce pump energy consumption by 10–15%.
• Tight Sealing: Class V leakage (≤0.01% of flow) for treatment stages; Class IV for distribution—minimizes water loss (saves 5–10% of plant throughput).
• Full Certifications: NSF/ANSI 61 (drinking water), AWWA C500/C515, ISO 9001, and EPA compliance—meets global regulatory requirements.

C. Durability & Maintenance

• Long Service Life: 15–20 years for water distribution valves; 10–15 years for wastewater—2x industry average.
• Low Maintenance: Self-lubricating stems, corrosion-resistant materials, and easy-access packing glands—reduce maintenance costs by 40%.
• Reliable Actuation: Pneumatic/electric actuators with IP67 rating (dust/water resistance)—suitable for wet, outdoor environments.

D. Service & Support

• Pre-Sales Engineering: 10 water treatment specialists (10+ years experience) provide flow modeling, material selection, and energy savings calculations.
• Global Support: 24-hour technical support; on-site installation/commissioning (response time ≤72 hours); 10-year spare parts availability.
• Warranty: 5-year standard warranty (industry average 2–3 years); covers corrosion, leakage, and actuation failure.

VIII. Future Applications of Water & Sewage Valves

A. Smart Water Valves

• IoT Integration: Valves with flow, pressure, and leakage sensors (IP68 rated) connected to SCADA systems—real-time monitoring of distribution network performance.
• Leak Detection: Acoustic sensors and AI algorithms to identify leaks (≥0.1 L/min) within 10 meters—reducing water loss by 30%.
• Predictive Maintenance: Data analytics to predict seal wear and corrosion—maintenance scheduled proactively, cutting downtime by 50%.

B. Sustainable & Circular Design

• Water-Efficient Valves: Low-flow designs for backwash (reduces water use by 20–30%) and energy recovery (integrated turbines in large valves to generate power).
• Recyclable Materials: Valves made from 70% recycled ductile iron and biodegradable lubricants—reducing carbon footprint by 15%.
• Chemical-Free Operation: Self-cleaning valves (ultraviolet or ultrasonic) to prevent biofouling—eliminating need for biocides.

C. Resilient Infrastructure Valves

• Climate-Resilient Designs: Valves rated for extreme temperatures (-20°C to 60°C) and flood conditions (submersion to 5 meters for 72 hours).
• Decentralized Systems: Compact, modular valves for small-scale wastewater treatment (community-level plants)—easy to install and expand.
