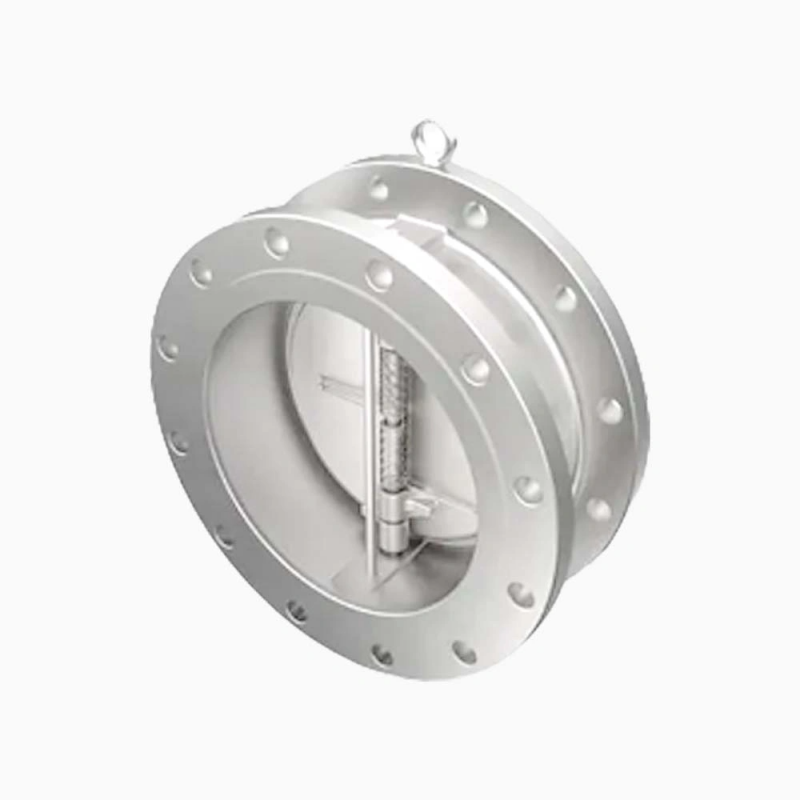

Dual-Plate Check Valves
  • Dual-Plate Check Valves
  • Dual-Plate Check Valves
  • Dual-Plate Check Valves
  • Dual-Plate Check Valves

Dual-Plate Check Valves

Product Attribute: Product Description:
Nominal Diameter: 10 inches (DN 250)
Pore size: full pore size
Rated pressure: 150 LB
Material: WCB
Operation: N/A
Design criteria: API594 / API602 / API6D
Test/Inspection: API598
End Connection: RF FLANGE
Flange standard: ASME /
ANSI B16.5 complete
PS: We can manufacture the valves according to the customer’s requirements.
INFO@TYFLUIDGROUP.COM

Specification

Valve material carbon steel, stainless steel, alloy steel, etc
Valve size 2 “~48” (DN 50~DN 1200)
Pressure range Class150~2500 (PN 16 to PN 420)
Applicable temperature -29°C~ + 560°C
Link mode pair of clip type, flange type, lug type
Design criteria API 594, ASME B16.34, API 6D
Test criteria API 598, EN12266-1, and ISO 5208
Face to face criteria API 594, API 6D, E N 558-1

Valve Details

  • Dual-Plate Check Valves

    Port Size Size

    DN50-DN600 DN50-DN600

  • Dual-Plate Check Valves

    Material

    Carbon steel,Stainless steel,Alloy steel,special material,chromium molybdenum steel,etc.
