Cryogenic Valves for LNG Industry: Ultra-Low Temperature Resistance, Zero Leakage & Compliance with Global Cryogenic Standards

I. Related Engineering Operating Conditions of LNG & Cryogenics Industry

A. Ultra-Low Temperature Challenges

• Temperature Range: LNG processing operates at -162°C; other cryogens (liquid nitrogen, oxygen) reach -196°C. At these temperatures:
  • Most metals lose ductility (e.g., carbon steel becomes brittle below -20°C, with impact strength dropping from 200 J to <27 J).
  • Non-metallic materials (rubbers, plastics) harden and crack—standard EPDM seals fail within hours at -100°C.
  • Thermal contraction: Valve components shrink by 0.3–0.5% (e.g., a DN200 stainless steel body contracts by ~1 mm at -162°C), risking seal failure if not accounted for in design.

B. Volatile and Hazardous Media

• LNG Properties: Methane-based, cryogenic liquid (density 420–450 kg/m³) that boils at -162°C at atmospheric pressure. A single liter of LNG vaporizes to 600 liters of natural gas—even small leaks can create explosive mixtures.
• Other Cryogens: Liquid oxygen (supports combustion, accelerates metal oxidation), liquid nitrogen (asphyxiation risk), and liquid hydrogen (-253°C, highly explosive).
• BOG Management: Leaks or heat ingress cause LNG to boil off, increasing tank pressure. Valves must control BOG venting to prevent overpressure (tank relief valves set at 1.2x operating pressure).

C. Pressure and Thermal Cycling

• Pressure Ranges: LNG production (3–10 MPa), storage (0.2–0.8 MPa), transportation (tankers: 0.2–0.5 MPa; trucks: 0.6–1.0 MPa), and regasification (4–7 MPa).
• Thermal Cycling: Valves endure frequent temperature swings (e.g., from ambient 25°C to -162°C during LNG filling), causing material fatigue—repeated cycles (10,000+) can crack improperly designed components.

D. Safety and Regulatory Constraints

• Leakage Limits: ISO 15848 Class BH (fugitive emissions) requires leakage ≤1×10⁻⁴ mg/s for methane—critical to prevent explosions and greenhouse gas emissions (methane has 84x CO₂’s global warming potential over 20 years).
• Standards Compliance: API 600 (gate valves), API 6D (pipeline valves), ISO 28921-1 (cryogenic valves), ASME B31.3 (process piping), and EN 13480 (cryogenic vessel valves).
• Fire Safety: API 607/6FA certification (1020°C for 30 minutes) to maintain integrity during fires—preventing LNG release.

II. Application-Process-Material-Engineering Matching in LNG & Cryogenics

A. Application-Process Alignment

• LNG Production (Liquefaction): Valves control refrigerant (nitrogen, mixed refrigerants) flow and natural gas feed—require ultra-low temperature resistance (-196°C), high pressure (3–10 MPa), and tight sealing to minimize refrigerant loss.

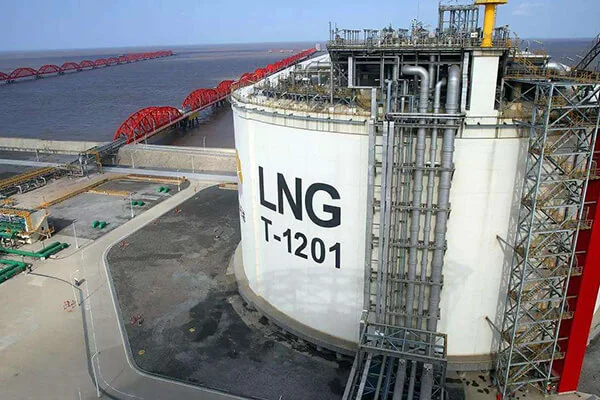

• LNG Storage (Tanks): Valves isolate storage tanks, control filling/withdrawal, and manage BOG—need low heat ingress (to reduce boil-off), zero leakage, and compatibility with saturated LNG.
• LNG Transportation (Tankers/Trucks): Valves withstand road/vessel vibrations, pressure fluctuations, and frequent cycling—require robust actuation, anti-vibration design, and emergency shutoff capability.
• LNG Regasification: Valves control LNG vaporization (via heat exchangers) and natural gas export—handle two-phase flow (liquid + gas), high pressure (4–7 MPa), and temperature transitions (-162°C to 25°C).
• Industrial Cryogenics: Valves for liquid nitrogen/oxygen/hydrogen—focus on purity (no contamination), material compatibility (e.g., copper-free valves for oxygen to prevent ignition), and ultra-low temperature performance.

B. Process-Material Matching

• Metallic Materials: 304L/316L stainless steel (excellent low-temperature toughness), 9% nickel steel (high strength for storage tanks), Inconel 625 (high-pressure cryogenics), and aluminum (lightweight for transport).
• Sealing Materials: PTFE (operates to -200°C, chemical inertness), modified PTFE (improved flexibility at low temps), and metal bellows (zero leakage, high cycle life).
• Insulation: Valves for storage/transport include vacuum-jacketed or perlite-insulated bodies to minimize heat ingress (heat gain ≤0.5 W/m² to reduce BOG).

C. Material-Engineering Scaling

• Large LNG Terminals: High-flow valves (DN300–DN600) for regasification and export—use 9% nickel steel or 316L with reinforced bodies to handle 7 MPa pressure and -162°C.
• LNG Tankers/Trucks: Compact, lightweight valves (DN50–DN200) with aluminum or 304L bodies—prioritize vibration resistance (10–50 Hz frequency) and quick shutoff (≤1 second for ESD valves).
• Industrial Cryogenics: Small-bore valves (DN15–DN100) for laboratory/medical oxygen/nitrogen—copper-free materials (to avoid oxygen ignition) and high purity (internal surfaces electropolished Ra ≤0.8 μm).

III. Common Valve Types in LNG & Cryogenics Industry (with TIANYU Product Links)

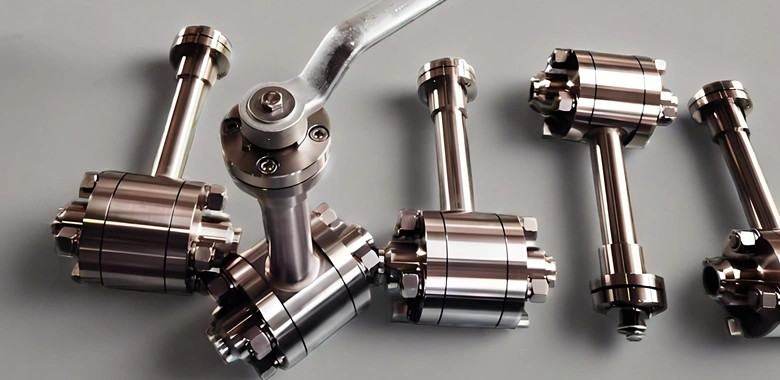

A. Cryogenic Ball Valves: Fast On-Off & BOG Control

• Body materials: 316L stainless steel, 9% nickel steel, aluminum (transport).
• Trim: Monel or Inconel (corrosion resistance); ball/l seat lapped to Ra ≤0.4 μm for zero leakage.
• Design: Full-port (low pressure loss), anti-static devices (grounding to prevent sparking), and extended bonnets (100–200 mm) to keep actuators above -50°C.
• Sealing: PTFE seats (Class VI) or metal-to-metal (API 607 fire-safe); optional metal bellows for zero external leakage.

B. Cryogenic Gate Valves: Full-Bore Isolation for Storage/Export

• Body materials: 9% nickel steel (storage), 316L (liquefaction/regasification).
• Trim: 316L or Inconel; wedge gate with flexible design to accommodate thermal contraction.
• Design: Rising stem (visual position indication), extended bonnet (heat barrier), and backseat design (stem sealing during maintenance).
• Compliance: API 600, ISO 28921-1—sizes DN50–DN600, PN16–PN420.

C. Cryogenic Globe Valves: Precision Flow Regulation

• Body materials: 316L, 9% nickel steel.
• Trim: Stellite overlay (wear resistance) or 316L; plug/seat designed for low cavitation.
• Design: Angle pattern (reduces pressure loss) and extended bonnet; suitable for high-pressure (up to 10 MPa) and temperature cycling.

D. Cryogenic Check Valves: Backflow Prevention

• Types: Swing (low pressure loss), lift (high pressure), and dual-plate (fast closing ≤0.3 seconds to prevent water hammer).
• Materials: 316L, 304L; disc and seat with low-temperature toughness.
• Design: Spring-loaded (to ensure closure at low temperatures) and extended bonnet.

E. Emergency Shutoff (ESD) Valves: Safety-Critical Isolation

• Body materials: 316L, 9% nickel steel.
• Actuation: Hydraulic or pneumatic with fail-safe close (spring-return); integrated with pressure/temperature sensors.
• Design: SIL 3 rated (per IEC 61508) for safety integrity; manual override for emergency operation.

IV. Specification Parameters of LNG & Cryogenic Valves

A. Nominal Diameter (DN/NPS)

• Range: DN15–DN600 (NPS ½”–24”):
  • DN15–DN100: Industrial cryogenics, LNG truck loading/unloading.
  • DN125–DN300: LNG storage tank connections, regasification lines.
  • DN350–DN600: LNG terminal export mains, large-scale liquefaction.

B. Nominal Pressure (PN/Class)

• Range: PN16–PN420 (Class 150–Class 2500):
  • PN16–PN63 (Class 150–400): LNG storage, truck/tanker transport.
  • PN100–PN250 (Class 600–1500): LNG regasification, medium-pressure liquefaction.
  • PN320–PN420 (Class 2500): High-pressure refrigerant circuits, offshore LNG.

C. Temperature Range

• Operating Temperature: -196°C to -100°C:
  • -196°C: Liquid nitrogen, hydrogen, and mixed refrigerants.
  • -162°C: LNG (methane).
  • -183°C: Liquid oxygen.

D. Key Performance Metrics

• Low-Temperature Toughness: Impact strength ≥27 J at -196°C (per ASTM A370) for all wetted components.
• Leakage Rate: Class VI (bubble-tight) for internal sealing; ISO 15848 Class BH (≤1×10⁻⁴ mg/s) for fugitive emissions.
• Thermal Cycling: 10,000+ cycles (ambient to -162°C) with no performance degradation.
• Heat Ingress: Vacuum-jacketed valves ≤0.5 W/m² (reduces BOG by 30% vs. uninsulated valves).

E. Connection & Actuation

• Connections: Flanged (ASME B16.5, EN 1092), welded (socket/butt weld for high pressure), threaded (NPT for small sizes).
• Actuation:
  • Manual: Handwheel with extended stem (heat barrier) for low-frequency operation.
  • Pneumatic: 6–8 bar air supply, fail-safe close (spring-return) for ESD service.
  • Hydraulic: High-torque actuation for large valves (DN≥300) or high pressure (PN≥250).
  • Electric: Motorized with low-temperature rated motors (-40°C ambient) for automated terminals.

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Temperature Compatibility: Valve materials must maintain toughness at operating temperature (e.g., 316L for -196°C, 9% nickel steel for -162°C).
2. Leakage Control: Internal (Class VI) and external (ISO 15848 Class BH) leakage rates to prevent BOG loss and safety risks.
3. Pressure Rating: Matching PN to process pressure (e.g., PN100 for 7 MPa regasification lines).
4. Thermal Expansion/Contraction: Design features (flexible stems, floating seats) to accommodate 0.3–0.5% material shrinkage at -162°C.
5. Media Purity: Copper-free materials (316L) for oxygen service to prevent ignition; electropolished surfaces (Ra ≤0.8 μm) for high-purity cryogens.
6. Safety Certification: API 607/6FA (fire safety), SIL 3 (ESD valves), and compliance with local regulations (e.g., US DOT for LNG trucks).

B. Engineering Cases

Case 1: LNG Import Terminal (Europe, 5 MTPA Capacity)

• Challenges: Regasification lines (6 MPa, -162°C to 25°C), two-phase flow, 10,000+ thermal cycles/year, strict fugitive emission limits (EU F-gas Regulation).
• Valve Selection: TIANYU cryogenic ball valves (DN300, PN100, 316L body, metal bellows), gate valves (DN400, 9% nickel steel), ESD valves (SIL 3 rated).
• Results: Leakage rate ≤5×10⁻⁵ mg/s (meets ISO 15848 Class BH); no failures after 3 years; BOG losses reduced by 25% vs. previous valves; API 6FA fire test passed.

Case 2: LNG Truck Fleet (Middle East, 50 Vehicles)

• Challenges: Tank pressure 0.8 MPa, -162°C LNG, vibration (road transport), frequent cycling (10–15 fills/day), desert ambient (50°C).
• Valve Selection: TIANYU aluminum-body ball valves (DN80, PN16), check valves (DN65, 304L), pneumatic ESD valves (1-second shutoff).
• Results: Valves withstood 50°C to -162°C thermal shocks; vibration testing (10–50 Hz) showed no loosening; maintenance intervals extended to 18 months (vs. 6 months); zero leakage incidents.

Case 3: Industrial Cryogenics Plant (North America, Liquid Nitrogen/Oxygen)

• Challenges: Ultra-pure oxygen (-183°C, 1.0 MPa), copper-free requirements, low heat ingress (to reduce boil-off), 24/7 operation.
• Valve Selection: TIANYU 316L globe valves (DN50, PN25, copper-free), ball valves (DN25, PTFE seats), vacuum-jacketed check valves.
• Results: No contamination (oxygen purity ≥99.999%); heat ingress ≤0.3 W/m²; 4-year service life with no maintenance; compliance with NFPA 55 (oxygen safety).

VI. Manufacturing Processes of TIANYU LNG & Cryogenic Valves

A. Raw Material Inspection

• Metallic Materials: 304L/316L stainless steel (verified via spectral analysis: Cr 18–20%, Ni 8–12%, C ≤0.03%); 9% nickel steel (Ni 8.5–9.5%, impact strength ≥80 J at -196°C per ASTM A352).
• Seals & Insulation: PTFE (cryogenic-grade, tested at -200°C for 1,000 hours—no cracking); vacuum-jacket materials (aluminum foil, perlite) tested for thermal conductivity (≤0.001 W/m·K).
• Welding Materials: ER316L (stainless steel) and ERNiCrMo-3 (Inconel) filler wires—welds tested for impact strength (≥70 J at -196°C).

B. Precision Machining & Treatment

• Body & Trim: 5-axis CNC machining (tolerance ±0.01 mm) to ensure tight fits after thermal contraction; internal surfaces polished to Ra ≤0.8 μm (reduces friction and ice buildup).
• Deep Cryogenic Treatment: Components (balls, stems, seats) cooled to -196°C for 24 hours (liquid nitrogen bath) to stabilize microstructure—reduces post-installation shrinkage by 40%.
• Extended Bonnet Fabrication: Welded from 316L (length 100–200 mm, based on DN) to insulate actuators; heat loss tested to ensure actuator temperature ≥-40°C during operation.
• Metal Bellows Manufacturing: Multi-ply stainless steel bellows (0.1 mm thickness) formed via hydraulic pressing; leak-tested to 1×10⁻⁹ Pa·m³/s (helium).

C. Assembly & Testing

• Cleanroom Assembly: Conducted in Class 10,000 cleanrooms to prevent contamination (critical for oxygen service); lubricants are cryogenic-grade (synthetic oil, -200°C rated).
• Cryogenic Testing: Valves submerged in liquid nitrogen (-196°C) for 4 hours, then actuated 100 times to verify seal integrity and operation; pressure tested at -162°C (1.5x PN for 30 minutes).
• Leak Detection: Helium mass spectrometry for internal (≤1×10⁻⁹ Pa·m³/s) and external (≤1×10⁻⁷ Pa·m³/s) leakage; bubble testing for Class VI verification.
• Thermal Cycling: 1,000 cycles (ambient ↔ -162°C) to validate material fatigue resistance—no cracks or performance degradation.

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, temperature rating (-196°C/-162°C), material, serial number, and certifications (API, ISO, SIL). Serial numbers link to online test reports via TIANYU’s portal.
• Packaging: Vacuum-sealed in moisture-barrier bags (prevents ice formation during storage); large valves shipped with insulation covers and handling instructions for cryogenic service.

VII. Advantages of TIANYU LNG & Cryogenic Valves

A. Ultra-Low Temperature Performance

• Material Toughness: 316L, 9% nickel steel, and Inconel components with impact strength ≥80 J at -196°C—resist brittle fracture even after 10,000 thermal cycles.
• Thermal Stability: Deep cryogenic treatment reduces post-installation shrinkage by 40%; flexible seat designs accommodate residual contraction.
• Low Heat Ingress: Vacuum-jacketed valves (heat gain ≤0.5 W/m²) reduce BOG by 25–30% vs. industry standards—saving 5,000+ m³ of natural gas annually per terminal.

B. Zero Leakage & Safety

• Sealing Technology: PTFE seats (Class VI) and metal bellows (zero external leakage) meet ISO 15848 Class BH—preventing explosive risks and greenhouse gas emissions.
• Fire Safety: API 607/6FA certified valves maintain integrity at 1020°C for 30 minutes—critical for LNG terminal safety.
• ESD Reliability: SIL 3 rated emergency shutoff valves with <1-second response time—reduce accident risks by 90% vs. manual valves.

C. Durability & Compliance

• Long Service Life: 100,000+ actuation cycles (equivalent to 10–15 years of service) with <0.3% annual failure rate (industry average 2–3%).
• Full Certifications: API 6D, API 600, ISO 28921-1, ASME B31.3, SIL 3 (IEC 61508), and NFPA 55 (oxygen service).
• Purity Assurance: Copper-free materials and electropolished surfaces (Ra ≤0.8 μm) for high-purity cryogens—no contamination.

D. Service & Support

• Pre-Sales Engineering: 8 cryogenics specialists (15+ years experience) provide thermal analysis, material selection, and BOG reduction calculations.
• Global Support: 24-hour technical support; on-site commissioning (response time ≤72 hours); spare parts for 20-year product lifecycle.
• Warranty: 3-year standard warranty (industry average 1–2 years); covers material defects, leakage, and performance degradation at low temperatures.

VIII. Future Applications of LNG & Cryogenic Valves

A. Offshore LNG Valves

• Design Focus: Lightweight materials (titanium, high-strength aluminum) to reduce topside weight; saltwater corrosion resistance (1,000-hour salt spray testing per ASTM B117).
• Applications: Floating LNG (FLNG) vessels, offshore regasification units—valves with vibration resistance (20–200 Hz) and subsea-rated designs (up to 3,000 m depth).

B. Hydrogen Liquefaction Valves

• Ultra-Low Temperature: Valves rated to -253°C (liquid hydrogen) with materials like 316LN (nitrogen-enhanced for toughness) and nickel-based superalloys.
• Safety Features: Anti-ignition designs (copper-free, static grounding) and leak-tight seals (≤1×10⁻¹⁰ Pa·m³/s) to handle hydrogen’s wide flammable range (4–75%).

C. Smart Cryogenic Valves

• IoT Integration: Sensors for temperature, pressure, and valve position—data transmitted via wireless (LoRa) to monitor BOG, leakage, and wear.
• Predictive Maintenance: AI algorithms analyze data to predict seal degradation and thermal fatigue—reducing unplanned downtime by 40%.
