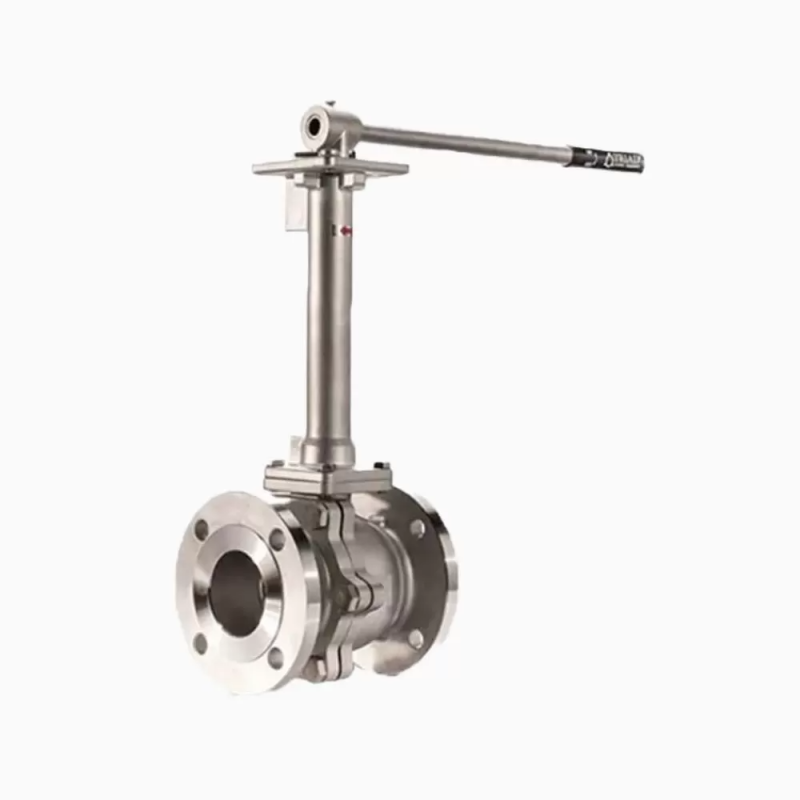

Cryogenic Forged Steel F316 DN20 150LB RF Flange Floating Ball Valve With Extended Stem

Product Attribute: Product Description:

Nominal Diameter: 3/4”(DN20)
Bore: Full Bore
Nominal Pressure: 150LB
Material: F316
Operation: Lever
Design Standard: API 6D
Test/Inspection: API598
End Connection: RF Flange
Flange standard: ASME/ANSI B16.5

INFO@TYFLUIDGROUP.COM

Specification

Valve Size	1“–10”
Pressure Class	150LB–600LB, PN10–PN64
Materials	WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A
Design and Manufacturing Standards	API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
Face to Face Standards	ASME B16.10, BS 558, BS12982, ISO 5752
Flange Dimension Standards	ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
Pressure Test Standards	API598 API 6D BS12569
Fire Safety Test Standards	API 6FA API 607
Quality/Product Certifications	ISO9001, ISO14001, ISO18001
Fugitive Emissions	ISO 15848-1, API 622
NACE	NACE MR 0175
Valve operator options	Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
Shutoff Class	API 598 (Zero Leakage), API 6D
Bore	Full Bore, Reduced Bore
Process Connection Types	SW, NPT, BW , RF, RTJ

Product Overview

The pneumatic valve can obtain higher speed, has explosion-proof performance, and meets more complex working conditions
The original pneumatic valve has the advantages of simple structure, convenient maintenance, economy and long service life
The pneumatic valve transmission overload will not be dangerous, to avoid the occurrence of accidents, so that the work is more safe and environmentally friendly
The pneumatic valve can be used to control air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluid flow, and can better serve various conditions
TIANYU pneumatic valve can provide various brands of actuators and accessories to meet the requirements of customers and working conditions at all levels. The diversity of choice is the performance of strength. At the same time, we can get the most favorable price through various channels. Reduce customer time and efficiency.
TIANYU has the most perfect installation and debugging and perfect after-sales service team. They are familiar with the performance and debugging of various brands, so that the pneumatic valves can reach the best state and solve the worries of customers.

A three-piece ball valve is made of three easy-to-remove components that are connected with bolts, which makes it friendly for cleaning.

A great benefit of a 3-pc ball valve is that you only have to remove the piece at the center when cleaning the line. Three-piece ball valves are typically manufactured using investment cast and designed to withstand pressures up to 1000 psi. It’s suitable for various solid, liquid, and gas applications.

Valve Details

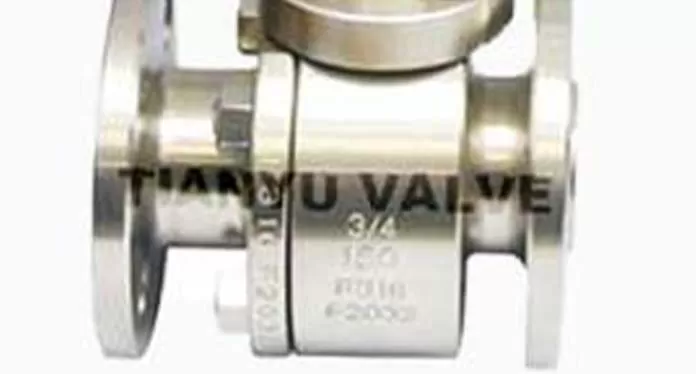

Body marking

Every valve in TIANYU with clear Marking on the valve body.Our big size ball valves also can comply with the leakage class A.(Zero Leakage).
Extended bonnet

An extended bonnet to the valve can make the packing gland in the valve and the actuator further away from the cold process so the valve can open and close properly, protect it from freeze-damage caused by low temperature fluid.
