Corrosion-Resistant Valves for Environmental Protection & Waste Gas Treatment: Emission Control, Zero Leakage & Regulatory Compliance

I. Related Engineering Operating Conditions of Environmental & Waste Gas Treatment Industry

A. Corrosive & Toxic Media Challenges

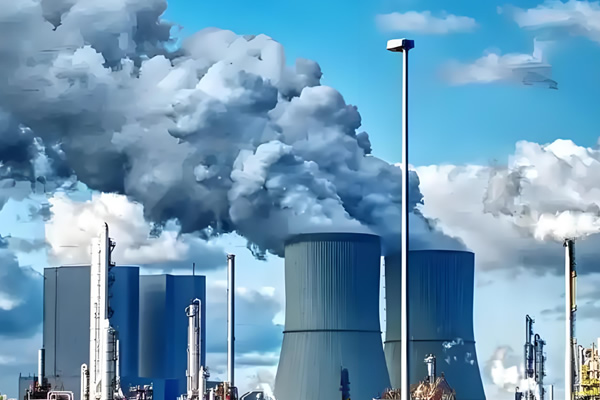

• Acidic Gases: Flue gas from power plants (SO₂: 500–5,000 ppm), incinerators (HCl: 100–1,000 ppm), and chemical plants (Cl₂: 10–100 ppm)—cause pitting corrosion in carbon steel (0.2 mm/year) and stress corrosion cracking in standard stainless steel.
• Alkaline Media: Scrubbing solutions (NaOH: 5–20% for SO₂ absorption) and denitrification reagents (NH₃: 10–30% for SCR)—degrade EPDM seals (swelling ≥20% in 72 hours) without proper material selection.
• VOCs & Solvents: Industrial exhaust containing benzene, toluene, and formaldehyde—require zero-leakage valves (≤1×10⁻⁴ mg/s) to prevent atmospheric pollution and worker exposure.
• Particulate-Laden Gas: Fly ash (5–50 g/m³ in power plant flue gas), dust (1–10 g/m³ in incinerators)—abrade valve seats at 0.1–0.3 mm/year, leading to leakage.

B. Temperature & Pressure Variability

• Temperature Ranges: Low-temperature VOCs condensation (-20–50°C), ambient scrubbing (50–80°C), high-temperature flue gas (150–400°C in SCR), and incineration exhaust (800–1,200°C pre-treatment). Valves must withstand thermal shock (e.g., 400°C to 50°C during scrubbing).
• Pressure Ranges: Negative pressure (vacuum) in VOCs adsorption systems (-0.05–-0.08 MPa), low pressure in flue gas ducts (0.01–0.1 MPa), and medium pressure in chemical injection lines (0.6–1.6 MPa).

C. Regulatory & Compliance Requirements

• Emission Limits: EPA Clean Air Act (SO₂: 30 ppm, NOₓ: 50 ppm for power plants), EU Industrial Emissions Directive (VOCs: 50 mg/m³), China GB 16297 (SO₂: 50 mg/m³ for coal-fired boilers).
• Leakage Standards: ISO 15848 Class AH (fugitive emissions ≤1×10⁻⁴ mg/s for toxic gases), API 622 (fire-safe sealing post-fire).
• Material Compliance: FDA 21 CFR 177 (for food industry exhaust), RoHS (restriction of heavy metals in valve materials).

D. Operational Demands

• Continuous Operation: Waste gas systems run 8,000+ hours/year—valves require 99.9% availability and 50,000+ actuation cycles.
• High Humidity: Scrubbing systems operate at 80–95% humidity—valve actuators and packing need corrosion protection (IP66/IP67 rating).
• Cleaning Requirements: Periodic CIP with caustic/acidic solutions to remove particulate buildup—valves must resist 500+ cleaning cycles annually.

II. Application-Process-Material-Engineering Matching

A. Application-Process Alignment

• Flue Gas Desulfurization (FGD): Valves control limestone slurry (CaCO₃), gypsum discharge, and SO₂-rich flue gas—corrosion resistance to acidic/alkaline media, anti-clogging design for solids.
• Selective Catalytic Reduction (SCR): Valves regulate ammonia/urea injection, high-temperature flue gas (300–400°C), and catalyst bypass—high-temperature resistance, tight sealing to prevent ammonia leakage.
• VOCs Recovery & Destruction: Valves handle solvent-laden gas, condensation refrigerants, and thermal oxidation exhaust—zero leakage, chemical resistance to organics, low-temperature compatibility.
• Waste Incineration Exhaust: Valves control incinerator flue gas (HCl, dioxins), quenching water, and baghouse filtration—high-temperature corrosion resistance, particulate handling.
• Wastewater Off-Gas Treatment: Valves manage odorous gases (H₂S, NH₃) and chemical scrubbers—corrosion resistance to sulfides, easy cleaning.

B. Process-Material Matching

• Metallic Materials: Duplex 2205 (FGD, balanced corrosion/wear), 310S (high-temperature SCR, 400°C+), 316L (VOCs, general corrosion), Hastelloy C-276 (extreme acids like HCl).
• Non-Metallic Liners/Seals: PTFE (chemical inertness, -200–260°C), FKM (acid/alkali resistance, 200°C), FFKM (VOCs/solvents, 300°C), ceramic (abrasion resistance for fly ash).
• Coatings: Fusion-bonded epoxy (FBE, 250μm thickness) for mild corrosion; PFA lining (0.5–1mm) for chemical immersion.

C. Material-Engineering Scaling

• Large-Scale Power Plant FGD: Large-diameter valves (DN300–DN1200) with duplex 2205 bodies, PTFE liners—designed for 20-year service in continuous operation.
• Chemical Plant VOCs Recovery: Medium-diameter valves (DN50–DN200) with 316L/FFKM—zero leakage (ISO 15848 Class AH) and low-temperature tolerance (-20°C).
• Municipal Waste Incineration: High-temperature valves (DN100–DN400) with 310S/Hastelloy—resist 800°C peak temperatures and HCl corrosion.
• Small-Scale Industrial Scrubbers: Compact valves (DN25–DN80) with 316L/FKM—cost-effective, easy maintenance for batch operations.

III. Common Valve Types in Environmental & Waste Gas Treatment Industry (with TIANYU Product Links)

A. Butterfly Valves: High-Flow Flue Gas Control

• Body materials: Duplex 2205, 310S, Hastelloy C-276; PTFE-lined ductile iron for mild corrosion.
• Disc: Solid metal (316L/duplex) or rubber-lined (FKM/PTFE); triple-eccentric design (zero leakage, 100,000+ cycles).
• Design: Wafer/lug type, gear/pneumatic/electric actuation; fire-safe (API 607) for incineration systems.
• Compliance: ISO 15848 Class AH, API 609—sizes DN50–DN1200, PN10–PN25.

B. Ball Valves: Precise Chemical Injection & VOCs Control

• Body materials: 316L, duplex 2205, Hastelloy C-276.
• Trim: Full-port (low pressure loss) or V-port (throttling); PTFE/FFKM seats; anti-static devices.
• Design: Trunnion-mounted (high pressure) or floating (low pressure); compatible with corrosive liquids/gases.

C. Knife Gate Valves: Solids-Laden Slurry Control

• Body materials: Ductile iron (PTFE lined), 316L, duplex 2205.
• Gate: Sharpened stainless steel blade (HRC 50–55); rubber-lined for tight sealing.
• Design: Rising stem (easy cleaning), full-port, bolted bonnet (dust/waterproof).

D. Diaphragm Valves: Corrosive Chemical Service

• Body materials: 316L, Hastelloy C-276, PTFE-lined ductile iron.
• Diaphragm: PTFE (chemicals), FKM (acids/alkalis), FFKM (extreme service); weir-type or straight-through.

E. Check Valves: Backflow Prevention

• Types: Swing (low pressure loss, large lines), lift (high pressure, small lines), dual-plate (fast closing for water hammer).
• Materials: 316L, duplex 2205, Hastelloy; FKM/PTFE seals.

IV. Specification Parameters of Environmental & Waste Gas Treatment Valves

A. Nominal Diameter (DN/NPS)

• Range: DN25–DN1200 (NPS 1”–48”):
  • DN25–DN100: Chemical injection (SCR ammonia), VOCs condensation, small scrubbers.
  • DN125–DN500: FGD slurry lines, incinerator exhaust ducts, medium-scale treatment.
  • DN600–DN1200: Large power plant FGD flue gas, municipal waste incineration main ducts.

B. Nominal Pressure (PN/Class)

• Range: PN6–PN40 (Class 150–300):
  • PN6–PN16 (Class 150): Flue gas ducts, VOCs systems, low-pressure scrubbers.
  • PN25–PN40 (Class 300): Chemical injection lines (ammonia, acids), high-pressure scrubbers.

C. Temperature Range

• Operating Temperature: -20°C–800°C:
  • -20°C–50°C: VOCs condensation, low-temperature scrubbers.
  • 50°C–400°C: FGD, SCR, general waste gas treatment.
  • 400°C–800°C: Incinerator exhaust pre-treatment, high-temperature flue gas.

D. Key Performance Metrics

• Leakage Class: ISO 15848 Class AH (fugitive emissions ≤1×10⁻⁴ mg/s) for toxic gases; Class VI (internal, bubble-tight) for process lines.
• Corrosion Resistance: ≤0.005 mm/year in 10% HCl/NaOH (316L/duplex); ≤0.001 mm/year in 20% HCl (Hastelloy).
• Abrasion Resistance: ≤0.05 mm/year in fly ash slurry (ceramic/Stellite trim).
• Cycle Life: 50,000+ actuations (pneumatic/electric valves); 10,000+ cycles (manual valves).

E. Connection & Actuation

• Connections: Flanged (ANSI B16.5/EN 1092), wafer (butterfly valves), welded (high-temperature lines), threaded (small chemical lines).
• Actuation:
  • Manual: Handwheel/lever (low-frequency, DN≤200).
  • Pneumatic: 6–8 bar air, fail-safe (close/open) for emergency shutdown; IP67-rated for high humidity.
  • Electric: 24V DC/380V AC, motorized with torque feedback (PLC/DCS integration for emission monitoring).

V. Key Selection Parameters & Engineering Cases

A. Critical Selection Criteria

1. Media Corrosivity: Acidic (select 316L/duplex/Hastelloy), alkaline (FKM/PTFE seals), or VOCs (FFKM/316L) to prevent material degradation.
2. Temperature/Pressure: High-temperature (310S/Hastelloy) or low-temperature (316L/PTFE) compatibility; pressure rating matching system design.
3. Particulate Content: Solids >5 g/m³ require knife gate/ceramic-trim valves; low solids use butterfly/ball valves.
4. Emission Compliance: Toxic gases (ISO 15848 Class AH); general emissions (Class BH) to meet EPA/EU standards.
5. Operational Mode: Continuous operation (long-life trim/seals); batch processes (easy maintenance design).

B. Engineering Cases

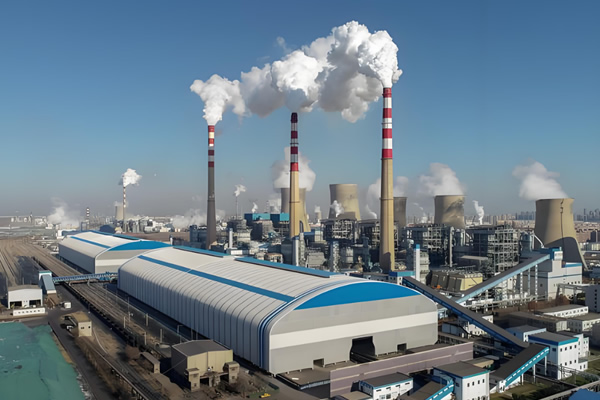

Case 1: Coal-Fired Power Plant FGD System (Asia, 600 MW)

• Challenges: 5,000 ppm SO₂ flue gas, 10% limestone slurry (20% solids), 70°C temperature, 0.1 MPa pressure, EPA SO₂ limit 30 ppm.
• Valve Selection: TIANYU duplex 2205 butterfly valves (DN800), knife gate valves (PTFE lined), pneumatic actuators with position feedback.
• Results: Corrosion rate ≤0.003 mm/year; SO₂ emissions reduced to 25 ppm (meets EPA); maintenance intervals extended to 24 months (vs. 6 months for carbon steel valves); 99.9% availability.

Case 2: Chemical Plant VOCs Recovery (Europe, 10,000 m³/h)

• Challenges: Benzene/toluene vapor (500 ppm), -10°C condensation, 0.05 MPa vacuum, EU VOCs limit 50 mg/m³, zero leakage required.
• Valve Selection: TIANYU 316L ball valves (FFKM seals), butterfly valves (PTFE seats), electric actuators with leak monitoring.
• Results: Fugitive emissions ≤5×10⁻⁵ mg/s (ISO 15848 Class AH); VOCs recovery efficiency 99.5% (emissions 12 mg/m³); no solvent loss; REACH compliance.

Case 3: Municipal Waste Incineration Plant (North America, 500 Tons/Day)

• Challenges: HCl (800 ppm) + fly ash (10 g/m³), 200°C exhaust, 0.08 MPa pressure, dioxin control, fire safety.
• Valve Selection: TIANYU Hastelloy C-276 butterfly valves (ceramic trim), knife gate valves, API 607 fire-safe design.
• Results: Corrosion rate ≤0.001 mm/year; HCl removal efficiency 99%; fire test passed (1020°C for 30 minutes); EPA emissions compliance maintained.

Case 4: Pharmaceutical Wastewater Off-Gas Treatment (Asia)

• Challenges: H₂S (200 ppm) + NH₃ (500 ppm), 30% NaOH scrubber, 60°C, 0.1 MPa, odor control.
• Valve Selection: TIANYU 316L diaphragm valves (PTFE diaphragms), ball valves (FKM seals), pneumatic actuation.
• Results: H₂S/NH₃ removal efficiency 99.9% (no detectable odor); no seal degradation after 18 months; compliance with local environmental standards.

VI. Manufacturing Processes of TIANYU Environmental & Waste Gas Valves

A. Raw Material Inspection

• Metals: Duplex 2205 (Cr 22%, Ni 5%, Mo 3%), 310S (Cr 25%, Ni 20%), Hastelloy C-276 (Ni 57%, Cr 16%, Mo 16%)—tested via spectral analysis and corrosion coupons (ASTM G48).
• Liners/Seals: PTFE (density ≥2.16 g/cm³), FKM (hardness 70±5 Shore A), FFKM—tested for chemical resistance (1,000-hour immersion in 10% HCl/NaOH/VOCs).
• Coatings: FBE (adhesion ≥5 MPa) and PFA (thickness 0.5–1mm)—tested for pinhole resistance and flexibility.

B. Precision Machining & Corrosion Protection

• Body/Trim Machining: 5-axis CNC machining (tolerance ±0.02 mm) for metallic components; internal surfaces sandblasted (Sa 2.5) to enhance liner bonding.
• Lining/Coating: PTFE/PFA liners applied via rotational molding (uniform thickness ±0.1mm); FBE electrostatic spraying (250μm) with curing at 200°C for 30 minutes.
• Welding: TIG welding with argon purge for duplex/Hastelloy—welds tested via UT/RT (ASME BPVC) and passivated to restore corrosion resistance.
• Trim Hardening: Knife gate blades and ceramic trim sintered at 1,600°C (hardness ≥HRC 50) for abrasion resistance.

C. Assembly & Compliance Testing

• Assembly: Conducted in clean workstations; stems lubricated with high-temperature, chemical-resistant grease; actuators fitted with IP67 enclosures.
• Testing:
  • Pressure: Hydrostatic (1.5x PN for 30 minutes) and pneumatic (Class VI sealing verification).
  • Emission: Helium leak testing (ISO 15848 Class AH—≤1×10⁻⁴ mg/s for toxic gases).
  • Corrosion: 1,000-hour salt spray (ASTM B117) for coated valves; immersion testing in process media.
  • Cycle: 50,000 actuation cycles (pneumatic valves) to verify durability.

D. Marking & Packaging

• Marking: Each valve marked with DN, PN, material, ISO 15848 class, serial number, and compliance logos (EPA, EU ETS). Serial numbers link to test reports via TIANYU’s portal.
• Packaging: Corrosion-resistant valves wrapped in VCI film (prevent rust); large valves shipped in wooden crates with lifting lugs; small valves in sealed cartons.

VII. Advantages of TIANYU Environmental & Waste Gas Valves

A. Corrosion & Emission Control

• Superior Corrosion Resistance: Duplex 2205, Hastelloy, and PTFE liners—corrosion rate ≤0.005 mm/year in aggressive media (10x better than standard valves).
• Zero Leakage: ISO 15848 Class AH compliance (fugitive emissions ≤1×10⁻⁴ mg/s)—prevents toxic gas release and meets global regulations.
• Abrasion Resistance: Ceramic/Stellite trim and sharp-edged knife gates—handle solids up to 50 g/m³ with wear rate ≤0.05 mm/year.

B. Durability & Compliance

• Long Service Life: 15–20 year design life (2–3x industry average)—minimizes replacement frequency and lifecycle costs.
• Full Regulatory Compliance: EPA, EU ETS, ISO 15848, and GB standards—eliminates compliance risks and fines.
• High Availability: 99.9% operational uptime—critical for continuous waste gas treatment systems.

C. Performance & Efficiency

• Low Pressure Drop: Streamlined butterfly/ball valve designs (ζ ≤0.2)—reduce fan/pump energy consumption by 10–15%.
• Precise Control: V-port ball valves and electric actuators (±1% flow accuracy)—optimize chemical dosing and emission reduction.
• Easy Maintenance: Bolted bonnets, replaceable trim/seals, and corrosion-resistant actuators—cut maintenance time by 50%.

D. Service & Support

• Pre-Sales Engineering: 15 environmental specialists (10+ years experience) provide media analysis, corrosion simulation, and compliance consulting.
• Global Support: 24-hour technical support; on-site installation/commissioning (response time ≤72 hours); emergency parts delivery (48-hour turnaround).
• Warranty: 3-year standard warranty; 5-year warranty for Hastelloy/duplex valves—covers corrosion, leakage, and material defects.

VIII. Future Applications of Environmental & Waste Gas Treatment Valves

A. Smart Emission Monitoring Valves

• IoT Integration: Valves with embedded sensors (H₂S, SO₂, temperature, leakage) connected to cloud platforms—real-time emission tracking and compliance reporting.
• Predictive Maintenance: AI algorithms analyze sensor data to predict seal wear and corrosion—reducing unplanned downtime by 40%.
• Automated Adjustment: Valves integrated with PLC/DCS to optimize chemical dosing (e.g., ammonia in SCR) based on real-time emission levels.

B. Carbon Capture (CCUS) Valves

• High-Pressure CO₂ Service: Valves for supercritical CO₂ (15 MPa, 50°C) with Hastelloy C-276 bodies and PTFE seals—compatible with carbon capture systems.
• Low-Leakage Design: Emission rate ≤1×10⁻⁶ mg/s to prevent CO₂ escape (global warming potential 1x over 100 years).

C. Sustainable & Low-Carbon Valves

• Recyclable Materials: 90% recyclable stainless steel and duplex valves—reducing embodied carbon by 15%.
• Energy-Efficient Actuation: Low-power electric actuators (≤5 W) and air-saving pneumatic designs—aligning with green plant goals.
