Cast Steel CF8M JIS 10K RF Flange Basket Strainer
  • Cast Steel CF8M JIS 10K RF Flange Basket Strainer
  • Cast Steel CF8M JIS 10K RF Flange Basket Strainer
  • Cast Steel CF8M JIS 10K RF Flange Basket Strainer

Cast Steel CF8M JIS 10K RF Flange Basket Strainer

Product Attribute: Product Description:
Nominal Diameter:2”
Bore: Full Bore
Nominal Pressure: JIS 10K
Material: CF8M
Operation: N/A
Design Standard: ASME B16.34
Test/Inspection: API598
End Connection: RF Flange
Flange Standard: JIS 10K,ASME/ANSI B16.5
Top Flange: ISO5211
INFO@TYFLUIDGROUP.COM

Product Overview

When the valve is in the open position, fluid enters the basket through the inlet connected to the body. As the fluid passes through the basket, the mesh structure within captures solid particles, impurities, or other debris present in the fluid. This prevents these particles from entering the fluid system, safeguarding downstream pipelines, valves, and other equipment. When the accumulation of particles in the basket reaches a certain level or maintenance is required, operators can easily remove the basket, clean the solid material, and then reinstall the basket. This ensures the smooth operation of the system.

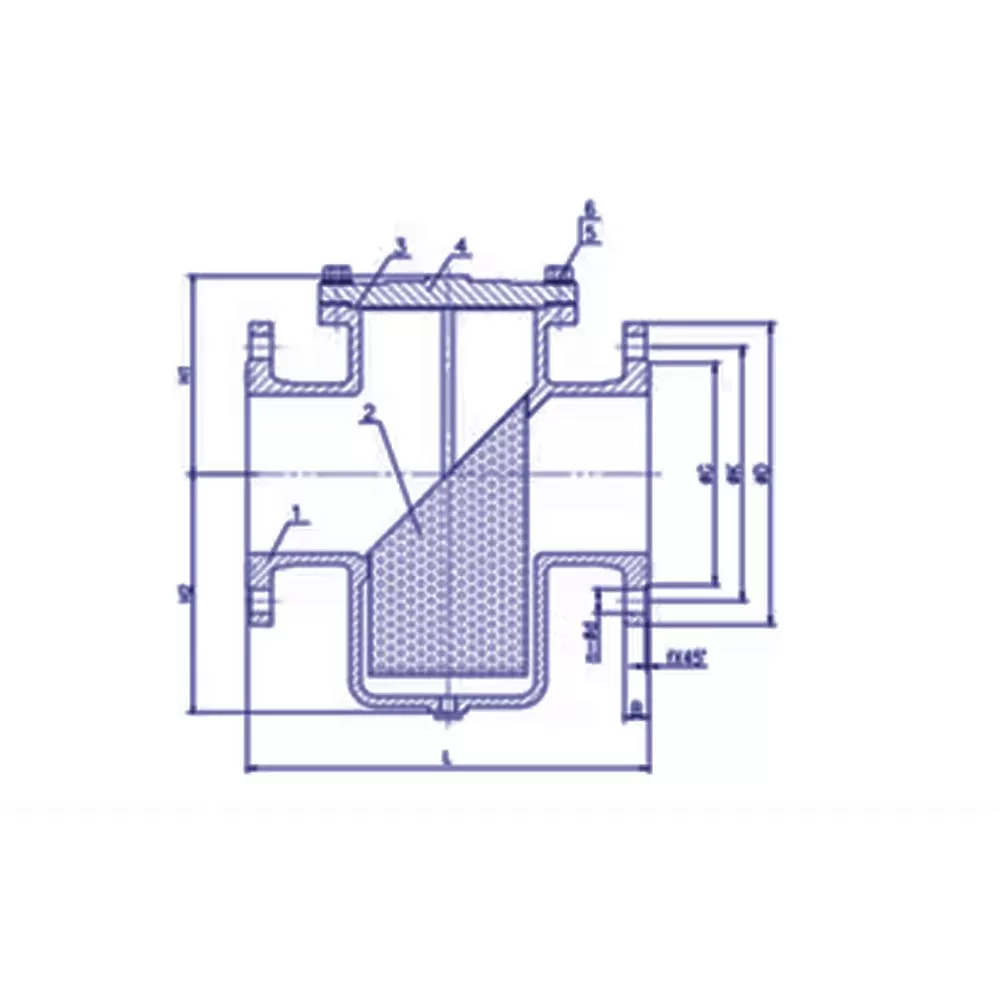

Valve Details

  • Cast Steel CF8M JIS 10K RF Flange Basket Strainer

    Highlights of Cast Steel Flange Basket Strainer

    Corrosion-Resistant Material
    JIS Standard Design
    Basket Strainer Design
    Versatile Applications
    Ease of Maintenance
