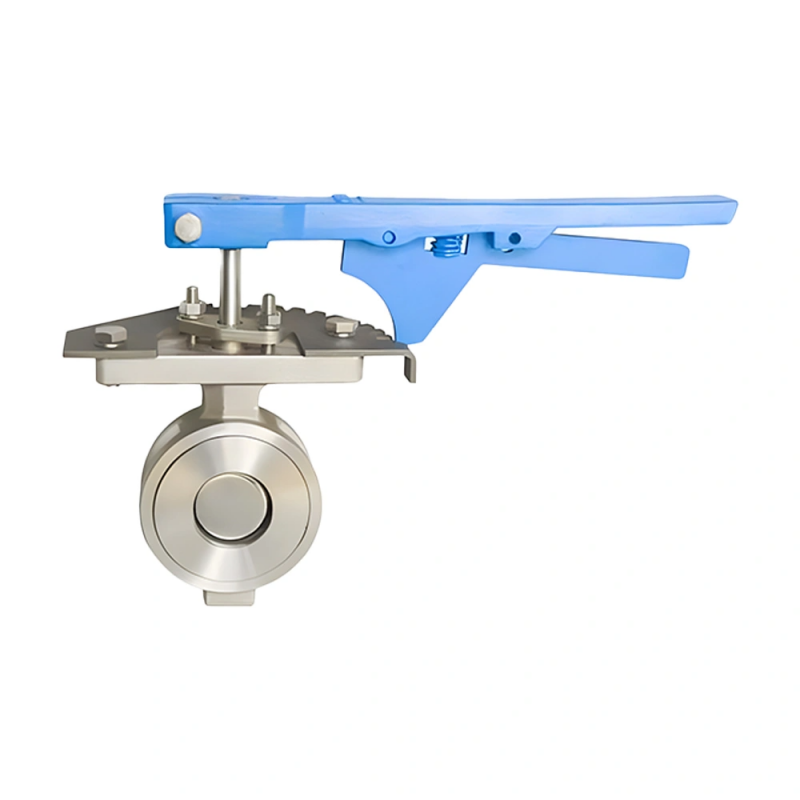

Cast Steel CF8M 2” 150LB Wafer High Performance Butterfly Valve
  • Cast Steel CF8M 2” 150LB Wafer High Performance Butterfly Valve
  • Cast Steel CF8M 2” 150LB Wafer High Performance Butterfly Valve
  • Cast Steel CF8M 2” 150LB Wafer High Performance Butterfly Valve

Cast Steel CF8M 2” 150LB Wafer High Performance Butterfly Valve

Product Attribute: Product Description:
Nominal Diameter:2”
Bore: Full Bore
Nominal Pressure:150LB
Material: CF8M
Operation: Lever
Design Standard: API609
Test/Inspection: API598
End Connection: Wafer
Wafer standard: ASME B16.34
Top Flange: ISO5211
INFO@TYFLUIDGROUP.COM

Specification

Size Range 2″-64″(50mm-1600mm)
Pressure Ratings Class 150 to Class 900, PN 2.5 to PN150,10K-20K
Materials Carbon Steel, Stainless Steel, Nickel Aluminum Bronze, alloy steel, etc
Design and Manufacturing Standards ASME B16.34, ASME VIII, API 609
Face to Face Standards API 609,ISO 5752,MSS SP-68,ASME B16.10,EN558-1
Flange Dimension Standards ASME B16.5, EN 1092,GOST 33259
Pressure Test Standards ANSI/ASME B16.5
Test Standard API 598,EN12266-1,ISO 5208
Quality/Product Certifications ISO9001, ISO14001, ISO18001
Fugitive Emissions ISO 15848-1, API 622
Valve operator options Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator.
Shutoff Class API 598 (Zero Leakage), API 6D

Valve Details

  • Cast Steel CF8M 2” 150LB Wafer High Performance Butterfly Valve

    Highlights

    • High Pressure
    • High Temperature
    • Zero Leakage(Bi-directional Bubble Tight)
    • Fire Safe Tested Design (Optional Design)
    • Fugitive Emissions
    • Live-loading of Packing
    • Double Offset
    • Unique Sealing System

Our Strengths

Best Quality Industrial Valve Solutions For You
