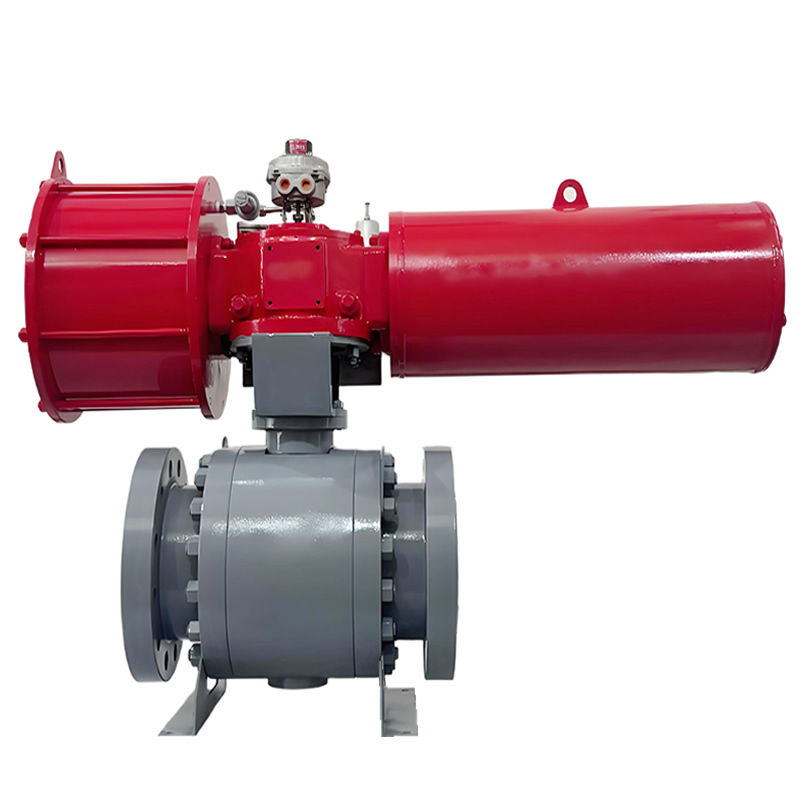

TIANYU 8 Inch 600LB Trunnion-Mounted Ball Valve – A105 RF Flanged Hard Seal with Pneumatic Actuator for Oil, Gas, and Industrial Systems

I. Product Overview

TIANYU 8-inch 600LB trunnion-mounted ball valve is a high-performance industrial control component engineered for reliable isolation and flow regulation in oil, gas, and high-pressure fluid systems. Constructed from ASTM A105 forged carbon steel, this three-piece valve combines robust structural integrity with advanced trunnion support technology to withstand the 严苛 demands of Class 600LB (PN100) pressure ratings. The valve’s hard-seal design—featuring metal-to-metal seating with optional Stellite or HVOF-coated surfaces—ensures leak-tight performance across a wide temperature range (-29℃ to 425℃), while pneumatic actuation enables fast, automated control for critical applications.

Compliant with API 6D, ASME B16.34, and ASME B16.5 standards, the valve integrates seamlessly into pipeline systems requiring bi-directional sealing, fire safety (API 607), and anti-static protection. Its RF flanged connections (ASME B16.5) and full-bore design facilitate easy installation and pigging compatibility, making it ideal for onshore/offshore oil rigs, refineries, and industrial process loops where reliability and safety are paramount.

II. Key Attributes and Specification Parameters

Design and Dimensional Attributes

Valve Type: Trunnion-mounted ball valve (three-piece, side-entry design)
Nominal Diameter: 8 inch (DN200)
Pressure Rating: Class 600LB (PN100)
End Connection: RF flange (ASME B16.5 Class 600LB)
Face-to-Face Length: ASME B16.10 / API 6D
Bore Type: Full bore (pigging-compatible)

Material Specifications

Body/Bonnet: ASTM A105 (forged carbon steel, normalized for tensile strength ≥485 MPa)
Ball/Trunnion: ASTM A105 + HVOF-coated Stellite (hardness ≥HRC65) or SS316
Stem: ASTM A182 F316 (anti-blowout design)
Seat: Metal-to-metal (Stellite or HVOF-coated SS316)
Packing: Graphite with corrosion inhibitor (fire-safe)

Performance and Operational Parameters

Temperature Range: -29℃ to 425℃ (A105 body)
Leakage Class: API 598 Class IV (metal seal)
Hydrostatic Test: 1.5×PN (shell, 15 MPa), 1.1×PN (seat, 11 MPa)
Cycle Life: ≥50,000 operations
Pneumatic Actuator: Double-acting (DA) or spring-return (SR), torque output 800–1200 N·m (8″ valve)
Control Signal: 4–20 mA (optional positioner)

Testing and Certification

Design Standards: API 6D, ASME B16.34, ASME B16.5, ASME B16.10
Testing Standards: API 598 (leakage), API 6D (drift test), API 607 (fire test)
Certifications: ISO 9001, API 6D, ATEX/IECEx (optional)

Product Overview

III. Product Features

TIANYU 8-inch 600LB trunnion-mounted ball valve incorporates industry-leading features to address the challenges of high-pressure fluid control:

Trunnion Support System: The ball is stabilized by upper and lower trunnions (forged alloy steel, nitrided for hardness ≥HV900), reducing operating torque by 30–50% compared to floating ball valves. This design ensures uniform seat contact and prevents ball sagging under high pressure, critical for Class 600LB applications .
Hard Seal Technology: Metal-to-metal seats use HVOF (high-velocity oxygen fuel) 喷涂 of Stellite or 碳化钨 – cobalt, achieving a hardness of HRC70+ for abrasion resistance. The seats are precision-ground to a Ra ≤0.4μm finish, ensuring bubble-tight sealing even after 50,000 cycles .
Pneumatic Actuation: Double-acting actuators provide fast 90° rotation (1–2 seconds), while spring-return models offer fail-safe closure during air loss. Optional smart positioners enable proportional control (±1% accuracy) for process optimization .
Three-Piece Construction: Bolted body segments allow easy disassembly for maintenance without removing the valve from the pipeline. This modular design reduces downtime by 40% compared to welded valves .
Safety and Compliance: Fire-safe design (API 607) activates metal-to-metal sealing if soft seals degrade during combustion. Anti-static springs (≤10Ω resistance) dissipate electrostatic charges, preventing ignition in flammable environments .
Cavity Pressure Relief: Automatic pressure relief valves vent trapped media, preventing catastrophic failure during thermal expansion—critical for gas and volatile liquid service .

IV. Manufacturing Process

TIANYU adheres to a rigorous 12-step manufacturing workflow to ensure each trunnion-mounted ball valve meets API 6D and ASME standards:

1. Raw Material Forging: ASTM A105 ingots are forged at 1150–1200℃, then normalized (880℃, air-cooled) to relieve stress and enhance impact resistance. Forged blanks undergo UT and PT to detect internal defects .
2. CNC Machining: The body, bonnet, and trunnions are machined using 5-axis CNC centers to achieve tolerances of ±0.02mm. Trunnion bores are honed to ensure smooth ball rotation .
3. Hard Seal Application: Seats and balls are coated via HVOF with Stellite 6 or 碳化钨 – cobalt (thickness 0.3–0.5mm), then ground to a mirror finish (Ra ≤0.8μm) using computer-controlled 球面磨床 .
4. Assembly: The ball is mounted on trunnions, with the stem connected via a keyway. Graphite packing is layered and torqued to ASME B16.34 specifications. Pneumatic actuators are mounted via ISO 5211 brackets, with torque calibration to match valve requirements .
5. Testing:
- Hydrostatic Test: Shell pressure at 15 MPa (1.5×PN100) for 10 minutes; seat pressure at 11 MPa (1.1×PN100) with leakage ≤0.15 mL/min .
- Fire Test: Exposed to 750–800℃ flame for 30 minutes, then cooled and tested for leakage per API 607 .
- Anti-Static Test: Resistance between ball and body ≤10Ω .
6. Surface Treatment: A105 components are painted with two coats of epoxy (dry film thickness ≥120μm) for corrosion resistance. Stainless steel parts are passivated in nitric acid .

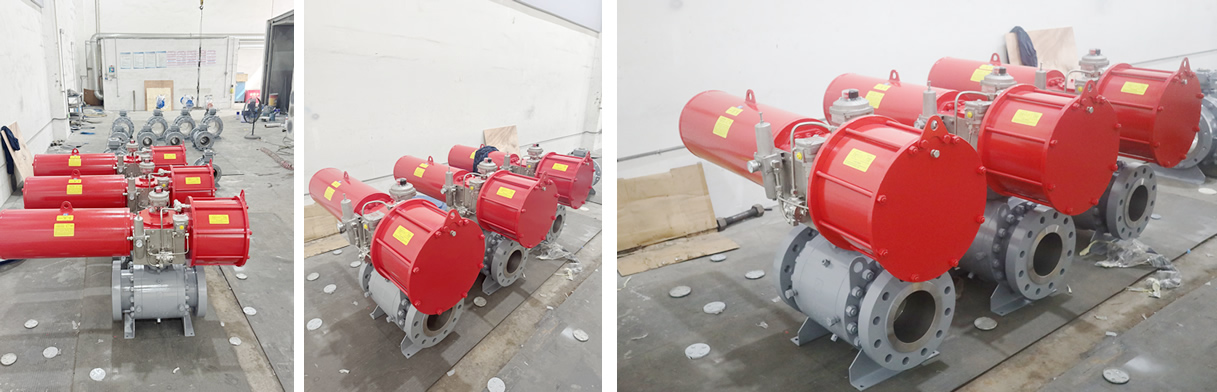

Valve Details

V. Product Advantages

TIANYU 8-inch 600LB trunnion-mounted ball valve delivers unmatched value for high-pressure industrial applications:

High-Pressure Reliability: Trunnion support eliminates torque surge and seat damage under Class 600LB pressure, ensuring 10+ years of service in oil and gas pipelines .
Reduced Maintenance Costs: Modular design and sealant injection ports allow in-line repairs, reducing downtime by 50% compared to competitor models. Hard seals last 3× longer than soft seals in abrasive media .
Energy Efficiency: Full-bore design minimizes pressure drop (≤5% at rated flow), reducing pump energy consumption by 15%. Pneumatic actuation eliminates standby power costs associated with electric valves .
Global Compatibility: Compliance with ASME B16.5 (flanges), API 6D (performance), and ATEX/IECEx (safety) enables seamless integration into international projects, eliminating custom engineering costs .
Safety Compliance: Fire-safe and anti-static features meet OSHA and ATEX requirements, reducing liability in hazardous environments. A major refinery reported a 90% reduction in safety incidents after installing these valves .

Application

VI. Product Applications

TIANYU 8-inch 600LB trunnion-mounted ball valve is engineered for industries requiring robust, high-pressure flow control:

Oil and Gas Industry: Used in crude oil gathering lines, high-pressure gas transmission pipelines, and offshore platform process systems. The valve’s DBB functionality simplifies maintenance in remote locations .
Petrochemical Refineries: Deployed in hydrocracking units, reformers, and product blending systems. Metal seals withstand high temperatures (up to 425℃) and abrasive media like catalyst-laden oils .
Power Generation: Controls steam flow in auxiliary boilers and turbine bypass systems. Fire-safe design ensures sealing integrity during emergency shutdowns .
Water Treatment: Regulates high-pressure water in desalination plants and municipal booster pump stations. Corrosion-resistant A105 with epoxy coating withstands chlorinated water .
Chemical Processing: Suitable for non-corrosive to mildly corrosive chemicals (e.g., ethylene, ammonia). Optional SS316 trim provides enhanced corrosion resistance for acidic media .

TIANYU 8-inch 600LB trunnion-mounted ball valve, with A105 body, RF flanges, hard metal seals, and pneumatic actuation, delivers reliable flow control for oil, gas, and industrial systems. It features trunnion support, fire-safe/anti-static design, and API 6D compliance, suiting high-pressure pipelines, refineries, and power plants. Customizable in seal material, actuator type, and DBB functionality to meet specific application needs.
