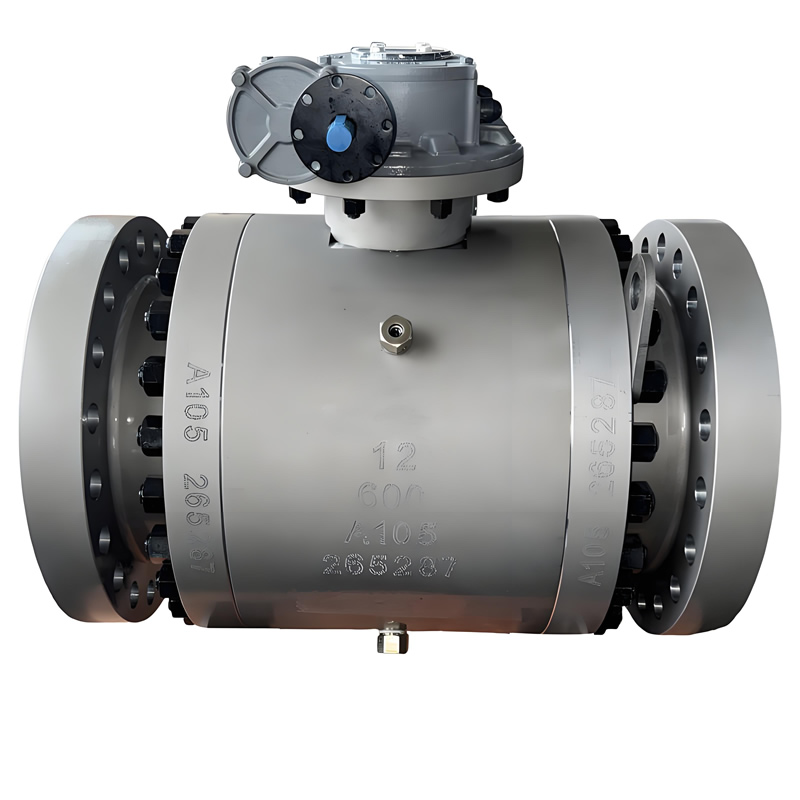

TIANYU API 6D API 608 ASME B16.34 CE DN50-DN800 50LB-2500LB Forged Carbon Steel A105/F316 Stainless Steel Trunnion Mounted 3PC Flange Ball Valve – Manual Operation for Oil & Gas Petrochemical Applications
I. Product Overview
II. Important Attribute Specifications
A. Material Composition
- Valve Body, Bonnet & End Flanges: Forged Carbon Steel A105 (ASTM A105) as standard—an industry workhorse with chemical composition (C: 0.25–0.35%, Mn: 0.60–1.05%, P/S ≤0.035%) delivering tensile strength ≥485MPa, yield strength ≥240MPa, and impact toughness ≥27J at -20℃. Optional forged stainless steel F316 (ASTM A182 F316) for enhanced corrosion resistance in chloride-rich environments (e.g., seawater, chemical processing).
- Ball: Forged Stainless Steel F304/F316 (ASTM A182), with full-port design to minimize pressure drop. The ball surface is precision-lapped to Ra ≤0.4μm for uniform sealing contact, and optional ENP (Electroless Nickel Plating) is available for extreme wear resistance in abrasive media (e.g., slurries, sand-laden oil).
- Stem: Forged Stainless Steel F304/F316 (ASTM A276), featuring an anti-blowout design to prevent ejection under high pressure. The stem undergoes solution annealing and polishing (Ra ≤0.4μm) to reduce friction with packing, ensuring smooth operation and minimizing fugitive emissions.
- Seat: Dual-seat design with A105/F316 metal base and PTFE (Polytetrafluoroethylene) insert—complying with FDA 21 CFR 177.1550 for chemical inertness. PTFE delivers ANSI/FCI Class VI bubble-tight sealing, while optional Viton or graphite seats accommodate high-temperature (up to 425℃) or fire-safe service. Seat springs (Inconel X-750 or F304) provide constant preload for self-compensating sealing as wear occurs.
- Trunnion & Bearings: F304/F316 stainless steel trunnions supported by PTFE-impregnated bronze bearings—reducing operational torque and ensuring smooth ball rotation even after prolonged inactivity.
- Packing & Gaskets: Multi-layer graphite packing with PTFE inner ring (complying with ISO 15848-1 Class AH for low fugitive emissions). Bonnet gaskets are spiral-wound graphite with F304/F316 metal reinforcement, ensuring tight sealing under thermal cycling and pressure fluctuations.
- Fasteners: A193 B7 carbon steel bolts (for A105 bodies) or A193 B8M stainless steel bolts (for F316 bodies) with A194 2H/8 nuts—providing uniform clamping force and corrosion resistance.
B. Dimensional & Pressure-Temperature Parameters
- Port Size (DN/NPS): DN50 (2”) to DN800 (32”), full-port design (bore diameter equal to nominal pipe size) to optimize flow efficiency. Cv values range from 120 (DN50) to 15,000 (DN800), minimizing pressure drop and energy consumption in high-flow applications.
- Pressure Rating: 50LB (PN6), 150LB (PN20), 300LB (PN50), 600LB (PN100), 900LB (PN160), 1500LB (PN250), 2500LB (PN420)—aligned with ASME B16.34 pressure-temperature ratings. At 20℃, 2500LB models withstand 42MPa, making them suitable for high-pressure oil & gas transmission.
- Temperature Range: -29℃ to 425℃ (standard PTFE seats); -46℃ to 538℃ (graphite seats for fire-safe service). Low-temperature variants (A350 LF2 material) extend service to -196℃ for cryogenic applications (e.g., LNG transfer).
- End Connections: Flange (ASME B16.5 for DN50-DN600, ASME B16.47 for DN650-DN800) with Raised Face (RF) or Ring Type Joint (RTJ) sealing surfaces. Optional butt-weld (BW) ends (ASME B16.25) for permanent, leak-tight pipeline integration.
- Face-to-Face Dimensions: Compliant with API 6D and ASME B16.10, ensuring interchangeability with valves from other manufacturers—simplifying replacement and retrofitting in existing systems.
C. Operational & Safety Performance Parameters
- Sealing Performance: ANSI/FCI 70-2 Class VI (PTFE seats) for liquid media, with leakage rate ≤0.1×DN mm³/min. Metal-seat variants (graphite) achieve Class IV sealing, suitable for high-temperature and fire-safe service.
- Operation Type: Manual, via worm gear operator with cast iron handwheel (diameter 150mm–600mm, scaled to valve size). The worm gear design reduces operational torque by 5–8×, enabling single-person operation of large-diameter valves (e.g., DN800 2500LB). A lockable handwheel prevents unauthorized operation—critical for safety in hazardous environments.
- Operating Torque: 50N·m (DN50, 50LB) to 1500N·m (DN800, 2500LB)—optimized by the trunnion-mounted design, which transfers media pressure loads to the trunnions (not the seats).
- Safety Features:
- Anti-static Device: Stainless steel spring creates a conductive path between ball, stem, and body—dissipating static electricity to prevent sparking in flammable media.
- Fire-Safe Design: Complies with API 607 (7th edition) and BS 6755—graphite backup seals expand during fire to maintain sealing integrity if PTFE seats degrade.
- Double Block & Bleed (DBB): Isolates the valve cavity in fully open/closed positions, allowing trapped media to be bled—preventing overpressure and enabling safe maintenance.
- Anti-Blowout Stem: Shoulder design engages with the bonnet to prevent stem ejection under extreme pressure—meeting API 6D safety requirements.
D. Certifications & Compliance
- Design & Performance Standards: API 6D, API 608, ASME B16.34, ASME B16.5, ASME B16.47, ISO 14313 (Pipeline Ball Valves), API 598 (Valve Inspection and Testing).
- Safety & Quality Certifications: CE (PED 2014/68/EU), ISO 9001:2015 (Quality Management System), NACE MR0175 (for sour service), EN10204 3.1/3.2 (Material Test Certificates).
- Environmental Compliance: ISO 15848-1 Class AH (fugitive emissions), RoHS (Restriction of Hazardous Substances), REACH (EU Chemical Regulations).

III. Feature Description
A. Trunnion-Mounted Ball Design
- Pressure Load Distribution: The ball is supported by upper and lower trunnions, transferring media pressure loads to the valve body (not the seats). This eliminates seat overpressure, reducing wear and extending seal life—critical for 2500LB high-pressure service where floating balls would deform seats.
- Low Operational Torque: By isolating the ball from direct pressure loads, the trunnion design reduces torque by 30–50% compared to floating ball valves of the same size. A DN300 600LB trunnion valve requires only 300N·m of torque, vs. 500N·m for a floating equivalent—enabling manual operation for larger valves.
- Stable Sealing: Fixed ball alignment ensures uniform contact between the ball and seats, preventing uneven wear and maintaining consistent sealing performance over 100,000+ cycles. In oil & gas transmission lines, this design maintained Class VI sealing for 8+ years, vs. 3–4 years for floating valves.
B. Three-Piece (3PC) Body Structure
- On-Line Maintenance: The three-piece construction (body, bonnet, end flanges) allows internal components (ball, seats, stem) to be inspected, repaired, or replaced without removing the valve from the pipeline. This reduces downtime by 60–70% compared to one-piece or two-piece valves—critical for continuous-process facilities.
- Modular Versatility: End flanges can be configured with different connection types (RF/RTJ/BW) on the same valve, accommodating non-standard pipeline setups and reducing the need for adapters.
- Enhanced Structural Integrity: Forged 3PC components eliminate internal voids, ensuring resistance to cyclic pressure loads and thermal expansion. In petrochemical plants, this design withstood 50+ pressure surges (up to 120% of rated pressure) without deformation.
C. Full-Port Flow Design
- Minimized Pressure Drop: Reduces pumping energy costs by 15–20% in continuous-flow systems (e.g., cross-country oil pipelines). For a DN500 1500LB valve handling 5000m³/h of crude oil, this translates to ~$30k/year in energy savings.
- Unobstructed Media Passage: Prevents clogging by particulate media (e.g., sand, drilling mud) in upstream oil & gas applications. In offshore drilling rigs, full-port valves reduced pipeline blockages by 80% compared to reduced-port alternatives.
- Efficient Pigging: Compatible with pipeline pigging (cleaning/inspection tools), as the full bore allows pigs to pass through without obstruction—eliminating the need for bypass valves.
D. Forged Construction & Premium Materials
- Defect-Free Structure: Forging compacts the metal grain, eliminating porosity, shrinkage, and cracks common in cast valves. Ultrasonic testing (UT) confirms no internal defects, ensuring structural integrity under extreme pressure.
- Corrosion Resistance: Forged A105 carbon steel resists general corrosion in oil & gas media, while F316 stainless steel (with 2–3% molybdenum) enhances resistance to pitting and crevice corrosion in chloride-rich environments (e.g., seawater, chemical solvents).
- Wear-Resistant Sealing: PTFE seats with metal reinforcement resist galling (metal-to-metal adhesion) and chemical attack, while ENP-coated balls extend service life in abrasive media—outperforming uncoated balls by 3× in slurry applications.
E. Integrated Safety & Compliance Features
- Anti-Static Protection: Static electricity (generated by media flow and ball rotation) is discharged via a stainless steel spring—eliminating the risk of sparking in flammable media (e.g., natural gas, gasoline).
- Fire-Safe Performance: API 607 compliance ensures the valve maintains sealing integrity for 30 minutes at 750–1000℃. Graphite backup seals expand to fill gaps left by melted PTFE, preventing media leakage and containing fires.
- Double Block & Bleed (DBB): Two independent seats isolate the cavity, allowing trapped media to be vented or drained—enabling safe maintenance without shutting down the entire pipeline.
IV. Manufacturing Process & Quality Control
A. Raw Material Procurement & Inspection
- Material Verification: Forged A105 and F316 blanks undergo spectral analysis (XRF) to confirm chemical composition compliance with ASTM standards. Tensile, yield, and impact tests verify mechanical properties (e.g., A105 tensile strength ≥485MPa).
- Non-Destructive Testing (NDT): Forged components undergo ultrasonic testing (UT) to detect internal defects and magnetic particle testing (MPI) to inspect surface cracks. Only defect-free materials proceed to machining.
- Sealing Material Validation: PTFE resin is tested for purity (≥99.5% PTFE) and compliance with FDA 21 CFR 177.1550. Graphite packing and gaskets are verified for high-temperature stability (up to 538℃).
B. Forging Process
- Billet Heating: Metal billets are heated in a natural gas-fired furnace to 1100–1250℃—a temperature range that maximizes plasticity while avoiding grain growth.
- Precision Forging: Heated billets are forged into body, bonnet, and ball shapes using custom dies. The forging ratio is maintained at ≥3:1 to ensure dense grain structure and uniform mechanical properties.
- Heat Treatment: Forged components undergo annealing (A105: 900–950℃, air-cooled) to relieve forging stresses and improve ductility. F316 stainless steel components undergo solution annealing (1040–1150℃, water-cooled) to restore corrosion resistance.
- Descaling & Cleaning: Forged parts are shot-blasted to remove surface scale, then cleaned with ultrasonic baths to eliminate residual contaminants.
C. Precision Machining
- Body & Bonnet Machining: Flange faces are machined to flatness ≤0.02mm/m and surface roughness Ra 1.6μm. Seat pockets are honed to coaxiality ≤0.01mm relative to the bore, ensuring uniform ball-seat contact.
- Ball Machining: Forged balls are precision-ground to spherical accuracy ≤0.005mm and lapped to Ra ≤0.4μm. Full-port bores are machined to match pipeline dimensions, with no sharp edges to minimize flow turbulence.
- Stem Machining: Stems are turned and ground to precise diameter (±0.01mm) and polished to Ra ≤0.4μm. Threads (where applicable) are cut to ANSI/ASME B1.1 standards for secure actuator mounting.
- Dimensional Inspection: All components are inspected with coordinate measuring machines (CMMs) to verify compliance with design specifications. Inspection reports are retained for full traceability.
D. Surface Treatment & Coating
- Passivation: F316 stainless steel components undergo nitric acid passivation to form a protective chromium oxide layer—improving resistance to pitting and crevice corrosion.
- Epoxy Coating: A105 carbon steel components receive a two-layer epoxy coating (thickness ≥100μm) to protect against atmospheric corrosion. The coating meets ISO 12944-6 C5-M standards for high-corrosion environments.
- ENP Coating (Optional): Ball surfaces are coated with electroless nickel (thickness 50–100μm) for extreme wear resistance in abrasive media. The coating has a Rockwell hardness of ≥55 HRC.
E. Assembly & Comprehensive Testing
- Component Cleaning: All parts are degreased and ultrasonic-cleaned to remove oil, debris, and metal particles—preventing contamination of sealing surfaces.
- Assembly Sequence: Trunnion bearings are installed first, followed by the ball, stem, seats (with preloaded springs), packing, and bonnet. Fasteners are tightened in a crisscross pattern to uniform torque (per ASME B18.2.1).
- Hydrostatic Testing:
- Shell Test: 1.5× rated pressure is applied to the valve body for 30 minutes—no leakage, deformation, or lining delamination is permitted.
- Seat Test: 1.1× rated pressure is applied to each seat (bidirectional) for 15 minutes. Leakage is measured via bubble counting, with Class VI compliance requiring ≤1 bubble/minute for DN50.
- Operational Testing: The valve is cycled 50 times (open-close) to verify smooth operation and torque consistency. Manual worm gear operators are tested for ease of use and position indication accuracy.
- Specialized Testing:
- Fire-Safe Testing: Random samples undergo API 607 fire testing, with post-fire sealing performance verified via hydrostatic testing.
- Fugitive Emissions Testing: ISO 15848-1 Class AH compliance is confirmed using methane and a flame ionization detector (FID).
- Anti-Static Testing: Resistance is measured to ensure ≤10Ω, confirming effective static discharge.
F. Final Inspection & Documentation
- Visual Inspection: Checks for surface defects, coating integrity, and proper marking (size, pressure rating, serial number).
- Documentation Package: Each valve is shipped with Material Test Reports (MTRs), Hydrostatic Test Certificates, EN10204 3.1/3.2 Certificates, and Compliance Certificates (API, ASME, CE).
- Packaging: Valves are packaged in plywood crates with foam insulation to prevent damage during transportation. Flange ends are capped with plastic protectors, and operators are covered with waterproof bags.
V. Product Advantages
A. Superior Durability & Longevity
B. Reliable Sealing & Operational Safety
C. Low Lifecycle Costs
- Maintenance Savings: The 3PC design allows on-line maintenance, reducing downtime by 60% and labor costs by $15k–$50k per shutdown (depending on valve size).
- Energy Efficiency: Full-port design minimizes pressure drop, cutting pumping energy costs by 15–20% annually. For a refinery with 50 DN300 valves, this saves ~$200k/year.
- Reduced Replacement Costs: Durable materials and wear-resistant components reduce replacement frequency, lowering capital expenditure over time.
D. Global Compliance & Versatility
E. Manual Operation Reliability
VI. Product Applications
A. Oil & Gas Industry
- Upstream (Exploration & Production): Wellhead manifolds, production gathering lines, and drilling mud systems. The valve’s high-pressure rating (up to 2500LB) and wear-resistant ENP coating handle sand-laden crude oil and drilling fluids. Offshore platforms benefit from the epoxy coating’s corrosion resistance to saltwater.
- Midstream (Transmission & Storage): Cross-country oil/gas pipelines, storage tank farms, and compressor stations. Full-port flow minimizes pressure drop, optimizing transport efficiency, while DBB functionality enables safe pigging and maintenance.
- Downstream (Refining): Distillation units, hydrocracking systems, and product loading lines. The valve withstands high temperatures (up to 425℃) and corrosive media (e.g., acids, solvents), with fire-safe design meeting refinery safety protocols.
B. Petrochemical Industry
C. Chemical Processing Industry
D. Power Generation Industry
- Thermal Power Plants: Boiler feedwater systems, steam lines, and flue gas desulfurization (FGD) systems. The valve withstands high-pressure steam (up to 2500LB) and corrosive FGD media.
- Nuclear Power Plants: Auxiliary systems (cooling water, chemical injection) with low-temperature A350 LF2 material for cryogenic cooling water.
- LNG Facilities: Cryogenic variants (A350 LF2) handle LNG transfer at -196℃, with trunnion-mounted design ensuring reliable sealing in low-temperature service.
E. Other Industrial Sectors
- Mining & Metallurgy: Slurry pipelines and mineral processing systems. ENP-coated balls resist abrasion from mineral slurries, while full-port design prevents clogging.
- Water & Wastewater Treatment: High-pressure water injection systems and chemical dosing lines. Corrosion-resistant materials handle chlorinated water and treatment chemicals.
VII. Customization Advantages
