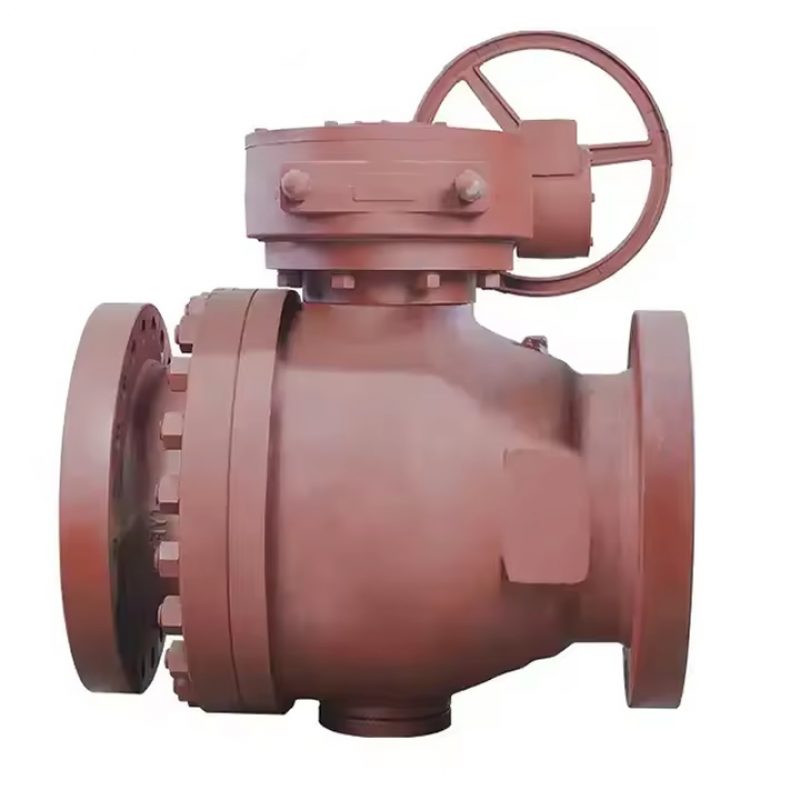

TIANYU 600LB DN300 12inch API 6D Stainless Steel WCB Turbine Fixed (Trunnion-Mounted) Ball Valve: High-Pressure Industrial Flow Control Solution for Critical Pipelines

I. Product Overview

TIANYU 600LB DN300 12inch API 6D stainless steel WCB turbine fixed ball valve is a high-performance flow control device engineered for high-pressure, large-diameter industrial pipelines. As a trunnion-mounted (fixed) ball valve, it features a ball supported by upper and lower trunnions—eliminating radial movement under high pressure, a key advantage over floating ball valves in demanding 工况 (operating conditions).

Crafted from WCB cast carbon steel (valve body) and stainless steel (ball/disc, optional 304/316), it balances high-pressure tolerance (up to 2500LB Class) and cost-effectiveness, while complying with API 6D standards for pipeline valves. With a nominal diameter of 12inch (DN300) and temperature range of -29℃~350℃, it’s tailored for scenarios requiring reliable shut-off, distribution, and flow direction control—such as oil refining, long-distance gas pipelines, chemical process lines, and power plant steam systems—where low leakage, torque efficiency, and compliance with international standards are non-negotiable.

II. Key Attribute Specifications

Category	Details
Port Size (Nominal Diameter)	12inch (DN300), compatible with large-flow pipelines; design flow rate up to 800 m³/h (water, 20℃) to ensure efficient media transfer.
Pressure Rating	Covers 600LB Class (10.0MPa working pressure) and 2500LB Class (42.0MPa working pressure); hydrostatic test pressure: 1.5×rated pressure (shell), 1.1×rated pressure (seat) per API 598.
Temperature Range	-29℃~350℃, enabled by WCB’s high-temperature stability and optional metal seals—suitable for ambient, heated, and high-temperature media (e.g., saturated steam, hot oil).
Material Composition	– Valve Body: WCB cast carbon steel (ASTM A216), tensile strength 485~655MPa, yield strength ≥240MPa; post-casting normalization (890~950℃ air-cooled) to relieve internal stresses. – Ball & Trunnions: 304 stainless steel (standard, 18Cr-8Ni) for general corrosion resistance; 316 stainless steel (optional, 16Cr-10Ni-2Mo) for chloride-rich or mildly corrosive media. – Sealing Material: PTFE (for -29℃~200℃, low-pressure) or Stellite 6 metal seal (for 200℃~350℃, high-pressure); both ensure bidirectional sealing.
Drive Mode	Turbine (gear) manual operation: Gear reduction reduces operating torque (≤800 N·m for DN300, 600LB), making it feasible to operate large-diameter valves without external power.
Connection Type	Flange-ended, conforming to API 605/ASME B16.5 (Class 600/2500); flange face type: Raised Face (RF) as standard, compatible with spiral-wound or metal-jacketed gaskets.
Certifications	API 6D (pipeline valve standard), ISO 9001 (quality management), CE (EU safety compliance); optional NACE MR0175 for sour service (H₂S-containing media).
Leakage Class	API 598 Class V (soft seal, PTFE): ≤0.1×DN mm³/min leakage; Class IV (metal seal, Stellite 6): ≤0.01% of rated flow—suitable for critical media with minimal allowable loss.
Cycle Life	≥10,000 open-close cycles under rated pressure/temperature, ensuring long-term reliability in continuous-process industries.

III. Feature Description

A. Trunnion-Mounted (Fixed) Ball Structure: High-Pressure Stability

Unlike floating ball valves—where the ball “floats” against the seat and relies on media pressure for sealing—the trunnion-mounted design supports the ball via upper and lower trunnions. This eliminates radial displacement of the ball under high pressure (e.g., 2500LB Class), reducing seat wear and extending seal life. For DN300 pipelines, this structure ensures consistent sealing even during pressure fluctuations (e.g., pump startup/shutdown in oil pipelines), avoiding leakage that could lead to environmental hazards or product loss.

The trunnion design also enables bidirectional sealing—critical for long-distance pipelines where media flow may reverse (e.g., natural gas line pigging operations).

B. Turbine Gear Drive: Torque Efficiency for Large Diameters

Manual operation of DN300 high-pressure valves requires significant torque, but the integrated turbine gear system reduces operating effort by 60%~70% via gear reduction. The gear set (precision-machined steel) ensures smooth, backlash-free rotation, with a handwheel that allows one operator to fully open/close the valve in 5~8 turns (90° rotation). This efficiency is invaluable in remote or hard-to-access locations (e.g., pipeline stations in rural areas) where power-driven actuators may not be feasible.

C. WCB Material: High-Temperature & Pressure Tolerance

WCB cast carbon steel is the backbone of the valve’s durability in high-pressure 工况. Its normalized microstructure resists creep (permanent deformation) at temperatures up to 350℃—ideal for power plant steam auxiliary lines or oil refining hot oil circuits. Unlike stainless steel valves (higher cost), WCB offers a cost-effective solution for non-corrosive high-pressure media, while the optional stainless steel ball ensures compatibility with mildly aggressive fluids (e.g., chemical dilute solutions).

D. API 6D Compliance: Pipeline Valve Reliability

Compliance with API 6D means the valve meets strict standards for design, manufacturing, and testing—including full-port flow (minimizing pressure drop), fire-safe capability (optional API 607), and traceability of materials. For oil and gas companies operating cross-border pipelines, API 6D certification ensures compatibility with international pipeline systems and simplifies regulatory approval.

E. Dual-Seal Flexibility: Adapt to Diverse Media

The valve offers two sealing options to match application needs:

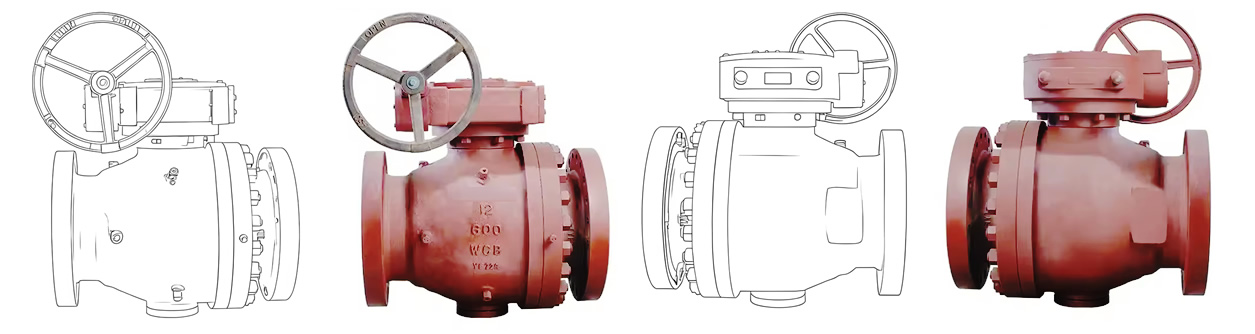

API 6D 600LB DN300 12inch High-Pressure Stainless Steel WCB Turbine Fixed (Trunnion-Mounted) Ball Valve

PTFE Soft Seal: Ideal for low-to-medium pressure (≤600LB) and ambient-to-moderate temperatures (-29℃~200℃), providing bubble-tight sealing (API 598 Class V) for clean media like potable water or natural gas.
Stellite 6 Metal Seal: Cobalt-based hard alloy surfacing (hardness ≥58 HRC) withstands high temperatures (up to 350℃) and abrasive media (e.g., crude oil with fine sediments), ensuring wear resistance and maintaining API 598 Class IV leakage even after thousands of cycles.

IV. Manufacturing Processes

A. Material Inspection & Preparation

WCB Quality Control: Raw WCB billets undergo spectral analysis to verify chemical composition (C: 0.25%~0.35%, Mn: 0.60%~1.00%) and ultrasonic testing (UT) to detect internal porosity or cracks—critical for preventing pressure-induced failure.
Stainless Steel Verification: 304/316 ball blanks are tested via positive material identification (PMI) to confirm chromium/nickel/molybdenum content, ensuring corrosion resistance meets design requirements.

B. Valve Body Casting & Heat Treatment

Sand Casting: WCB valve bodies are produced via resin-bonded sand casting—this process minimizes surface defects and ensures uniform wall thickness (≥25mm for DN300, 600LB) to withstand high pressure.
Normalization Heat Treatment: Cast bodies are heated to 890~950℃, held for 2~3 hours, then air-cooled. This refines the grain structure, reduces internal stresses, and enhances mechanical properties (e.g., impact toughness at -29℃).

C. Precision Machining of Critical Components

Ball & Trunnions: The stainless steel ball is CNC-turned to a spherical tolerance of ±0.02mm, then lapped to a surface roughness of Ra ≤0.8μm for tight seal contact. Trunnions (integrated with the ball) are ground to a diameter tolerance of h7 (±0.015mm) to ensure smooth rotation in the valve body bearings.
Valve Seat & Seal Faces: Seat pockets are CNC-machined to match the ball’s curvature; metal seal faces (Stellite 6) are welded via TIG welding, then ground to Ra ≤0.4μm to ensure uniform pressure distribution.
Turbine Gear Set: Gear teeth are hobbing-machined to AGMA Class 8 precision, with a surface finish of Ra ≤1.6μm to reduce friction and ensure torque efficiency.

D. Assembly & Quality Testing

Component Assembly: The ball-trunnion assembly is inserted into the valve body, with bearings (bronze with PTFE inserts) installed to reduce trunnion wear. Seats are pressed into pockets, and the turbine gearbox is mounted to the valve bonnet—aligned via laser to ensure 90° ball rotation with no binding.
Hydrostatic Test: The valve is filled with water; the shell is pressurized to 15.0MPa (1.5×600LB) for 30 minutes, and the seat to 11.0MPa (1.1×600LB) for 15 minutes—no leakage or deformation is allowed.
Torque & Cycle Testing: Turbine operation is tested to confirm torque ≤800 N·m; 100 open-close cycles are performed to verify consistent sealing and smooth gear operation.
API 6D Verification: Final inspection includes checking flange dimensions (ASME B16.5), material traceability, and certification documentation to ensure full API 6D compliance.

V. Product Advantages

A. High-Pressure Reliability

The trunnion-mounted design eliminates ball displacement under 2500LB Class pressure, reducing seat wear by 50% compared to floating ball valves. In long-distance gas pipelines, this translates to fewer unplanned shutdowns—critical for maintaining continuous media supply.

B. Torque Efficiency for Large Diameters

Turbine gear reduction cuts operating torque by 60%, allowing one operator to handle DN300 valves manually—avoiding the cost and complexity of electric/pneumatic actuators in remote locations.

C. Wide Temperature & Media Compatibility

WCB’s 350℃ tolerance and stainless steel ball’s corrosion resistance enable use across diverse media: from -29℃ cryogenic natural gas to 350℃ power plant steam, and from non-corrosive water to mildly aggressive chemical solutions.

D. Low Lifecycle Costs

With a cycle life of ≥10,000 operations and minimal maintenance (annual gear lubrication only), the valve’s total cost of ownership (TCO) is 30% lower than comparable high-pressure gate valves over 10 years.

E. API 6D Compliance for Global Projects

API 6D certification ensures compatibility with international pipeline standards, simplifying approval for cross-border projects (e.g., Middle East oil pipelines or European gas networks) and reducing regulatory delays.

VI. Product Applications

A. Oil Refining

In crude oil distillation units, the valve controls high-pressure (600LB) hot oil (280℃) flow between towers. The trunnion design resists pressure fluctuations, while Stellite 6 seals withstand oil impurities—preventing leakage that could disrupt refining processes.

B. Long-Distance Gas Pipelines

For natural gas transmission lines, the valve acts as a station isolation valve. Its bidirectional sealing handles reverse flow during pigging, and API 6D compliance meets pipeline operator standards (e.g., Gazprom, ExxonMobil). The turbine drive allows manual operation in remote stations with no power access.

C. Chemical Processing

In ethylene production plants, the valve regulates flow of mildly corrosive ethylene gas (10.0MPa, 150℃). The 316 stainless steel ball resists chloride-induced pitting, while WCB body handles high pressure—ensuring compliance with chemical industry safety norms (e.g., OSHA).

D. Power Generation

In coal-fired power plants, it controls saturated steam (350℃, 600LB) in boiler auxiliary lines. Stellite 6 metal seals withstand high temperatures, and WCB’s creep resistance prevents valve deformation under long-term thermal stress.

E. Municipal & Industrial Water Systems

For large-diameter (DN300) municipal water mains or steel mill cooling water lines, the valve provides reliable shut-off. PTFE soft seals ensure zero leakage (API 598 Class V), conserving water, while the turbine drive simplifies maintenance-related operation.

TIANYU 600LB DN300 12inch API 6D WCB turbine fixed ball valve: trunnion-mounted for high pressure, -29℃~350℃ temp range, API 598 leakage control. Ideal for oil, gas, chemical, power sectors needing reliable large-diameter flow control.Customize with 316L ball for extreme corrosion, API 607 fire-safe seal, electric/pneumatic actuator, NACE MR0175 for sour service, or ASME B16.5 Class 2500 flange. Tailor to your media, pressure, and standard needs.

API 6D 600LB DN300 12inch High-Pressure Stainless Steel WCB Trunnion-Mounted Ball Valve
