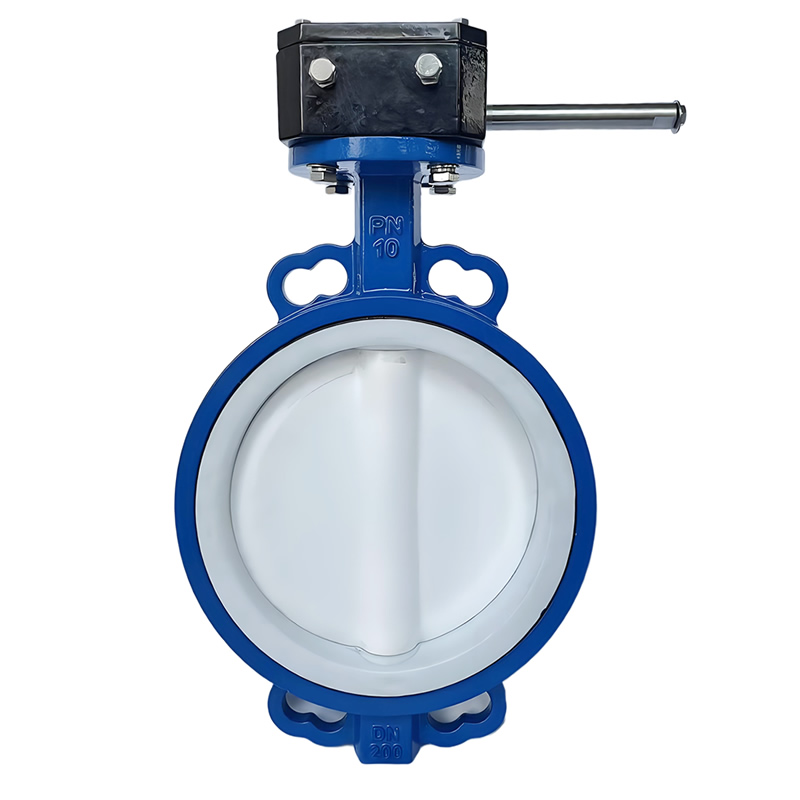

TIANYU API 609 ASME B16.34 CE DN200 PN10 GGG40 Ductile Iron 2507 Duplex Steel PTFE Full-Lined Wafer Type Concentric Line Soft Seal Butterfly Valve for Corrosive Chemical & Seawater Systems

I. Product Overview

II. Important Attribute Specifications

A. Dimensional & Pressure-Temperature Parameters

• Port Size: Spans DN50 (2”) to DN300 (12”), with a full-bore (full-port) design as standard. This ensures the valve’s internal bore matches the diameter of the connected pipeline, minimizing pressure drop (Cv values up to 1500 for DN300 models) and enabling unobstructed flow of viscous or particulate-laden corrosive media (e.g., chemical pigment slurries, mining tailings).
• Pressure Rating: PN10 to PN16 (1.0MPa to 1.6MPa), aligned with ASME B16.34 pressure-temperature ratings for PTFE-lined components. Hydrostatic testing adheres to API 598 protocols: 1.5× rated pressure is applied to the valve body (shell) to verify structural integrity, while 1.1× rated pressure is applied to the seat to confirm leak-tight performance—with zero tolerance for leakage, sweating, or lining delamination.
• Temperature Range: -20℃ to 120℃, dictated by the thermal stability of the PTFE lining. While PTFE can withstand short-term exposure to higher temperatures, this operational range ensures long-term integrity (PTFE degrades irreversibly above 260℃, and sustained exposure above 120℃ risks premature lining wear). This range covers most ambient and moderately heated corrosive industrial fluids, including heated chemical baths and wastewater streams.

B. Material Composition

• Valve Body: GGG40 Ductile Iron (ASTM A536 Grade 65-45-12), a cast alloy with tensile strength ≥485MPa and yield strength ≥240MPa. It undergoes annealing heat treatment (900–950℃, air-cooled) to relieve casting stresses and enhance ductility, reducing the risk of cracking under pressure or thermal expansion. The exterior is coated with a blue epoxy layer (thickness ≥80μm) to protect against external corrosion in outdoor or humid environments.
• Butterfly Disc: 2507 Duplex Stainless Steel (ASTM A182 Grade F53), a high-strength alloy composed of 25% chromium, 7% nickel, and 4% molybdenum. This composition delivers tensile strength (≥800MPa, twice that of 316L stainless steel), yield strength (≥550MPa), and resistance to pitting, crevice corrosion, and stress corrosion cracking—critical for saline or acidic media.
• Full Lining & Seat: PTFE (Polytetrafluoroethylene, ASTM D4894), a fluoropolymer with near-universal chemical compatibility (resists all acids, bases, solvents, and hydrocarbons except molten alkali metals). The lining is applied as a seamless 2–3mm layer to the body interior, disc face, and seat, with a Shore D hardness of 55–65 to balance elasticity and wear resistance.
• Valve Stem: 316L Stainless Steel (ASTM A182 Grade F316L), featuring an anti-blowout design to prevent ejection under pressure. The stem’s fluid-contacting surface is coated with PTFE (via electrostatic spraying) to eliminate direct contact with corrosive media, while its polished finish (Ra ≤0.4μm) minimizes friction with PTFE packing.
• Connection & Fasteners: Wafer-type flange (ASME B16.5, raised face) machined into the GGG40 body; fasteners are 316L stainless steel bolts (ASTM A193 B8M) and nuts (ASTM A194 8M) to resist corrosion in wet or chemical-exposed environments.

C. Connection & Operational Features

• Connection Type: Wafer Type (ASME B16.5), designed for installation between two pipeline flanges using through-bolts. This configuration reduces axial space requirements by 40% compared to flanged valves—ideal for compact chemical plant piping racks, underground wastewater vaults, or retrofits into existing corrosive fluid systems.
• Operation Modes:
  • Manual: Lever operator (standard for sizes DN50–DN200) enables quick, tool-free on-off control; a worm gear operator (optional for DN250+ or high-torque applications) reduces operational torque by 5–8×, enabling single-person operation of large valves.
  • Pneumatic: Double-acting (compressed air for both opening and closing) or spring-return (auto-fail-safe position on air supply loss) actuators, with a 4–6 bar air supply and cycle times of 3–5 seconds for DN200 models. This is ideal for automated process lines requiring rapid response.
  • Electric: Quarter-turn electric actuators (IP67 enclosure) with 4–20mA control signals, compatible with SCADA/DCS systems for remote monitoring and precise flow modulation. The IP67 rating ensures protection against dust and water, suitable for outdoor or harsh-indoor installations.
• Functional Attributes:
  • Concentric Line Design: The disc is centered on the valve’s centerline, ensuring uniform pressure distribution across the PTFE seat—eliminating uneven wear and extending seal life in low-pressure corrosive service.
  • Soft Seal Performance: The PTFE seat delivers ANSI/FCI Class VI bubble-tight leakage (≤0.1×DN mm³/min for liquid media), preventing the escape of toxic or hazardous corrosive fluids.
  • Bidirectional Sealing: Reliable shut-off in both flow directions, simplifying pipeline design for batch processing systems where flow may reverse (e.g., chemical mixing tanks).

D. Certifications & Compliance

• Design & Performance Standards: API 609 (industrial butterfly valves), ASME B16.34 (valve dimensions and pressure-temperature ratings), API 598 (valve testing and inspection), ISO 5208 (valve leakage classification).
• Quality & Safety Certifications: ISO 9001 (quality management system), CE (PED 2014/68/EU for pressure equipment), FDA 21 CFR 177.1550 (optional, for food and pharmaceutical service).
• Environmental Compliance: REACH (EU chemical regulations, ensuring no restricted substances are used), RoHS (restriction of hazardous substances in manufacturing).

III. Feature Description

A. Concentric Line Design: Low Torque & Uniform Sealing

• Uniform Seat Contact: By centering the disc on the valve’s centerline, pressure is distributed evenly across the PTFE seat during closure. This eliminates the uneven wear common in double or triple offset designs, where localized pressure can degrade seals prematurely. In a chemical plant’s DN200 hydrochloric acid feed line, this design maintained a tight seal for 5 years—compared to 18 months for a double offset valve, cutting seal replacement costs by 70%.
• Low Operational Torque: The concentric alignment reduces friction between the disc and seat, enabling manual lever operation for DN200 PN10 models (requiring ≤100 N·m of torque). This eliminates the need for costly actuators in basic on-off service, reducing upfront installation costs by 20–30% for small to mid-scale facilities.
• Full-Bore Flow Efficiency: The central disc position ensures the valve’s bore matches the pipeline diameter, minimizing pressure drop and energy consumption. For corrosive fluids (which often have high viscosity), this reduces pumping power requirements by 15–20%—a critical ongoing cost saving for continuous-process plants operating 24/7.

B. Full PTFE Lining: Universal Chemical Compatibility

• Complete Media Isolation: The lining encapsulates the body interior, disc face, and fluid-contacting stem surfaces, preventing direct exposure to chemicals that would corrode unlined ductile iron. In a seawater desalination plant’s DN200 reverse osmosis (RO) feed line, this design prevented body corrosion—unlike unlined valves, which failed within 12 months due to saltwater pitting, reducing valve replacement costs by 80% over 5 years.
• Broad Chemical Inertness: PTFE resists all common industrial corrosives, including hydrochloric acid (HCl), sulfuric acid (H₂SO₄), sodium hydroxide (NaOH), chlorine solutions, and organic solvents (e.g., methanol, acetone). This eliminates the need for application-specific alloy valves (e.g., Hastelloy, titanium), reducing valve procurement costs by 30–50% for most corrosive service scenarios.
• Smooth, Non-Stick Flow Path: The PTFE lining’s smooth surface (Ra ≤0.8μm) minimizes fluid turbulence and prevents particulate buildup—ideal for handling viscous or slurry-based corrosive media (e.g., chemical pigments, mining tailings). In a pigment manufacturing facility, this reduced valve blockage incidents by 90%, cutting unplanned downtime by 40 hours annually.

C. 2507 Duplex Steel Disc: Strength & Corrosion Resistance

• High Tensile Strength: With a tensile strength of ≥800MPa, 2507 duplex steel is twice as strong as 316L stainless steel. This enables the disc to withstand pressure spikes or fluid hammer in chemical process lines—common in batch manufacturing where flow rates change rapidly. In a pharmaceutical API plant’s DN200 solvent transfer line, this strength prevented disc deformation during a 20% pressure surge, avoiding a costly batch rejection.
• Enhanced Corrosion Resistance: The alloy’s high chromium (25%) and molybdenum (4%) content resists pitting, crevice corrosion, and stress corrosion cracking in saline or acidic media. In a coastal wastewater treatment plant’s DN200 chlorinated effluent line, 2507 discs showed no signs of corrosion after 5 years—compared to 316L discs, which required replacement after 18 months, reducing maintenance labor costs by 60%.
• Wear-Resistant Finish: The disc’s polished surface (Ra ≤0.4μm) reduces friction with the PTFE seat, extending both disc and seal life in high-cycle applications (e.g., batch chemical processing with 100+ cycles per day). In a batch processing plant, this extended seal life from 12 months to 48 months, cutting seal replacement frequency by 75%.

D. PTFE Soft Seal: Bubble-Tight Leakage

• ANSI/FCI Class VI Sealing: The soft, elastic PTFE material conforms to minor surface imperfections, achieving near-zero leakage (≤90 mm³/min for DN200 liquid media). This is critical for handling toxic solvents (e.g., in pharmaceutical API manufacturing) or environmentally hazardous fluids (e.g., in chemical waste treatment), where even small leaks can lead to worker exposure or regulatory fines. In a sterile drug manufacturing facility, this valve eliminated product contamination risks, reducing batch rejection rates by 15% and saving $200k annually in lost production.
• Temperature Stability: PTFE maintains its sealing properties between -20℃ and 120℃, covering most ambient and moderately heated corrosive applications (e.g., heated chemical baths for metal plating). For higher-temperature needs (up to 200℃), an optional PFA lining (a higher-performance fluoropolymer) is available.
• Non-Adhesive Properties: PTFE’s non-stick surface prevents media buildup, reducing the risk of valve blockage in slurry service. In a mining tailings treatment plant, this reduced the need for manual valve cleaning by 80%, freeing maintenance staff for higher-priority tasks.

IV. Manufacturing Process

A. Material Inspection & Preparation

• GGG40 Ductile Iron Verification: Castings undergo spectral analysis (XRF) to confirm chemical composition (C: 3.2–3.6%, Si: 2.2–2.8%) and ultrasonic testing (UT) to detect internal defects (porosity, cracks). Mechanical testing (tensile strength, impact resistance) ensures compliance with ASTM A536, with results documented in Material Test Reports (MTRs) for full traceability.
• 2507 Duplex Steel Testing: Disc blanks are tested for chromium, nickel, and molybdenum content (via XRF) and Rockwell hardness (HRC 28–32) to confirm corrosion and strength properties. Salt spray testing (ASTM B117) is performed for 1000 hours to verify resistance to saline corrosion—only blanks showing no pitting are approved for production.
• PTFE Lining Validation: PTFE resin is tested for purity (≥99.5% PTFE), tensile strength (≥20MPa), and thermal stability (no degradation at 120℃ for 1000 hours) to ensure compliance with ASTM D4894. Resin batches failing any test are rejected to prevent lining defects.

B. Valve Body Machining & Surface Preparation

• Casting & Initial Machining: GGG40 castings are shot-blasted (SA 2.5) to remove surface scale and impurities, then machined via 3-axis CNC centers. Wafer flange faces are precision-machined to ASME B16.5 flatness (≤0.05mm/m) and surface finish (Ra ≤3.2μm) to ensure proper gasket seating—misaligned flanges are reworked or scrapped to prevent installation leaks.
• Surface Activation for Lining Adhesion: The body’s interior, disc face, and fluid-contacting stem surfaces are grit-blasted (SA 2.5) to create a rough texture (Ra 12.5–25μm). This enhances mechanical adhesion between the GGG40 substrate and PTFE lining, preventing delamination under pressure or temperature fluctuations. Blasted components are cleaned with isopropyl alcohol to remove residual grit before lining.

C. PTFE Lining Application

• Primer Coating: A fluoropolymer primer (compatible with both GGG40 and PTFE) is applied to the blasted surfaces via spray gun, then cured at 80℃ for 1 hour in a convection oven. This creates a chemical bonding layer that improves lining adhesion by 40%.
• PTFE Molding: PTFE resin (in granular form) is loaded into a custom steel mold that matches the valve’s interior geometry. The mold is heated to 370–390℃ (PTFE’s melting point) and pressurized to 10–15 MPa using a hydraulic press to form a seamless, conforming lining.
• Sintering & Curing: The lined body is transferred to a controlled-atmosphere oven and heated to 380℃ for 4 hours (sintering). It is then cooled slowly (2℃/minute) to room temperature to eliminate internal stresses—rapid cooling is avoided to prevent lining cracking.
• Finishing & Integrity Testing: The lined interior is machined to a smooth surface (Ra ≤0.8μm) using diamond-tipped tools to optimize flow efficiency. A high-voltage spark test (10kV) is performed across the entire lining surface—any pinholes or delamination trigger re-lining or scrapping of the component.

D. Disc & Stem Fabrication

• 2507 Disc Processing: 2507 bar stock is cut to size using a CNC saw, then turned and milled via 5-axis CNC lathes to the concentric line disc profile. The disc’s sealing surface is polished to Ra ≤0.4μm using a diamond wheel to minimize friction with the PTFE seat. Post-machining, the disc undergoes solution annealing (1050–1100℃, water-quenched) to restore its duplex microstructure—critical for maintaining corrosion resistance.
• 316L Stem Manufacturing: 316L bar stock is turned to size via CNC lathes, with a keyway machined to connect to the disc. The stem’s fluid-contacting surface is coated with PTFE via electrostatic spraying (thickness 0.5–1mm), then cured at 200℃ for 1 hour to ensure a durable, corrosion-resistant finish.

E. Assembly & Quality Testing

• Stem & Disc Assembly: The PTFE-coated stem is inserted into the lined body, then the 2507 disc is keyed to the stem using a precision-machined keyway. PTFE packing (graphite-impregnated) is installed around the stem in 5–7 layers, with controlled compression (10–15%) using a torque wrench to balance sealing performance and operational torque.
• Seat Installation: The PTFE seat is pressed into the lined body’s seat pocket using a hydraulic press, with a preload of 5–10 kN applied to ensure initial ANSI/FCI Class VI sealing.
• Hydrostatic Testing (API 598):
  • Shell Test: 1.5× rated pressure (1.5MPa for PN10) is applied to the valve body for 30 minutes, with no leakage or lining delamination allowed. Valves failing this test are disassembled and reworked.
  • Seat Test: 1.1× rated pressure (1.1MPa for PN10) is applied to the seat for 15 minutes, with leakage measured via bubble counting (≤1 bubble/minute for Class VI).
• Operational Testing: The valve is cycled 50 times (open-close) to verify torque consistency (≤100 N·m for DN200 PN10) and smooth disc movement. Automated actuators are calibrated to 4–20mA control signals to ensure precise position feedback.
• Final Inspection: Each valve is visually inspected for surface defects, laser-etched with size, pressure rating, and serial number (for traceability), and packaged with MTRs, test reports, and compliance certificates.

V. Product Advantages

A. Superior Corrosion Resistance & Media Compatibility

B. Bubble-Tight Sealing for Hazardous or Clean Media

C. Cost-Effective Durability

D. Easy Installation & Low Maintenance

• Wafer Connection: Reduces installation time by 25% compared to flanged valves, as no dedicated valve flanges are required. This is particularly valuable during plant shutdowns, where time is a critical constraint—cutting installation labor costs by $5k per shutdown for a facility with 50 valves.
• Low Torque Operation: Lever control for DN200 models eliminates the need for actuators in basic on-off service, reducing upfront costs by 20–30% for small-scale facilities.
• Minimal Maintenance: The PTFE lining’s non-stick properties and 2507 disc’s wear resistance reduce maintenance frequency to 1 inspection every 3 years—vs. 1–2 inspections per year for unlined valves. This cuts labor costs by 60% and minimizes unplanned downtime.

E. Energy Efficiency

VI. Product Applications

A. Chemical Processing Industry

• Acid/Base Handling: Controls flow of hydrochloric acid, sulfuric acid, and sodium hydroxide in batch or continuous process lines (e.g., chemical synthesis, metal pickling). The full PTFE lining prevents corrosion, while the concentric line design ensures low-torque operation for frequent on-off cycles.
• Solvent Transfer: Manages toxic organic solvents (e.g., methanol, acetone) in pharmaceutical or specialty chemical manufacturing, with leak-tight sealing to prevent worker exposure and regulatory non-compliance.
• Pigment & Dye Manufacturing: Handles viscous, corrosive pigment slurries with the full-bore, non-stick PTFE lining—reducing blockage and maintenance frequency.

B. Water Treatment & Desalination

• Seawater Desalination: Resists saline corrosion in reverse osmosis (RO) feed lines and brine discharge systems, a common pain point for unlined valves. The 2507 disc withstands high-salinity fluid, while the PTFE lining prevents body degradation.
• Wastewater Treatment: Controls chlorinated wastewater or acidic effluent (e.g., from metal plating facilities) with the 2507 disc and PTFE lining, preventing corrosion and extending service life to 5+ years.

C. Pharmaceutical & Food Beverage Manufacturing

• Sterile Fluid Processing: Complies with FDA standards for handling sterile drug ingredients, with Class VI sealing to prevent contamination. The PTFE lining’s non-toxic properties ensure compliance with food and drug safety regulations.
• Food Processing: Manages acidic food fluids (e.g., citrus juice, vinegar) with the non-toxic PTFE lining, ensuring no chemical leaching into the product.

D. Electroplating & Metal Finishing

• Acid Plating Baths: Controls flow of sulfuric acid or nickel plating solutions, with the 2507 disc resisting pitting corrosion from plating chemicals. The PTFE lining prevents the body from reacting with acidic bath fluids.

E. Pulp & Paper Industry

• Bleaching Process Lines: Handles chlorine dioxide or caustic soda bleaching solutions, with the PTFE lining resisting chemical degradation and preventing contamination of paper products. The concentric line design ensures low-torque operation for frequent process adjustments.
