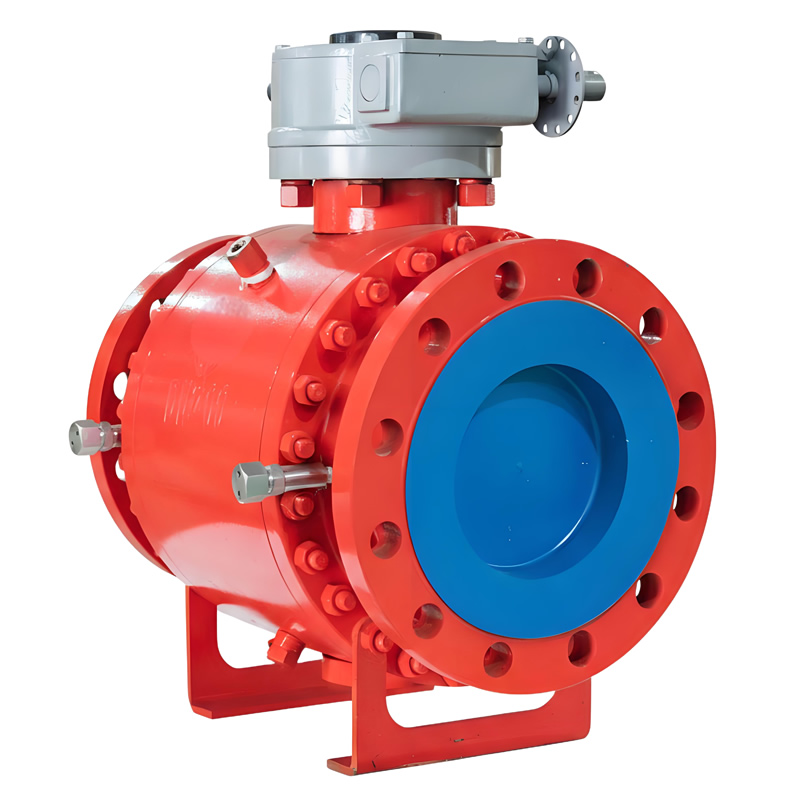

TIANYU A105 Carbon Steel Flanged Fixed Ball Valve – DN200 PN40 High-Pressure Flow Control Solution for Industrial Gas, Oil & Water Systems with API 608/ASME B16.34 Compliance

I. Product Overview

II. Key Attribute Specifications

A. Dimensional & Pressure-Temperature Parameters

• Port Size: DN200 (8”) as the primary size, with a full-port configuration as standard. The full-port design ensures the valve’s internal bore matches the pipeline diameter (200mm), minimizing pressure drop (Cv value up to 850) and enabling pipeline pigging/cleaning—critical for high-flow applications like gas transmission or industrial water distribution. Reduced-port options are available for cost-sensitive, low-flow scenarios (e.g., chemical dosing lines).
• Pressure Rating: PN40 (6.4MPa), equivalent to Class 40, with optional pressure ratings extending from PN16 (Class 150) to PN100 (Class 600) for ultra-high-pressure applications. Hydrostatic testing follows API 598: 1.5× rated pressure (9.6MPa) for the valve shell (body/bonnet) and 1.1× rated pressure (7.04MPa) for seats, with no leakage, sweating, or structural deformation permitted.
• Temperature Range: -29℃ to 425℃, optimized for A105 carbon steel’s thermal stability and hard-seal compatibility. This range covers ambient industrial media, heated process fluids (e.g., steam-assisted gas transmission), and low-temperature storage applications (e.g., chilled industrial water).

B. Material Composition

• Valve Body & Bonnet: A105 carbon steel (ASTM A105), a forged material with tensile strength of 485–655MPa and yield strength ≥240MPa. The material undergoes normalizing heat treatment (900–950℃, air-cooled) to relieve internal stresses from forging, enhance machinability, and improve impact resistance—critical for withstanding cyclic pressure loads in high-pressure systems.
• Ball & Trunnions: Solid A105 carbon steel ball (ASTM A105) with a precision-ground surface finish (Ra ≤0.2μm) for uniform sealing contact. Trunnions (upper and lower) are integral to the ball, manufactured from the same A105 material and surface-hardened (HRC 30–35) to reduce wear. For abrasive media (e.g., gas with fine particles or water with sediment), the ball’s sealing surface is hard-faced with Stellite 6 (cobalt-chromium alloy, HRC ≥58) to extend service life by 3–5 times.
• Seal Materials:
  • Hard Seal: Metal-to-metal sealing with Stellite 6 overlay on valve seats, delivering ANSI/FCI Class IV leakage performance—ideal for high-temperature, high-pressure applications where soft seals (PTFE) would degrade or fail.
  • Optional Soft Seal: PTFE/RPTFE for low-temperature, non-abrasive media (e.g., purified industrial water or natural gas), providing ANSI/FCI Class VI bubble-tight sealing (near-zero leakage).
• Valve Stem: A105 carbon steel or 17-4PH precipitation-hardened stainless steel (for enhanced corrosion resistance). The stem features an anti-blowout design to prevent ejection under pressure and is sealed with graphite-impregnated PTFE packing to minimize fugitive emissions (compliant with ISO 15848-1 Class BH).
• Flanges & Fasteners: Integral flanges machined to ASME B16.5 standards with a Raised Face (RF) finish for secure gasket seating. Fasteners are ASTM A193 B7 alloy steel bolts and ASTM A194 2H nuts, offering high tensile strength (≥827MPa) and resistance to vibration-induced loosening—critical for maintaining flange integrity in high-pressure systems.
• Gaskets: Spiral-wound gaskets (carbon steel with graphite filler) complying with ASME B16.20, ensuring leak-tight flange sealing under pressure and temperature fluctuations.

C. Connection & Operational Features

• Connection Type: Flanged (ANSI B16.5/ASME B16.47) as standard, with a Raised Face (RF) finish. The flanged design enables secure bolted installation between pipeline flanges, eliminating the need for welding and simplifying maintenance. Optional Ring Type Joint (RTJ) flanges are available for PN64+ (Class 300+) high-pressure systems (e.g., offshore gas pipelines) to enhance sealing reliability.
• Drive Options:
  • Manual: Worm gear operation as standard for DN200, reducing torque requirements by 5–10 times and enabling single-person operation. A lever option is available for smaller sizes (DN50–DN150), requiring 90-degree rotation for full open/close.
  • Pneumatic: Double-acting (compressed air for both opening and closing) or spring-return (auto-close/open on air supply loss) actuators. Cycle times for DN200 range from 15–30 seconds, making spring-return models ideal for emergency shutdowns in gas or oil systems.
  • Electric: Quarter-turn electric actuators with 4–20mA control signals, enabling remote monitoring and integration with SCADA/DCS systems. IP67-rated enclosures ensure protection against dust and water, suitable for outdoor or harsh industrial environments.
  • Hydraulic/Electro-Hydraulic: For ultra-high-torque applications (DN300+ or PN100+), providing precise control in heavy-industry settings (e.g., large-scale petrochemical plants).
• Functional Features:
  • Fixed Ball Design: Trunnion support eliminates seat deformation under high pressure, ensuring consistent sealing and low operational torque.
  • Bidirectional Sealing: Dual seats (upstream/downstream) enable reliable shut-off in both flow directions, simplifying pipeline design and eliminating installation direction constraints.
  • Anti-Static Device: A conductive spring connecting the ball, stem, and body dissipates static charges (resistance ≤10Ω)—critical for gas applications to prevent spark-induced explosions.
  • Fire-Safe Design: Compliant with API 607, ensuring metal-to-metal sealing if non-metallic components (e.g., packing) degrade in a fire, preventing catastrophic media release.

D. Certifications & Compliance

• Design & Manufacturing Standards: API 608 (fixed ball valves), ASME B16.34 (valve pressure-temperature ratings), ASME B16.5 (flange dimensions), API 598 (valve testing and inspection), ISO 9001 (quality management system).
• Material Certifications: ASTM A105 (valve body/bonnet), ASTM A193/A194 (fasteners), ISO 15848-1 (fugitive emissions).
• Regional Approvals: CE (EU safety compliance), ATEX (optional for explosive gas atmospheres), IECEx (global hazardous area compliance), NACE MR0175 (optional for sour gas service with H₂S).

III. Feature Description

A. Fixed Ball (Trunnion-Mounted) Design: Stability in High Pressure

• Pressure Force Distribution: Fluid pressure acts on the ball, but trunnions transfer these forces to robust bearings—preventing the ball from shifting into the valve seats. This eliminates seat deformation, a common issue in floating ball valves that increases operational torque and shortens seal life. In a DN200 PN40 natural gas pipeline, this design maintains consistent sealing for 8–12 years, compared to 3–5 years for floating ball alternatives.
• Low Operational Torque: Trunnion support reduces friction between the ball and seats, lowering torque requirements by 40–50% compared to floating ball valves. A DN200 worm gear-operated model requires only 90 N·m of torque to operate—enabling manual operation without specialized tools, even in high-pressure systems.
• High-Pressure Resilience: The trunnion structure withstands PN40–PN100 pressures without structural failure. In a petrochemical plant’s high-pressure gas feed line (PN64), the valve handles 9.6MPa pressure spikes without leakage, outperforming floating ball valves that risk seat damage under such conditions.

B. A105 Carbon Steel Construction: Strength & Cost-Effectiveness

• High-Pressure Strength: Forged A105 offers superior tensile and yield strength compared to cast carbon steels (e.g., WCB), making it suitable for PN40–PN100 high-pressure applications. In hydrostatic testing, the A105 body withstands 9.6MPa (1.5× PN40) without deformation—ensuring safety in over-pressure scenarios (e.g., pump surges).
• Cost-Effectiveness: A105 is more affordable than stainless steel (e.g., 304/316) while delivering comparable strength in non-corrosive or mildly corrosive media. For large-scale projects (e.g., municipal gas networks with 100+ valves), this translates to 30–40% cost savings without compromising performance.
• Machinability & Weldability: A105’s excellent machinability enables precision CNC machining of critical surfaces (flanges, trunnion seats), ensuring dimensional accuracy within ±0.05mm. Its weldability allows for on-site modifications or repairs—critical for remote pipeline installations where valve replacement is time-consuming and costly.
• Thermal Stability: A105 retains its mechanical properties up to 425℃, making it suitable for heated media applications (e.g., steam-assisted oil recovery or industrial process gas lines) where lower-grade carbon steels would soften or deform.

C. Hard-Seal Performance: Reliability in Harsh Environments

• High-Temperature Compatibility: Stellite 6 hard-facing retains its hardness (≥58 HRC) up to 425℃, making the valve suitable for high-temperature media (e.g., industrial steam or heated gas) where soft seals (PTFE) would degrade rapidly. In a power plant’s steam auxiliary line, the hard-seal valve operated reliably for 10 years, while a soft-sealed valve required quarterly seat replacements.
• Abrasive Media Resistance: The hard-sealed surface resists wear from particulate-laden media (e.g., natural gas with fine sand or water with sediment). In a rural water distribution system, the valve withstood abrasive sediment for 8 years, outperforming soft-sealed valves that failed within 2 years due to seat wear.
• Leak-Tight Sealing: The precision-ground metal-to-metal seal achieves ANSI/FCI Class IV leakage performance (≤0.1×DN mm³/min for gas), preventing fugitive emissions of hazardous media. This compliance with environmental regulations (e.g., EPA Methane Rules) avoids costly fines and reduces safety risks in industrial or residential areas.

D. Multi-Drive Adaptability: Flexibility for Diverse Operations

• Manual Operation: Worm gear operators enable easy manual control of DN200 valves, ideal for remote locations or low-frequency use (e.g., emergency isolation in gas storage facilities). The ergonomic handwheel and 90-degree rotation reduce operator fatigue, even during frequent use.
• Pneumatic Actuation: Spring-return pneumatic actuators provide critical fail-safe operation—auto-closing the valve if air supply fails, a non-negotiable feature for gas pipelines or oil refineries. Double-acting pneumatic actuators offer rapid cycle times for high-frequency applications (e.g., batch processing in chemical plants), improving operational efficiency.
• Electric Actuation: Electric actuators with remote control capabilities integrate seamlessly with SCADA/DCS systems, enabling centralized monitoring and control. For large industrial facilities or cross-country pipelines, this eliminates the need for on-site operators, reducing labor costs and safety risks associated with manual intervention.
• Hydraulic/Electro-Hydraulic Actuation: For ultra-high-torque applications (DN300+ or PN100+), hydraulic actuators deliver precise control in heavy-industry settings (e.g., offshore oil platforms or large-scale petrochemical plants), where manual or electric actuation would be impractical.

E. Flanged Connection: Secure Installation & Maintenance Ease

• Leak-Tight Sealing: Bolted flanges distribute clamping force evenly across the gasket, ensuring a secure seal even under vibration or pressure fluctuations. In a DN200 gas pipeline, this design prevented fugitive emissions of natural gas, meeting strict safety standards for residential and industrial areas.
• Easy Installation & Retrofit: Flanges align with standard pipeline components, reducing installation time by 30% compared to welded valves. When upgrading an existing system, the valve can be installed without cutting the pipeline—minimizing downtime for utilities or industrial plants.
• Simplified Maintenance: Flanged valves can be disassembled for seat replacement or stem packing adjustment without removing the valve from the pipeline. In a petrochemical plant, this reduced maintenance time for DN200 valves from 8 hours (welded valves) to 2 hours—critical for continuous-process operations where unplanned downtime costs thousands of dollars per hour.

IV. Manufacturing Processes

A. Material Inspection & Preparation

• A105 Carbon Steel Verification: Forged A105 billets are tested via spectral analysis to confirm chemical composition (C: 0.25–0.35%, Mn: 0.60–1.00%, P ≤0.035%, S ≤0.035%) and ultrasonic testing (UT) to detect internal defects (porosity, cracks, inclusions). Mechanical testing (tensile strength, impact resistance, hardness) ensures compliance with ASTM A105 standards, with results documented in Material Test Reports (MTRs) for full traceability.
• Heat Treatment: A105 billets undergo normalizing (900–950℃, air-cooled) to relieve internal stresses from forging, improve machinability, and enhance impact resistance. This step is critical for preventing fatigue cracking in high-pressure cyclic operations.
• Hard-Seal Material Validation: Stellite 6 alloy is tested for hardness (≥58 HRC) via Rockwell testing and chemical composition (Co: 50–60%, Cr: 25–30%, W: 4–6%) to ensure wear resistance in abrasive media.

B. Valve Body & Ball Fabrication

• Body Manufacturing: A105 valve bodies and bonnets are produced via forging (for DN200) to ensure material density and structural integrity—forging eliminates internal defects common in cast components, which is critical for high-pressure applications. Forged blanks are cleaned via shot blasting to remove scale and surface impurities.
• CNC Machining: Critical surfaces—including flange faces, trunnion bearings, and seat pockets—are machined using 5-axis CNC centers. Flange faces are machined to ASME B16.5 flatness (≤0.05mm/m) and surface finish (Ra ≤3.2μm) for proper gasket seating. The ball’s spherical surface is ground to Ra ≤0.2μm using a spherical grinder, ensuring uniform contact with the hard seal. Trunnion seats are machined to a tolerance of ±0.02mm to ensure proper ball alignment.
• Hard-Seal Application: Stellite 6 is applied to valve seats via plasma transfer arc (PTA) welding—a precise process that minimizes heat input and prevents distortion of the A105 body. The welded surface is then ground to match the ball’s curvature, with a final lapping step to achieve ANSI/FCI Class IV leakage performance.

C. Trunnion & Actuator Integration

• Trunnion & Bearing Installation: Upper and lower trunnions are press-fitted into the valve body, with PTFE-impregnated bronze bearings to reduce friction. Bearings are lubricated with high-temperature grease (resistant to 200℃) to ensure smooth operation over thousands of cycles.
• Ball & Stem Assembly: The ground A105 ball is inserted into the body, and the stem is connected via a drive key—ensuring torque transfer during operation. The stem packing (graphite-PTFE) is installed in layers, with controlled compression (10–15% compression rate) to balance sealing performance and operational torque.
• Drive Mounting: Actuators (manual worm gear, pneumatic, electric) are mounted via an ISO 5211 adapter flange, with laser alignment to ensure coaxiality (stem runout ≤0.05mm)—preventing binding or premature wear. For pneumatic/electric actuators, limit switches are calibrated to trigger at fully open/closed positions, protecting seals from over-travel.

D. Quality Testing & Certification

• Hydrostatic Testing: Per API 598, the valve shell is tested at 1.5× rated pressure (9.6MPa) for 30 minutes—no leakage, sweating, or deformation is allowed. Seat testing is performed at 1.1× rated pressure (7.04MPa), with leakage measured via bubble counting (≤1 bubble per minute for Class IV).
• Pneumatic Testing: For gas service, the valve is tested with nitrogen at 0.6MPa to confirm airtight sealing—critical for preventing gas leaks in hazardous environments.
• Operational Testing: The valve is cycled 100 times (open/close) to verify smooth operation, consistent torque, and actuator response. Manual override (for pneumatic/electric models) is tested to ensure functionality during emergencies.
• Non-Destructive Testing (NDT): Welds (e.g., Stellite 6 seat welds) undergo liquid penetrant testing (PT) to detect surface cracks; the A105 body and trunnions are inspected via magnetic particle testing (MPI) to confirm structural integrity.
• Fugitive Emissions Testing: Per ISO 15848-1, the valve is tested for fugitive emissions at the stem and body-bonnet joint, meeting Class BH standards (≤100 ppmv for methane).

E. Final Inspection & Documentation

• Visual Inspection: The valve is checked for surface defects (scratches, dents), proper marking (size, pressure rating, material, serial number), and compliance with ASME B16.34. Marking is permanent (laser-etched) for traceability in industrial systems.
• Documentation: Each valve includes an MTR for A105 carbon steel, hydrostatic/pneumatic test reports, fugitive emissions test certificates, and compliance documents (API 608, ISO 9001). For hazardous area applications, ATEX/IECEx certificates are provided to confirm compliance with global safety standards.

V. Product Advantages

A. High-Pressure Reliability

B. Extended Service Life

C. Cost-Effective Performance

D. Safety for Hazardous Applications

E. Flexibility Across Industries

VI. Product Applications

A. Gas Industry

• Natural Gas Transmission: DN200 PN40 valves control flow in cross-country gas pipelines. The full-port design minimizes pressure drop, reducing pumping energy costs, while the hard-seal configuration resists wear from pipeline debris. Spring-return pneumatic actuation provides emergency shutdown capability, preventing leaks during supply interruptions.
• Municipal Gas Distribution: DN100–DN200 valves regulate gas flow in residential, commercial, and industrial distribution networks. The flanged connection simplifies installation in existing pipelines, while the anti-static feature eliminates spark risks in populated areas.
• LPG/Propane Storage & Handling: DN50–DN200 valves with hard seals manage LPG flow in storage terminals and filling stations. The metal-to-metal seal withstands high vapor pressures, ensuring leak-tight performance in high-pressure storage systems.

B. Oil & Petrochemical Industry

• Refinery Gas Processing: PN40–PN64 valves control flow of hydrocarbon gases (e.g., methane, ethane) in refining processes. A105 carbon steel resists corrosion from hydrocarbon byproducts, while the fixed ball design ensures stable sealing under pressure fluctuations.
• Crude Oil Transmission: DN200–DN300 valves regulate crude oil flow in pipeline networks. The full-port design minimizes pressure drop, improving pumping efficiency, and the hard-seal configuration resists wear from sediment in crude oil.
• Petrochemical Reactors: DN150–DN200 valves with electric actuation regulate gas feedstock flow to reactors, enabling precise control of batch processing. Bidirectional sealing simplifies pipeline design, as the valve can be installed without flow direction constraints.

C. Power Generation

• Fossil Fuel Power Plants: DN200–DN400 valves regulate steam and gas flow in boilers, turbines, and flue gas systems. The hard-seal design withstands high temperatures (up to 425℃) in steam auxiliary lines, while the flanged connection simplifies maintenance during scheduled outages.
• Biogas Plants: DN100–DN200 valves control biogas flow in anaerobic digestion systems. A105 steel resists corrosion from moisture and organic compounds, ensuring long service life in humid environments. The anti-static feature eliminates spark risks in biogas storage areas.

D. Water & Wastewater Treatment

• Industrial Water Distribution: DN200–DN300 valves manage high-pressure industrial water flow in manufacturing facilities. The full-port design maximizes flow efficiency, while the hard-seal configuration resists wear from sediment in water lines.
• Wastewater Treatment: DN100–DN200 valves control flow of wastewater and biogas in treatment plants. The flanged connection enables easy integration with existing infrastructure, and the hard-seal design prevents clogging from solids in wastewater.

E. General Industrial Applications

• Manufacturing Process Lines: DN50–DN200 valves handle high-pressure process fluids (e.g., chemicals, compressed air) in manufacturing facilities. Multi-drive options (manual/pneumatic/electric) cater to diverse operational needs, from low-frequency manual control to high-frequency automated operation.
• Mining & Metallurgy: DN150–DN300 valves regulate gas and water flow in smelting and metal processing operations. A105 steel’s strength withstands high-pressure gas injection systems, while the hard-seal design resists abrasive particles in process media.

VII. Customization
