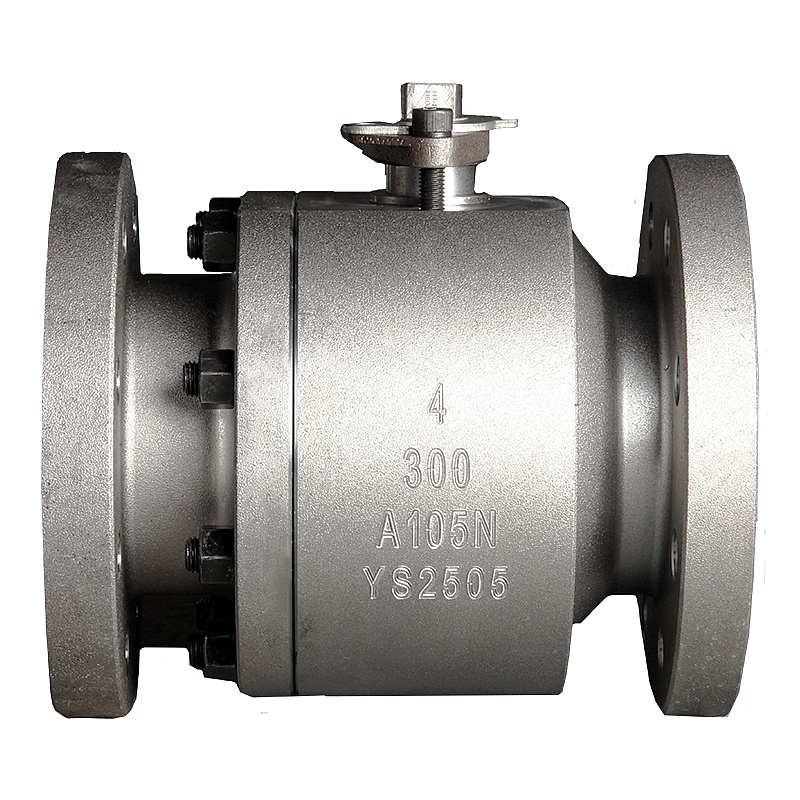

TIANYU API 608 ASME B16.34 CE Certified DN15-DN200 PN10-PN40 Class 150-300 A105 Forged Steel 3PC Floating Ball Valve – Flange Connection Manual/Pneumatic/Electric Operation for Oil & Gas Petrochemical Industrial Piping

I. Product Overview

II. Important Attribute Specifications

A. Material Composition

• Valve Body, Bonnet & End Flanges: A105 Forged Carbon Steel (ASTM A105), a forged carbon steel alloy optimized for valve manufacturing. Its chemical composition (C: 0.25–0.35%, Mn: 0.60–1.05%, Si: 0.10–0.35%, P/S ≤0.035%) delivers tensile strength ≥485MPa, yield strength ≥240MPa, and impact toughness ≥27J at -20℃—sufficient to withstand high-pressure loads and cyclic thermal expansion. Forged via precision hydraulic pressing, the body eliminates porosity and internal defects common in cast alternatives, ensuring structural integrity under extreme conditions. Optional F316 stainless steel (ASTM A182 F316) for enhanced corrosion resistance in chloride-rich environments.
• Ball: Forged A105 carbon steel (standard) or F304/F316 stainless steel (optional), with full-port design to minimize pressure drop. The ball surface is precision-lapped to Ra ≤0.4μm for uniform sealing contact, and optional Stellite (cobalt-chromium alloy) overlay is available for extreme wear resistance in abrasive media (e.g., sand-laden oil, slurries).
• Stem: Forged F304/F316 stainless steel (ASTM A276), featuring an anti-blowout design to prevent ejection under high pressure. The stem undergoes solution annealing and polishing (Ra ≤0.4μm) to reduce friction with packing, ensuring smooth operation and minimizing fugitive emissions.
• Seat: Dual-seat design with A105/SS304 metal base and replaceable inserts. PTFE (Polytetrafluoroethylene, ASTM D4894) inserts for chemical inertness (temperature -20℃ to 150℃), compatible with most non-oxidizing media. EPDM (Ethylene Propylene Diene Monomer, ASTM D2000) inserts for flexibility and steam compatibility (temperature -40℃ to 120℃). Metal-seat (Stellite overlay) inserts for high-temperature service (up to 425℃) and abrasive media. All seat inserts are preloaded with stainless steel springs for self-compensating sealing, accommodating minor wear or thermal expansion.
• Packing & Gaskets: Multi-layer flexible graphite packing with PTFE inner ring (complying with ISO 15848-1 Class AH for low fugitive emissions) for stem sealing. Bonnet gaskets are spiral-wound graphite with F304 metal reinforcement (ASME B16.20), ensuring tight sealing under thermal cycling and pressure fluctuations. Flange gaskets are non-asbestos fiber-reinforced rubber or spiral-wound graphite, compatible with ASME B16.5 flanges.
• Fasteners: A193 B7 carbon steel bolts (ASTM A193) and A194 2H carbon steel nuts (ASTM A194) for A105 body flanges—providing uniform clamping force. For corrosive environments, optional A193 B8M stainless steel bolts (SS316) and A194 8M nuts are available.

B. Dimensional & Pressure-Temperature Parameters

• Port Size (DN/NPS): DN15 (1/2”) to DN200 (8”), full-port design (bore diameter equal to nominal pipe size) to optimize flow efficiency. Flow coefficient (Cv) ranges from 15 (DN15) to 220 (DN200), minimizing pressure drop and energy consumption in high-flow applications.
• Pressure Rating: PN10 (1.0MPa), PN16 (1.6MPa), PN25 (2.5MPa), PN40 (4.0MPa) / Class 150, 300—aligned with ASME B16.34 pressure-temperature ratings for carbon steel valves. At 20℃, PN40 models withstand 4.0MPa, making them suitable for medium-to-high pressure industrial systems.
• Temperature Range: -29℃ to 425℃, depending on seat material. PTFE seats: -20℃ to 150℃; EPDM seats: -40℃ to 120℃; metal seats: -29℃ to 425℃.
• End Connections: Flange (ASME B16.5 Class 150/300), with Raised Face (RF) or Ring Type Joint (RTJ) sealing surfaces. Flange dimensions comply with global standards, ensuring compatibility with existing pipeline systems.
• Face-to-Face Dimensions: Compliant with API 608 and ASME B16.10, ranging from 90mm (DN15) to 356mm (DN200)—ensuring interchangeability with valves from other manufacturers for easy retrofitting.

C. Operational Performance Parameters

• Sealing Performance: ANSI/FCI 70-2 Class VI (soft-seal) for bubble-tight closure—leakage rate ≤0.1×DN mm³/min for liquid media. Metal-seal variants achieve Class IV sealing, suitable for high-temperature and abrasive media.
• Actuation Options:
  • Manual: Cast iron handwheel with anti-slip grip, enabling 90-degree rotation for on-off control. Worm gear operator optional for large-diameter valves (DN100+) to reduce operational torque.
  • Pneumatic: Double-acting or spring-return pneumatic actuators (ISO 5211 mounting), explosion-proof (Ex d IIC T4) for hazardous environments, air supply pressure 0.4–0.6MPa.
  • Electric: AC/DC electric actuators (IEC 60534), with remote control, position feedback, and torque limiting functions, compatible with SCADA systems.
• Operating Torque: 15N·m (DN15, PN10) to 200N·m (DN200, PN40) for manual operation—low enough for single-person control with a handwheel or worm gear.
• Cycle Life: ≥100,000 open/close cycles under normal operating conditions, with maintenance interval of 24–36 months.

D. Certifications & Compliance

• Design & Manufacturing Standards: API 608, ASME B16.34, ASME B16.5, CE PED 2014/68/EU, ISO 5208 (Industrial Valves—Pressure Testing of Valves).
• Quality & Environmental Certifications: ISO 9001 (Quality Management System), ISO 14001 (Environmental Management), ISO 45001 (Occupational Health and Safety).
• Material Certifications: EN10204 3.1/3.2 Material Test Certificates (MTC), NACE MR0175 (for sour service), FDA 21 CFR 177.2600 (for food-grade applications).

III. Feature Description

A. A105 Forged Steel Construction: Strength & Durability

• Structural Integrity: Forging compacts the metal grain, eliminating porosity, shrinkage, and internal cracks common in cast valves. This dense grain structure enhances tensile strength and resistance to cyclic pressure loads—critical for high-pressure applications (e.g., oil & gas transmission) where valve failure could have catastrophic consequences.
• Thermal Stability: A105 carbon steel maintains its mechanical properties across a wide temperature range (-29℃ to 425℃), making it suitable for high-temperature steam service (e.g., power generation) and low-temperature process applications (e.g., natural gas processing).
• Cost-Effectiveness: A105 is a cost-effective alternative to stainless steel for non-corrosive or mildly corrosive media, reducing upfront costs while maintaining performance and durability.

B. 3PC Body Design: Maintenance Flexibility

• On-Line Maintenance: The valve’s split-body design (body, bonnet, end flanges) allows internal components (ball, seats, stem) to be inspected, repaired, or replaced without removing the valve from the pipeline. This reduces downtime by 60–70% compared to one-piece or two-piece valves—critical for continuous-process facilities like refineries or chemical plants.
• Modular Versatility: End flanges can be configured with different standards (ASME B16.5) or sealing surfaces (RF/RTJ) on the same valve, accommodating non-standard pipeline setups and reducing the need for custom adapters.
• Enhanced Sealing: The bonnet is bolted to the body with uniform torque, ensuring a tight seal between the body and bonnet—preventing leakage even under high pressure and thermal cycling.

C. Floating Ball Design: Reliable Sealing

• Self-Sealing Mechanism: The ball is not supported by trunnions; instead, media pressure pushes the ball against the outlet-side seat, creating a tight seal. This self-sealing design eliminates the need for complex trunnion supports, reducing valve weight and manufacturing cost while maintaining sealing integrity.
• Bidirectional Sealing: The floating ball design enables reliable sealing in both flow directions, eliminating the need for check valves and simplifying pipeline design. This is particularly valuable in systems where media flow may reverse (e.g., oil & gas gathering lines).
• Low Operational Torque: The PTFE/EPDM seat’s self-lubricating properties reduce friction between the ball and seat, lowering operational torque—enabling manual operation for medium-diameter valves (up to DN200 PN40) with a handwheel or worm gear.

D. Advanced Sealing Systems: Leak-Free Operation

• Self-Compensating Seats: Stainless steel springs preload the seat inserts, ensuring constant contact with the ball. As the seat wears over time, the spring automatically pushes the seat forward—compensating for wear and maintaining sealing force. This extends seat life by 50% compared to non-compensating designs.
• Versatile Seat Options: PTFE seats offer chemical inertness for non-oxidizing media (acids, solvents), EPDM seats excel with water and steam, and metal seats handle high temperatures and abrasive media—covering most industrial applications.
• Low Fugitive Emissions: Multi-layer graphite packing meets ISO 15848-1 Class AH standards, limiting methane leakage to ≤100ppmv—complying with EU Industrial Emissions Directive and US EPA regulations, reducing environmental impact and avoiding fines.

E. Flexible Actuation: Adaptable to System Requirements

• Manual Operation: Cost-effective for small-to-medium diameter valves (DN15-DN100) or systems with infrequent operation. The anti-slip handwheel provides clear visual confirmation of valve position (parallel to pipeline = open; perpendicular = closed).
• Pneumatic Actuation: Fast, reliable operation for automated systems (e.g., batch processing lines). Spring-return actuators provide fail-safe functionality (open or closed on air failure), enhancing safety in hazardous environments.
• Electric Actuation: Ideal for remote or precision control (e.g., SCADA-integrated oil & gas pipelines). Torque limiting and position feedback features prevent overloading and enable real-time monitoring of valve status.

IV. Manufacturing Process & Quality Control

A. Raw Material Procurement & Inspection

• Material Sourcing: A105 forged blanks, stainless steel components, and seal materials are sourced exclusively from ISO 9001-certified suppliers, with each batch accompanied by a Material Test Certificate (MTC) detailing chemical composition, mechanical properties, and heat treatment history.
• Material Verification: Incoming A105 blanks undergo spectral analysis (XRF) to confirm chemical compliance with ASTM A105 standards. Tensile, yield, and impact tests are performed on sample specimens—e.g., A105 must meet tensile strength ≥485MPa and impact toughness ≥27J at -20℃.
• Non-Destructive Testing (NDT): Forged components (body, bonnet, ball) undergo ultrasonic testing (UT) to detect internal defects and magnetic particle testing (MPI) to inspect surface flaws. Only defect-free materials proceed to machining.

B. Forging & Heat Treatment

• Precision Forging: A105 steel billets are heated in a controlled-atmosphere furnace to 1100–1250℃, then forged into body, bonnet, and ball shapes using hydraulic presses (500–2000 tons). The forging ratio is maintained at ≥3:1 to ensure dense grain structure and uniform mechanical properties.
• Heat Treatment:
  • A105 components: Normalizing (890–920℃, air-cooled) to relieve forging stress and refine grain structure. Post-heat treatment hardness is 140–180 HB.
  • Stainless steel components (ball, stem): Solution annealing (1040–1150℃, water-cooled) to restore corrosion resistance.
• Descaling & Cleaning: Forged parts are shot-blasted to remove surface oxide scale, then cleaned with ultrasonic baths to eliminate residual contaminants.

C. Precision Machining

• Body & Bonnet Machining: CNC lathes and mills process flange faces, seat pockets, and stem bores. Flange faces are machined to flatness ≤0.02mm/m and surface roughness Ra 1.6μm. Seat pockets are honed to coaxiality ≤0.01mm relative to the bore, ensuring uniform ball-seat contact.
• Ball Machining: Forged balls are ground to spherical accuracy ≤0.005mm and lapped to Ra ≤0.4μm. Full-port bores are machined to match pipeline dimensions, with no sharp edges to minimize flow turbulence. Optional Stellite overlay is applied via welding and ground to precise dimensions.
• Stem Machining: Stems are turned and ground to diameter tolerance ±0.01mm and polished to Ra ≤0.4μm. The anti-blowout shoulder is precision-machined to engage the body securely.

D. Assembly & Comprehensive Testing

1. Component Cleaning: All parts (body, ball, seats, stem, packing) are degreased and ultrasonic-cleaned to remove oil, debris, and metal particles—preventing contamination of sealing surfaces.
2. Assembly Sequence: The floating ball is installed first, followed by the seats (with preloaded springs), stem, packing, and bonnet. Fasteners are tightened in a crisscross pattern to uniform torque (per ASME B18.2.1) to ensure even clamping force.
3. Pressure Testing:
   • Hydrostatic Shell Test: 1.5× rated pressure applied to the body cavity for 30 minutes—no leakage, deformation, or pressure drop permitted.
   • Hydrostatic Seat Test: 1.1× rated pressure applied to each seat (bidirectional) for 15 minutes—leakage measured via bubble counting, complying with ANSI/FCI Class IV/VI.
   • Pneumatic Test (Optional): 0.6MPa air pressure applied to the body and seats for 10 minutes—no audible leakage permitted.
4. Operational Testing: The valve is cycled 50 times (open-close) to verify smooth operation, consistent torque, and correct actuator performance (for pneumatic/electric models).
5. Specialized Testing:
   • Fugitive Emissions Test: ISO 15848-1 Class AH compliance verified with methane and flame ionization detector (FID).
   • Sour Service Test: For NACE MR0175-compliant valves, testing in H₂S-containing media to confirm corrosion resistance.

E. Final Inspection & Packaging

• Visual Inspection: Each valve is inspected for surface defects (scratches, dents), proper machining, and correct marking (DN, PN, TIANYU logo, certifications). Valves with surface scratches deeper than 0.05mm are rejected.
• Documentation: Each valve is shipped with a Documentation Package including MTC, Hydrostatic Test Certificate, EN10204 3.1/3.2 Certificate, and CE PED Declaration of Conformity.
• Packaging: Valves are packaged in plywood crates with foam insulation to prevent damage during transportation. Flange ends are capped with plastic protectors, and actuators are wrapped in waterproof film. Crates are labeled with handling instructions and product information for safe delivery.

V. Product Advantages

A. Exceptional Durability & Long Service Life

B. Reliable Sealing & Operational Safety

• Bubble-Tight Closure: Class IV/VI sealing prevents media leakage—critical for handling toxic, flammable, or high-value fluids (e.g., crude oil, natural gas). This eliminates product loss and environmental contamination risks.
• Safety Features: Anti-blowout stem, fire-safe design (optional API 607), and low fugitive emissions comply with global safety and environmental regulations. The floating ball design’s stability prevents valve failure under pressure surges, reducing accident risks in critical systems.
• Bidirectional Service: Eliminates the need for check valves, simplifying pipeline design and reducing potential failure points.

C. Low Lifecycle Costs

• Maintenance Savings: Three-piece design enables on-line maintenance, reducing downtime by 60% and labor costs by $15k–$50k per shutdown (depending on valve size). The 24–36 month maintenance interval minimizes operational disruptions.
• Energy Efficiency: Full-port design minimizes pressure drop, cutting pumping energy costs by 15–20% annually in continuous-flow systems (e.g., industrial pipelines). For a DN150 PN40 valve handling 5000m³/h of water, this saves ~$25k/year.
• Versatility: Wide material, pressure, and temperature ranges eliminate the need for multiple valve types across different process lines—reducing inventory costs and simplifying procurement.

D. Global Compatibility & Regulatory Compliance

E. Flexible Actuation & Adaptability

VI. Product Applications

A. Oil & Gas Industry

• Upstream: Wellhead manifolds, production gathering lines, and drilling mud systems. The valve’s high-pressure rating (PN40) and A105 forged construction handle crude oil, natural gas, and saltwater. Offshore platforms benefit from the valve’s durability and low maintenance needs.
• Midstream: Pipeline transmission systems for crude oil and natural gas. Full-port design minimizes pressure drop, while bidirectional sealing simplifies pipeline layout.
• Downstream: Refinery process lines (distillation, cracking), high-temperature steam systems, and product loading lines. The valve withstands 425℃ temperatures and corrosive process media (e.g., acids, solvents).

B. Petrochemical Industry

C. Power Generation Industry

• Thermal Power Plants: Boiler feedwater systems, steam lines, and flue gas desulfurization (FGD) systems. The valve’s high-temperature (up to 425℃) and high-pressure (PN40) capabilities handle steam and corrosive FGD media.
• Natural Gas Power Plants: Fuel gas supply lines and exhaust systems. The valve’s tight sealing prevents gas leakage, ensuring efficient combustion and safety.

D. Industrial Piping & General Manufacturing

• Chemical Processing: Handling of acids, alkalis, and solvents. Optional F316 stainless steel and PTFE seats provide chemical compatibility.
• Water Treatment: High-pressure water injection systems and chemical dosing lines. Corrosion-resistant materials handle chlorinated water and treatment chemicals.
• Automotive & Aerospace: Hydraulic systems and fuel lines. The valve’s durable construction withstands high-pressure hydraulic fluids and fuel media.
